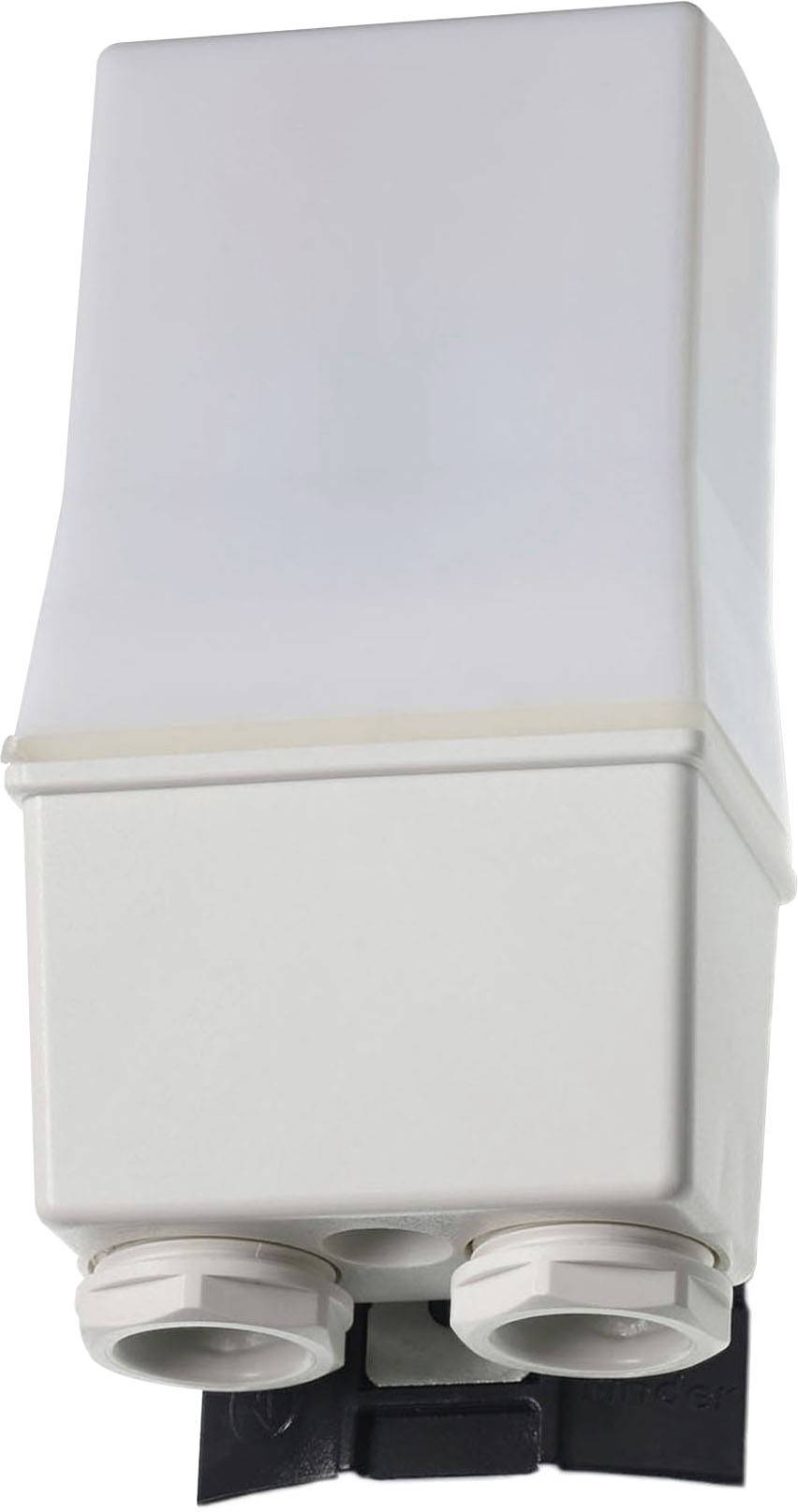

Finder 10.32.8.230.0000 Twilight switch White 230 V 0.25 min up to 30 s
EAN:
Part number:
Item no:
Number
Total (€ 36.13 / piece)
€ 36.13
plus VAT.
Only 8 Piece(s) available
Technical specifications
- Halogen-free: Yes
- Surface: Untreated
- On delay [s]: 15
- Switch-off delay [s]: 30
- Swivel: No.
- Material quality: Thermoplastic
- Max. Switching current (resistive load) [A]: 16
- Material: Plastic
- Operating temperature [°C]: -30 - 70
- Switch-off brightness [lx]: 1- 80
- Suitable for C load: Yes
- Switch-on brightness [lx]: 1- 80
- RAL number (similar): 7035
- Design of the sensor: Light sensor installed
- Transparent: No.
- Surface type: Matt
- Suitable for protection class (IP): IP54
- With automatic night switch-off: No.
- Product type
Twilight switch
- Operating voltage
230 V
- Max. switching capacity
2300 W
- Time range (min.)
0.25 min
- Timing range (max.)
30 s
- Timing range
0.25 min up to 30 s
- Factory colour
White
230 V
Surface mounted (plaster)
White
58.6
TRUE
110.6 mm
40 mm
Untreated
Thermoplastic
Plastic
-30-70 °C
FALSE
Glossy
IP54
FALSE
FALSE
FALSE
FALSE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2474496 Finder 10.32.8.230.0000 Twilight switch White 230 V 0.25 min up to 30 s
Description
Twilight switch for outdoor installation, IP 54, 2 normally open contacts 16 A, contact material AgSnO2, max. inrush current 120 A for 5 ms, max. switching power at 230 V AC: AC1 3700 VA, lamp loads: Incandescent and halogen lamps 2300 W, energy-saving lamps 500 W, LED (230 V AC) 500 W, LV halogen lamps or LED with EVG 500 W, LV halogen lamps or LED with KVG 1000 W, fluorescent lamps with EVG 1200 W, fluorescent lamps with KVG 850 W, with LED, including adapter for pole mounting, switching threshold: Switch-on threshold: 1-80 Lux, operating voltage 230 V AC
