Buy Fischer 503417 SXR 6 x 50 Z K NV Plug (long) 50 mm 1 Set

A grey SX-R wall plug and a metal screw are lying next to each other. The wall plug displays arrow markings indicating the direction of the screw.

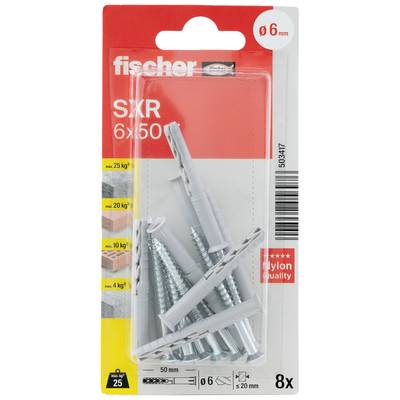

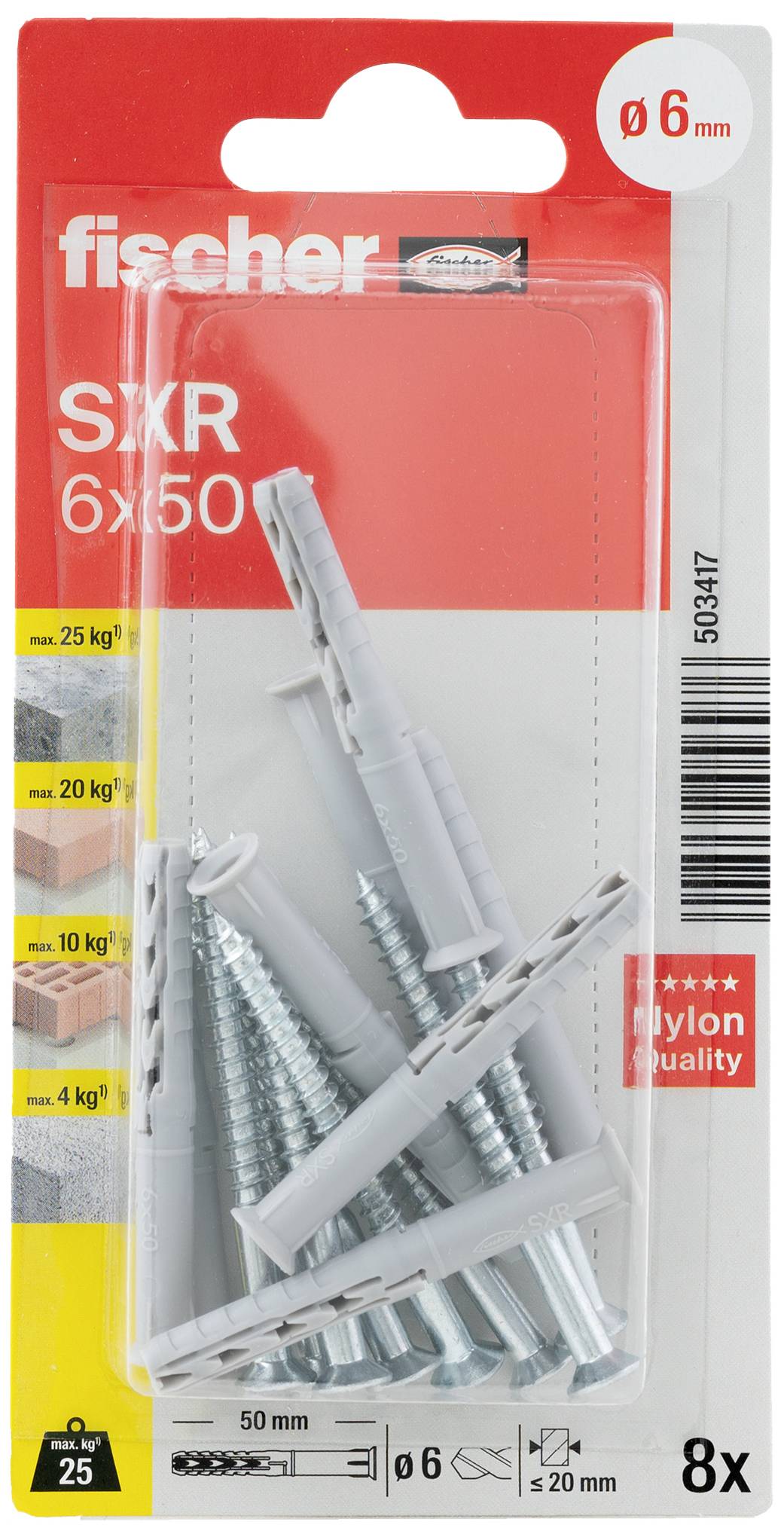

Pack of Fischer SXR 6x50 universal wall plugs and screws, suitable for various materials, max. load capacity 25 kg. Contents: 8 pieces.

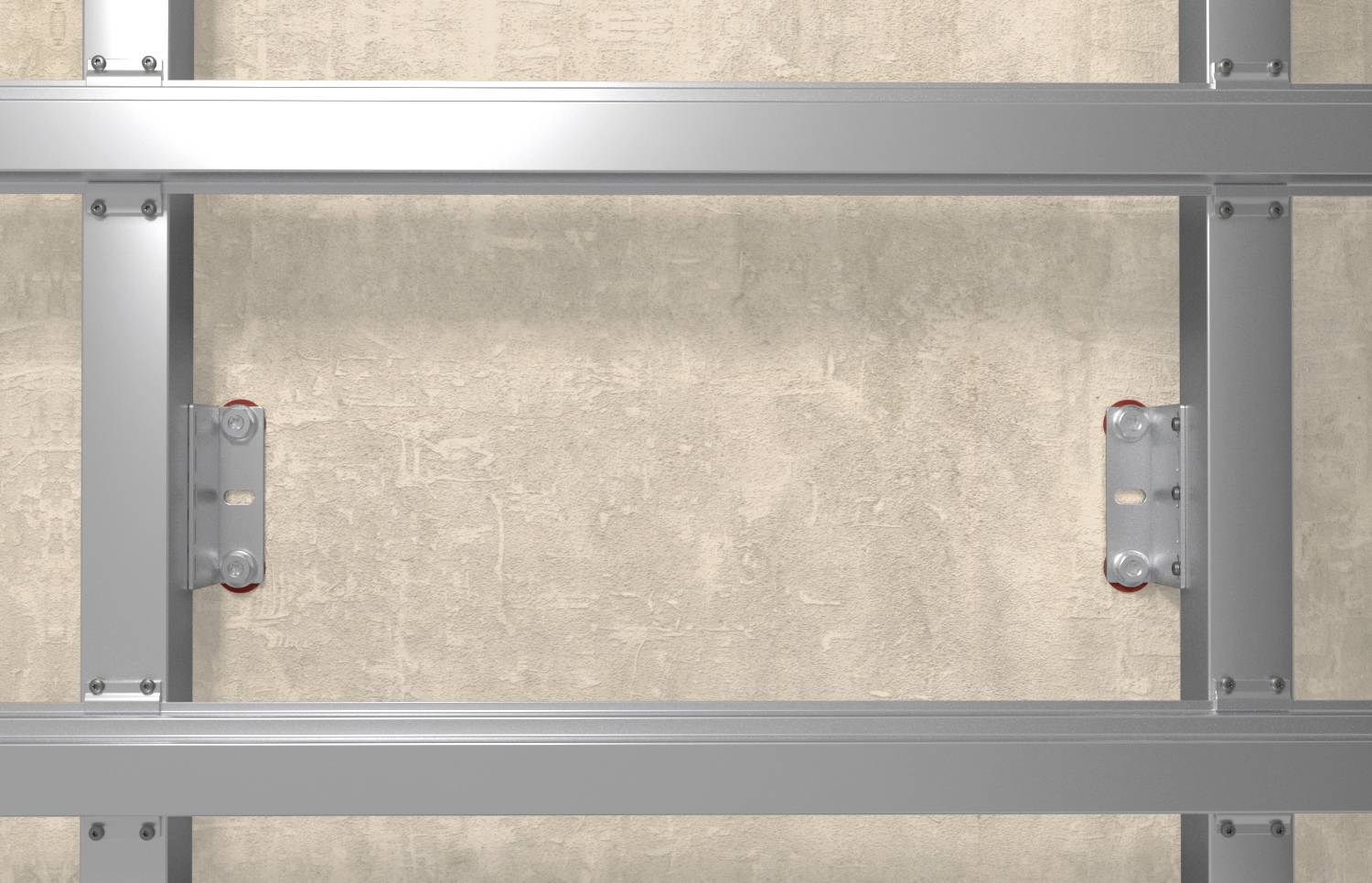

Metal frame in front of a beige wall. Rectangular structures, potentially part of a building construction or shelving system.

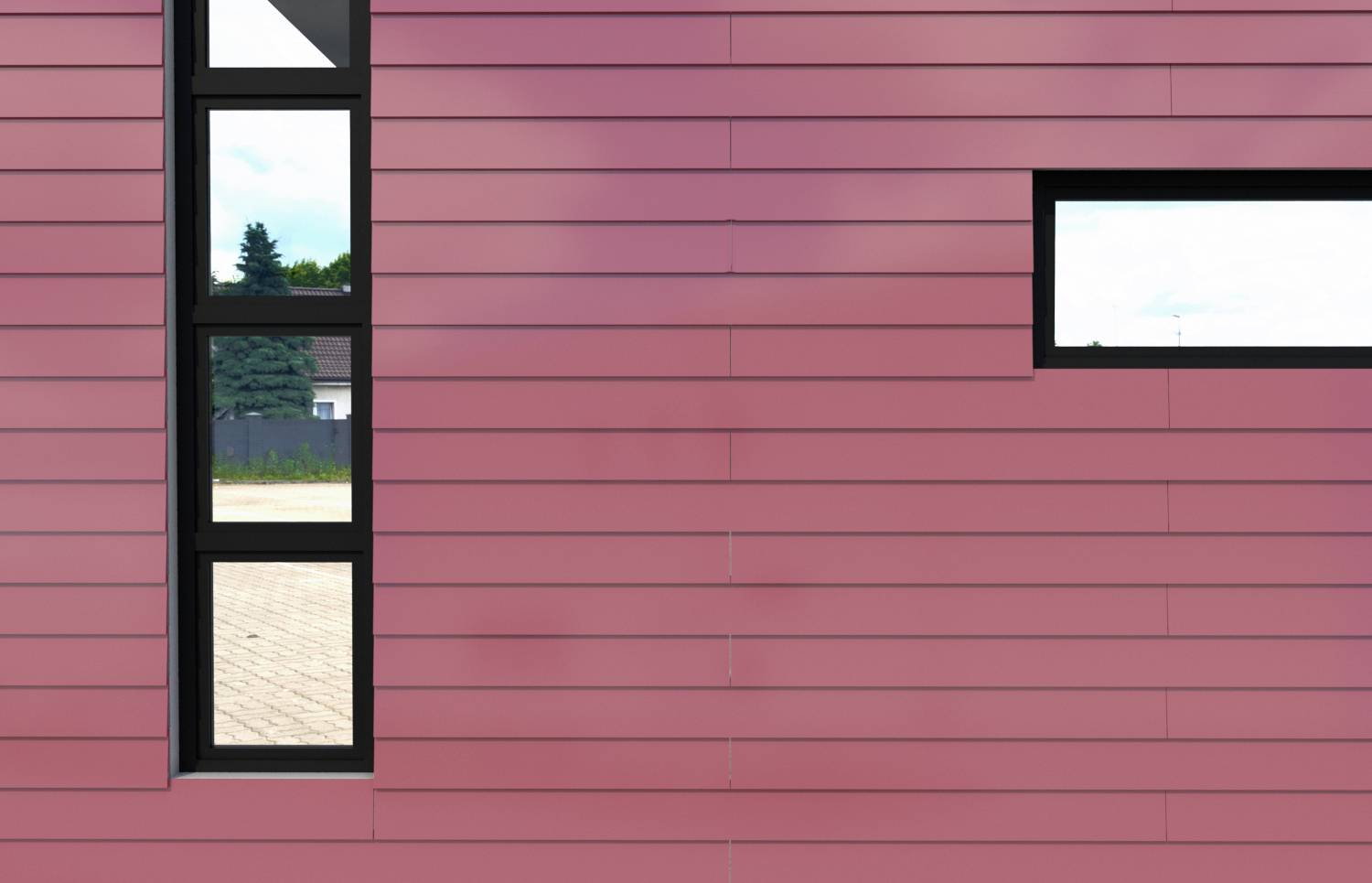

'Facade of a building with horizontal red panels and two differently shaped windows, forming vertical and horizontal lines.'

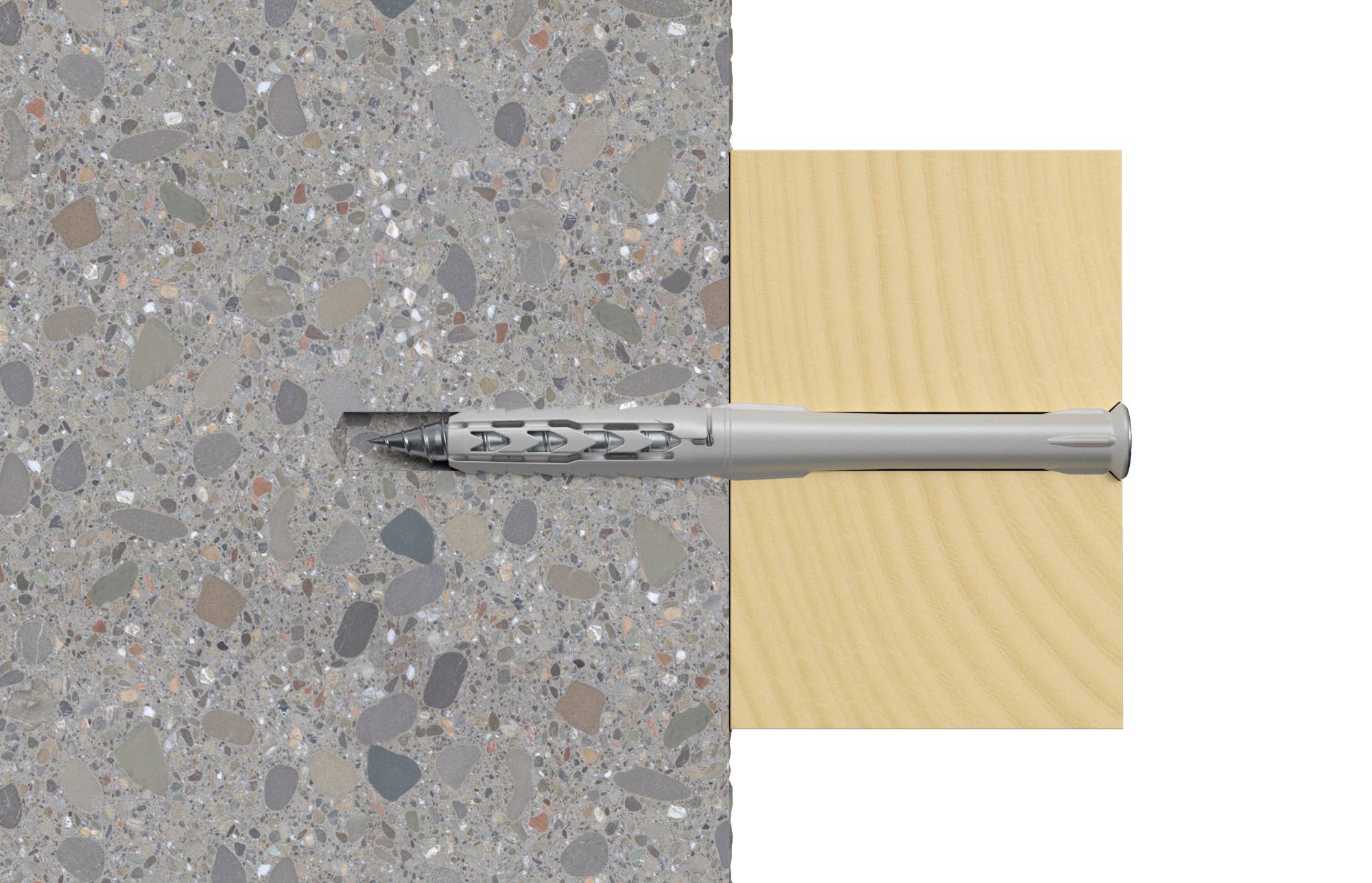

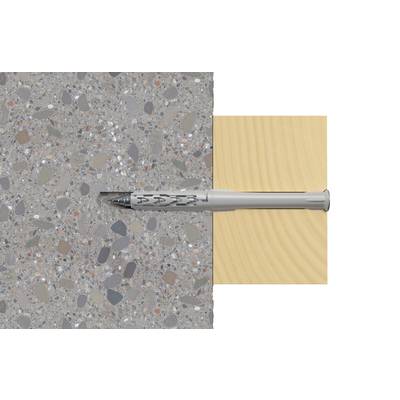

'Fixing System': A plastic wall plug in a concrete wall holding a wooden board. Shown in a cross-section to illustrate the function.

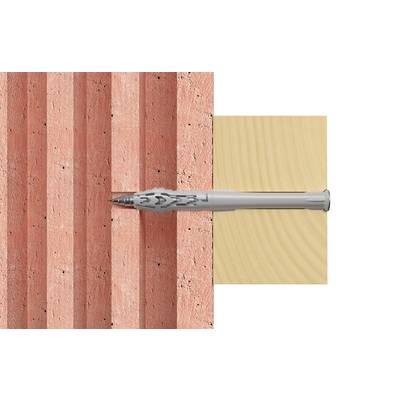

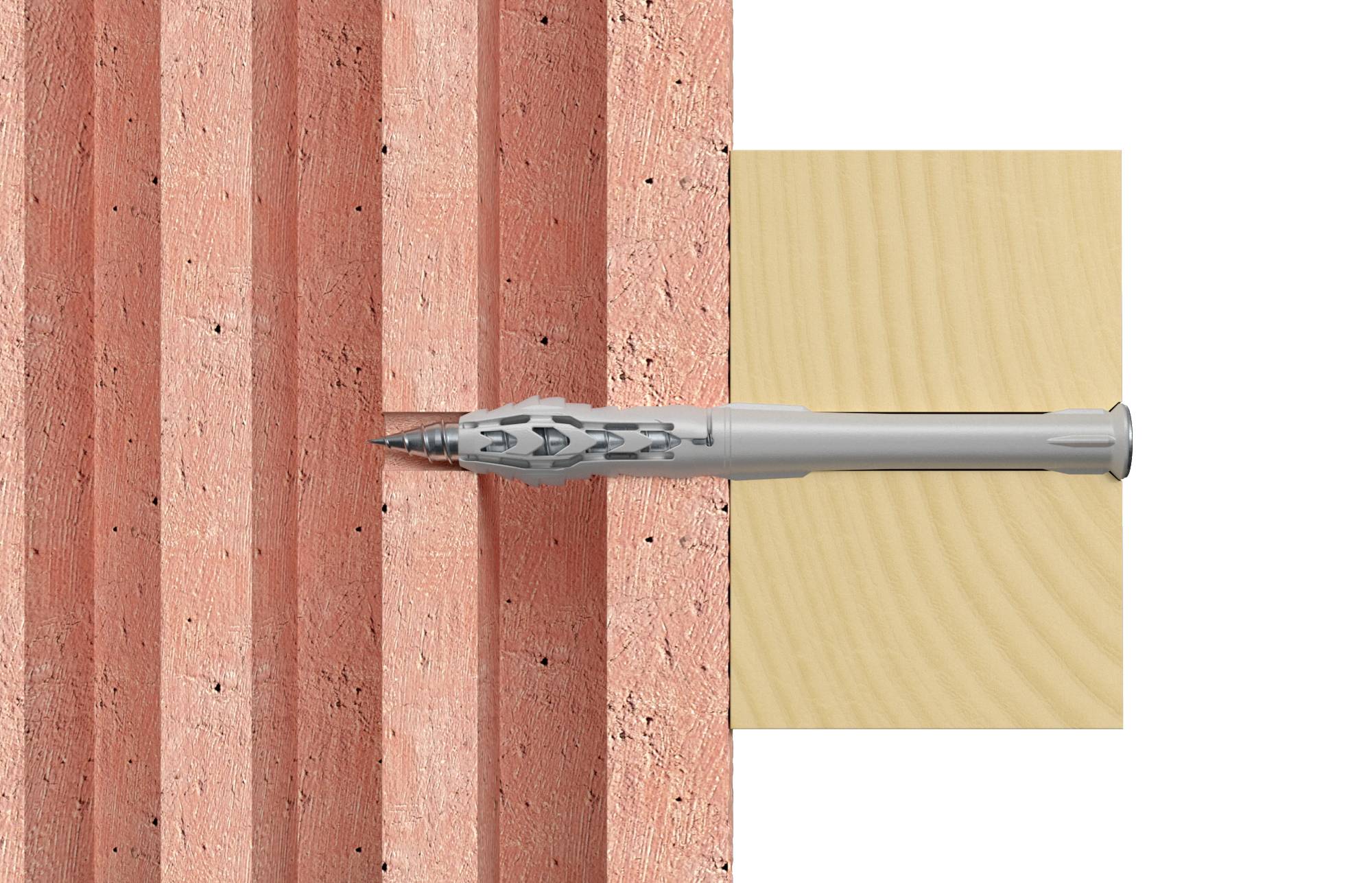

Grey metal nail is driven into red brickwork, on the left, with the wooden head visible on the right. Illustration of the fixing method.

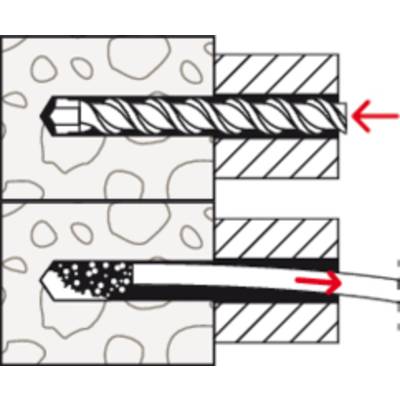

Cross-section of a drilling operation: Drill bit penetrating material, followed by insertion of a wall plug into the drilled hole, arrows indicating direction.

A diagram shows a wall plug being inserted into a wall. The plug is partially visible protruding from the wall, with a red arrow pointing to its outer end.

A screw is being screwed into a wall, with a mounting bracket to anchor it in the masonry. Illustrates the fixing process.

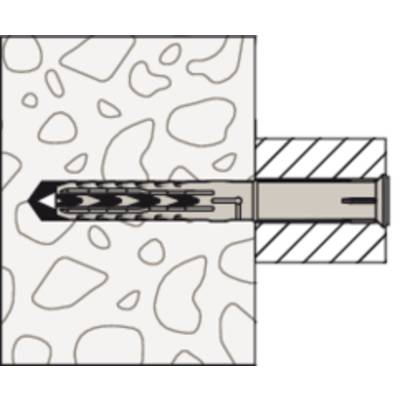

Technical drawing of a screw anchor in a wall; shows anchor position and embedding into the material.

Cross-section of a tunnel boring machine in a tunnel, working its way through layers of earth and rock. On the left, soil, on the right, machine housing.

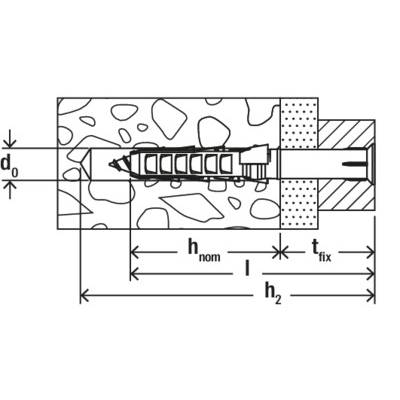

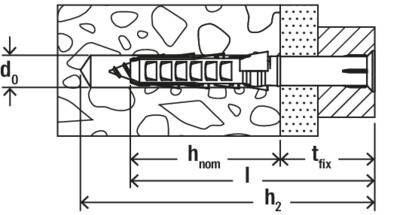

Technical drawing of a fastening element in concrete, showing dimensions with 'd0', 'hnom', 'tfix', 'l' and 'h2' for installation instructions.

1/12

Datasheet (PDF)

3 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Set(s)

Total (€ 2.93 / piece)

€

Only 3 Set(s) available

Report legal concerns

Highlights & Details

Fischer SXR 6 x 50 Z countersunk screw (PZ) long shaft plug

Low anchoring depth saves time and costs.
ETA evaluation in concrete and masonry.
With pre-mounted safety screw with countersunk head.
Dowel spread out in solid building materials.

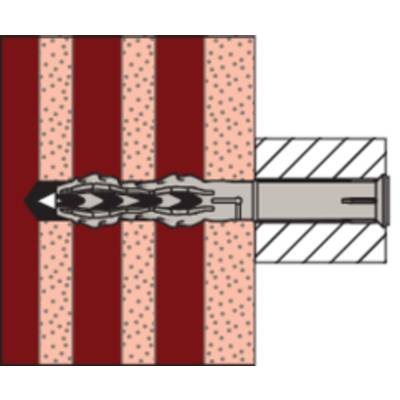

The dowel anchored in the hollow space in perforated building materials.

Technical specifications

Content: 1 Set

Length: 50 mm

Suitable for: Concrete
Cored bricks
Flintlime hollow bricks
Flintlime bricks
Natural stone
Foamed concrete wall
Solid brick
Thermal insulation blocks

Material: Steel

Material properties: zinc galvanized

Outside Ø: 6 mm

Product type: Plug (long)

Documents & Downloads

Datasheet

Datasheet 3065954 Fischer 503417 SXR 6 x 50 Z K NV Plug (long) 50 mm 1 Set

User & Safety Instructions

User & Safety Instructions 3065954 Fischer 503417 SXR 6 x 50 Z K NV Plug (long) 50 mm 1 Set

Information

Information 3065954 Fischer 503417 SXR 6 x 50 Z K NV Plug (long) 50 mm 1 Set

Description

The Fischer SXR-Z shaft plug is a high-quality nylon plug with countersunk screw. Thanks to the special dowel geometry the SXR can be used in solid building materials and perforated building materials. Due to the low anchorage depth of only 50 mm, the long shaft bolt can be processed particularly economically. The Fischer SXR-Z long shaft anchor bolt with the countersunk screw is particularly recommended for fixing wooden structures.

This text is machine translated.
