Name: Fischer 503784 SXR 10 x 100 SS K NV Plug (long) 100 mm 1 Set
Brand: Fischer
SKU: 3065959
Availability: SoldOut

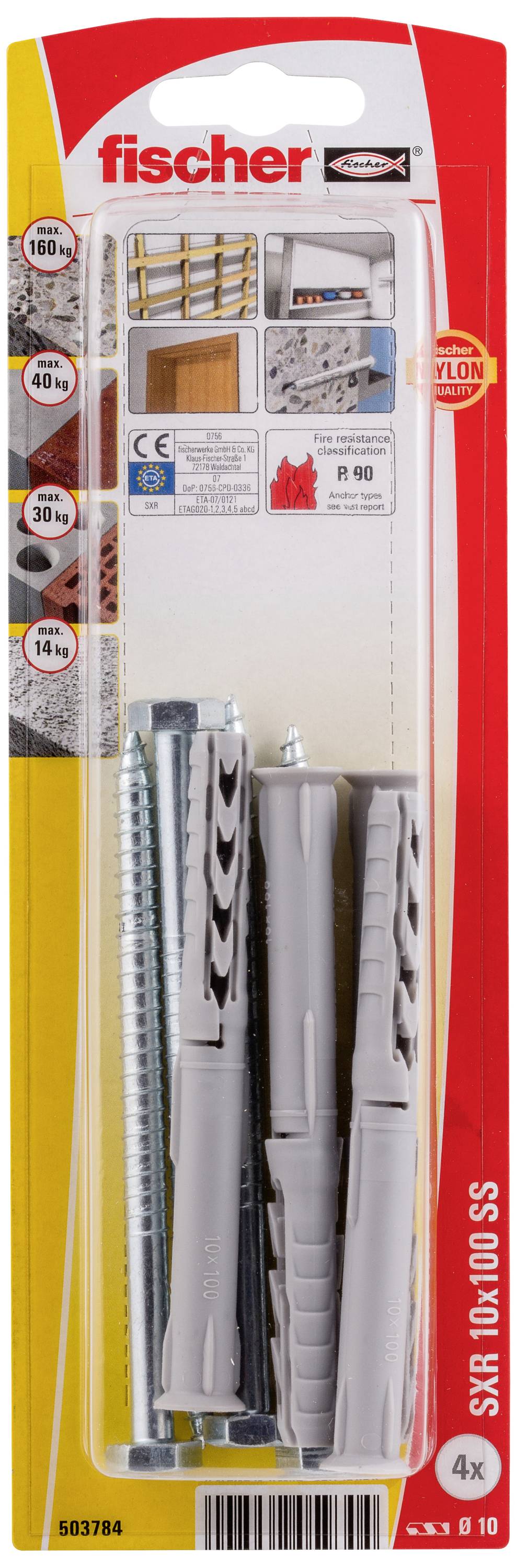

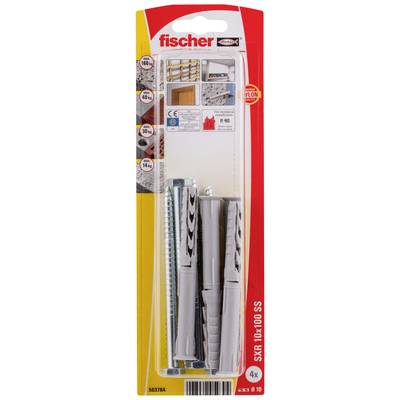

Package of Fischer SXR 10x100 S SS wall plugs with screws, shown in blister packaging on a red and yellow card.

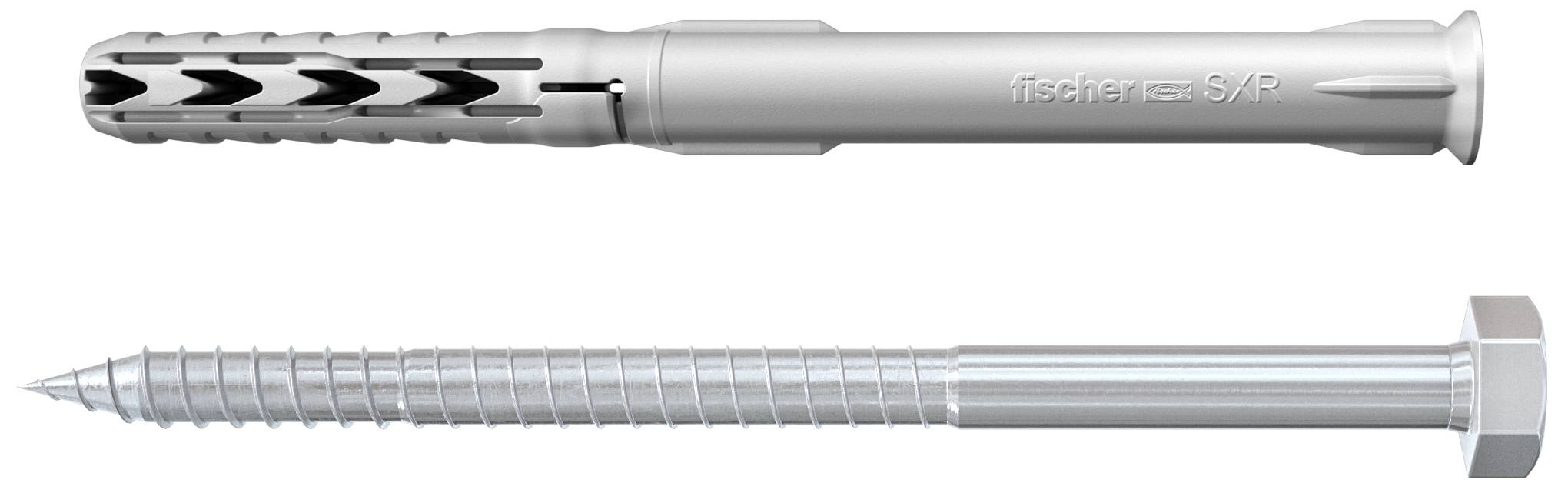

Two metal screws shown side by side: a wall plug anchor with expansion slots above and a hex-head lag screw below.

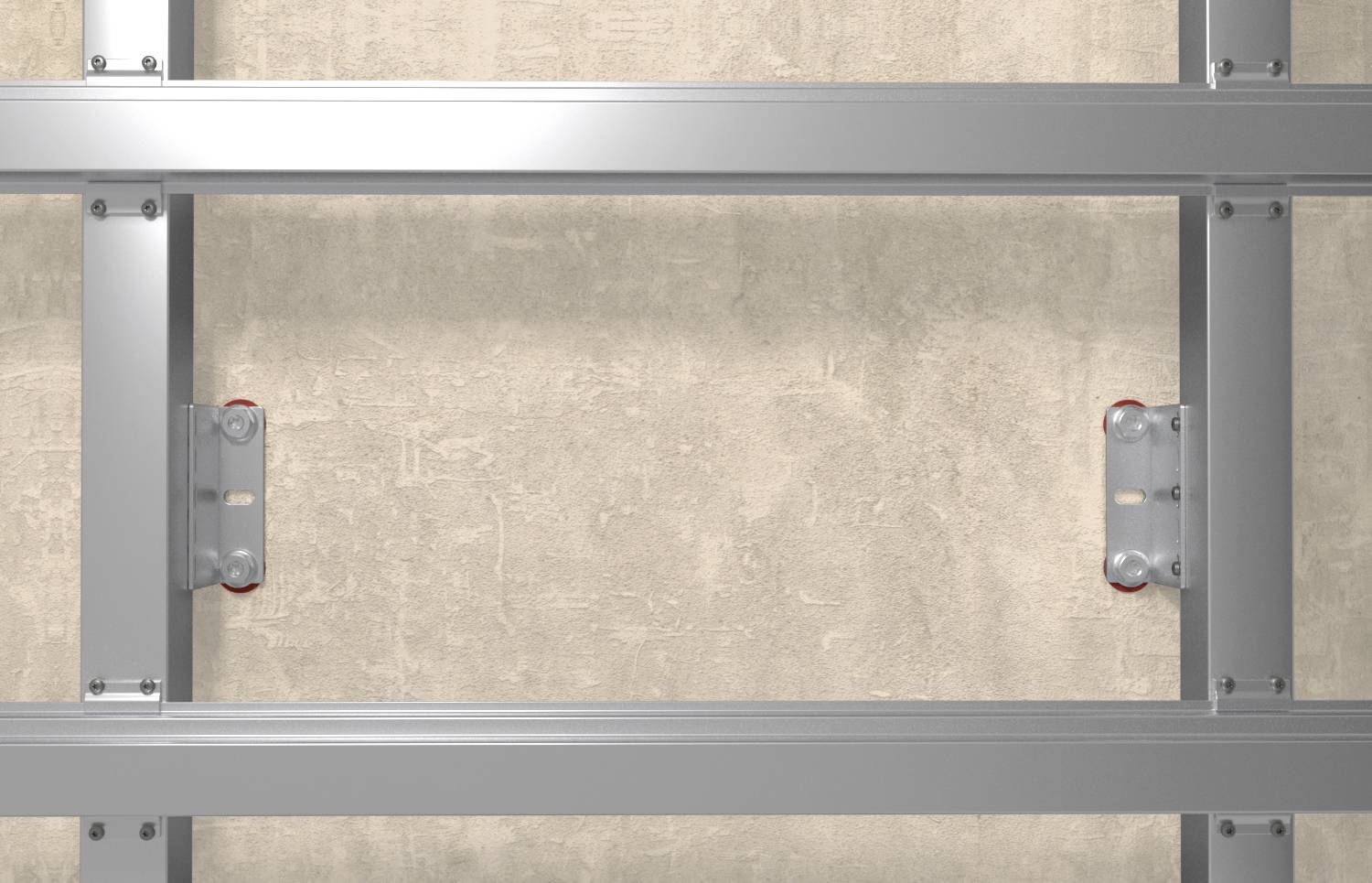

Metal wall framing with horizontal and vertical silver studs mounted against a beige textured wall.

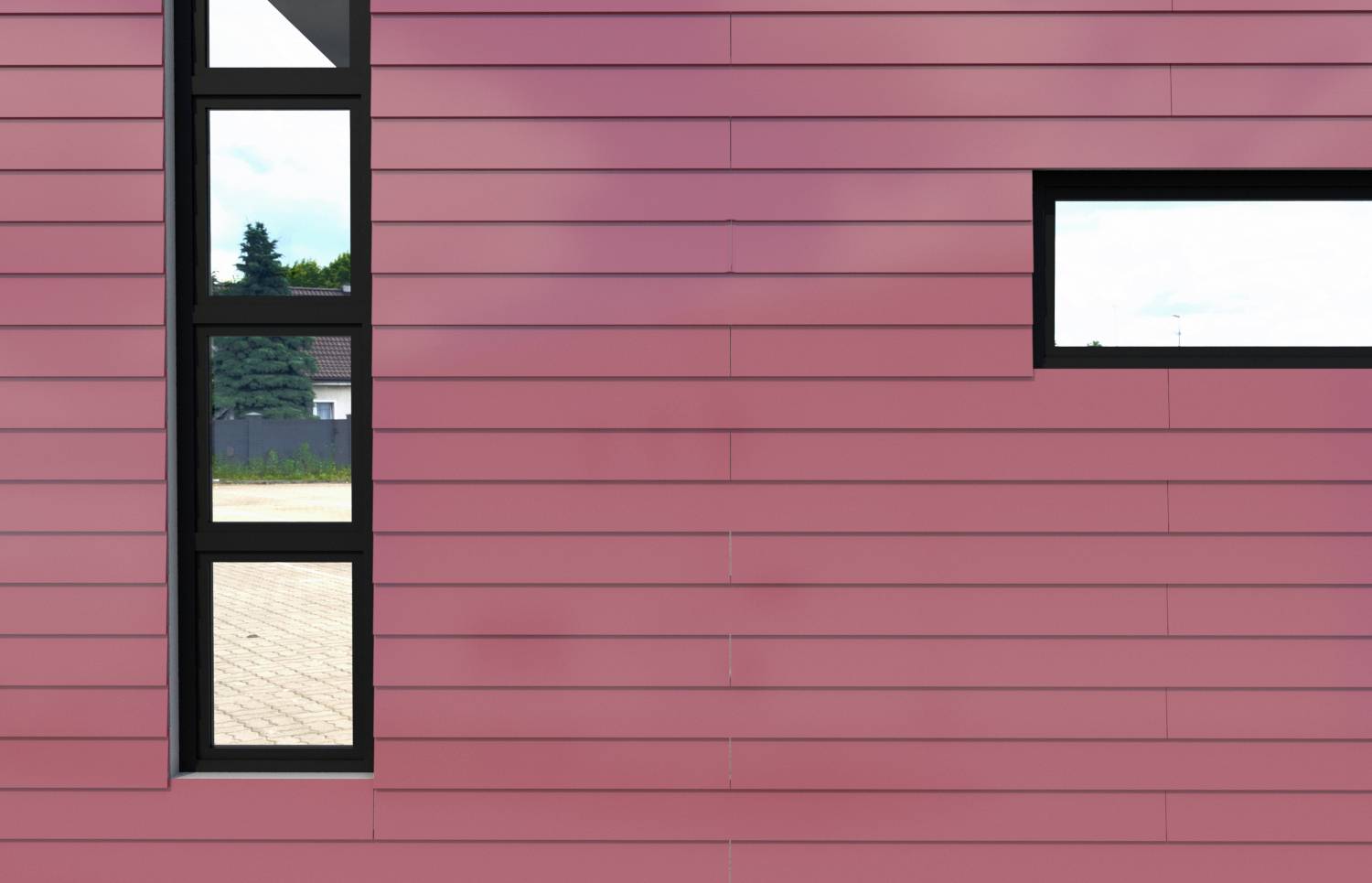

Red building facade with a tall narrow vertical window and a small rectangular window, both framed in black.

Pen-shaped tool positioned horizontally between a speckled concrete surface and a light wood block, showing a point at the edge.

A wall anchor and screw are shown partly embedded in a brick wall beside a wooden board, illustrating a fastening installation.

1/6

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 6.99 / piece)

€ 6.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Fischer SXR 10 x 100 SS hexagon screw long shaft bolt

Low anchoring depth saves time and costs.
ETA evaluation in concrete and masonry.
Dowel spread out in solid building materials.

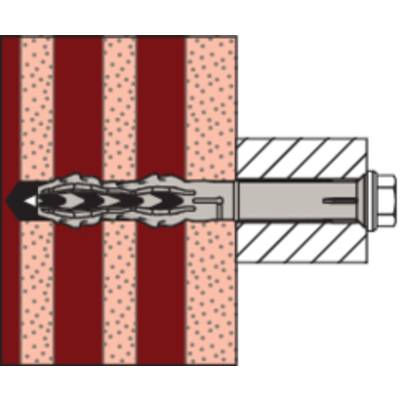

The dowel anchored in the hollow space in perforated building materials.
With safety screw with hex head.

Technical specifications

Product type: Plug (long)

Material: Steel

Length: 100 mm

Suitable for: Concrete
Cored bricks
Flintlime hollow bricks
Flintlime bricks
Natural stone
Foamed concrete wall
Solid brick
Thermal insulation blocks

Content: 1 Set

Outside Ø: 10 mm

Material properties: zinc galvanized

Documents & Downloads

Datasheet

Datasheet 3065959 Fischer 503784 SXR 10 x 100 SS K NV Plug (long) 100 mm 1 Set

User & Safety Instructions

User & Safety Instructions 3065959 Fischer 503784 SXR 10 x 100 SS K NV Plug (long) 100 mm 1 Set

Information

Information 3065959 Fischer 503784 SXR 10 x 100 SS K NV Plug (long) 100 mm 1 Set

Description

The Fischer SXR-SS long shaft bolt is a plug made of high-quality nylon with the Fischer hexagon screw. Thanks to the special dowel geometry the SXR can be used in solid building materials and perforated building materials. Due to the low anchorage depth of only 50 mm, the long shaft bolt can be processed particularly economically, especially in case of multiple fixings of non-load systems. The Fischer SXR-SS long shaft anchor bolt with the hexagon screw and molded washer is particularly recommended for securing metal constructions.
