Name: Fluke FLK-FEV500/CCS2 Charging station analyzer Type 2 10 A No. of ports 1 2 kW
Brand: Fluke
SKU: 3731573
Availability: BackOrder

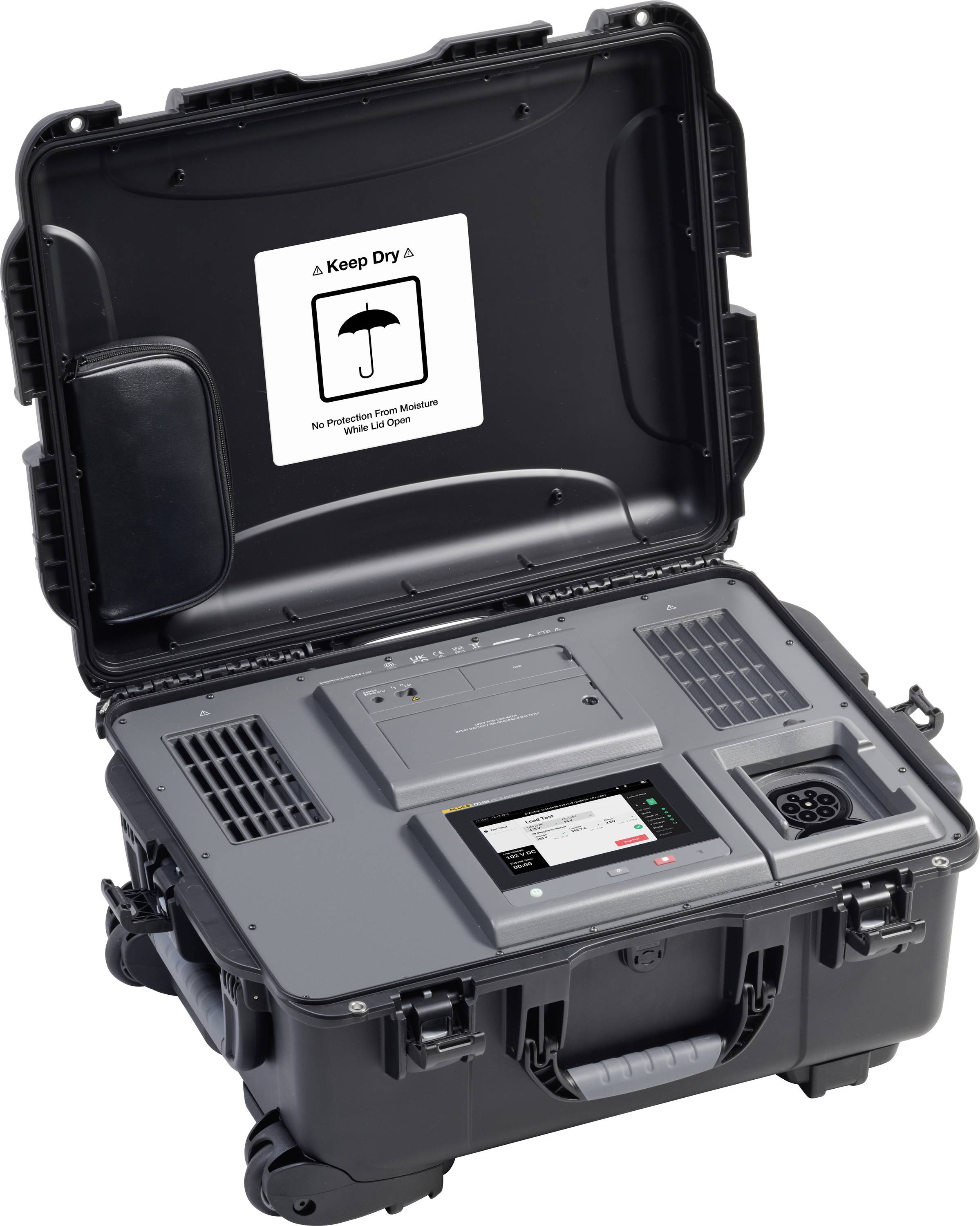

A portable measurement device inside an open black carrying case with wheels, displaying electronic controls and a 'Keep Dry' label.

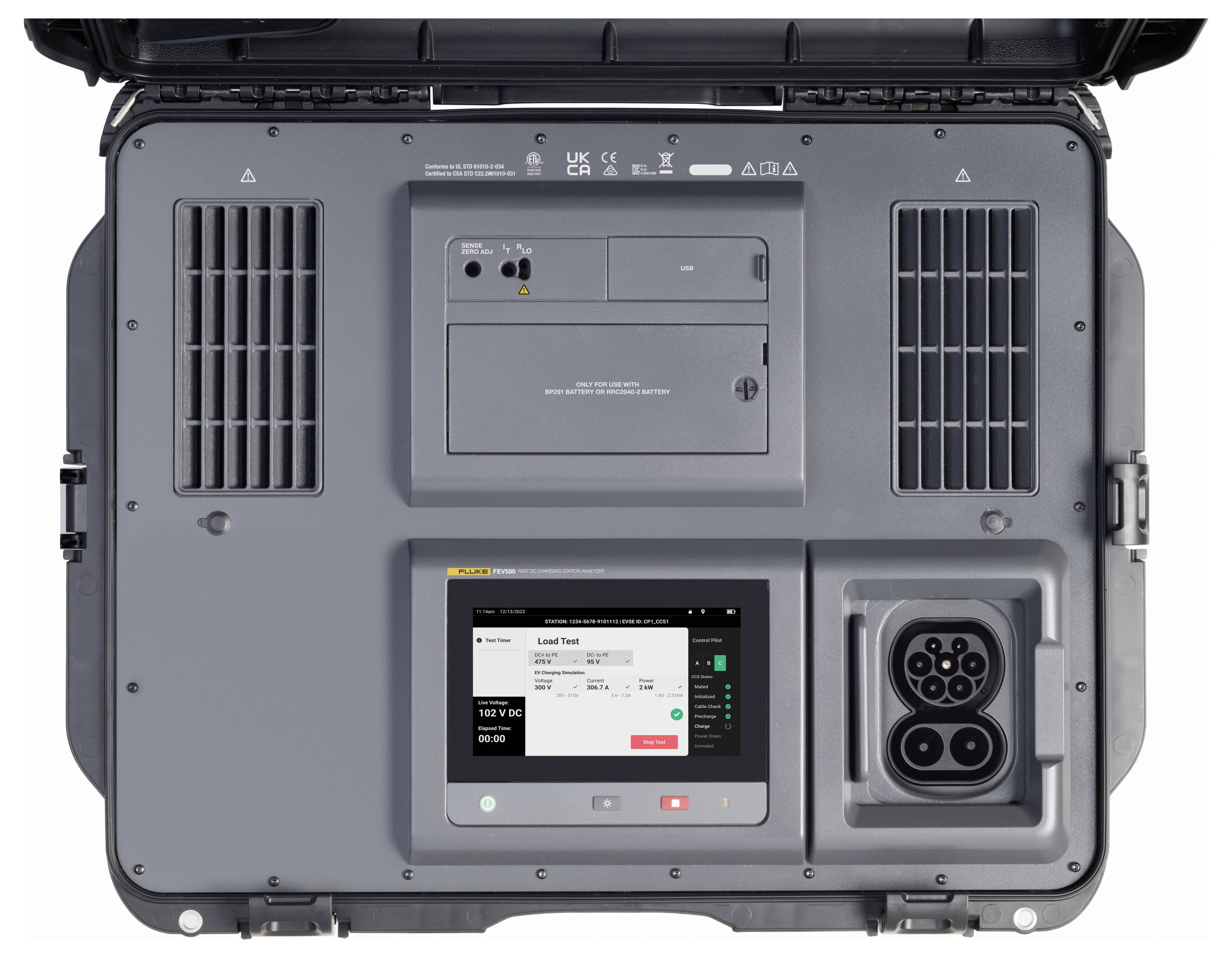

Front view of an electric vehicle charging unit displaying a touchscreen interface with charging status, button controls, and connector ports.

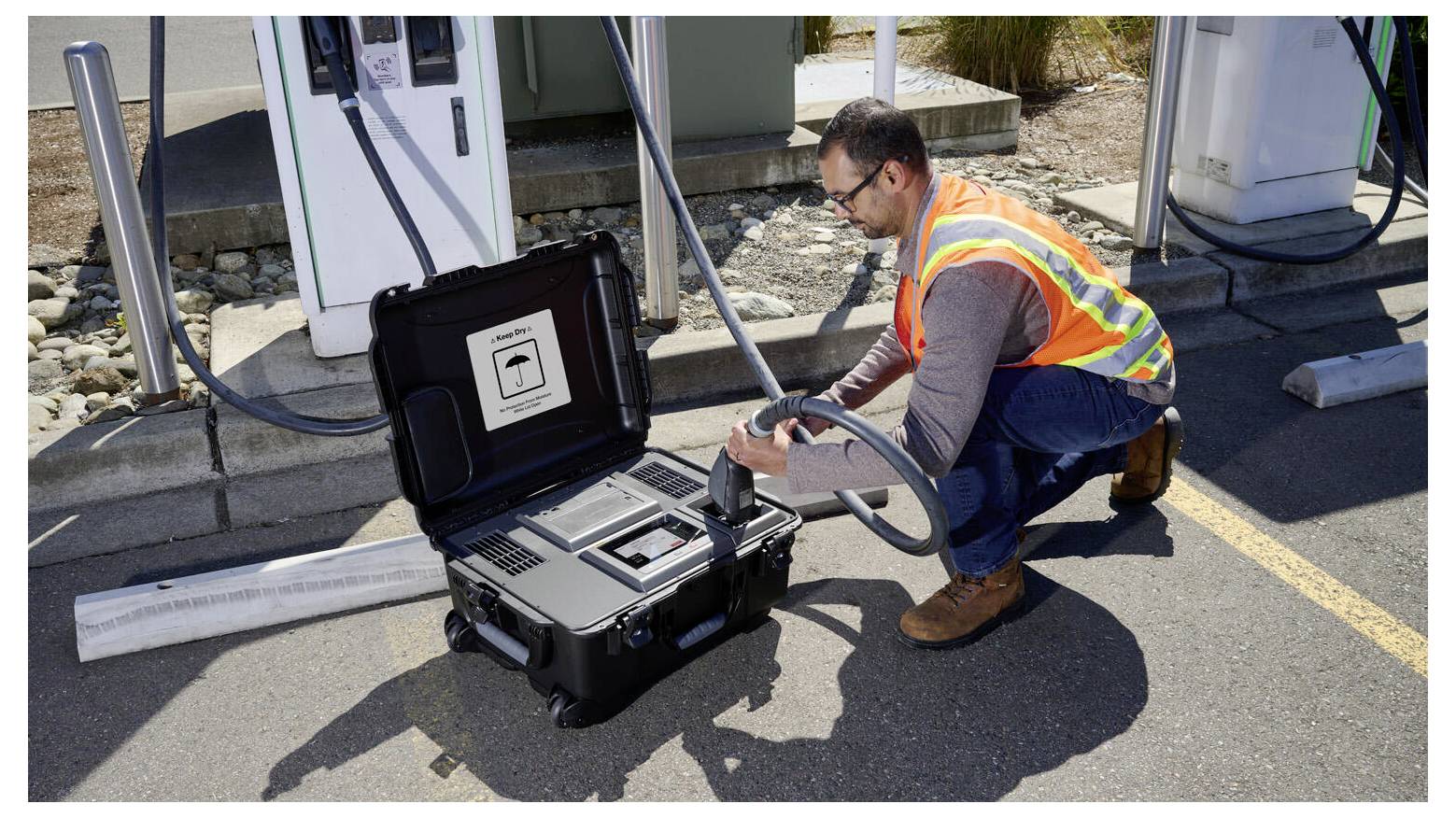

A person in a safety vest connects a cable to a portable device labeled 'battery test system' at a charging station outdoors.

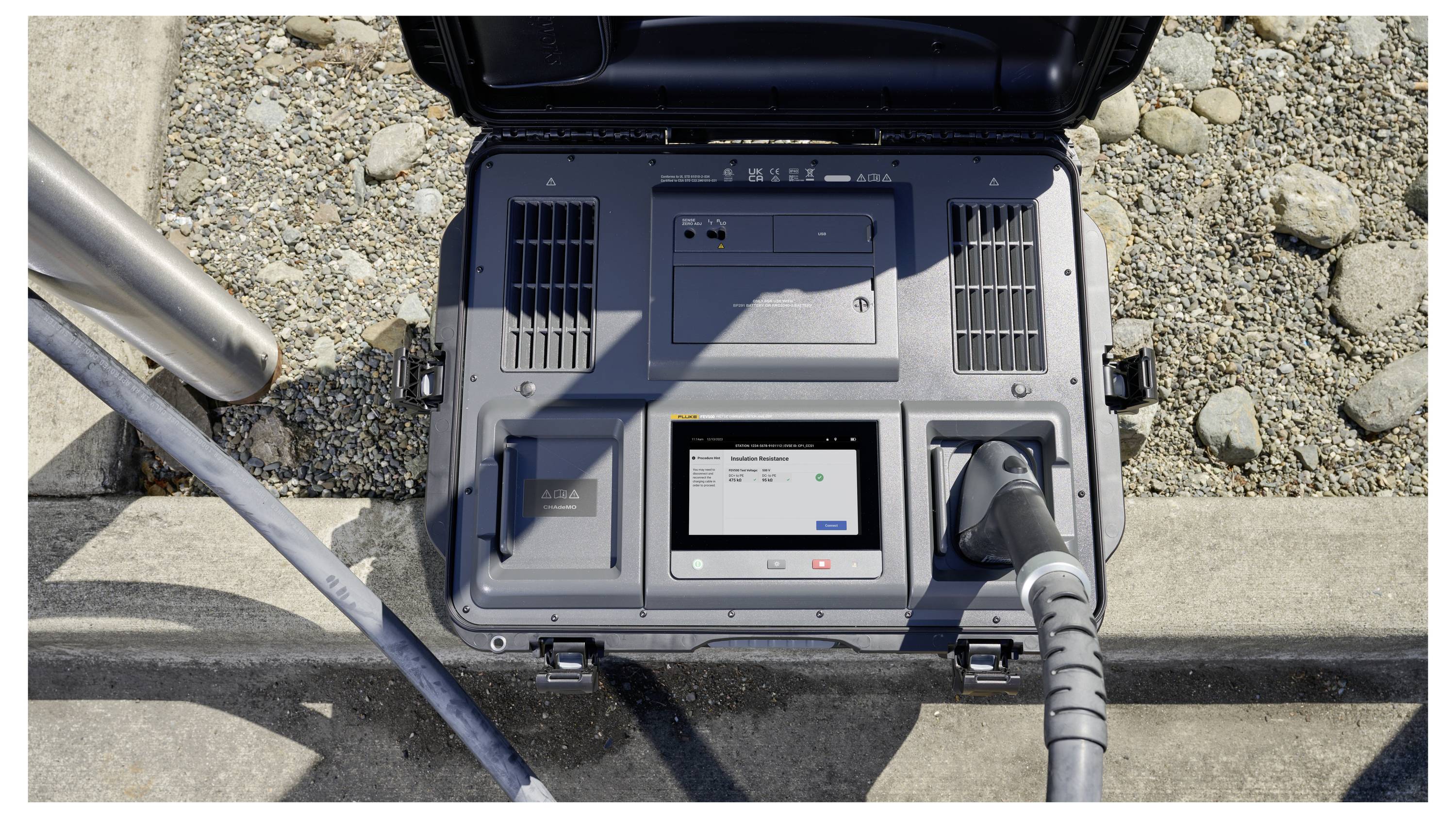

A portable electric vehicle charging station is open on a concrete surface. The screen displays charging status. Pebbles are visible around.

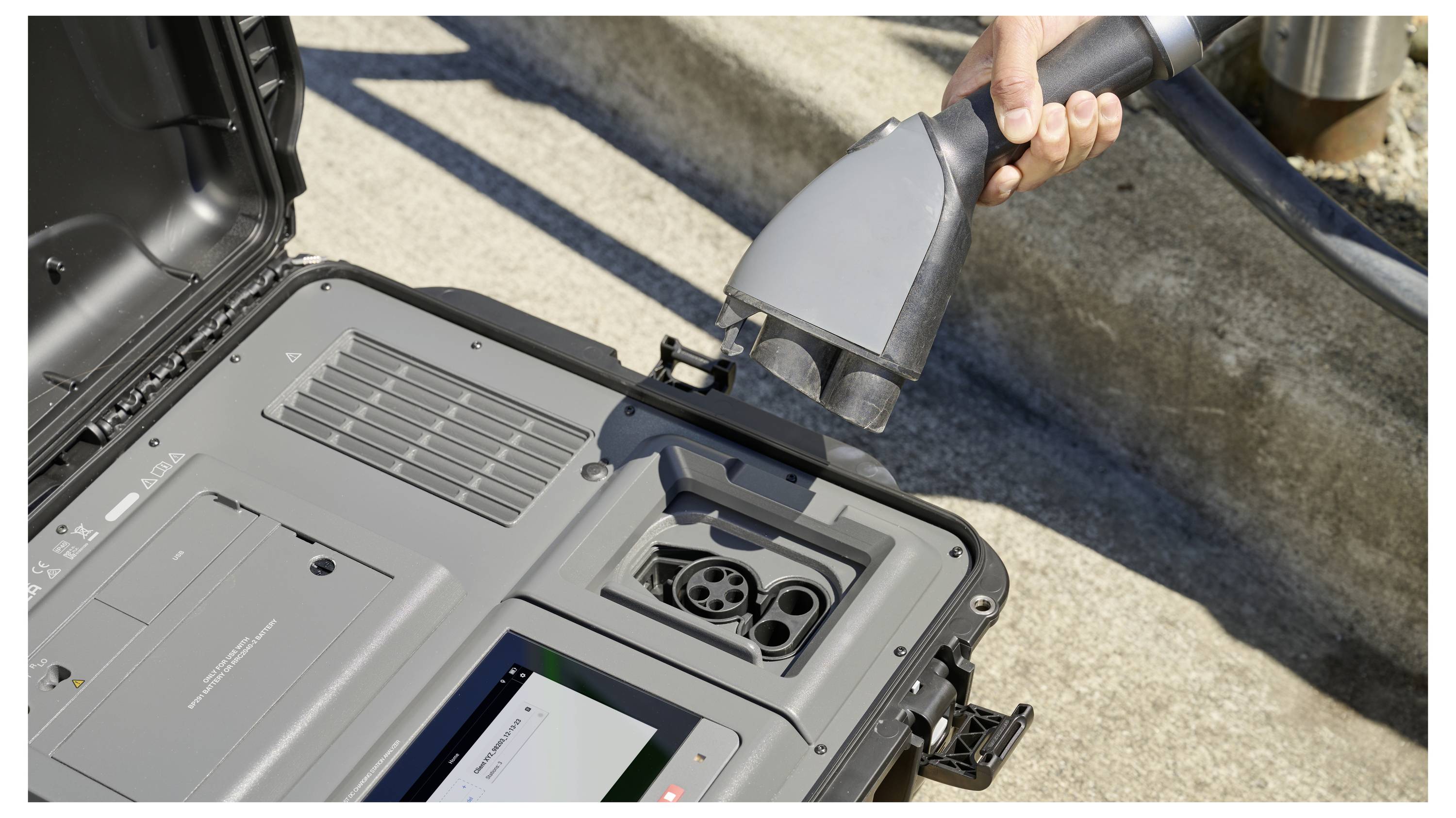

A hand holds an electric vehicle charging plug, preparing to connect it to a charging port on a device. Sand and concrete background.

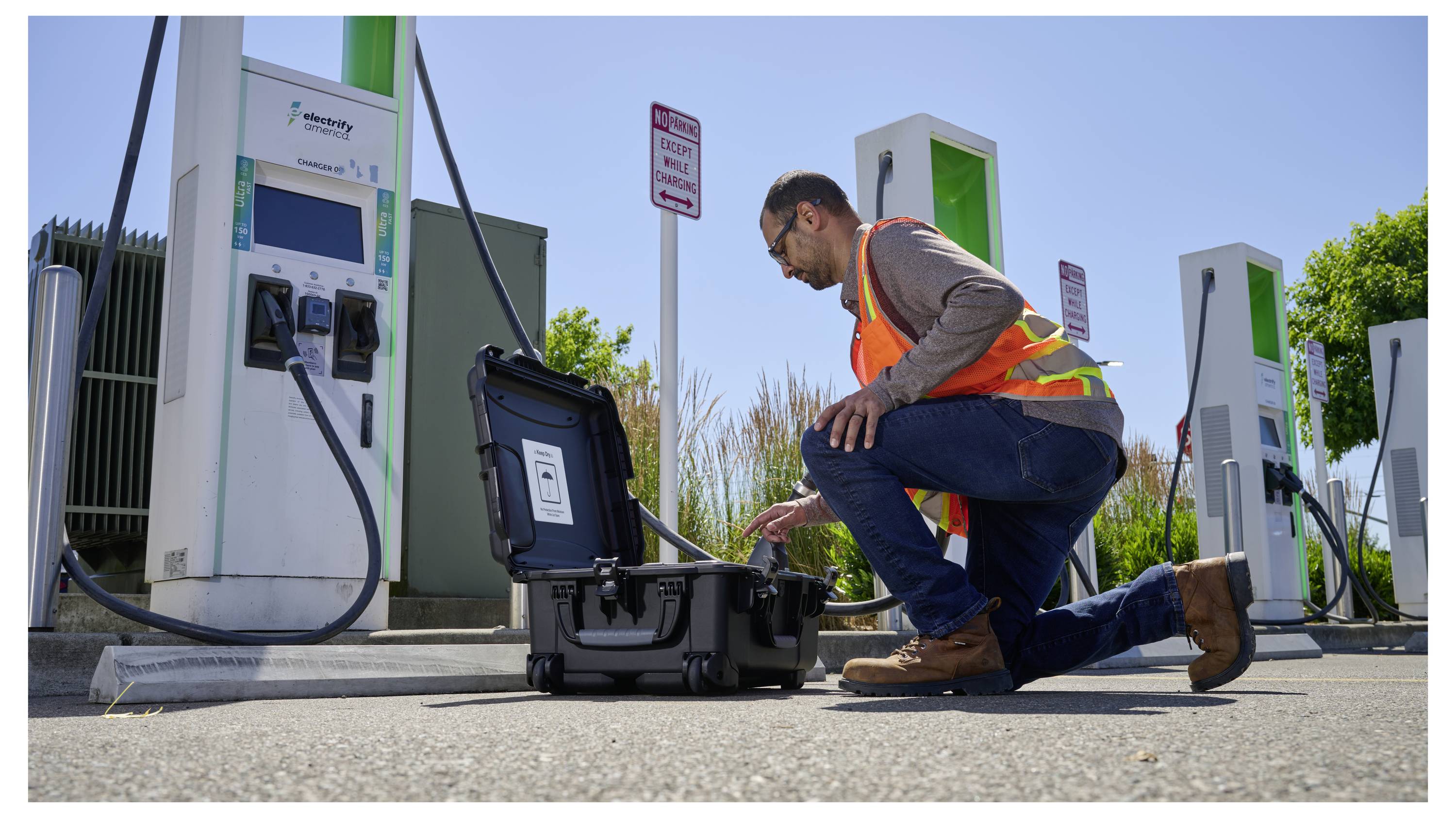

A person in a safety vest kneels by an open equipment case at an outdoor electric vehicle charging station, adjusting something inside.

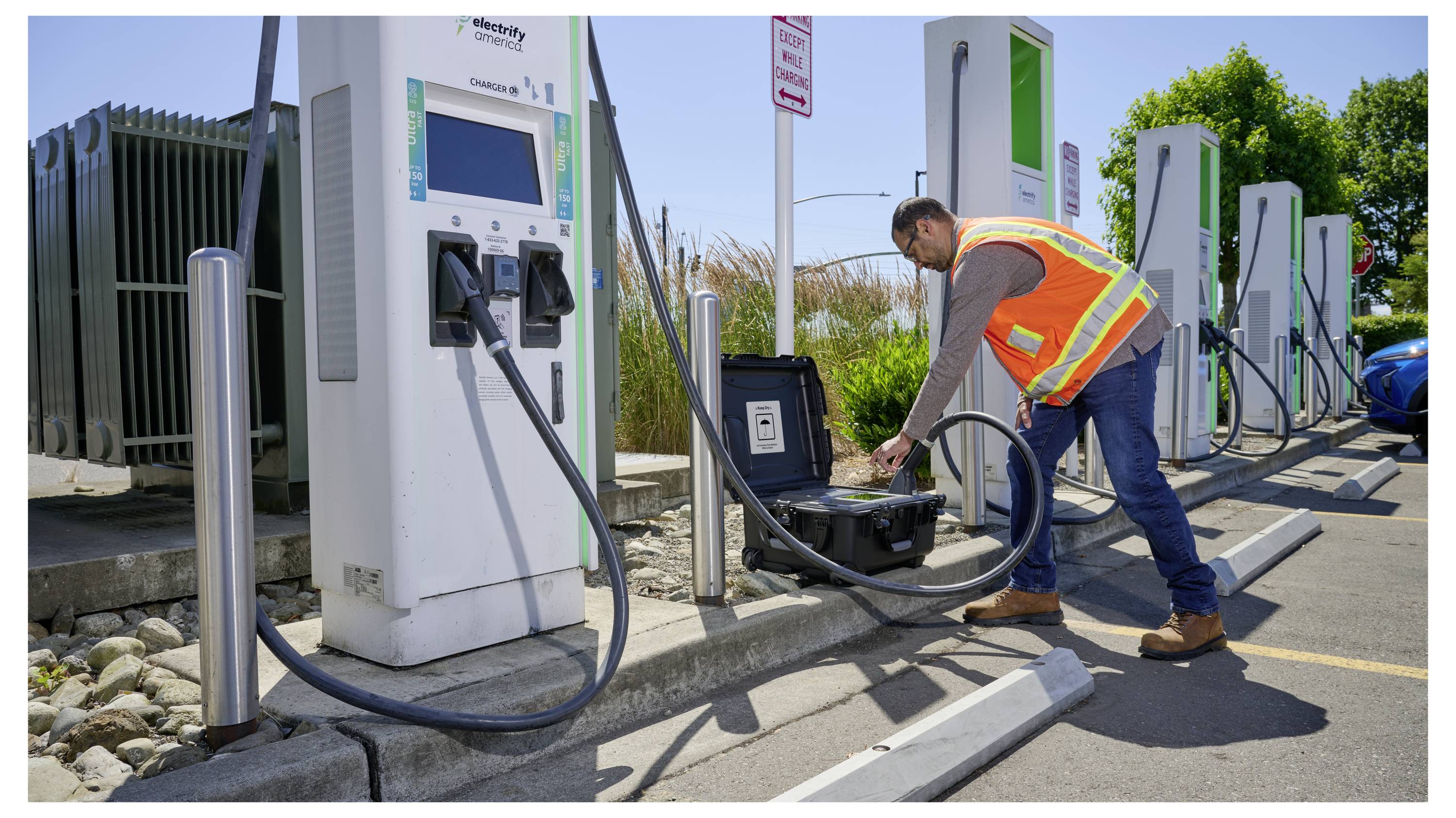

A worker in a safety vest inspects equipment at an electric vehicle charging station. Two charging units are visible against a sunny backdrop.

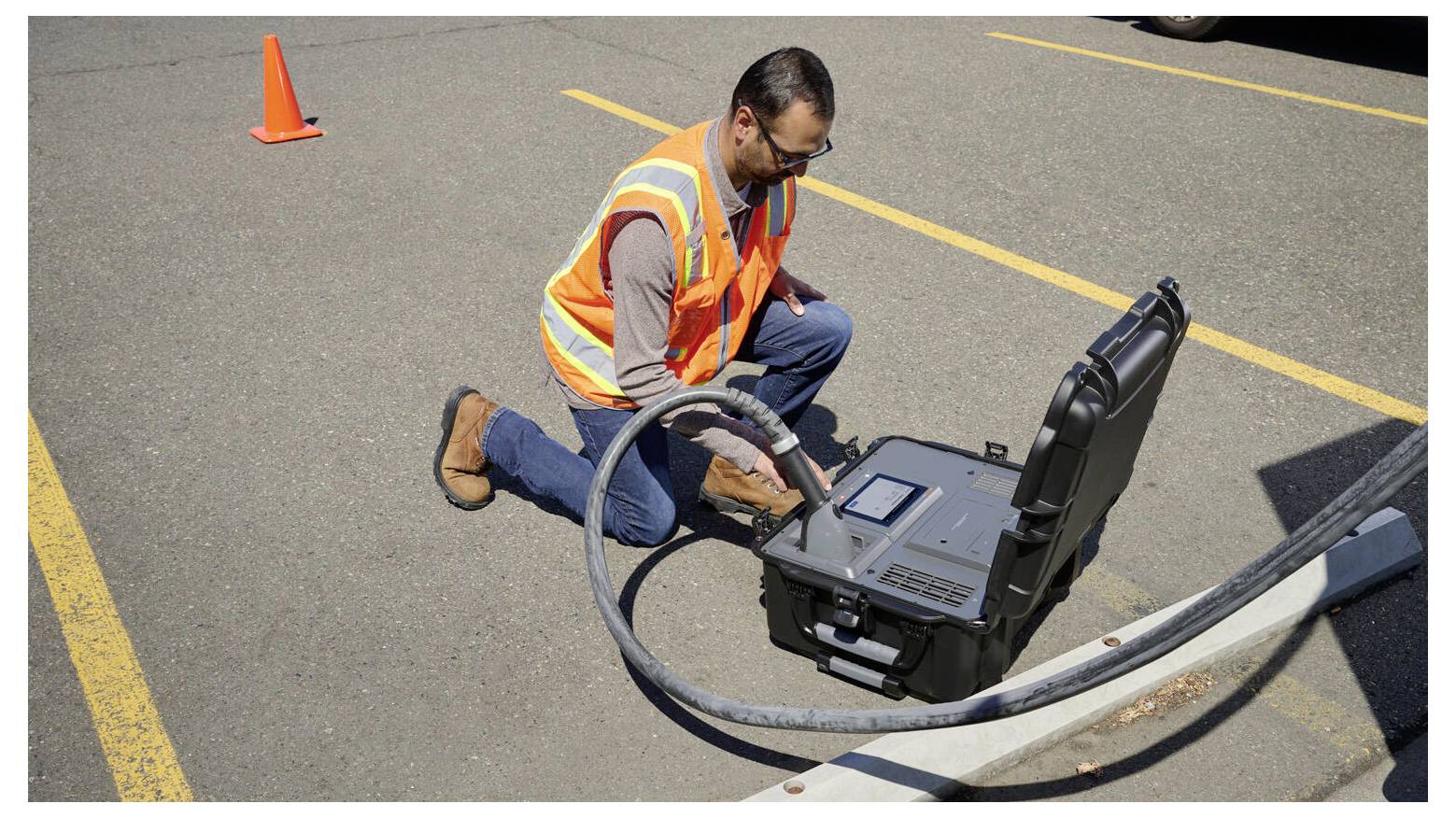

A person in a safety vest kneels on a parking lot, operating a device in a case connected with cables, next to a traffic cone.

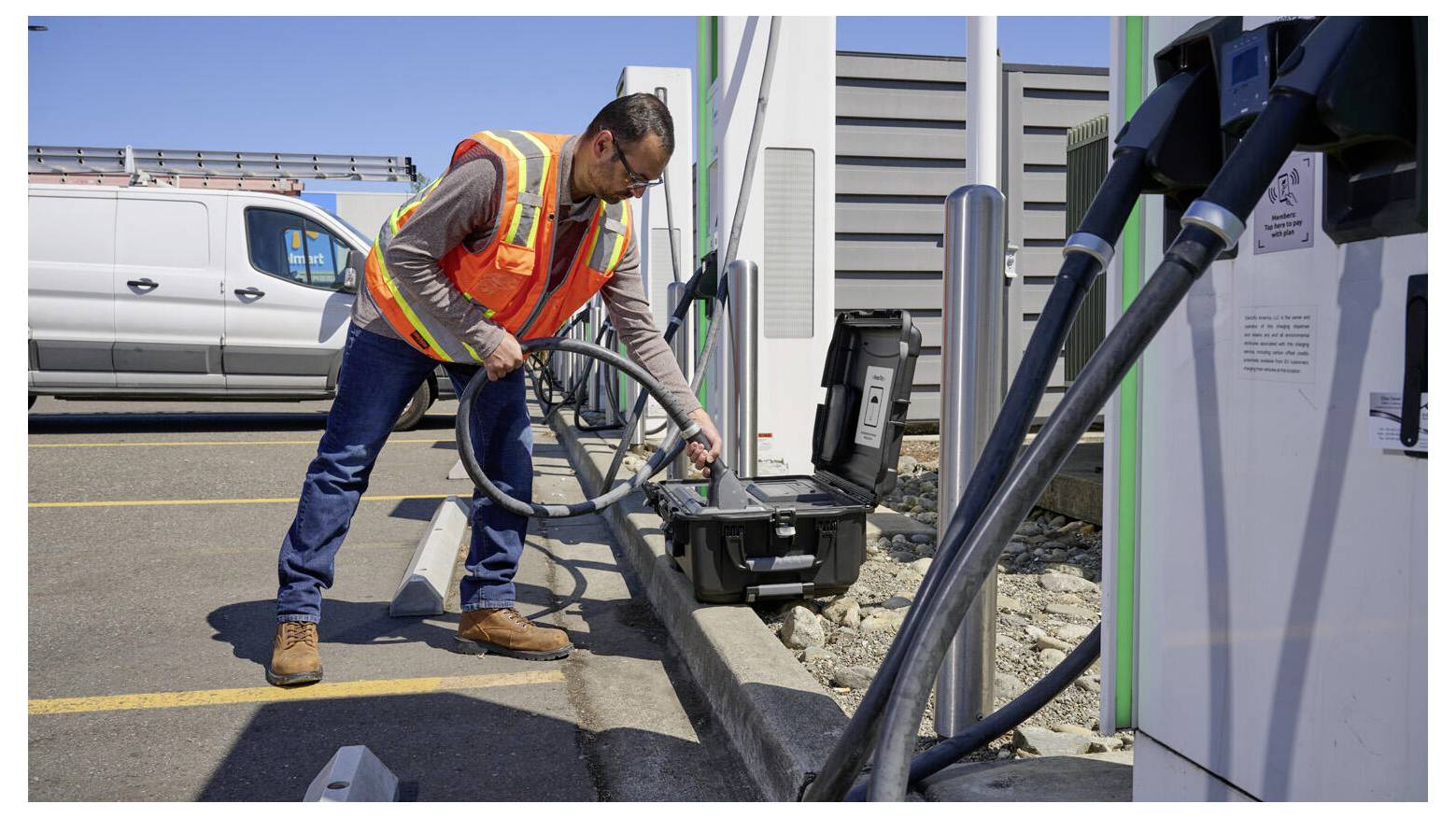

A person in a safety vest plugs a cable into an electric vehicle charging station in a parking lot with a white van in the background.

1/9

Datasheet (PDF)

EAN:

Part number:

Item no:

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 10,175.00 / piece)

€ 10,175.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

FLK-FEV500/CCS2, analyzer for DC fast charging stations, CCS2

Comprehensive testing: Performance and safety testing in
A device.
Electro-vehicle simulation, no external equipment
Required: Simulates the charging of electric vehicles
During the test, so no additional
Load groups, electric vehicles or multi-function tester
are required. Checks the functionality and
Power of the charging station by simulating a load (kW),
In order to imitate real charging processes.
Autotest function: Perform pre-configured test sequences
With automatic execution and clear success/
Failed results. It is not necessary
To use other devices or test leads anew
configure.
User-friendly user interface: Intuitive touch-screen,
Visible in bright sunlight with guided sequences and
For easy operation and interpretation of results.
CCS Connectivity: Supports CCS connectors for comprehensive
Compatibility. Available in CCS1 or CCS2 models.
Portable and robust: Rugged design, Ideal for the
Outdoor use, with removable battery, no power socket
Required:
Automatic data management: Monitors and saves
Individual EVSE and connection point IDs for one
Optimized plant management.
TruTest™ software: Facilitates documentation and
Report results.

Technical specifications

Battery capacity 10.8 V, 6.8 Ah, 73.44 Wh
7" touchscreen display

Product type: Charging station analyzer

Charger connectors: Type 2

Charging current: 10 A

No. of ports: 1

Charging capacity: 2 kW

Nominal voltage: 1000 V DC

Type: Portable, battery-operated measuring device in case design

: IP54

Certification marks: IEC 61010-1
IEC 61010-2-034
IEC 61557-2/4/8
IEC 60529
IEC 61326-1
ISO 15118
DIN SPEC 70121

Factory colour: Black
Grey

Length: 650 mm

Width: 508 mm

Height: 300 mm

Weight: 26 kg

Nominal current: 7 A

Max. temperature: 50 °C

Min. temperature: -20 °C

Documents & Downloads

Datasheet

Datasheet 3731573 Fluke FLK-FEV500/CCS2 Charging station analyzer Type 2 10 A No. of ports 1 2 kW

User & Safety Instructions

User & Safety Instructions 3731573 Fluke FLK-FEV500/CCS2 Charging station analyzer Type 2 10 A No. of ports 1 2 kW

Signal word

Caution Danger

Description

The Fluke FEV500 optimizes testing of DC rapid charging stations for electric vehicles by combining safety, performance and interoperability diagnostics in a portable device. With a touch-screen controlled workflow and no vehicle required, technicians can quickly verify communication and loading capabilities on CCS-compatible stations. The FEV500, designed for outdoor use, performs critical safety tests without having to open the station. This saves time and reduces risks. The FEV500 is rugged, accurate and intuitive, enabling technicians to keep fast-charging networks in reliable and future-proof condition.
