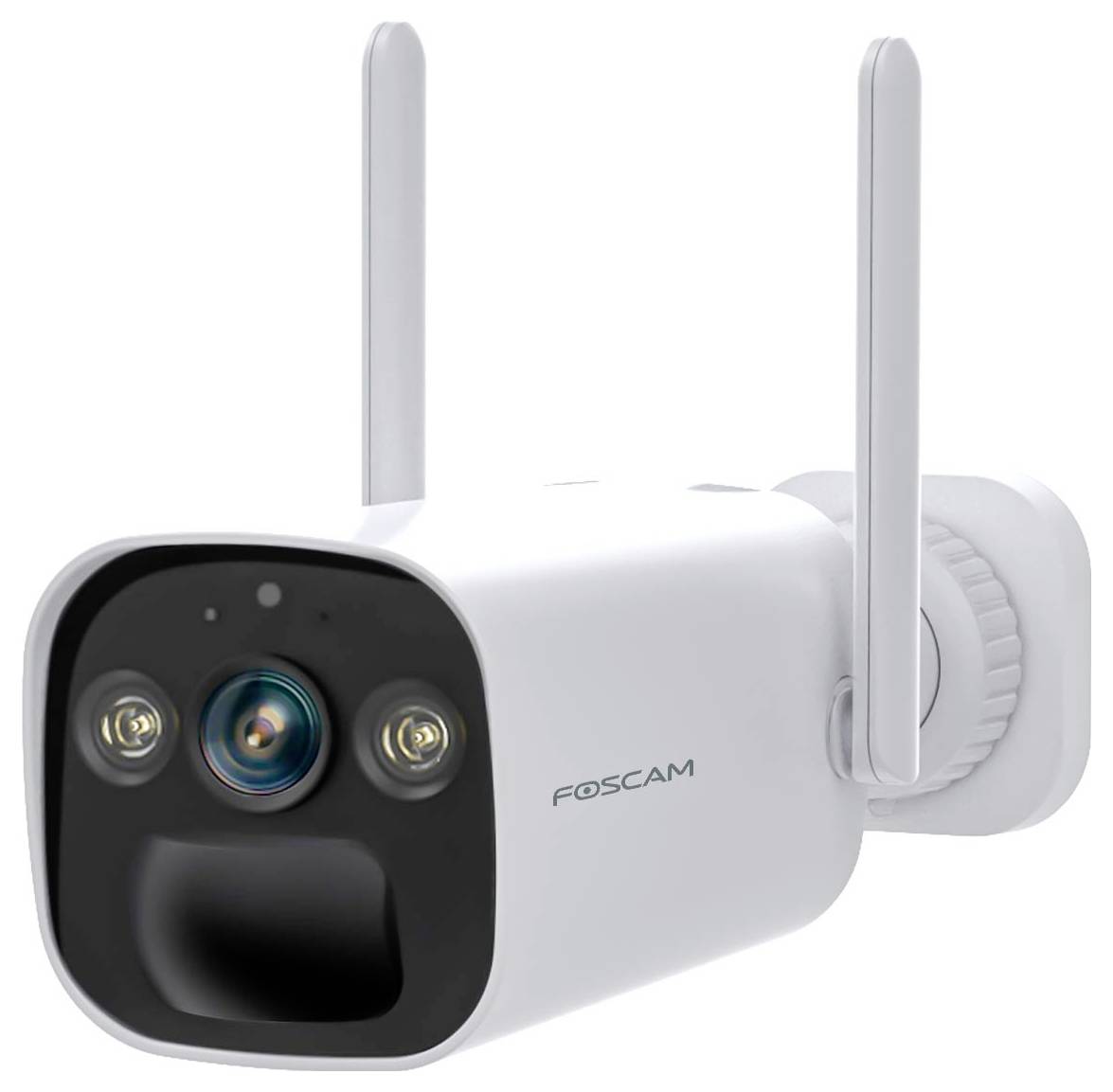

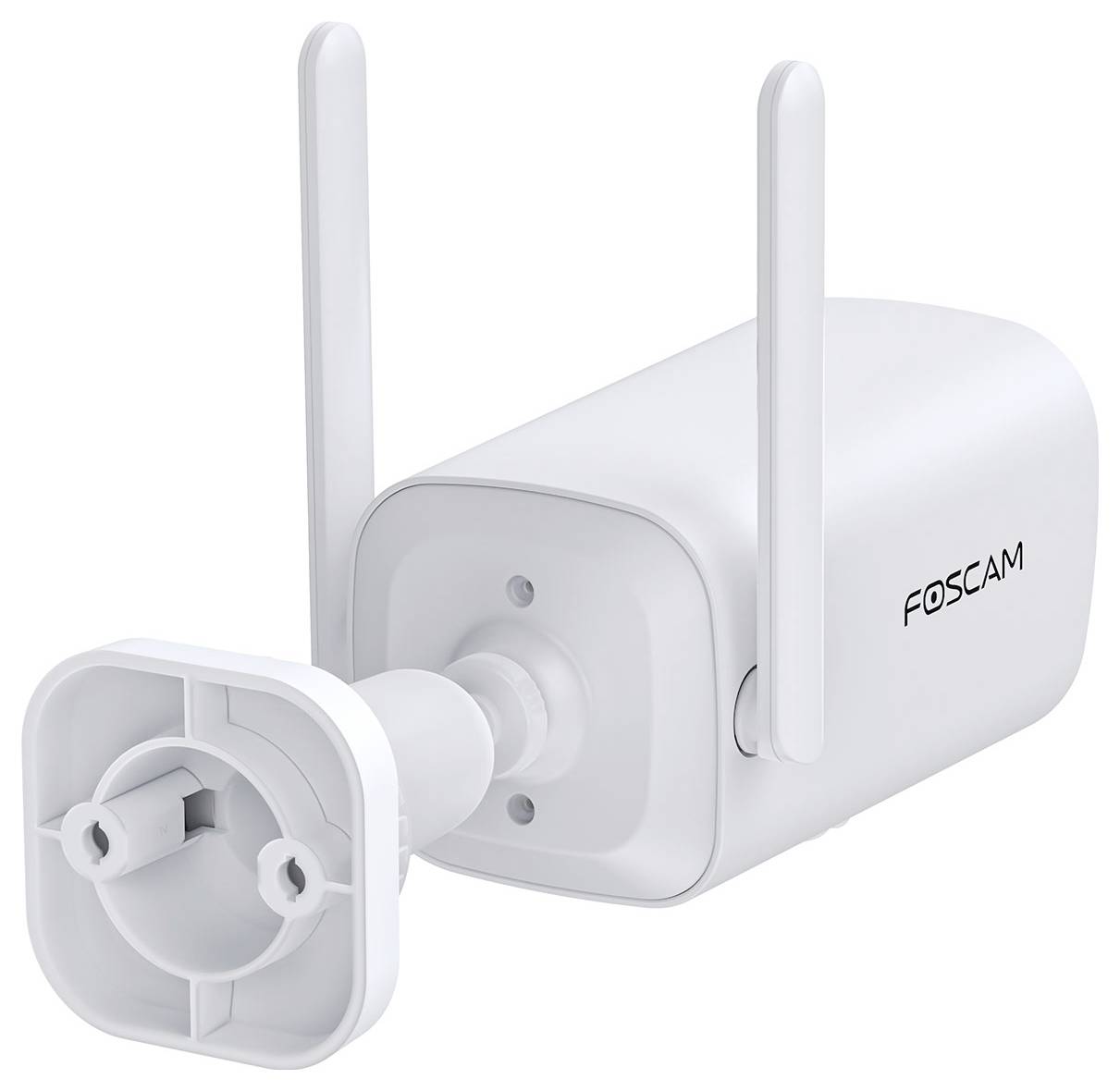

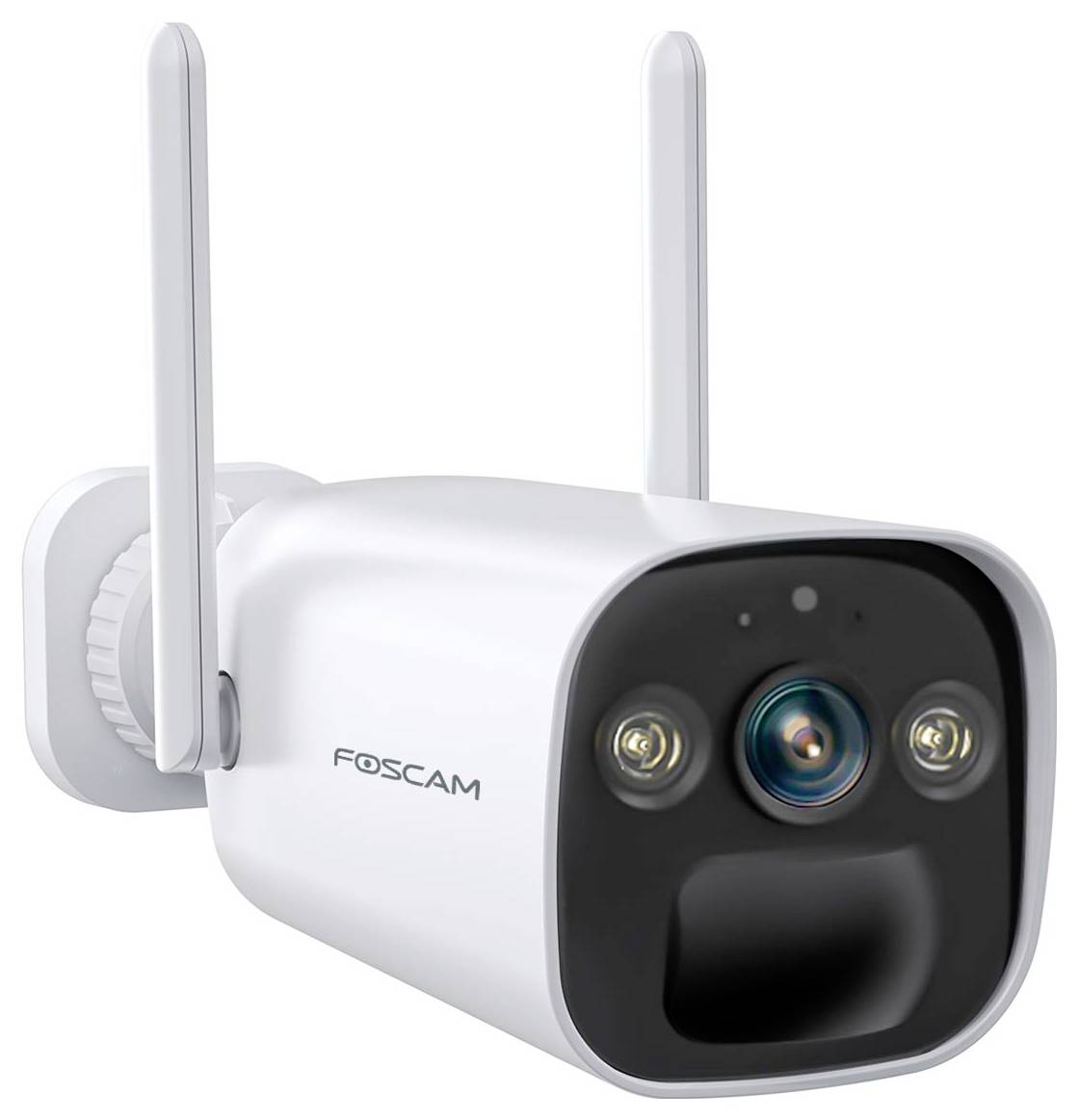

Foscam BP4 BP4 Wi-Fi IP CCTV camera 2560 x 1440 p
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 82.34 / piece)
€ 82.34
plus VAT.
Highlights & Details
Wi-Fi IP-Bullet camera;2560 x 1440 p;FoscamBP4;BP4Outdoors
- High-resolution 2K video by day and night
- PIR detection of persons
- Rechargeable battery and solar operation
- Night view in color
- Two-way audio with built-in microphone and speaker
- Integrated 2-part headlights and IR-LED
- IP66 Water resistant
Technical specifications
- Headlight color temperature 6500K
- Sensor type: High-resolution color CMOS sensor
- Screen resolution 4.0 megapixel (2560 x 1440)
- Min Illumination 0 lux (with IR lamp)
- Image compression: H.264
- Resolution 2 K (2560 x 1440) 20 image/s, VGA (640 x 360)
- Digital Zoom: 20-fold digital zoom
- Siren: Supports a maximum of 110 dB alarm siren
- PIR detection range: Adjustable up to 8 m (26.2 ft)
- PIR detection angle: 110° horizontal
- Battery: 10000 mAh rechargeable battery (battery life varies according to settings, usage and temperature)
- 5 W solar module
- DC power supply: DC 5V/2A USB power supply (not included)
- Operating temperature -20 °C to 60 °C.
- Product type
CCTV camera
- CCTV features
Saves footage on SD card
IR LEDs
White spotlight
Solar panel
2-way communication
Speaker
Microphone
Sounder
Battery-powered
Identity recognition
- Camera type
Bullet camera
- Power supply
Rechargeable battery
Solar cell
PSU, optional
- Resolution (max.)
2560 x 1440 p
- Sensor type
CMOS
Alexa
Google Home
Manufacturer-specific
- Focal length
3,3 mm
- Max. viewing angle hor.
89°
- Vertical viewing angle
104°
- App compatibility
Yes
- Transfer type
Wi-Fi
- Wi-Fi standard
IEEE802.11b
IEEE802.11g
IEEE802.11n
- Light sensitivity (+ IR)
0 lx
- IR range (max.)
10 m
- Used at
Outdoors
- Type
microSD card (up to 256 GB)
- Width
67 mm
- Height
67 mm
- Depth
203 mm

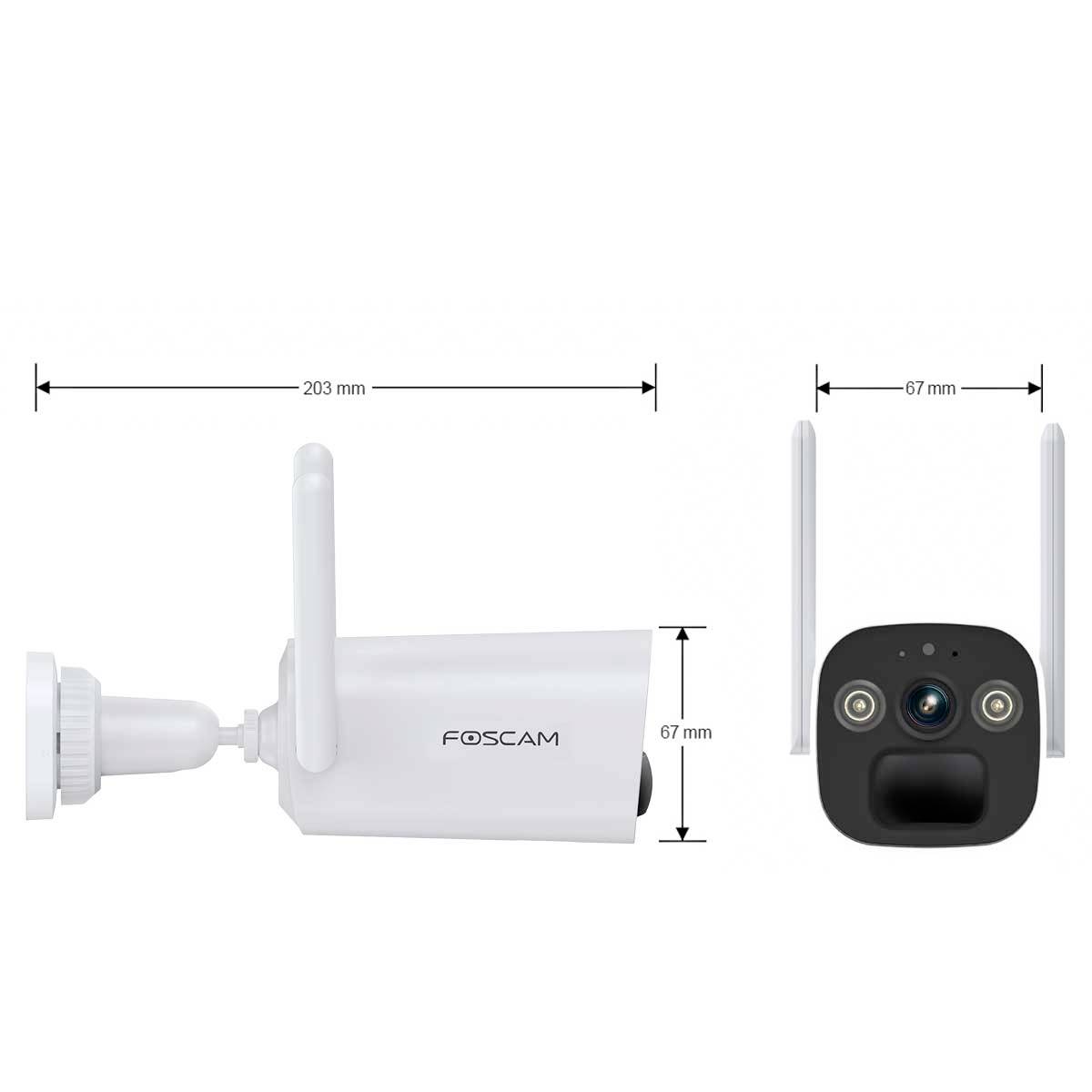

- Dim
(W x H x D) 67 x 67 x 203 mm
- Weight
690 g
- F-numbers
F2.0
- Factory colour
White
IP66
- Signal standard
IP
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3387299 Foscam BP4 BP4 Wi-Fi IP CCTV camera 2560 x 1440 p
User & Safety Instructions
User & Safety Instructions 3387299 Foscam BP4 BP4 Wi-Fi IP CCTV camera 2560 x 1440 p
Description
The battery-operated Foscam BP4 camera delivers pin-sharp images with a resolution of up to 2560 x 1440 pixels at 20 frames per second.
It increases the precision and detail of the safety shots, making it easier to identify and record important information.
In addition to the basic functions, such as motion detection, the Foscam B4 also offers a PIR person recognition, which is able to differentiate persons from other moving objects and sends an alarm, in order to enable a quick response and to prevent unauthorized access.
If an intruder is detected, the spotlight is activated and an alarm tone is sounded to scare off potential thieves. The spotlight can also be activated manually.

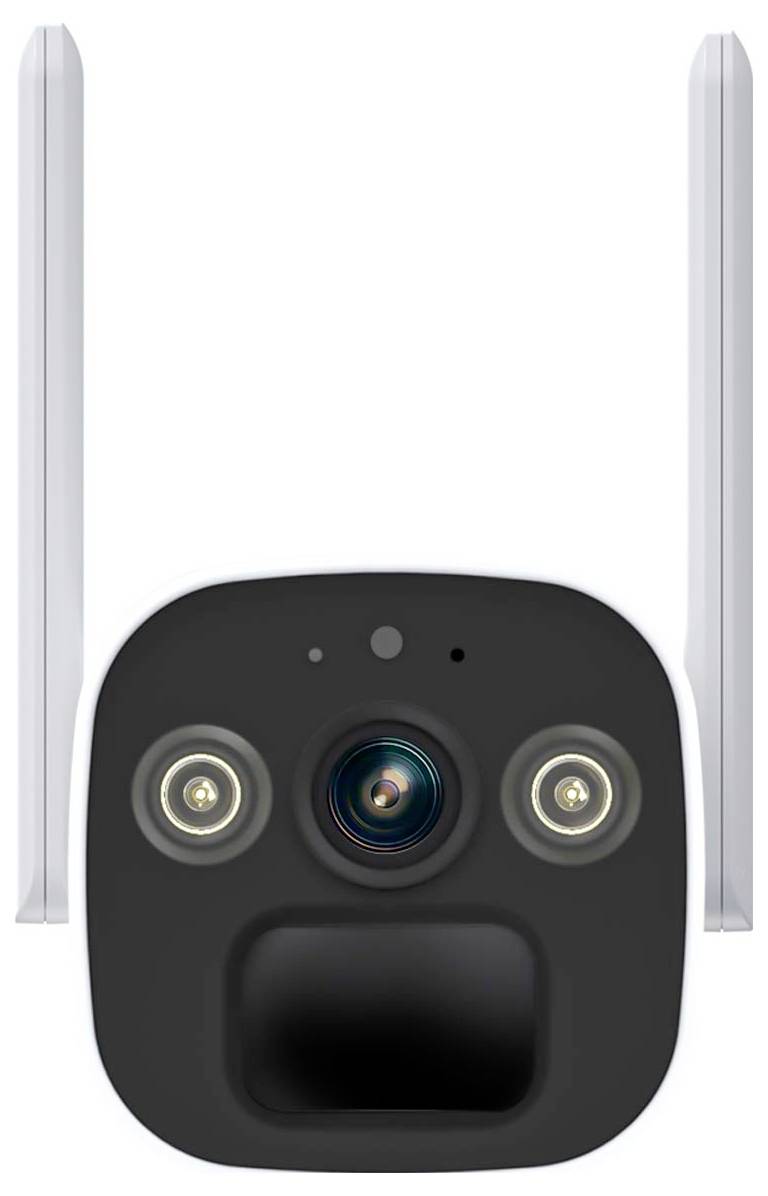

With two built-in IR LED spotlights, the Foscam BP4 offers night vision range of up to 10 meters. Lively color pictures are also possible in the dark.

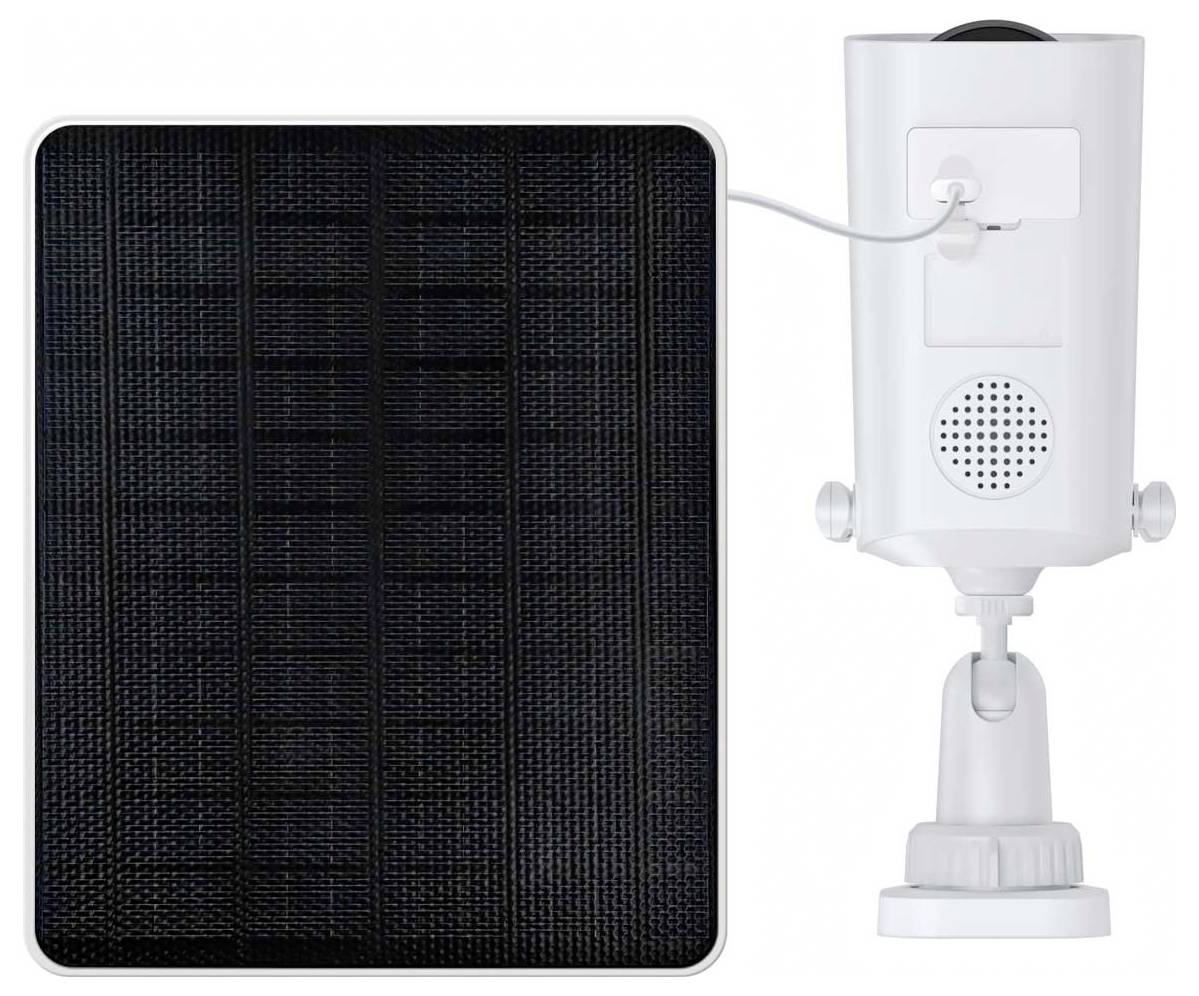

With a rechargeable battery and solar panel the camera is always ready to use. With a powerful 10,000 mAh rechargeable battery (4x 18650 batteries included) and the Foscam solar panel, the BP4 is completely wireless and independent of sockets. A solar-powered system provides maximum flexibility.
The Foscam BP4 is equipped with an integrated microphone and a loudspeaker, supporting two-way audio in real time. This allows you to communicate with your guests and turn off unwanted guests, regardless of location.
The Foscam Mobile APP is the ideal solution, with which you can watch live transmissions, talk and listen via the battery-operated camera, receive immediate warnings on the Smartphone and much more. The Foscam PC APP is a video management software (VMS) with an intuitive user interface, which enables to store, find, view and manage videos on the computer, laptop.
The camera can be placed where it receives a good WLAN signal. Since no power socket or an extension cable is required, the camera can be used flexibly.

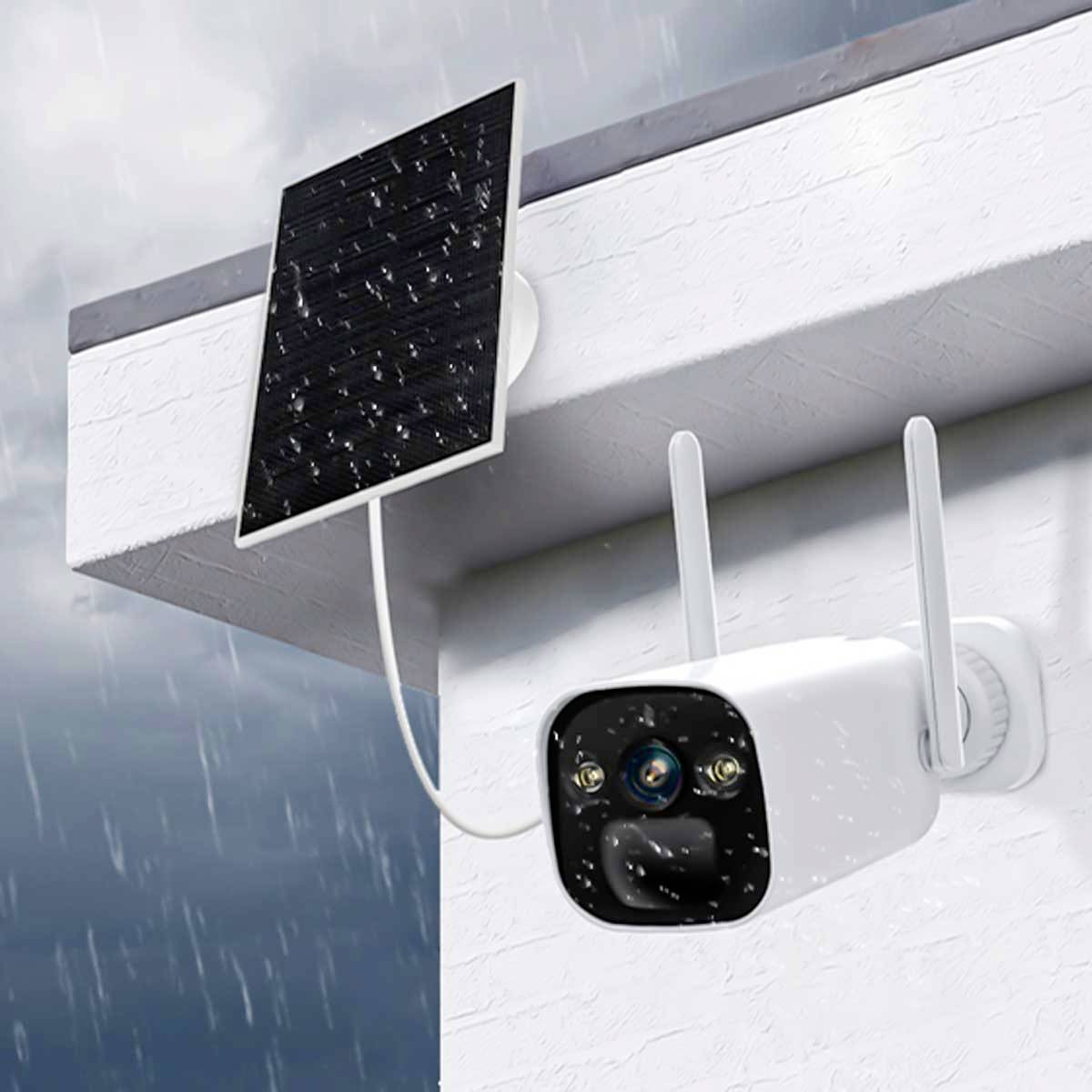

The Foscam BP4 is protected to IP66 and withstands extreme weather conditions. Whether at front door, garage or in storage - this camera works reliably at temperatures from -20 °C to 60 °C.
The recordings can also be stored locally on a micro-SD card (up to 256 GB).
This WLAN surveillance camera supports Alexa & Google Assistant.
This text is machine translated.
It increases the precision and detail of the safety shots, making it easier to identify and record important information.
In addition to the basic functions, such as motion detection, the Foscam B4 also offers a PIR person recognition, which is able to differentiate persons from other moving objects and sends an alarm, in order to enable a quick response and to prevent unauthorized access.
If an intruder is detected, the spotlight is activated and an alarm tone is sounded to scare off potential thieves. The spotlight can also be activated manually.
With two built-in IR LED spotlights, the Foscam BP4 offers night vision range of up to 10 meters. Lively color pictures are also possible in the dark.
With a rechargeable battery and solar panel the camera is always ready to use. With a powerful 10,000 mAh rechargeable battery (4x 18650 batteries included) and the Foscam solar panel, the BP4 is completely wireless and independent of sockets. A solar-powered system provides maximum flexibility.
The Foscam BP4 is equipped with an integrated microphone and a loudspeaker, supporting two-way audio in real time. This allows you to communicate with your guests and turn off unwanted guests, regardless of location.
The Foscam Mobile APP is the ideal solution, with which you can watch live transmissions, talk and listen via the battery-operated camera, receive immediate warnings on the Smartphone and much more. The Foscam PC APP is a video management software (VMS) with an intuitive user interface, which enables to store, find, view and manage videos on the computer, laptop.
The camera can be placed where it receives a good WLAN signal. Since no power socket or an extension cable is required, the camera can be used flexibly.
The Foscam BP4 is protected to IP66 and withstands extreme weather conditions. Whether at front door, garage or in storage - this camera works reliably at temperatures from -20 °C to 60 °C.
The recordings can also be stored locally on a micro-SD card (up to 256 GB).
This WLAN surveillance camera supports Alexa & Google Assistant.
This text is machine translated.
Features
- Stream: Dual stream
- Mirror image: Rotate and mirror
- Infrared mode: Automatic / color night / night vision
- Night vision: With 2 headlights and IR-LED, night vision range up to 10 m.
- Input/output: Full duplex two-way audio
- Siren: Supports a maximum of 110 dB alarm siren
- WLAN-SECURITY WPA, WPA2
- Remote access P2P
- NETWORK PROTOCOL: IP, TCP, UDP
- System requirements for Microsoft Windows (Foscam VMS), MacOS (Foscam VMS), Android (Foscam-APP), iOS (Foscam-APP)
- Smart alarm: PIR detection/identity recognition
- Storage: Supports max. 256 GB micro-SD card, Foscam-cloud memory
- Data protection lock: Yes
- Alexa, Google home support.

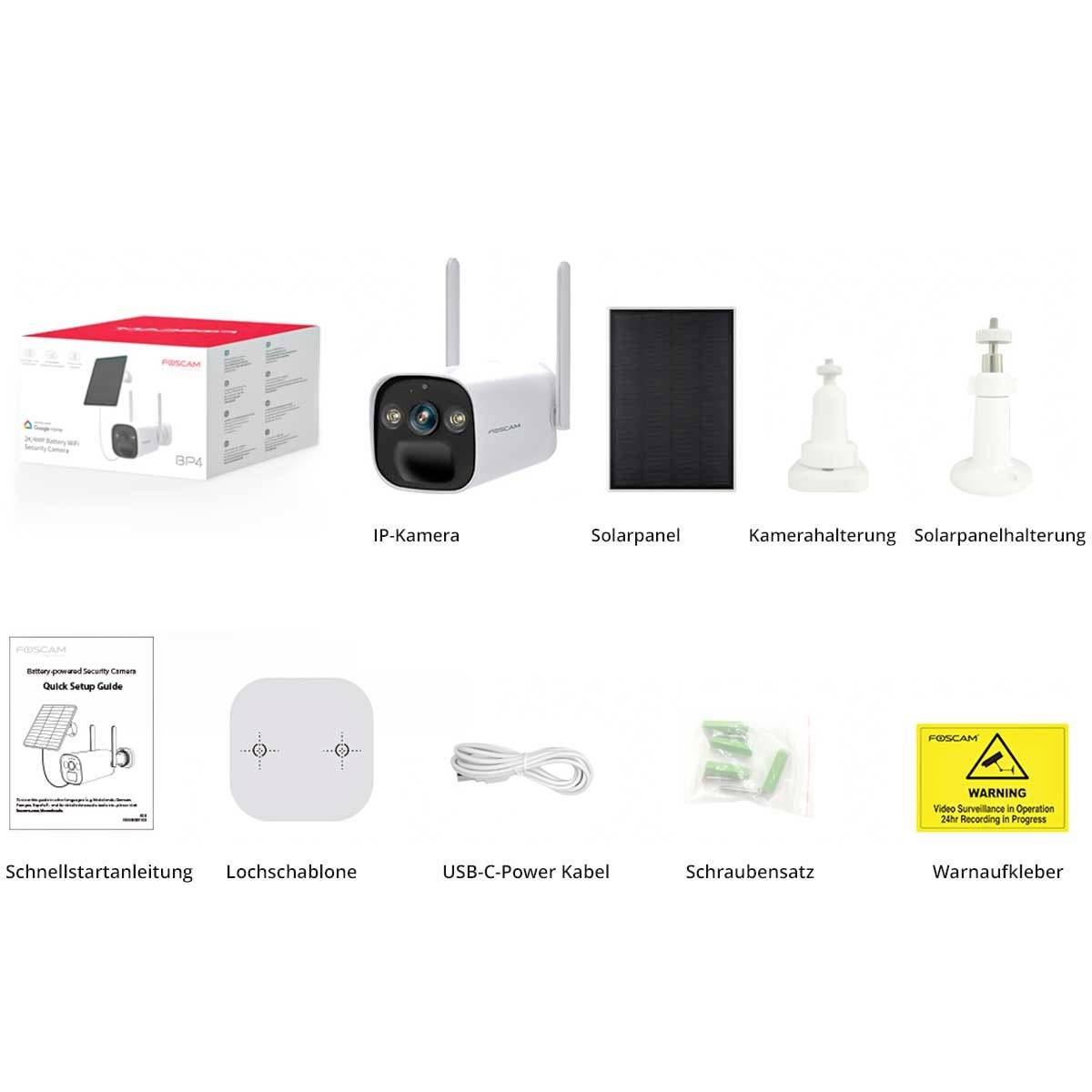

Scope of delivery
- Foscam BP4 camera
- Solar panel
- Type-C USB cable
- Hole pattern
- Camera mounting bracket
- Set of screws
- Solar mounting bracket
- Quick start guide
- Warning sticker.
Hints
Memory card and power supply not included in delivery
