Name: Foscam D8T black D8T black Wireless, Corded IP CCTV camera 3840 x 2160 p
Brand: Foscam
SKU: 3741959
Availability: InStock

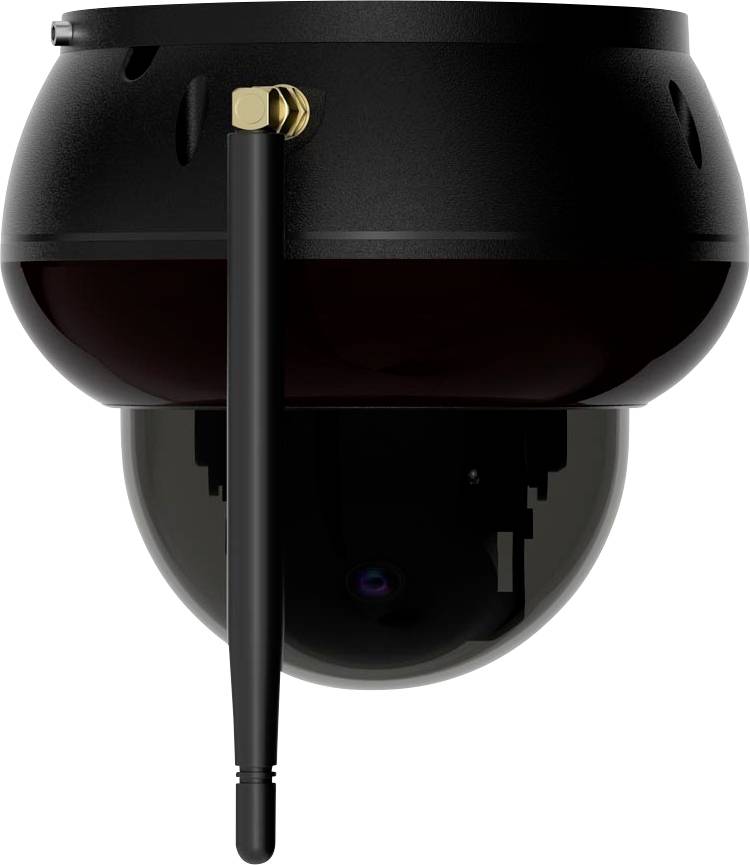

A black dome surveillance camera with an antenna, facing downward, designed for monitoring indoor or outdoor spaces.

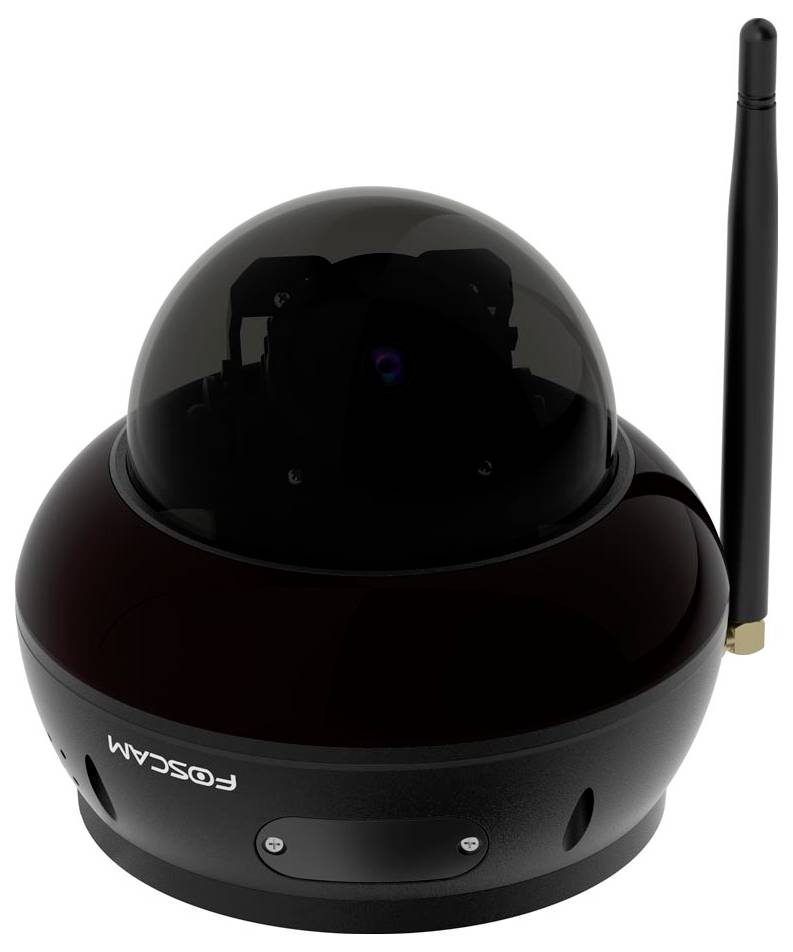

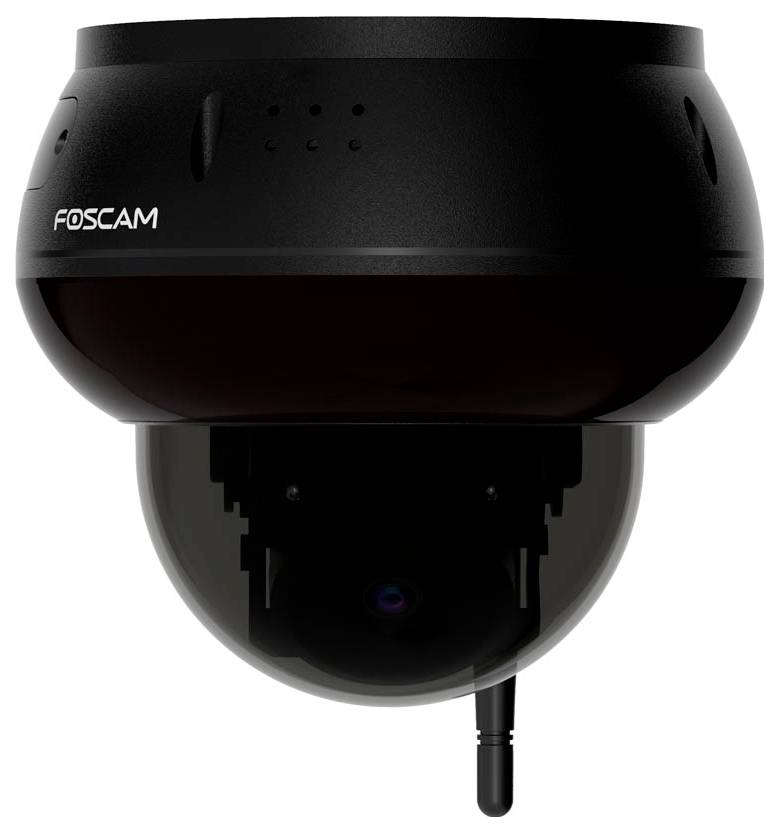

A black Foscam security camera with a spherical design and visible antenna, suitable for indoor or outdoor surveillance.

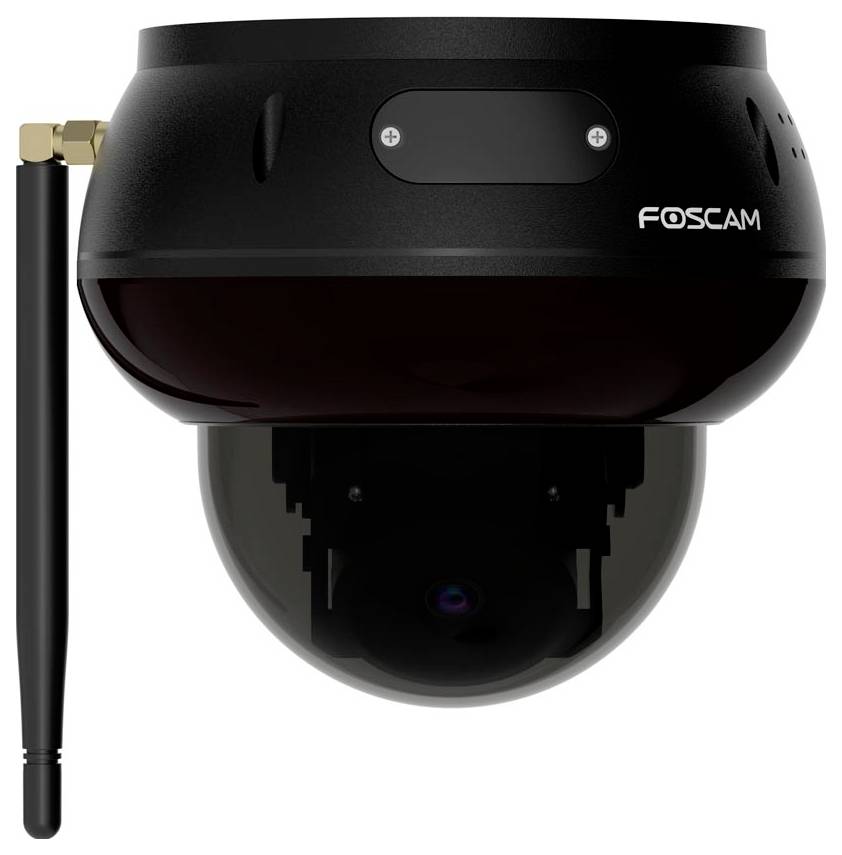

A black Foscam security camera with an antenna, designed for monitoring and surveillance, showing lens and camera branding clearly.

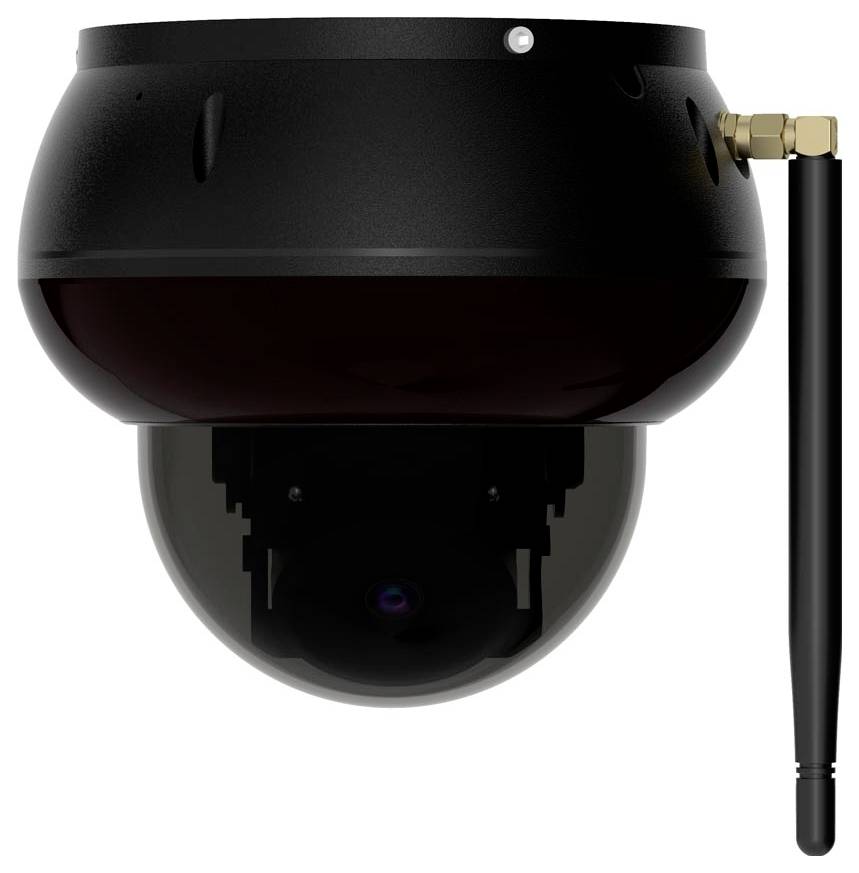

A black dome security camera with an antenna, designed for wireless surveillance, shown against a plain background.

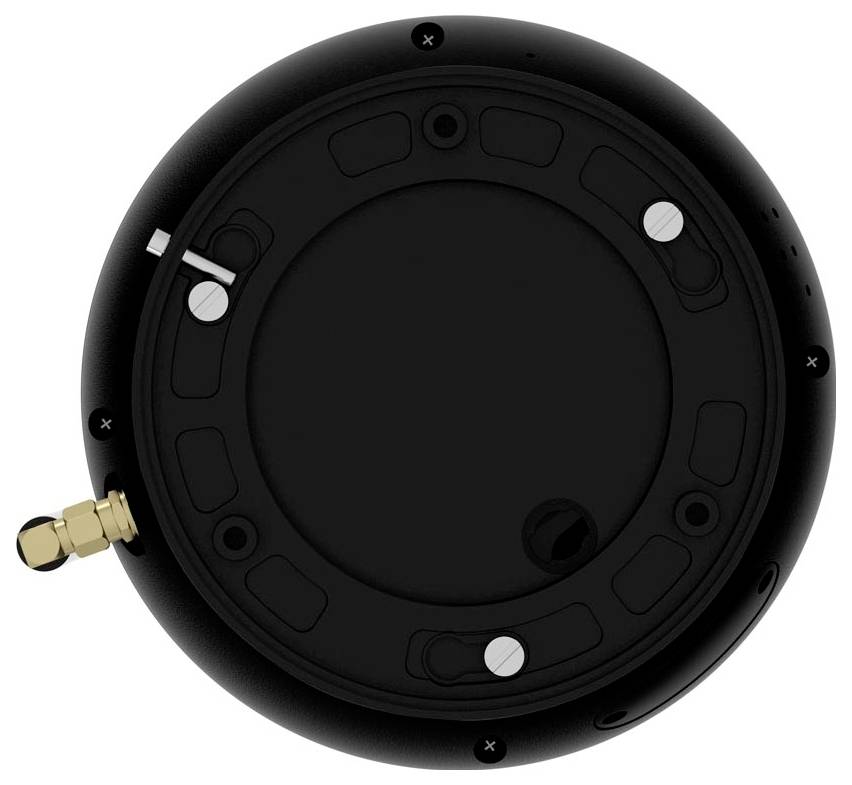

'Top view of a round black mechanical device with various metal fittings and connectors on the perimeter.'

A security camera installed under a roof corner is being struck by a hammer, with pieces flying off, showcasing an impact-resistant feature.

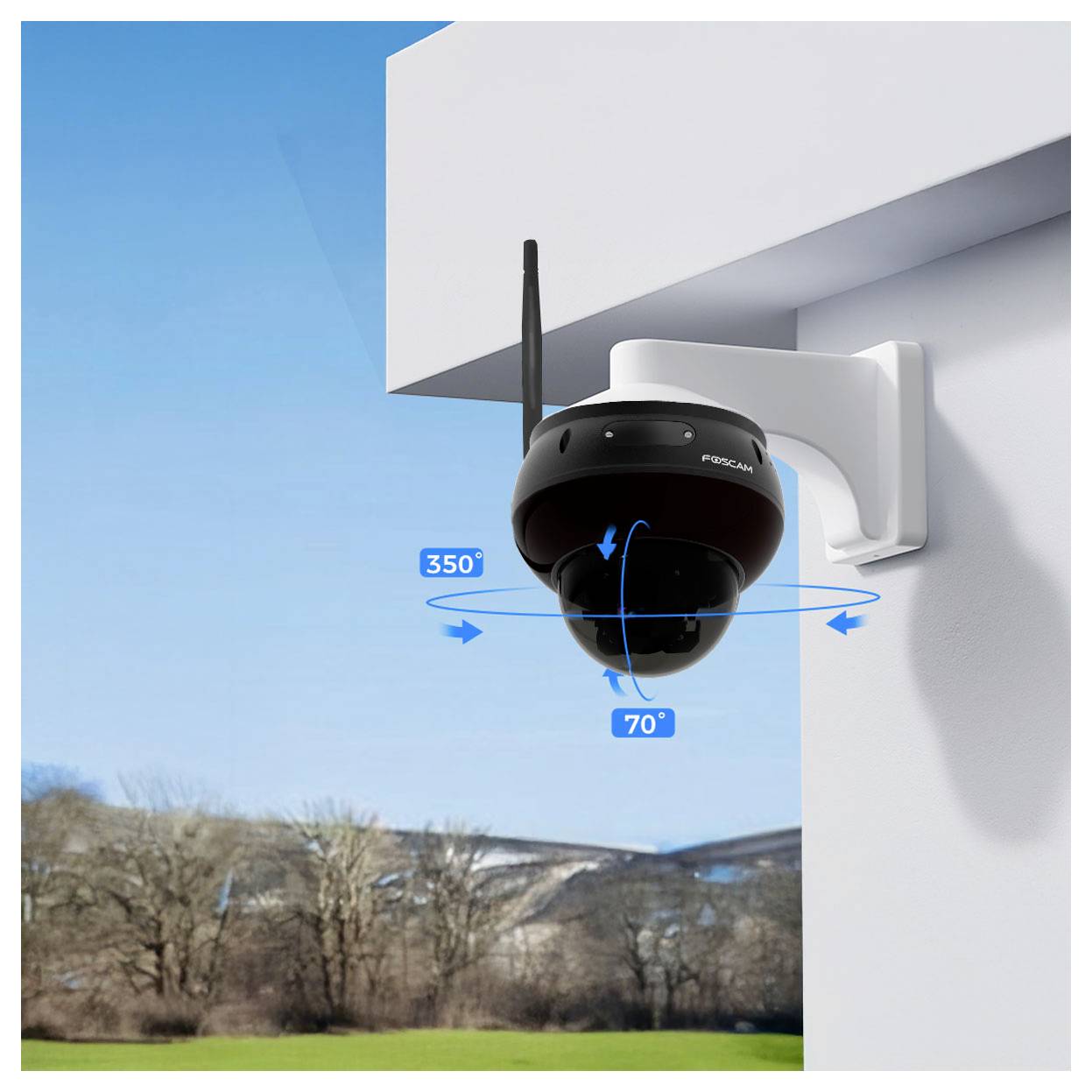

A security camera mounted on a building corner, showing rotation angles of 350 degrees horizontally and 70 degrees vertically, with a park visible below.

A couple walks past a parked car in a driveway with suburban houses and a surveillance camera visible in the background.

1/9

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

9 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 134.99 / piece)

€ 134.99

incl. VAT

Only 9 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Wireless, Corded IP-Dome camera;3840 x 2160 p;FoscamD8T black;D8T blackOutdoors

8 MP 4K Ultra HD resolution (3840 × 2160) for razor-sharp video surveillance
Efficient H.264 / H.265 video compression for reduced bandwidth and memory requirements
Motorised PTZ-function with 350° pan and 70° tilt range
KI-supported person and vehicle detection with intelligent alarm
Up to 20 meters IR-night vision with 8 powerful infrared LEDs
Dual-band WLAN with 2.4 GHz and 5 GHz, WiFi 6
2-way audio (full duplex) with integrated microphone and speakers
Integrated 110 dB alarm siren for active deterrent
MicroSD card slot up to 512 GB for local video recording
WDR technology for optimized image display in case of backlight
Alexa and Google home compatibility for Smart home integration
IK10 certified, vandalism-proof dome housing
IP66 weather-proof for permanent use outdoors

Technical specifications

Sensor
Sensor type: High-resolution color CMOS sensor
Display resolution 8.0 mega pixel (3840 × 2160)
Minimum illumination of 0 Lux (with IR illuminator)
Lens
Lens type: F:3.9 mm; F1.6
Angle of view: Diagonal: 106°; horizontal: 89°; vertical: 47°
Video
Image compression: H.264 / H. 264
Resolution 4K (3840 x 2160) 2 M/25 fps, 1080P (1920 x 1080) 1 M/25 fps, 720P (1280 x 720) 1 M/15 fps
Dual stream
Image setting: Hue, brightness, contrast, saturation and sharpness can be set
Image rotation: Flip and mirror
Swivel/tilt angle: Pan: 350° / tilt: 70°
Night mode: Manual and automatic
Night vision: With 8 IR-LEDs, range up to 20 m.
Audio
Input / output: Integrated microphone and speaker,
Full-duplex two-way audio
Audio compression PCM/AAC
Siren: Supports maximum 110 dB alarm siren
Network
Ethernet 1 x 10/100 Mbps RJ45 port
WLAN standard: 2.4 GHz and 5 GHz dual band, IEEE802.11a/b/g/n/ac/ax
Wi-Fi setup: Bluetooth connection and QR code
Remote access P2P
NETWORK PROTOCOL: IP, TCP, UDP, SMTP, FTP, DHCP, RTSP
Current
POWER SUPPLY DC 12 V / 2 A
Power consumption 16.8 W (max.)
General
Operating temperature: -20°C to 50°C (-4°F to 122°F)
Operating humidity: 10% to 80% non-condensing
Storage temperature: -20°C to 60°C (-4°F to 140°F)
Storage humidity: 0% to 90% non-condensing

Product type: CCTV camera

CCTV features: Pan-tilt function

Camera type: Dome camera

Resolution (max.): 3840 x 2160 p

Sensor type: CMOS

Focal length: 3,9 mm

Max. viewing angle hor.: 89°

Vertical viewing angle: 47°

Vertical viewing angle: 106°

Transfer type: Wireless
Corded

IR range (max.): 20 m

Used at: Outdoors

Type: microSD card (up to 512 GB)

Height: 121 mm

(Ø): 134 mm

Dim: (Ø x H) 134 mm x 121 mm

Weight: 655 g

F-numbers: F1.6

Factory colour: Black

: IP66

Signal standard: IP

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3741959 Foscam D8T black D8T black Wireless, Corded IP CCTV camera 3840 x 2160 p

User & Safety Instructions

User & Safety Instructions 3741959 Foscam D8T black D8T black Wireless, Corded IP CCTV camera 3840 x 2160 p

Description

The Foscam D8T 4K 8 MP WLAN IP camera is a powerful outdoor surveillance camera with the latest WiFi 6 technology, intelligent AI detection and 4K ultra HD resolution.

Thanks to 350° swivel range and 70° tilt, it reliably covers large areas such as driveways, gardens, courtyards and company premises. The combination of dual band 2.4 GHz and 5 GHz WLAN, IP66 weather protection and built-in siren provides maximum security in the private and commercial sector.
The 8 megapixel 4K Ultra HD resolution (3840 x 2160) delivers pin-sharp images with high detail accuracy. Even the small details like faces or number plates remain clear. The high performance CMOS sensor in combination with WDR technology optimizes contrast in low light conditions.
With the integrated AI-supported person and vehicle recognition relevant movements are precisely identified. False alarms due to animals or environmental movements are reduced. Notifications are done in real time via email, FTP or via the Foscam APP.
The 350° pan and 70° tilt function enable flexible all-round monitoring. Large areas can be monitored with only one camera, WAS reduces the effort required for installation.
Thanks to WiFi 6 with 2.4 GHz and 5 GHz dual band support the camera ensures a stable, fast and interference-free connection. Alternatively, a 10/100 Mbps RJ45 LAN connection is available.
The integrated infrared night vision with 8 IR-LEDs enables a visibility of up to 20 meters in complete darkness. The automatic and manual night mode provides for a constant monitoring quality around the clock.
With the full-duplex two-way audio (integrated microphone and loudspeaker) a direct communication is possible. The camera also has an integrated 110 dB alarm siren to actively scare off unwanted people.
For storage the Foscam D8T supports microSD cards up to 512 GB, FTP storage as well as Foscam cloud. The P2P function enables quick remote access via iOS, Android, Windows or MacOS.
The camera is Alexa and Google home compatible and can be integrated into existing Smart home systems.
The IP66-certification and IK10 protection class guarantees resistance against dust, rain and vandalism. Use is possible at temperatures from -20°C to 50°C.

Functions
Motion detection: Alarm via E-mail, FTP and Foscam APP upon event
Person recognition: Alarm via e-mail, FTP and Foscam APP in case of event
Vehicle recognition: Alarm via e-mail, FTP and Foscam APP at event
User accounts: Three user roles
WDR: Improved picture clarity in complex scenarios
Zoom 20X digital zoom
Memory Max. 512 GB MicroSD card,
FTP and Foscam cloud
Voice wizard: Supports Alexa and Google home
