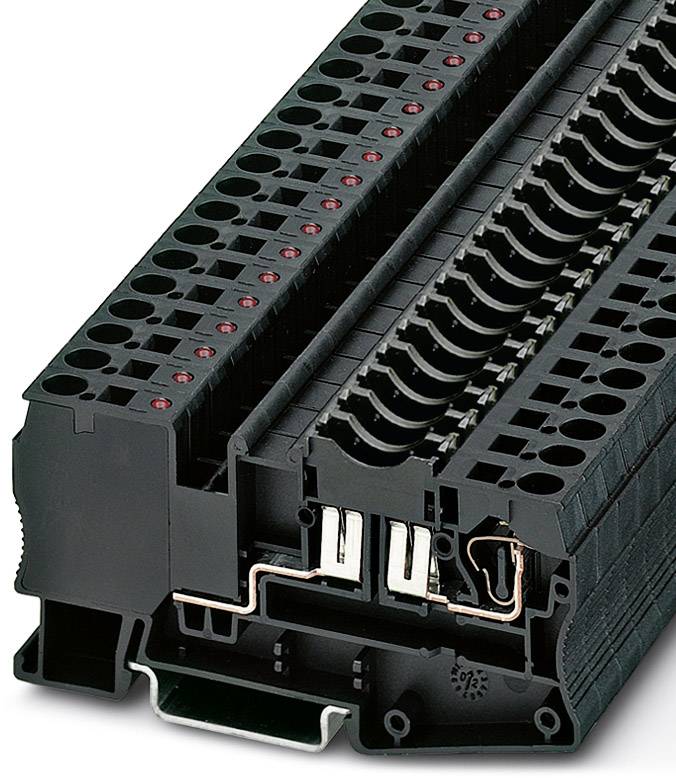

Fuse modular terminal block ST 4-FSI/C-LED 12 3036495 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Fuse serial terminal
Connection
Pull spring
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
30 A
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 13.87 / piece)
€ 693.28
plus VAT.
14-day return policy included
Technical specifications
- Product type
Fuse serial terminal
- Connection
Pull spring
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
28
- AWG max.
12
- Clamp width
8.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Black
- Nominal current
30 A
- Nominal current - rounded value
30 A
- Nominal voltage
12 V
- Stripping length (max.)
10 mm
- Manufacturer part #
3036495
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
ST 4-FSI/C-LED 12
- Dim
(L x W x H) 86.5 x 8.2 x 43.5 mm
- Width
8.2 mm
- Height
43.5 mm
- Length
86.5 mm
- Contamination level
3
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 565643 Fuse modular terminal block ST 4-FSI/C-LED 12 3036495 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 565643 Fuse modular terminal block ST 4-FSI/C-LED 12 3036495 Phoenix Contact
Description
Fuse terminal block with LED for mounting on NS 35, for miniature circuit breakers, terminal width: 8.2 mm, color: Black
