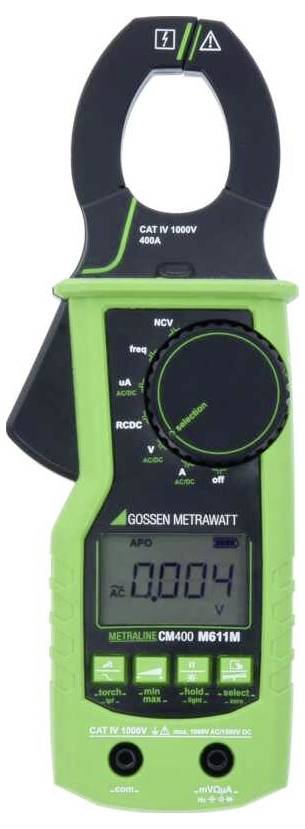

Gossen Metrawatt METRALINE CM 400 Clamp meter Digital incl. testing cable CAT IV 1000 V Display (counts): 4000
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 217.65 / piece)
€ 217.65
plus VAT.
Highlights & Details
- LCD-display with background lighting
- Current measurement AC/DC up to 400A
- Contact-free voltage detection
Technical specifications
- Diode test, torch, self-test
- Voltage reading range DC (min.)
1 mV
- Product type
Clamp meter
- Voltage DC reading range (max.)
1500 V
- V AC reading range (min.)
1 mV
- V AC reading range (max.)
1000 V
- Amperage reading range DC (min.)
0.2 A
- A DC reading range (max.)
400 A
- A AC reading range (min.)
0.2 A
- Amperage reading range AC (max.)
400 A
- Reading range - resistance
40 MΩ
- Reading range - capacity
100 µF
- Frequency reading range
9.99 MHz
- Measurement type (details)
True RMS
- Height
220 mm
- Width
40 mm
- Length
80 mm
- Weight
268 g
Manufacturer's standards (no certificate)
- Reading category
CAT IV 1000 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
METRALINE CM 400
- Display
Digital
- Display (counts)
4000
- Dim
(L x W x H) 80 x 40 x 220 mm
- Features
incl. testing cable
- Opening range of current clamps
35 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3558192 Gossen Metrawatt METRALINE CM 400 Clamp meter Digital incl. testing cable CAT IV 1000 V Display (counts): 4000
User & Safety Instructions
User & Safety Instructions 3558192 Gossen Metrawatt METRALINE CM 400 Clamp meter Digital incl. testing cable CAT IV 1000 V Display (counts): 4000
Description
The METALLINE CM 400 is the optimal solution for the precise measurement of direct and alternating current up to 400 A. This professional clip-on ammeter is especially suitable for applications in solar and industrial environments. With LCD display with backlight, auto-switch-off and LPF, this innovative device offers a wide range of measuring functions, from resistance measurement to contactless voltage detection. Certified according to CAT IV 1000V – CAT III 1500V, the METALLINE CM 400 is an indispensable tool for every electro-technician.
This text is machine translated.
This text is machine translated.
Features
- Current measurement AC/DC up to 400A
- µA-Measurement AC/DC for HVAC
- Voltage measurement AC / DC up to 1500VDC
- TRMS
- Resistance measurement
- Capacitance testing
- Frequency measurement
- Diode test and continuity check
- Contact-free voltage detection
- LPF (low-pass filter)
- Torch
- LCD with lighting
- Automatic power off, self-test
- Measurement category CAT IV 1000V CAT III 1500V
Scope of delivery
- 2 test leads (1 × red, 1 × black);2 batteries (1.5 V, AAA, IEC LR03); operating instructions
