Name: Gossen Metrawatt U2289-V047 Electricity meter (3-phase) Digital 80 A MID-approved: Yes 1 pc(s)
Brand: Gossen Metrawatt
SKU: 2473707
Availability: InStock

A digital energy meter displays consumption values: 97 kWh total consumption, 0 kW current power. Serial and MAC addresses are visible.

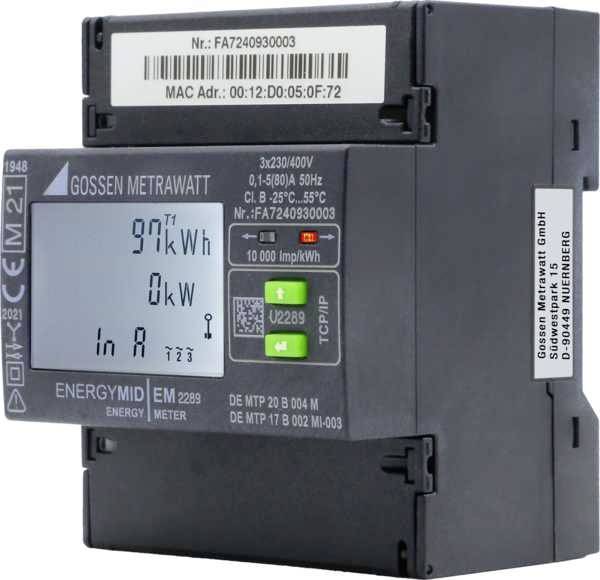

A digital electricity metre from Gossen Metrawatt displays 97.7 kWh consumption. It has a grey housing and several technical details.

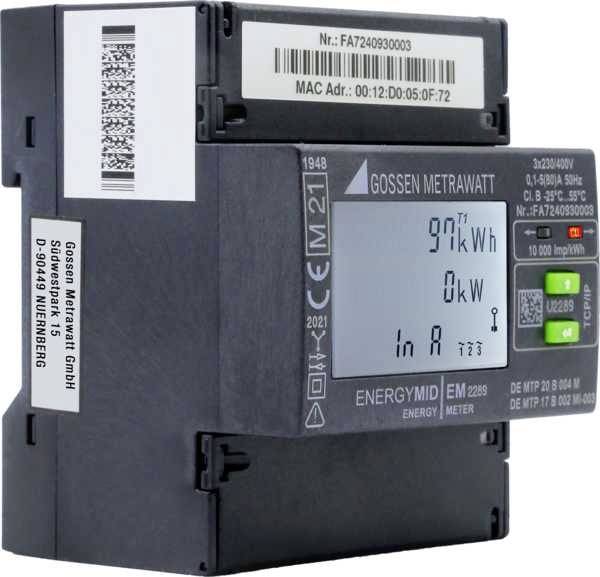

A digital electricity metre shows '97 kWh' on the display. On the right is a green button. The manufacturer is Gossen Metrawatt.

1/3

Product type

Electricity meter (3-phase)

Current load

80 A

Display

Digital

Calibration

Regenerated/calibrated

Counter type

Top hat rail meter

EAN:

Part number:

Item no:

Dispatches on Fri 13 Nov

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 705.00 / piece)

€ 705.00

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

ENERGYMID EM2389-V047 - multi-functional energy meter with TCP interface, suitable for third-party volume recording

Multi-functional energy meter for 4-wire networks, 400V with direct connection 5 (80) A.
Ultra-compact design 4 TE (72 mm) with integrated Modbus TCP interface
4 quadrant measurement: Energy supply and discharge
Certified meter reading according to PTB-A 50.7
Ensure consistency of time via time server (NTP)
Simple integration and fast parameterization through Modbus TCP
Internal counter status memory for 4 years (15 min. Values)
Proven and future-proof counter concept of the EnergyMID series
Certified and tamper-proof measuring capsule
Verification of the data on site via display or reading of the memory via EnergyMID tool
Parallel integration into existing energy data acquisition systems and reading of the counter status data is possible

Technical specifications

Counter type: Top hat rail meter

Product type: Electricity meter (3-phase)

Current load: 80 A

Display: Digital

Calibration: Regenerated/calibrated

Operating voltage: 400 V AC

Special feature: Certified meter reading process (PTB-A 50.7)

Factory colour: Black

Dim: (L x W x H) 69 x 72 x 90 mm

Weight: 300 g

Starting current: 20 mA

Recording time (max.) (details): 48 Mon.

Operating voltage: 400 V

Recess width: 72 mm

Recess length: 90 mm

Frequency: 50 Hz

Accuracy class: B

MID-approved: Yes

Reading type: Energy consumption

Nominal voltage range: 320 up to 460 V AC

Mains voltage (max.): 460 V AC

Mains voltage (min.): 320 V AC

Width: 72 mm

Height: 90 mm

Length: 69 mm

Current (max.): 80 A

Current (min.): 0.1 A

Current range: 0.1 up to 80 A

Type: U2289-V047

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2473707 Gossen Metrawatt U2289-V047 Electricity meter (3-phase) Digital 80 A MID-approved: Yes 1 pc(s)

Description

The proven MID-compliant ENERGYMID EM energy meter with new certified meter reading (characteristic: Z2) According to the national PTB-A 50.7, the simple realization of a measurement concept conforming to German and international law allows for the demarcation of third quantities within the framework of §62B of the EEG and for the provision of the self-consumption certificate both within the framework of the "special compensation regulation" and with the existing self-supply.
