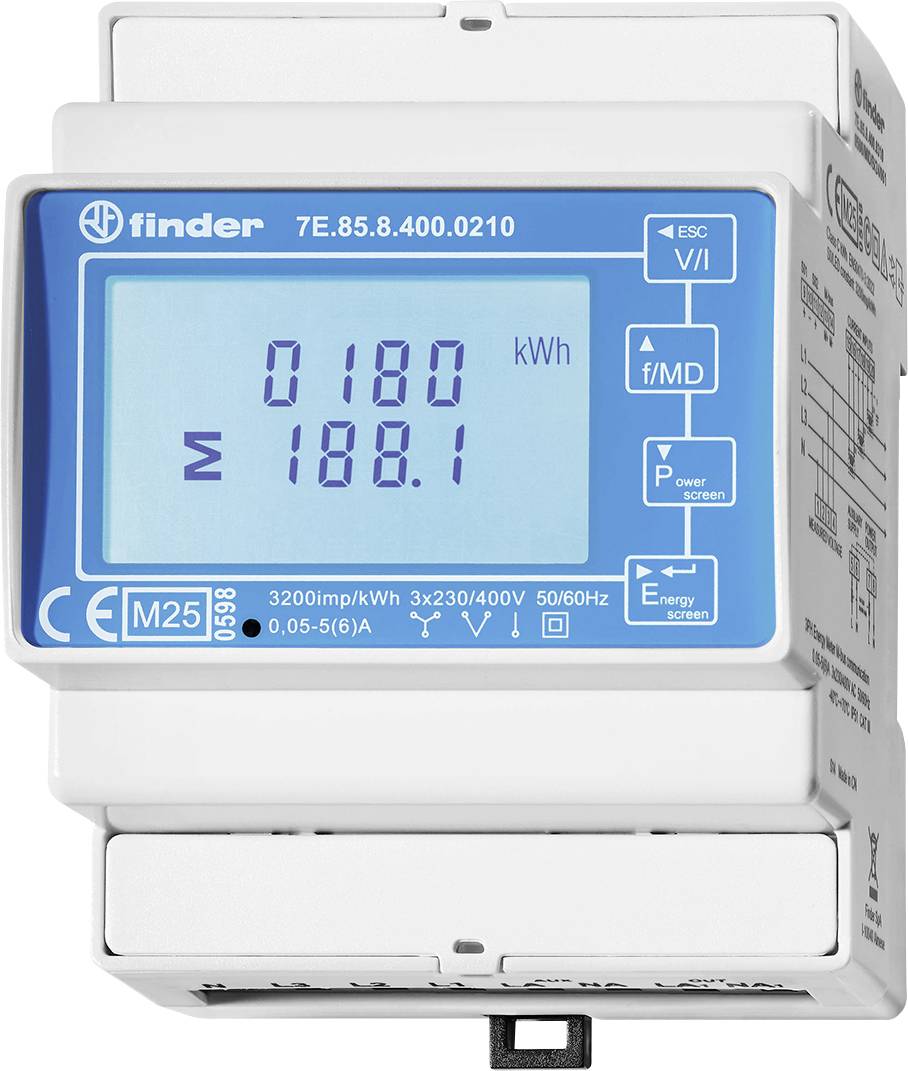

Finder 7E.85.8.400.0212 7E.85.8.400.0212 Energy logger Digital MID-approved: Yes 1 pc(s)
EAN:
Part number:
Item no:
Product type
Energy logger
Display
Digital
Dim
(L x W x H) 59.6 x 71.9 x 99.4 mm
Operating voltage
250 V AC
MID-approved
Yes
Datasheet (PDF)
Number
Total (€ 180.66 / piece)
€ 180.66
plus VAT.
Only 3 Piece(s) available
Highlights & Details
Three-phase multifunction two-tariff energy counter Modbus
- Reference current 1 A/continuous current max. 6 A
- Modbus RS485-Interface
- Three-phase four-wire network
- For converter connection
- MID-approved
Technical specifications
- Product type
Energy logger
- Display
Digital
- Dim
(L x W x H) 59.6 x 71.9 x 99.4 mm
- Operating voltage
250 V AC
- MID-approved
Yes
- Reading type
Energy consumption
- Nominal voltage range
250 V AC (max)
- Mains voltage (max.)
250 V AC
- Width
71.9 mm
- Height
99.4 mm
- Length
59.6 mm
- Current (max.)
6 A
- Current range
6 A (max)
- Features
Reset option
- Type
7E.85.8.400.0212
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3477055 Finder 7E.85.8.400.0212 7E.85.8.400.0212 Energy logger Digital MID-approved: Yes 1 pc(s)
Datasheet 3477055 Finder 7E.85.8.400.0212 7E.85.8.400.0212 Energy logger Digital MID-approved: Yes 1 pc(s)
Datasheet 3477055 Finder 7E.85.8.400.0212 7E.85.8.400.0212 Energy logger Digital MID-approved: Yes 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3477055 Finder 7E.85.8.400.0212 7E.85.8.400.0212 Energy logger Digital MID-approved: Yes 1 pc(s)
Description
Three-phase multifunction two-tariff energy meter Modbus, nominal voltage (according to EN62052-21): 250 V AC, rated surge voltage: 7.4 kV, electrical strength: 4 kV, width: 71.9 mm, height: 99.4 mm, Depth 59.6 mm. Display of the instantaneous values of: V, A, PF, kW, kVA, kvar, Hz and current direction as well as total consumption, partial consumption (resettable) in kWh, kVAh, or kvarh. For transformer connection, current measuring range, programmable Also programmable S0 output (configurable: KWh, kvarh) for energy management applications as per EN 62053-31. Active power accuracy class C (EN 50470-3), reactive power accuracy class 2 (EN 62053-23).
