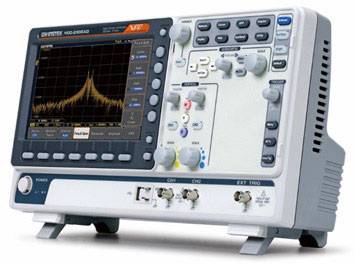

GW Instek MDO-2302A Digital 300 MHz 2-channel 2 GS/s 2000 KP 14 Bit Spectrum analyzer 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 2,219.00 / piece)
€ 2,219.00
incl. VAT
14-day return policy included
Highlights & Details
GW Instek MDO-2302A 300 MHz Oscilloscope
- 300 MHz
- No. of analogue inputs 2
Technical specifications
- Product type
Digital
- Bandwidth
300 MHz
- Channel sample rate
2 GS/s
- Resolution
14 Bit
- Screen size
8" (20,3 cm)
- Oscilloscope features
Spectrum analyzer
- No. of analogue inputs
2
Manufacturer's standards (no certificate)
- Vertical deflection
1mV10V/div
- Input impedance
1 MOhm
- Dim
(L x W x H) 208 x 384 x 127 mm
- Weight
3 kg
- Display
TFT 800 x 480 p
- Width
384 mm
- Height
127 mm
- Length
208 mm
- Interfaces
LAN
USB device
USB host
BNC
- Channel memory depth
2000 KP
- Type
MDO-2302A
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2189607 GW Instek MDO-2302A Digital 300 MHz 2-channel 2 GS/s 2000 KP 14 Bit Spectrum analyzer 1 pc(s)
Description
Features
- 300MHz bandwidth
- 2 channels
- Real-time sampling rate of 2 GSa/s Max.
- 20 M per channel memory depth and VPO waveform display technology
- Waveform update rate of up to 120,000 wfms/s
- 8" (20.3 cm) WVGA TFT LCD Display
- Maximum 1 M FFT provides measurements of the multi-frequency domain resolution
- High, Low and band-pass filter functions
- 29,000 segmented memory and waveform search functions
- I2C/UART/CAN/LIN serial randbus-trigger and decoding function
- Data logging function is able to track signal changes up to 1000 hours
- Network storage function
- Mask test function
- MDO-2000 AG with a two-channel - AWG with 25 MHz
- Interface
- High-speed USB-device connection, host-port
- LAN connection
- Go/NoGo BNC
- Kensington style lock
- Software and driver
- PC-Software (Open Wave software)
- LabVIEW driver
- USB driver
Scope of delivery
- Power cable;
- Passive sample (one sample per channel)
- Certificate of Calibration
- CD-ROM (with Quick Start Guide, User Manual, Programming Manual)
- Free download: Openwave software
- USB driver
- LabVIEW driver.
