Name: Hama TV wall mount 48,3 cm (19") - 121,9 cm (48") Tiltable, Swivelling, Retractable, Swivelling
Brand: Hama
SKU: 3758408
Availability: InStock

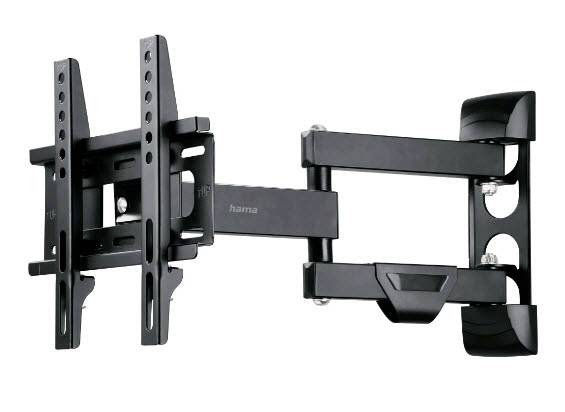

Black adjustable wall-mount TV bracket with extension arms and tilting VESA plate, shown isolated on a white background.

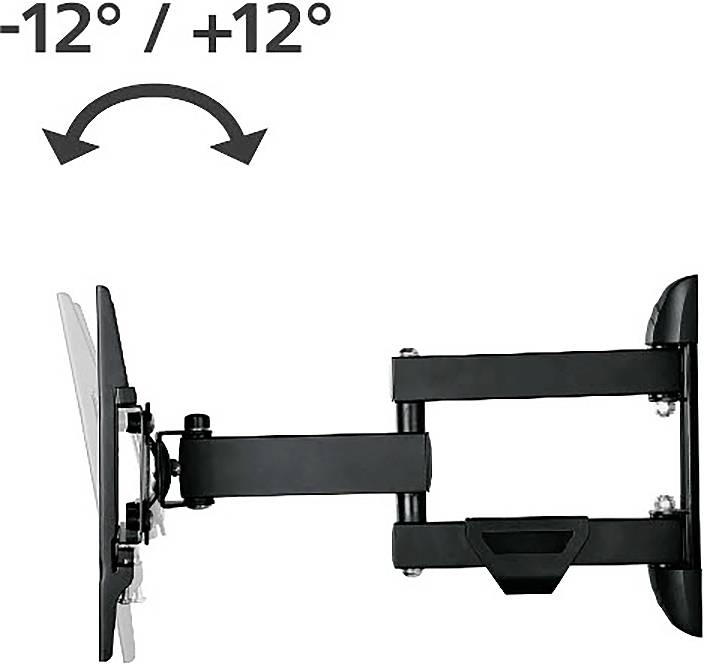

Adjustable TV wall mount shown in side view, labeled -12°/+12° tilt range with curved arrows indicating up-down movement.

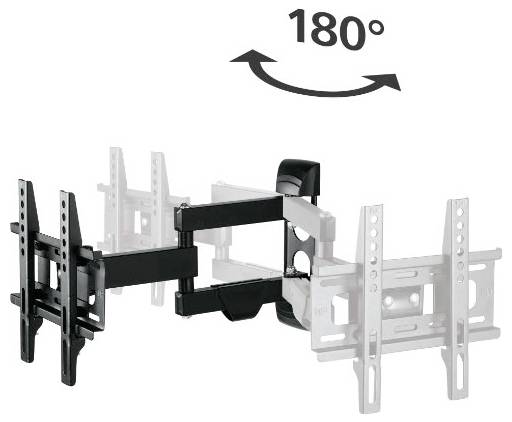

Adjustable TV wall mount shown swiveling 180 degrees, with extended arm and VESA bracket for flat-screen televisions.

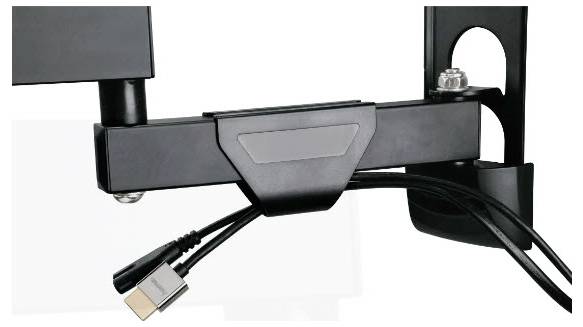

Close-up of a black adjustable monitor mount with cable management, showing an HDMI cable routed beneath the arm.

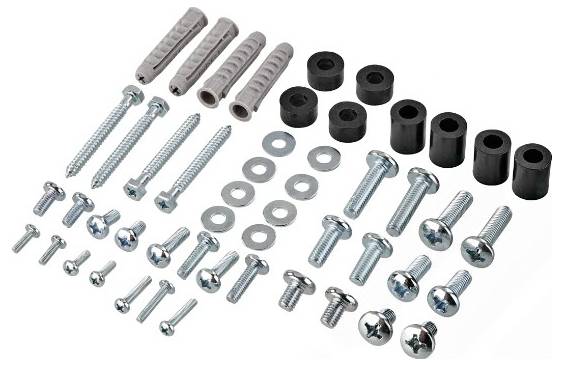

Assorted wall-mount hardware kit with plastic anchors, spacers, washers, and various screws/bolts laid out on a white background.

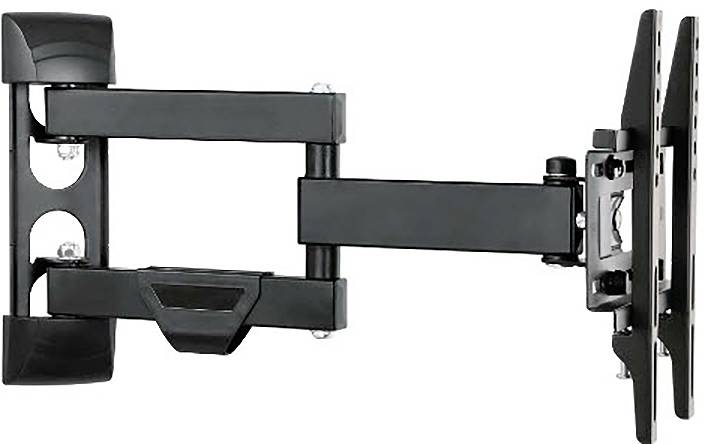

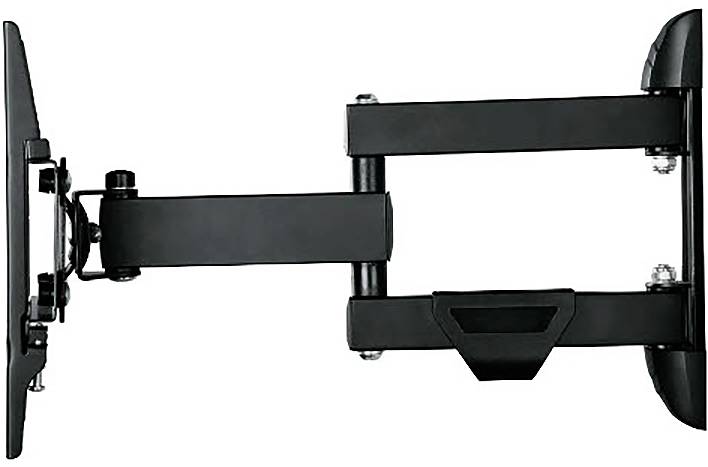

Extendable wall-mounted TV bracket with articulated arms, showing the mount extended to hold a flat-screen television.

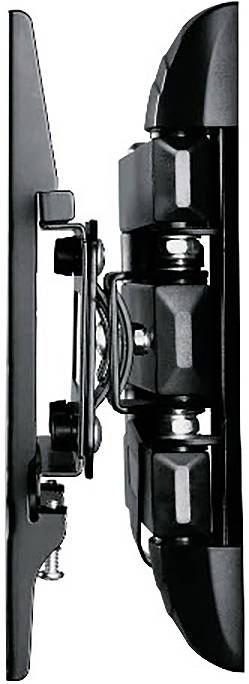

Close-up of a TV wall mount bracket, showing the side view of the black articulating arm and attached screen panel.

Two people relax in a living room watching a soccer match on a wall-mounted TV, one seated at a table and the other on a sofa using a tablet.

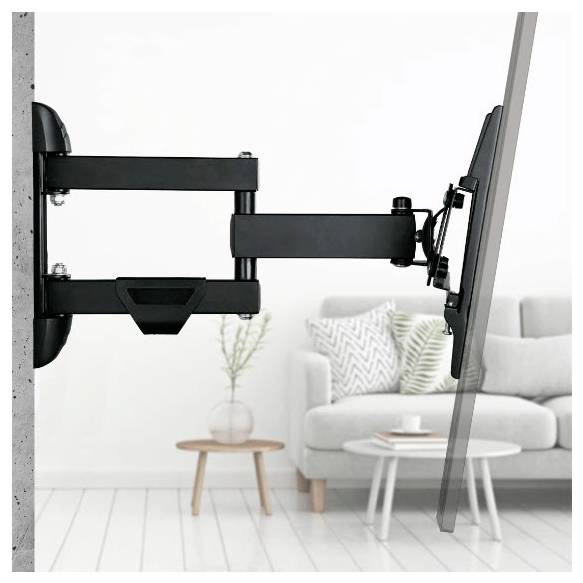

Black adjustable wall-mounted TV arm extending from a concrete wall, holding a flat-screen in a bright living room with a sofa and side tables.<br>

Man reading a magazine at a table while a child sits on a sofa watching TV in a bright living room.<br>

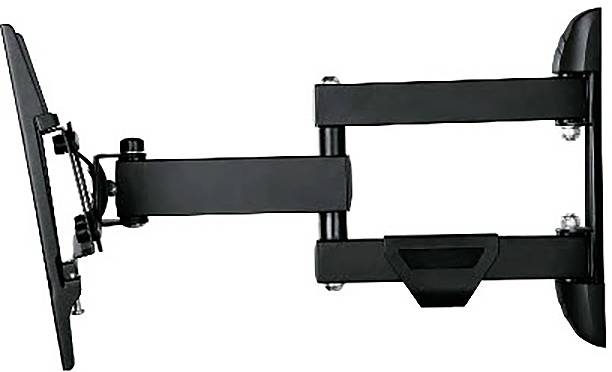

Black flat-screen TV mounted on a wall with an adjustable swivel arm, shown in side view against a white background.

1/14

EAN:

Part number:

Item no:

Fast track dispatch on Thu 5 Nov

4 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 40.99 / piece)

€ 40.99

incl. VAT

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Hama TV wall mount

Holder type: Tiltable, Swivelling, Retractable, Swivelling
Supports VESA standards up to
Suitable for displays sized (range): 48,3 cm (19") - 121,9 cm (48")
Load capacity (max.) 25 kg

Technical specifications

Minimum screen size: 48.3 cm (19")
Panel-mounting interface 150 x 75.50 x 50.75 x 75.75 x 100.100 x 100.200 x 200 x 200.200 x 100.100 x 150.100 mm
Tilt angle range -12 - 12°

Product type: TV wall mount

Suitable for: 121,9 cm (48")
48,3 cm (19")

Suitable for: 48,3 cm (19") - 121,9 cm (48")

Holder type: Tiltable
Swivelling
Retractable
Swivelling

Max. load capacity: 25 kg

: No

: 200 x 200 mm

Rotation: 3°

Tilt range (bottom): 12°

Swivel range (left): 180°

Swivel range (right): 180°

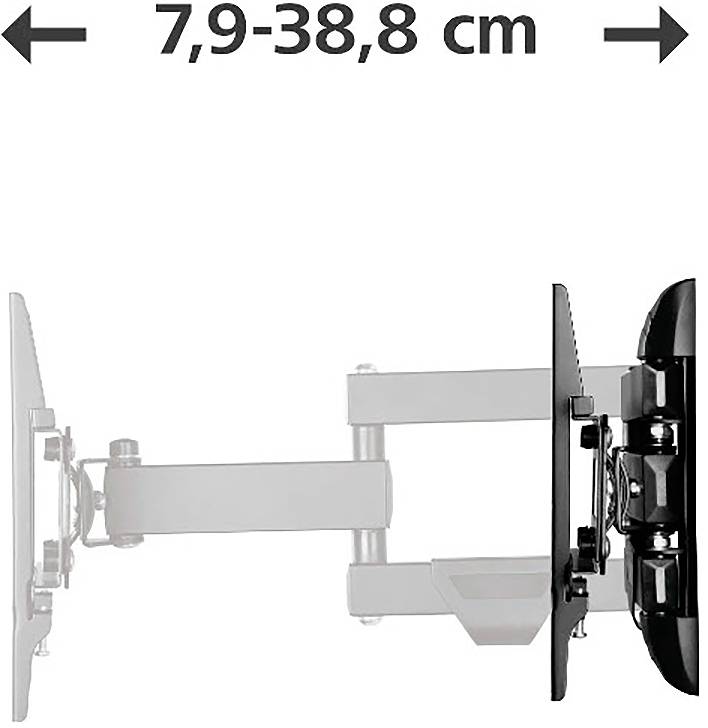

Distance to wall (min.): 79 mm

Distance to wall (max.): 388 mm

Width: 245 mm

Height: 230 mm

Factory colour: Black

Material (details): Steel

Weight: 2760 g

Dim: (L x W x H) 350 cm x 245 mm x 230 mm

Add-on displays: 1 Display(s)

Length: 350 cm

UKCA: yes

Swivel angle: 180°

Quantity per pack: 1 Stück(e)

Cable management: yes

Rotating: yes

Number of joints: 3

Distance to the wall (max): 38.8 cm

Distance to the wall (min): 7.9 cm

Swivelling: yes

Mounting kit: yes

Tilt adjustment: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3758408 Hama TV wall mount 48,3 cm (19") - 121,9 cm (48") Tiltable, Swivelling, Retractable, Swivelling

Description

Full home cinema flexibility: Whether you have your favorite armchair or sofa corner - with this fully movable wall mount, film and serial junkies always sit in the VIP lounge, suitable for flat screens with screen sizes from 48 to 122 cm (19" to 48")

Quality-tested

Play it safe with our proven safety: Demanding stress, stability and function tests guarantee high quality standards

Fully flexible television mounting bracket

For the perfect viewing angle: This television mount adapts to your individual needs – whether swiveled, inclined, extendable – in this way Home Entertainment works

Easy-fix system

Easy-fix system for simple and continuous TV adjustment

Later alignment

If the TV wall holder was mounted slightly tilted, the position of the TV can be corrected horizontally by a few degrees later

Cable manager

Cable manager keeps things tidy and provides all-important strain relief

Inclusive mounting material

All there is: With the versatile mounting accessories including high-quality Fischer-dowels you can start immediately

FSC

FSC-certified: Paper, cardboard and cardboard of our packaging come from sustainable forest management – this is how we use wood as a resource-saving raw material

Plastic free

Packaging with good conscience: Our packaging is 100% plastic-free – thus reducing plastic waste and increasing recycling capability

This text is machine translated.

Features

TV wall mount particularly suitable for flat TV sets for optimum placement of the flat screen in each room, Ideal for open living areas
Supports all VESA standards up to 200 x 200
tilts up to +/-12°
Can be rotated by up to 180° on 3 joints
With a small spirit level for easy and quick installation

Scope of delivery

1 TV wall holder
Mounting material including fishing rod
1 Spirit-level
1 installation guide

Description

Features

TV wall mount particularly suitable for flat TV sets for optimum placement of the flat screen in each room, Ideal for open living areas
Supports all VESA standards up to 200 x 200
tilts up to +/-12°
Can be rotated by up to 180° on 3 joints
With a small spirit level for easy and quick installation
