Name: High Current Connectors HV M8/2 3049550 Phoenix Contact
Brand: Phoenix Contact
SKU: 566312
Availability: InStock

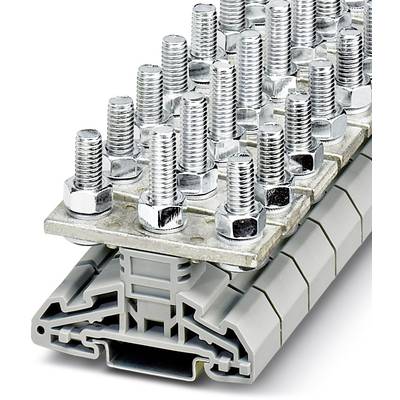

Multi-storey terminal block with metal bolts and screws, mounted on a grey plastic base. Used for electrical connections.

Image similar

Packaging type

Piece

Product type

High power connector

Connection

Bolt fixings

Cross section (flexible) (max.)

50 mm²

Cross section (inflexible) (max.)

50 mm²

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 13 Nov

34 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 25 pc(s))

Set(s)

Total (€ 15.00 / piece)

€ 375.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

High Current Connectors HV M8/2

HV M8/2

Technical specifications

Packaging type: Piece

Product type: High power connector

Features: High current

Connection: Bolt fixings

Cross section (flexible) (min.): 2.5 mm²

Cross section (flexible) (max.): 50 mm²

Cross section (inflexible) (min.): 2.5 mm²

Cross section (inflexible) (max.): 50 mm²

AWG (min.): 14

AWG max.: 1

Clamp width: 21 mm

No. of rows: 1

Number of pins: 2

Factory colour: Grey

Nominal current: 150 A

Nominal current - rounded value: 150 A

Nominal voltage: 1000 V

Manufacturer part #: 3049550

Content: 25 pc(s)

Industrial packaging: Yes

Type: HV M8/2

Dim: (L x W x H) 67 x 21 x 63.5 mm

Width: 21 mm

Height: 63.5 mm

Length: 67 mm

Contamination level: 3

Flammability rating: V0

Connector colour: Grey

Insulation material: PA

Insulation: PA

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 566312 High Current Connectors HV M8/2 3049550 Phoenix Contact

User & Safety Instructions

User & Safety Instructions 566312 High Current Connectors HV M8/2 3049550 Phoenix Contact

Description

High Current Connectors, Connection method: Bolt connection, Cross section: 2.5 mm² - 50 mm², AWG: 14 - 1/0, Width: 21 mm, Height: 63.5 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15

Description

High Current Connectors, Connection method: Bolt connection, Cross section: 2.5 mm² - 50 mm², AWG: 14 - 1/0, Width: 21 mm, Height: 63.5 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15
