Buy HIKMICRO M20 IR camera -20 up to +550 °C 256 x 192 Pixel 25 Hz Wi-Fi, Touchscreen

There is a Conrad shop in your region. You can shop in your own language, have access to your local customer service and enjoy local transport for your purchase.

Go to local shop

Conrad
To search for the product, enter a catchphrase, an article number, an EAN or a part number
My account

Log in / Register
Shopping cart

Subscribe to the newsletter and receive a €5 voucher Subscribe to the newsletter and receive a €5 voucher
Procurement

Order & eProcurement

All order and procurement services
Services

All Services
Offers %

Thermal imaging camera shows thermal image of power lines with colour scale to visualise temperature differences.

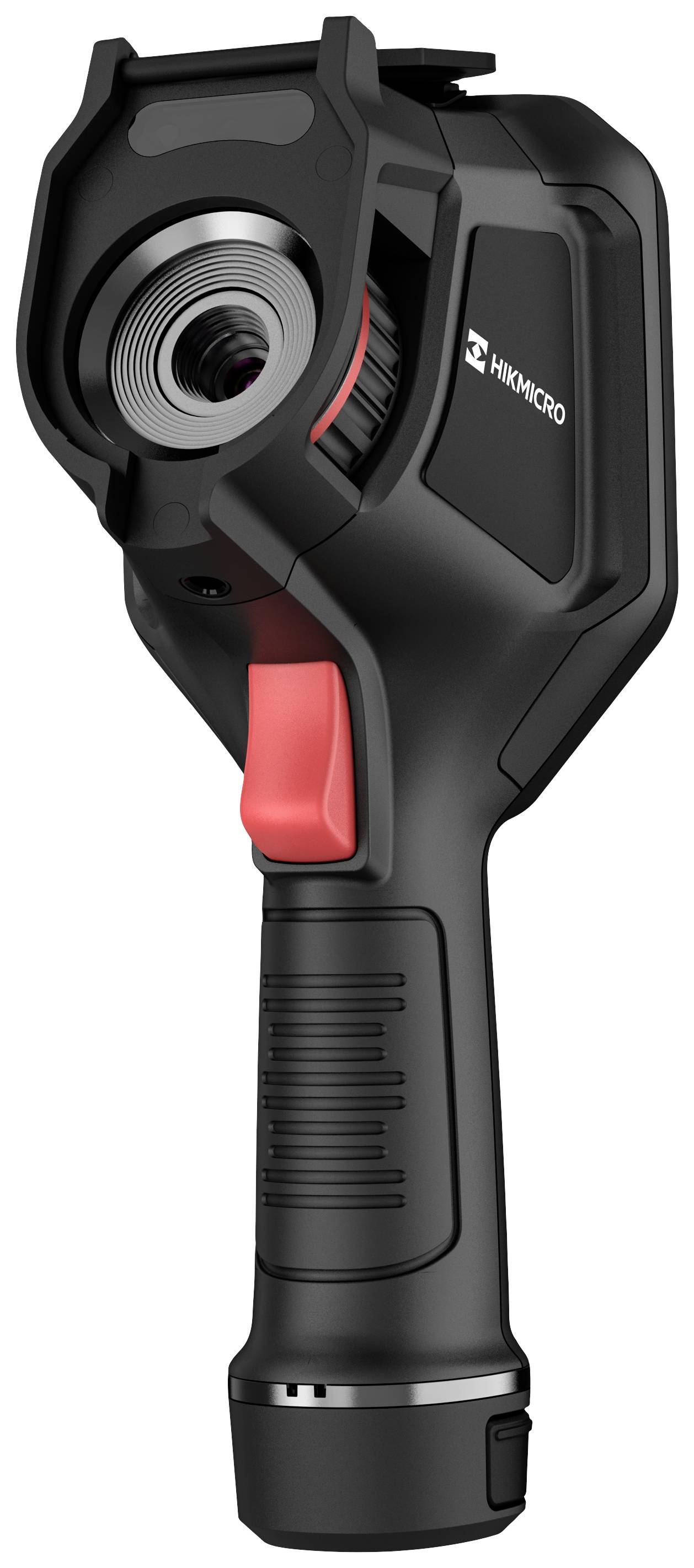

A black infrared thermal imaging camera with a red trigger. It has a ribbed grip and a display on the back.

1/2

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

1 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1,718.49 / piece)

€ 1,718.49

plus VAT.

Only 1 Piece(s) available

Report legal concerns

Highlights & Details

Handheld Thermographic-Camera

25 Hz Thermal imaging camera
Temperature reading range -20 up to +550 °C
256 x 192 Pixel Bolometer matrix
Thermal sensitivity 40 mK

Technical specifications

Type: M20

Product type: IR camera

Bolometer array: 256 x 192 Pixel

Interfaces: Wi-Fi
Bluetooth
USB C®

Temperature reading range (max.): +550 °C

Temperature reading range (min.): -20 °C

Optics: 25° x 18.8°

Frame rate: 25 Hz

Display resolution: 640 x 480 Pixel

: IP54

Thermal sensitivity: 40 mK

Dim: (L x W x H) 244 x 100 x 104 mm

Digital zoom: 8 x

Display: 3.5"

Focus: Manual

Geometric resolution (IFOV): 1.74 mrad

Weight: 660 g

Basic accuracy: 2 %

Accuracy ± °C: 2 °C

Temperature reading range: -20 up to +550 °C

Min. focusing distance: 0.1 m

Width: 100 mm

Height: 104 mm

Length: 244 mm

Features: Wi-Fi
Touchscreen

: Manufacturer's standards (with certificate)

Documents & Downloads

Datasheet

Datasheet 2825623 HIKMICRO M20 IR camera -20 up to +550 °C 256 x 192 Pixel 25 Hz Wi-Fi, Touchscreen

User & Safety Instructions

User & Safety Instructions 2825623 HIKMICRO M20 IR camera -20 up to +550 °C 256 x 192 Pixel 25 Hz Wi-Fi, Touchscreen

Warranty Terms

Warranty Terms 2825623 HIKMICRO M20 IR camera -20 up to +550 °C 256 x 192 Pixel 25 Hz Wi-Fi, Touchscreen

Description

The camera is a compact infrared camera with a high-resolution optical 8 MP camera, a large temperature range of -20°C to +550°C and a 3.5" LCD touch-screen.

This text is machine translated.
