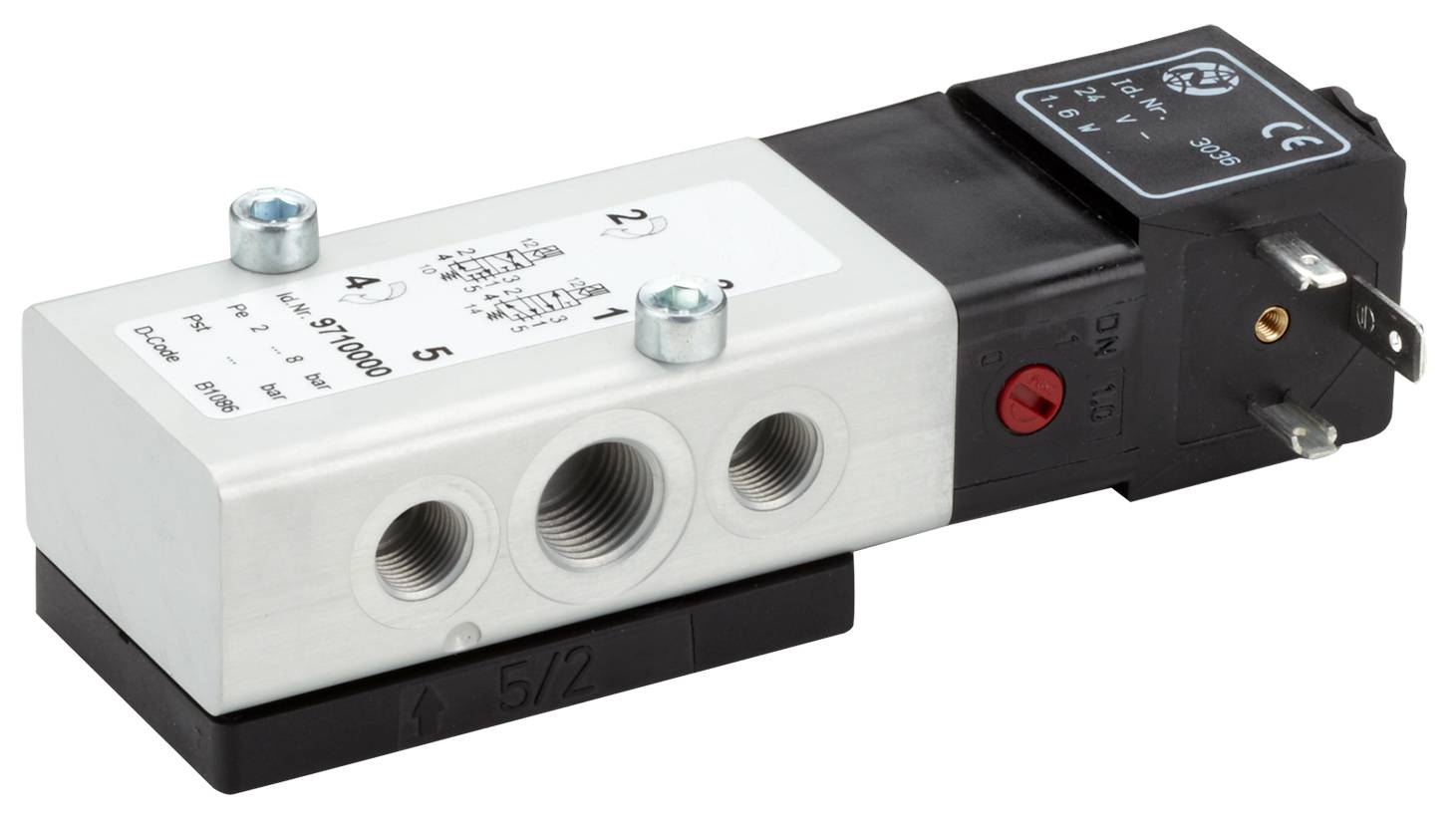

IMI NORGREN Servo-operated valve 9710000000000000 Enclosure material Aluminium (anodized) 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 134.45 / piece)
€ 134.45
plus VAT.
14-day return policy included
Technical specifications
- Product type
Servo-operated valve
- Enclosure material
Aluminium (anodized)
- Connection
G 1/8
- Manufacturer part #
9710000000000000
- Media temperature (range)
-15 up to +60 °C
- Max. media temperature
+60 °C
- Media temperature (min.)
-15 °C
- Width
40 mm
- Height
37.2 mm
- Length
131.5 mm
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-15 °C
Documents & Downloads
Datasheet
Datasheet 3294163 IMI NORGREN Servo-operated valve 9710000000000000 Enclosure material Aluminium (anodized) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3294163 IMI NORGREN Servo-operated valve 9710000000000000 Enclosure material Aluminium (anodized) 1 pc(s)
Description
Electro-pneumatically operated NAMUR valve
This text is machine translated.
This text is machine translated.
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
