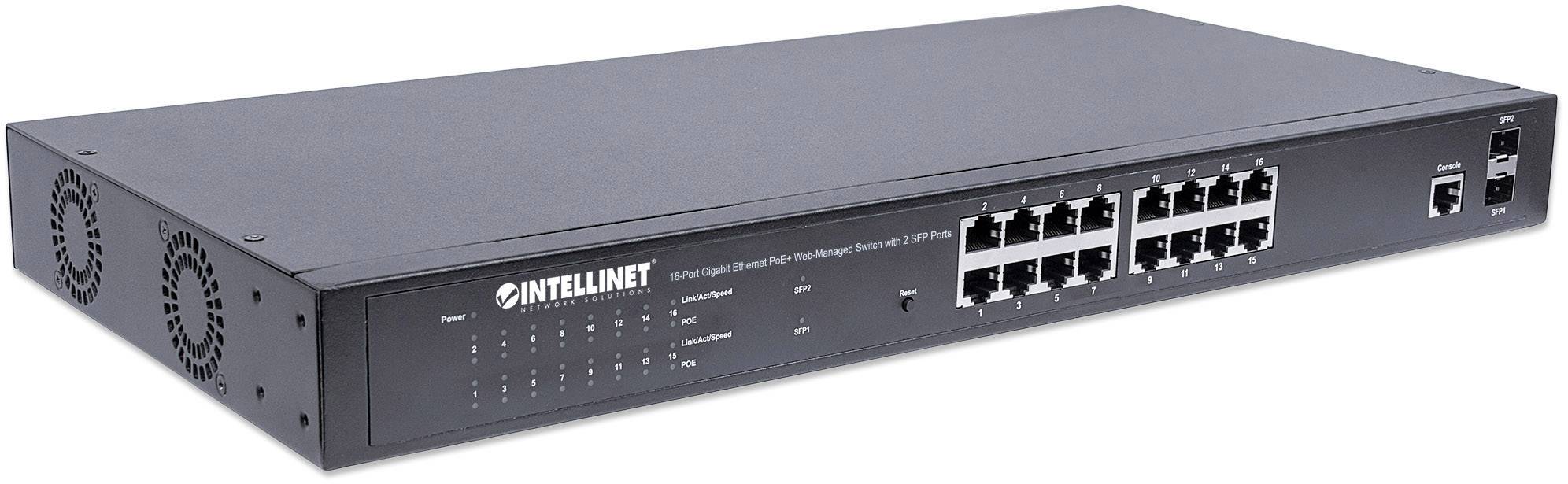

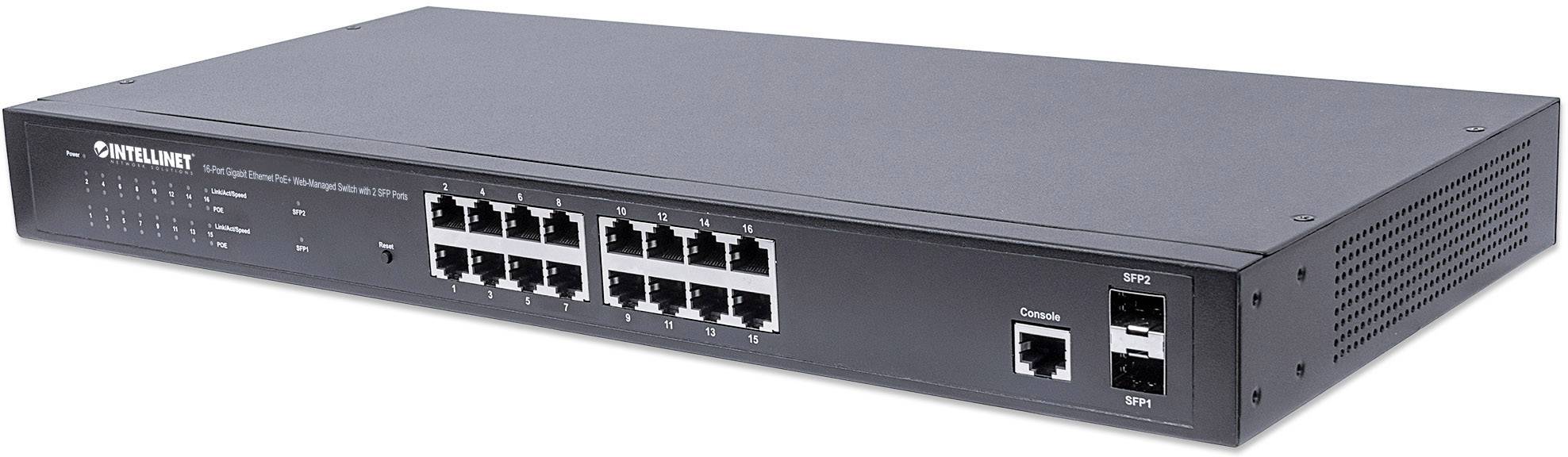

Intellinet 561341 561341 19" switch box 16 + 2 ports 1 GBit/s
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 259.66 / piece)
€ 259.66
plus VAT.
Intellinet 16-Port Gigabit Ethernet Switch with PoE+ Web-Managed 2 SFP ports
Highlights & Details
- Saves installation costs through the transmission of data and power via the existing network cable
- 10/100/1000 auto-sensing ports automatically detect the optimal network speed.
- Output power up to 30 watts per port*
- PoE-capacity 220 watt
- 136 Gbit/s switch fabric
- All RJ45-Ports Support Auto-MDI/MDI-X and NWay Auto-Negotiation
- Corresponds to the specification IEEE 802.3az (energy-efficient Ethernet EEE).
- SNMP management and remote monitoring (RMON)
- SNMP V1, V2C, V3 with RMON groups 1, 2, 3 & 9
- IPv4/v6 Dual Protocol
- Supports VLAN (day and port-based)
- Offers IEEE 802.1x port-based security
- Supports Link Aggregation (trunking)
- Supports Port based bandwidth control
- Supports Port Mirroring
- Supports two types of port-based and DSCP QoS:
- Broadcast Storm Control with multicast packet rate settings
- 512 KB buffer storage
- Supports 8,000 MAC address entries
- Supports Jumbo frames up to 9 KB
- Supports Rapid Spanning Tree/Spanning Tree Protocol
- Store-and-forward architecture
- Full/half duplex mode
- IEEE 802.3x flow control at full duplex
- Configuration via Web Browser, Telnet or SSH
- LEDs for power, Link/Activity and PoE
- Two high-performance fans provide for perfect cooling and air circulation
Technical specifications
- Product type
19" switch box
- LAN transfer rate
1000 MBit/s
- Transfer rate
1 GBit/s
- PoE ports
16
- SFP ports
2 x
- 10/100/1000 Mbps ports
16 x
- Auto-uplink at each port
Yes
- Jumbo frames
Yes
- Power supply (LOV)
mains-powered
- MAC addresses
8000
- Weight
2.5 kg
- Width
440 mm
- Height
44 mm
- Depth
208 mm
- Type
561341
- Interfaces
RJ45
SFP
- Factory colour
Multicolour
- Port
16 + 2 ports
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1544134 Intellinet 561341 561341 19" switch box 16 + 2 ports 1 GBit/s
User & Safety Instructions
User & Safety Instructions 1544134 Intellinet 561341 561341 19" switch box 16 + 2 ports 1 GBit/s
Description
Save time and money with Power over Ethernet
The Intellinet 16-Port Gigabit Ethernet Switch with PoE+ Web-Managed 2 SFP ports (561341) is an excellent solution for the transmission of data and power to PoE-compatible devices via Cat5e or Cat6 network cable. Equipped with 16 Gigabit ports (all with support for 802.3at/af PoE/PoE+), this switch power supply of access points and bridges, with VoIP telephones, IP cameras and much more, while at the same time transfer speeds of up to 1000 Mbit/s.
Power over Ethernet 802.3at
This switch supports the IEEE 802.3at protocol and delivers up to 30 watts of power per port*. IEEE802.3af or IEEE 802.3at compliant devices, which can be connected to the switch, do not require additional power supply, causing significant cost and time for laying power cables can be saved and much cable clutter and adapter in exposed places such as walls and ceiling are eliminated. Any combination of PoE and non-PoE devices is supported and thanks to protection against short-circuits, overload and voltage is your equipment best stored. For devices that do not support the 802.3at/af standard (older Access Points or network cameras), we recommend the use of a Intellinet PoE/PoE+ splitter.
Gigabit speed instead of bottle neck
Equipped with 24 Auto sensing 10/100/1000 Mbit/s RJ45 gigabit Ethernet ports, the 24-port PoE Web-Managed Desktop Gigabit Switch huge power for computers, servers and other network devices.
Full Layer 2+ Management Features
The software of this switch includes 4k 802.1Q VLAN, Advanced Protocol VLAN and private VLAN. In addition, eight physical quality of service queues, Multicast Filtering, Rapid Spanning Tree Protocol, Multiple Spanning Tree Protocol (MSTP), LACP, Port mirroring and advanced security features for large equipment package.
Advanced security features
In order to ensure secure management supports this switch the two protocols HTTPS and SSH. The login password and configuration packages are additionally secured. Port Binding allows a specified MAC address binding to a port and thus the sole access to the network. By port-based access control via 802.1X must be every user prior to access. With the Layer 2+ Access Control List (ACL) can be either via IP or port number.
* The entire PoE budget is 220 watts. The average power allocation per port is 16.6 watt, the maximum use of a port at 30 Watt.
This text is machine translated.
The Intellinet 16-Port Gigabit Ethernet Switch with PoE+ Web-Managed 2 SFP ports (561341) is an excellent solution for the transmission of data and power to PoE-compatible devices via Cat5e or Cat6 network cable. Equipped with 16 Gigabit ports (all with support for 802.3at/af PoE/PoE+), this switch power supply of access points and bridges, with VoIP telephones, IP cameras and much more, while at the same time transfer speeds of up to 1000 Mbit/s.
Power over Ethernet 802.3at
This switch supports the IEEE 802.3at protocol and delivers up to 30 watts of power per port*. IEEE802.3af or IEEE 802.3at compliant devices, which can be connected to the switch, do not require additional power supply, causing significant cost and time for laying power cables can be saved and much cable clutter and adapter in exposed places such as walls and ceiling are eliminated. Any combination of PoE and non-PoE devices is supported and thanks to protection against short-circuits, overload and voltage is your equipment best stored. For devices that do not support the 802.3at/af standard (older Access Points or network cameras), we recommend the use of a Intellinet PoE/PoE+ splitter.
Gigabit speed instead of bottle neck
Equipped with 24 Auto sensing 10/100/1000 Mbit/s RJ45 gigabit Ethernet ports, the 24-port PoE Web-Managed Desktop Gigabit Switch huge power for computers, servers and other network devices.
Full Layer 2+ Management Features
The software of this switch includes 4k 802.1Q VLAN, Advanced Protocol VLAN and private VLAN. In addition, eight physical quality of service queues, Multicast Filtering, Rapid Spanning Tree Protocol, Multiple Spanning Tree Protocol (MSTP), LACP, Port mirroring and advanced security features for large equipment package.
Advanced security features
In order to ensure secure management supports this switch the two protocols HTTPS and SSH. The login password and configuration packages are additionally secured. Port Binding allows a specified MAC address binding to a port and thus the sole access to the network. By port-based access control via 802.1X must be every user prior to access. With the Layer 2+ Access Control List (ACL) can be either via IP or port number.
* The entire PoE budget is 220 watts. The average power allocation per port is 16.6 watt, the maximum use of a port at 30 Watt.
This text is machine translated.
Features
- IEEE 802.1d spanning tree protocol
- IEEE 802.1p (Traffic Prioritization)
- (IEEE 802.1Q VLAN tagging)
- IEEE 802.1w (Rapid Spanning Tree Protocol)
- (IEEE 802.3ad Link Aggregation)
- IEEE 802.3i 10Base-T Ethernet
- IEEE 802.3ab Gigabit Ethernet (twisted pair)
- IEEE 802.3ad Link Aggregation Control Protocol (LACP)
- IEEE 802.3az (energy-efficient Ethernet EEE).
- IEEE 802.3af Power over Ethernet (802.3at type 1)
- IEEE 802.3at Power over Ethernet (802.3at type 2)
- IEEE 802.3u (100Base-TX Fast Ethernet).
- IEEE802.3x (flow control, in full-duplex mode)
- Supported media:
- 10Base-T, Cat 3, 4, 5 UTP/STP RJ-45
- 100Base-TX CAT5 UTP/STP RJ-45
- 1000Base-T Cat5e UTP/STP RJ-45
- Packet filtering/forwarding rate:
- 1,488,000 pps (1,000 Mbps)
- 148,800 pps (100 bps))
- 14,880 pps (10 Mbps))
- MAC addresses: 8,000
- Between Memory: 512 KBytes
- Backplane Speed: 36 Gbit/s
- Store-and-forward architecture
- Configuration options:
- Port connection speed: 10 Mbit/s, 100 Mbit/s and 1000 Mbit/s or auto negotiation
- PoE on/off per port
- PoE Max. current per port
- PoE-mode per port
- PoE-Port Priority
- Flow Control on/off per port
- VLAN
- Rate Limiting (Ingress Rate and egress rate)
- Port mirroring
- Port insulation
- Port Aggregation/LACP: 8 groups
- Broadcast Storm configuration with broadcast, multicast, Unicast Rate Rate Rate flooded
- Built-in VeriPHY Cable Diagnostics Tool
- Integrated ICMP Ping Client sends ping requests to other network nodes
- SNMPv1/v2c/v3 (Simple Network Management Protocol)
- RMON (1,2,3 & 9 groups)
- LAN settings (IP addresses, Gateway, etc.)
- SSHv2
- TACAS+
- Pin assignment RJ45 output ports (Data + current)
- IEEE Alternative B
- Requires 8-pin RJ45 network cable
- Pin 1 : RX+ (data reception)
- Pin 2: Rx (data reception)
- Pin 3:Tx+ (data transmission)
- Pin 4:-Vdc_return (+) (Power [+])
- Pin 5:-Vdc_return (+) (Power [+])
- Pin 6:TX-(data transmission)
- Pin 7:-Vdc (Power [-])
- Pin 8:-Vdc (Power [-])
- Certificates: FCC Class A, CE

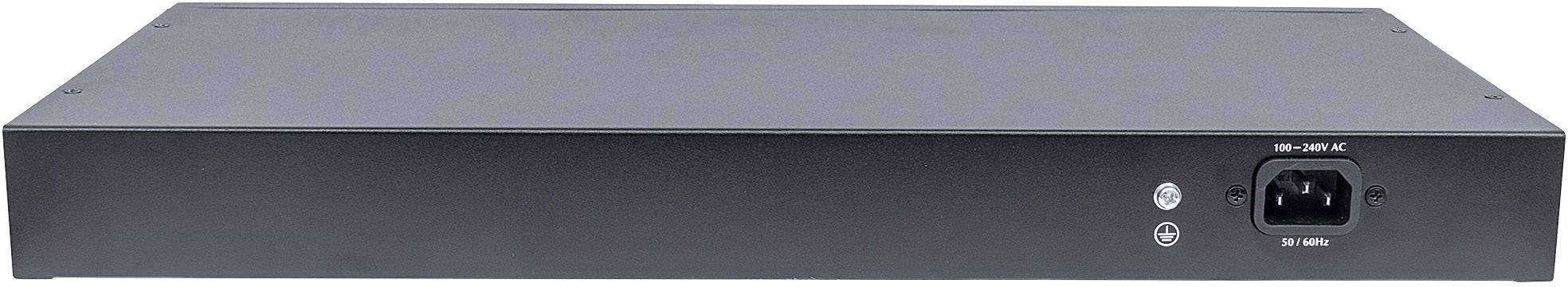

- Power input: 100 - 240 VAC, 50 - 60 Hz
- Power consumption: 260 Watt (max.)
Scope of delivery
- 16-Port Gigabit Ethernet Switch with PoE+ Web-Managed 2 SFP ports
- Power Cables
- Manual
- 19" mounting bracket
