Kaiser Nienhaus Electronic Favorit 122000 Tubular motor set 60 mm 20 Nm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 119.99 / piece)
€ 119.99
incl. VAT
Only 3 Piece(s) available
Highlights & Details
Favorit electronic tubular motor, 20 Nm

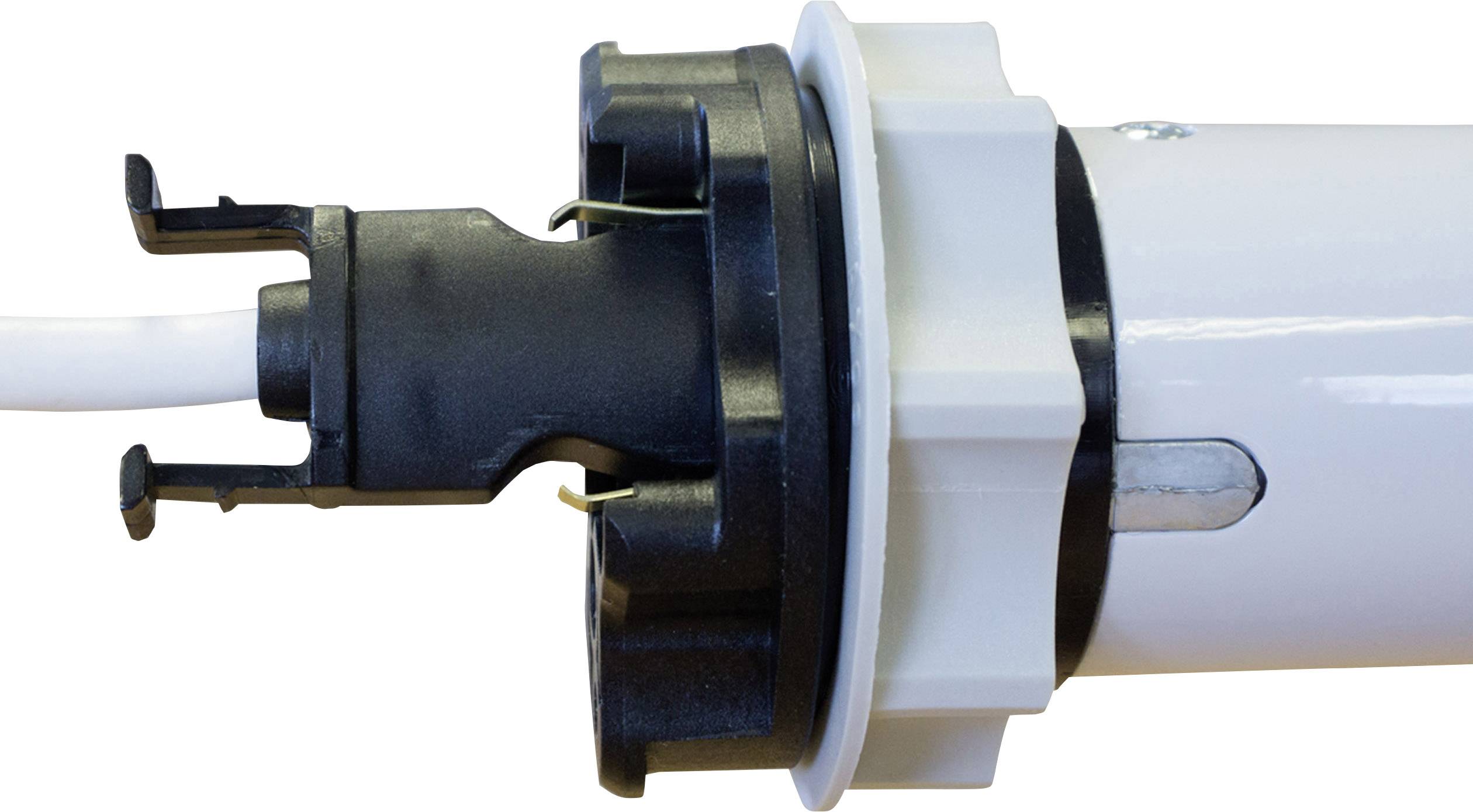

- Pluggable connection cable
- Patented brake
- Electronic switch-off
Technical specifications

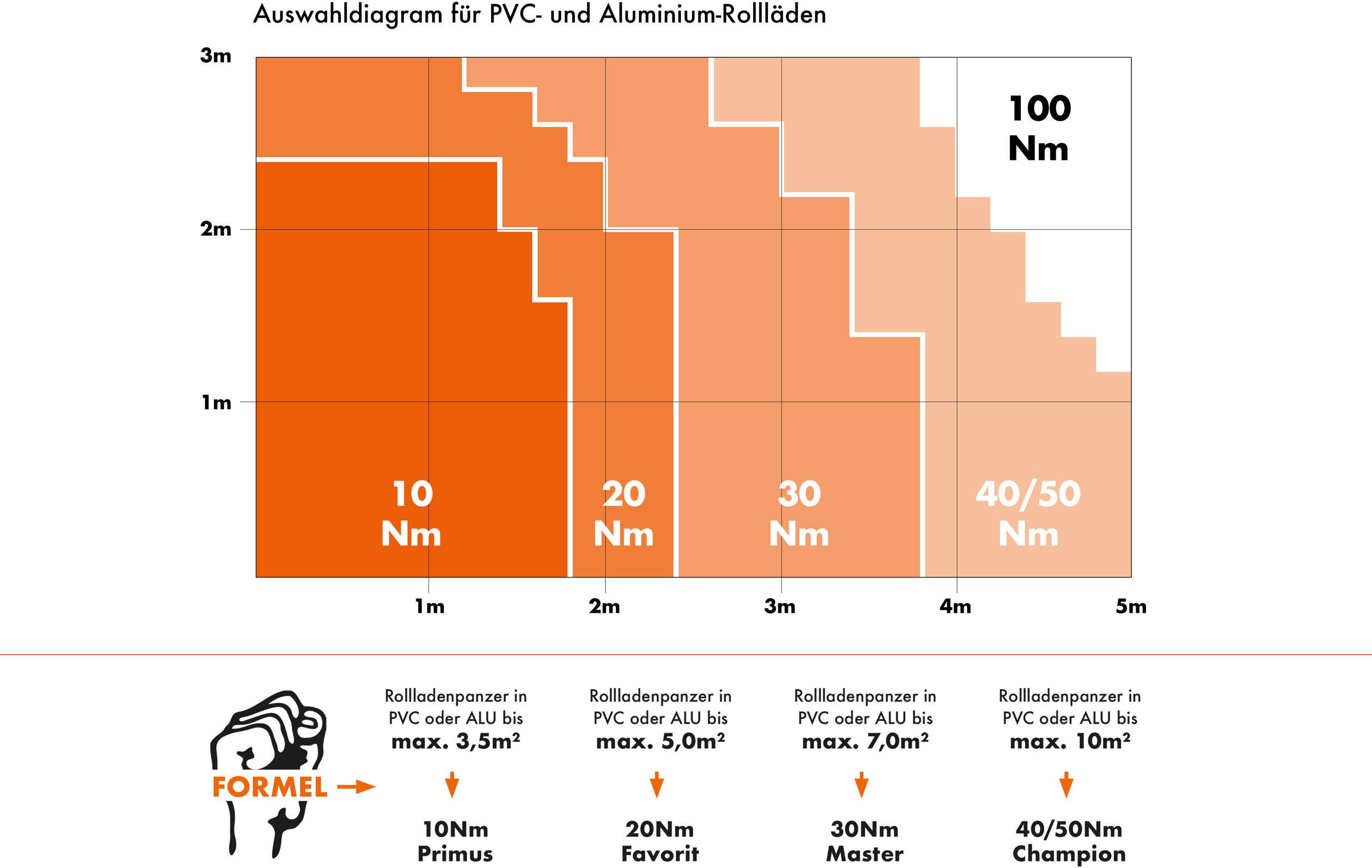

- Suitable for: PVC/ aluminum shutters up to 5.50 m²
- Product type
Tubular motor set
- Suitable for shutter axle Ø
60 mm
- Dim
(Ø x L) 45 mm x 600 mm
- Weight
2900 g
- Rotational speed
17 U/min
- Length
600 mm
- Max. current consumption
0.8 A
- Limit switched
electrical
- Obstacle detection
No
- Operating voltage
230 V AC
- (Ø)
45 mm
- Hub
Not required
- Torque
20 Nm
- Lead length
2.5 m
- Rotational speed
17 rpm
- Current consumption
0,8 A
- Traction (max.) (details)
PVC/aluminium shutters up to 5.50 m²
- Operating voltage
230 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 640501 Kaiser Nienhaus Electronic Favorit 122000 Tubular motor set 60 mm 20 Nm
User & Safety Instructions
User & Safety Instructions 640501 Kaiser Nienhaus Electronic Favorit 122000 Tubular motor set 60 mm 20 Nm
Information
Information 640501 Kaiser Nienhaus Electronic Favorit 122000 Tubular motor set 60 mm 20 Nm
Description
The extremely high-torque Favorit electronic tubular motor runs very silently and quietly. It is easy to install and operate. The tubular motor offers extra safety and comfort.
Features
- Incl. antifreeze protection
- A parallel connection option is available
- Drive with high-precision wheel sets, robust, extremely long-lasting, runs quietly
- Pluggable connection cable (2.5 m) for easy mounting, an advantage if servicing is required
- Pluggable connection cable for easy mounting, an advantage if servicing is required
- Pluggable connection cable for easy mounting, an advantage if servicing is required.
Scope of delivery
- Tubular motor incl. adapter
- Driver for octagon shutter shaft
- Motor bearing set
- Instructions for use.
