Buy Kaiser Nienhaus Electronic Junior 120000 Tubular motor set 60 mm 6 Nm

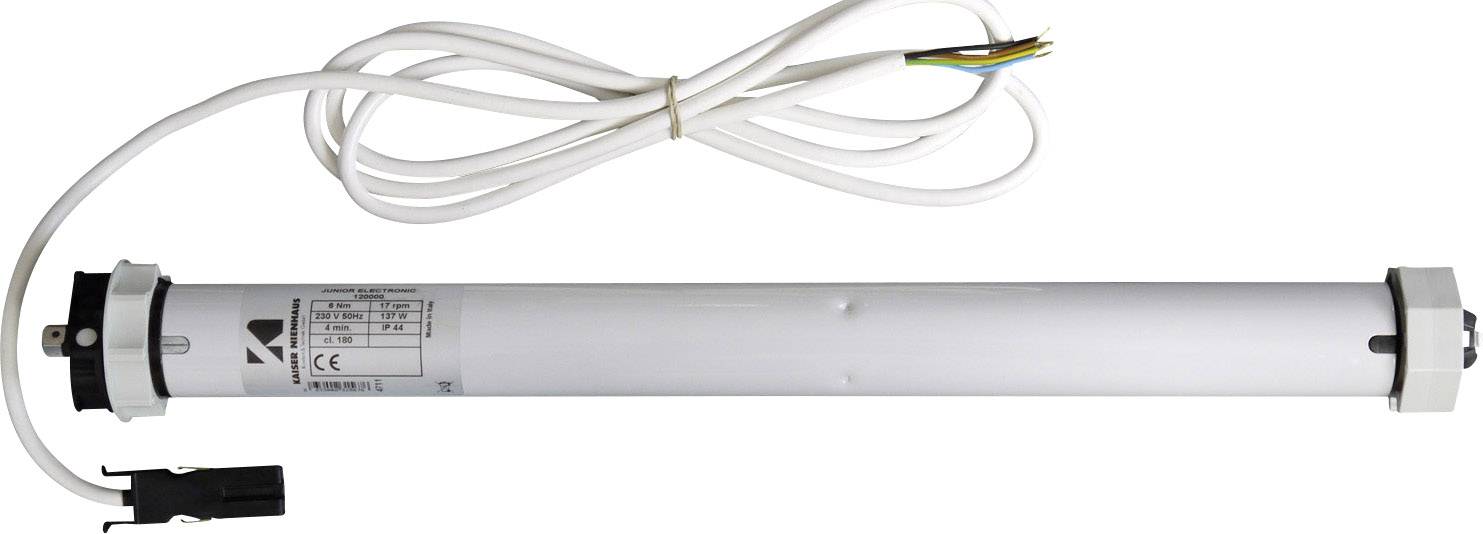

Electric tubular motor with cable for controlling roller shutters or awnings, cylindrical shape, white housing colour, connection cable with bare wires.

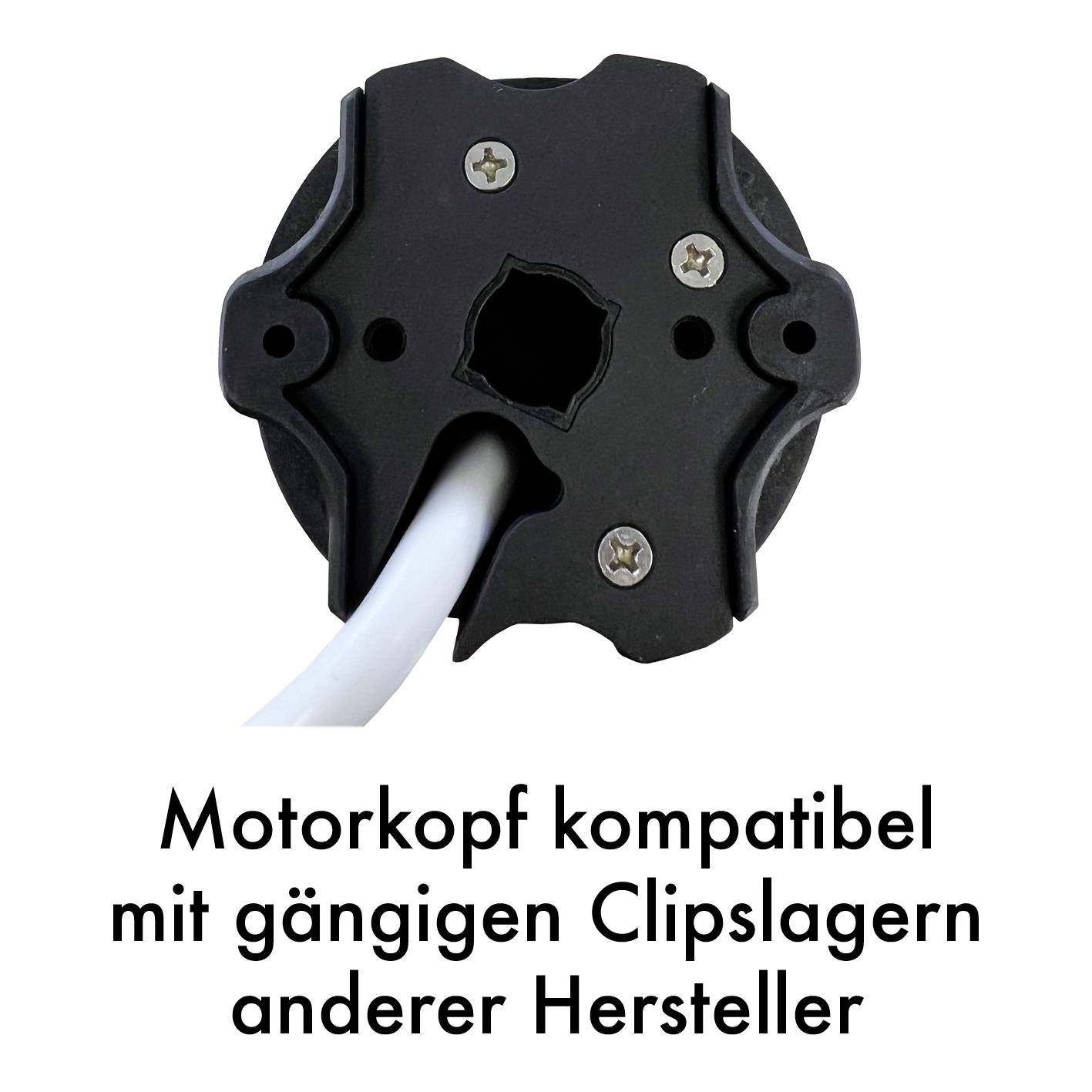

The image shows a black motor head with a cable, accompanied by the text: 'Motor head compatible with common clip bearings from other manufacturers'.

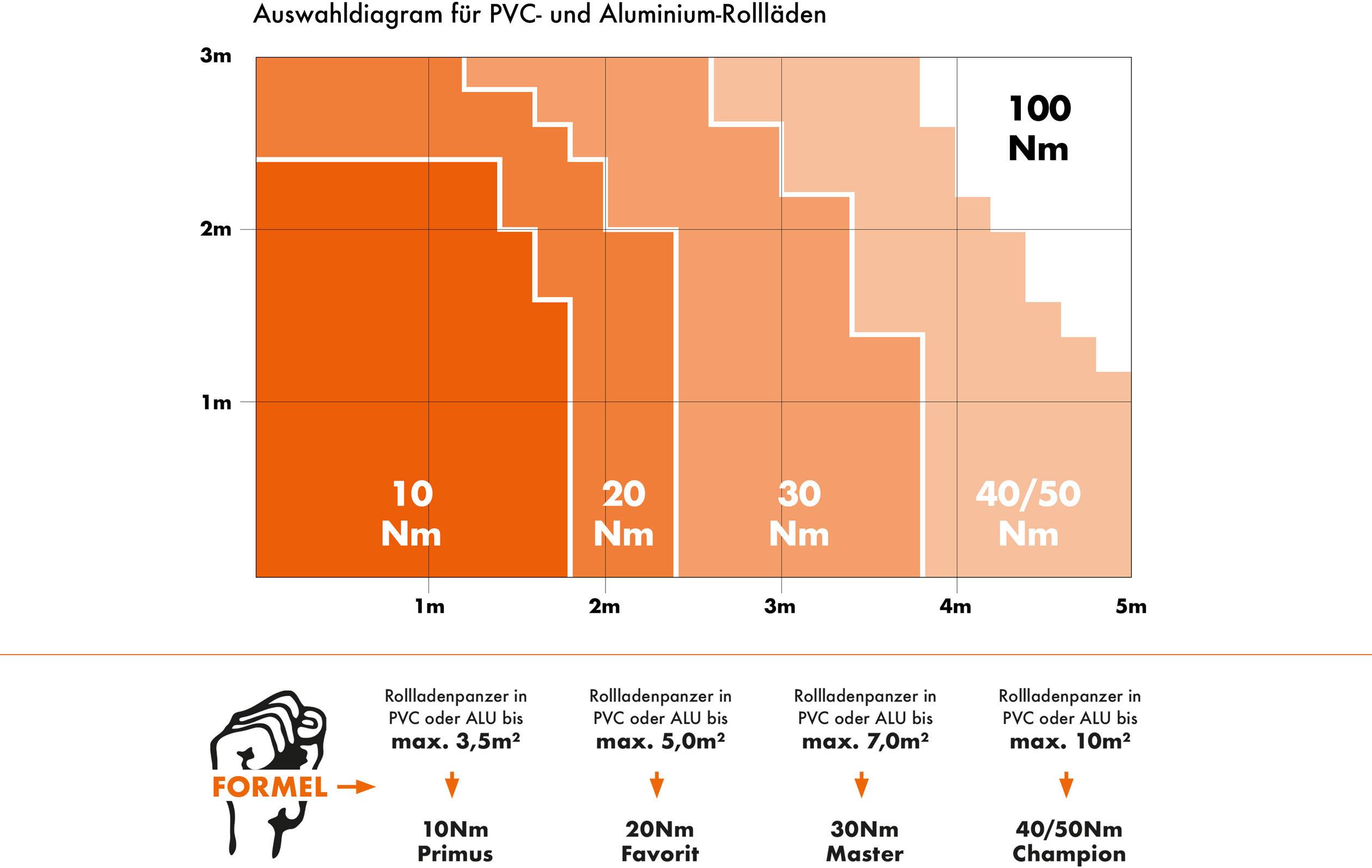

'Selection Diagram for PVC and Aluminium Roller Shutters' shows Newton-metre (Nm) values depending on roller shutter width (1m-5m) and height (1m-3m).

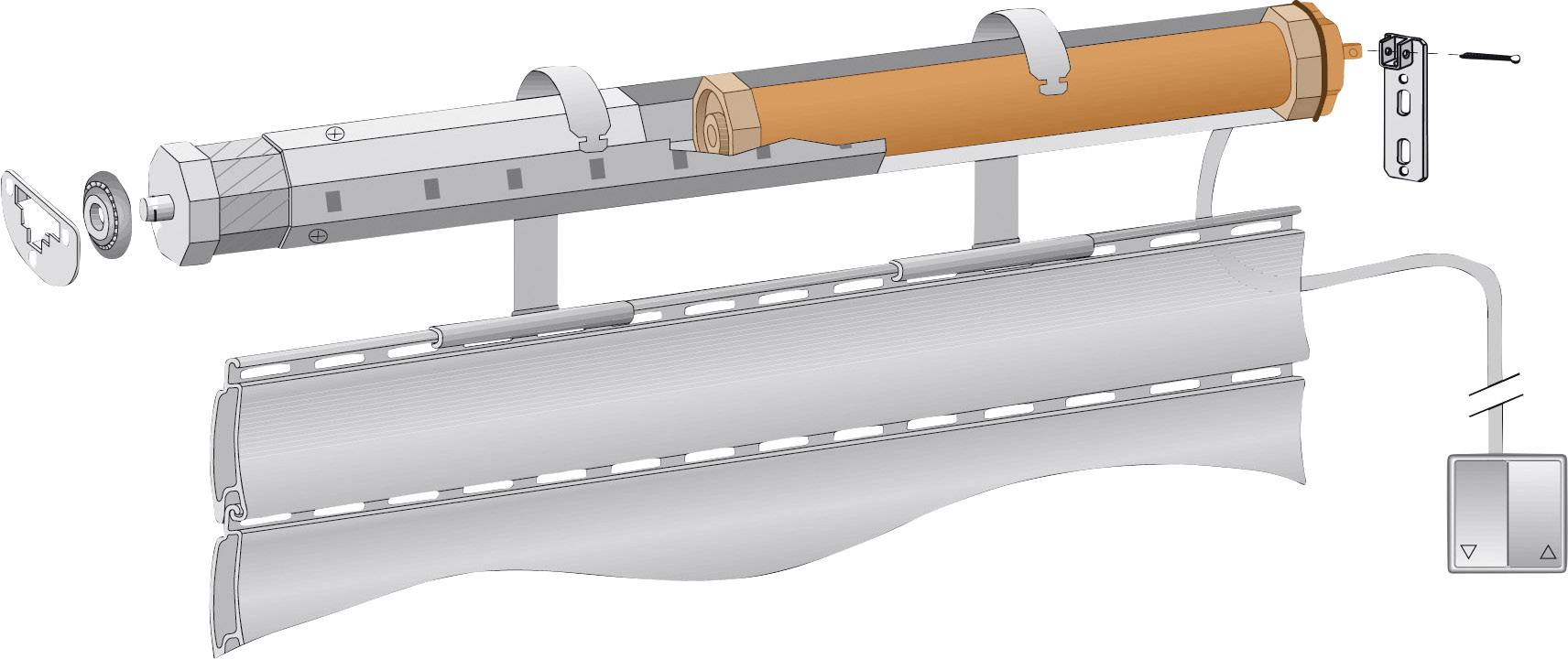

'Exploded diagram of an electric roller shutter motor in an aluminium shaft, with cover, mounting bracket and control unit.'

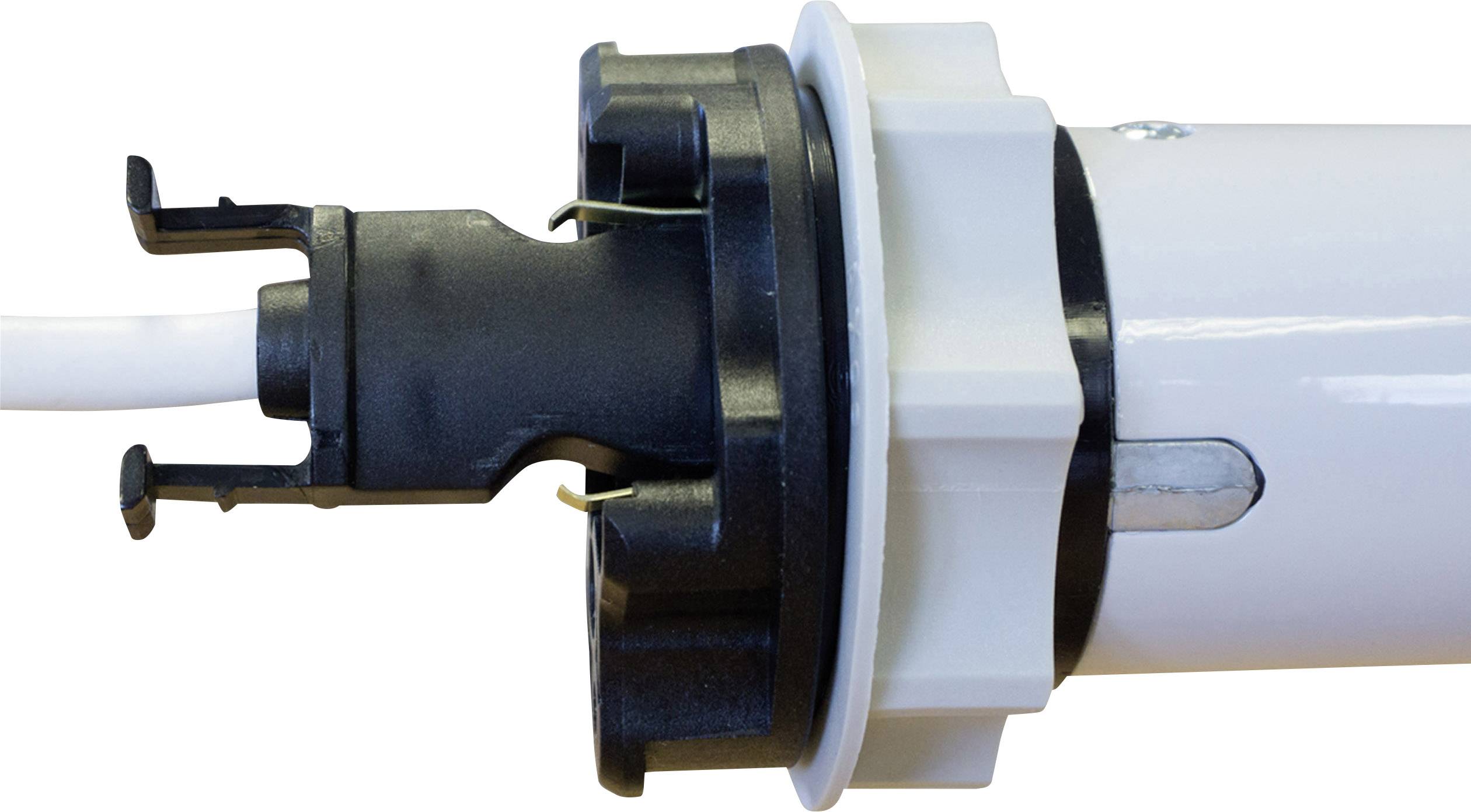

Close-up of an end piece of a tubular motor with mounted cable and bracket, used for roller shutter automation.

1/5

Fast track dispatch on Fri, 11 Sep

1 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 80.66 / piece)

€ 80.66

plus VAT.

Only 1 Piece(s) available

Report legal concerns

Highlights & Details

Tubular motor set Kaiser Nienhaus Electronic Junior 120000 6 Nm

Motor head suitable for common clip bearings of other manufacturers (Somfy)Setting of the end points via adjustment switch or automaticallyCan be activated obstacle detection and freeze protectionEspecially quiet running

Technical specifications

Suitable for: PVC/ aluminum shutters up to 3.00 m²

Product type: Tubular motor set

Suitable for shutter axle Ø: 60 mm

Dim: (Ø x L) 45 mm x 600 mm

Weight: 2900 g

Rotational speed: 17 U/min

Length: 600 mm

Max. current consumption: 0.6 A

Limit switched: electrical

Obstacle detection: No

Operating voltage: 230 V AC

(Ø): 45 mm

Hub: Not required

Torque: 6 Nm

Lead length: 2.5 m

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 640499 Kaiser Nienhaus Electronic Junior 120000 Tubular motor set 60 mm 6 Nm

Information

Information 640499 Kaiser Nienhaus Electronic Junior 120000 Tubular motor set 60 mm 6 Nm

Description

The tubular motor Junior Electronic impresses mainly through its unprecedented properties. The engine with its 6 Nm tension is not only extremely high-torque, but at the same time as well as noiseless. This is used in the series electronic through the patented and stand stable no brake, as well as maximum precision-crafted gear wheel sets. In addition, the motor via an antifreeze protection and which can be activated obstacle detection with reverser function.

This text is machine translated.

Features

Incl. antifreeze protection
A parallel connection option is available
Drive with high-precision wheel sets, robust, extremely long-lasting, runs quietly
Pluggable connection cable (2.5 m) for easy mounting, an advantage if servicing is required
Thermal cut-off.
