Name: Kaiser Nienhaus Favorit Smart 140025 Wireless tubular motor 60 mm 161 W 20 Nm
Brand: Kaiser Nienhaus
SKU: 2301523
Availability: InStock

An orange tubular motor with cable connection and label displaying technical information. Used for controlling roller shutters.

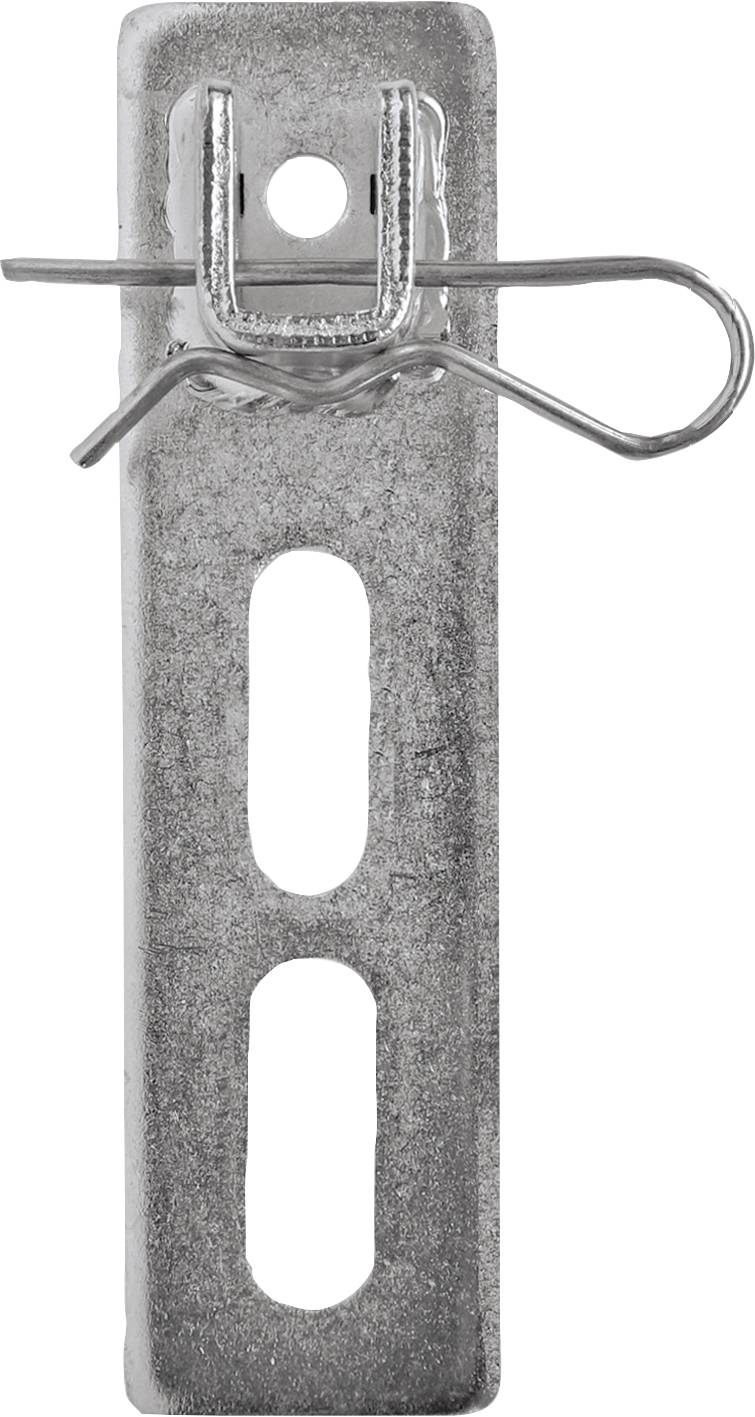

Metal mounting bracket with elongated slots and wire clip, ideal for attaching to various surfaces.

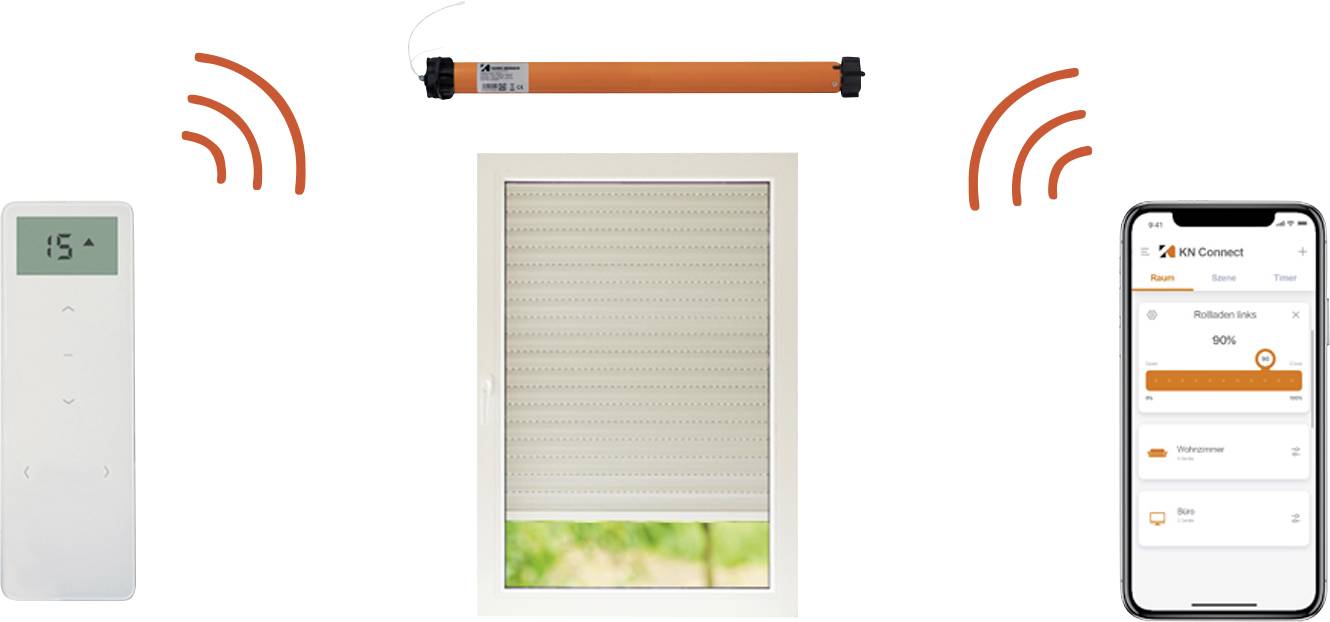

'Figure shows a radio system for controlling roller shutters. On the left, a remote control, in the middle a window with a roller shutter, on the right a smartphone with an app.'

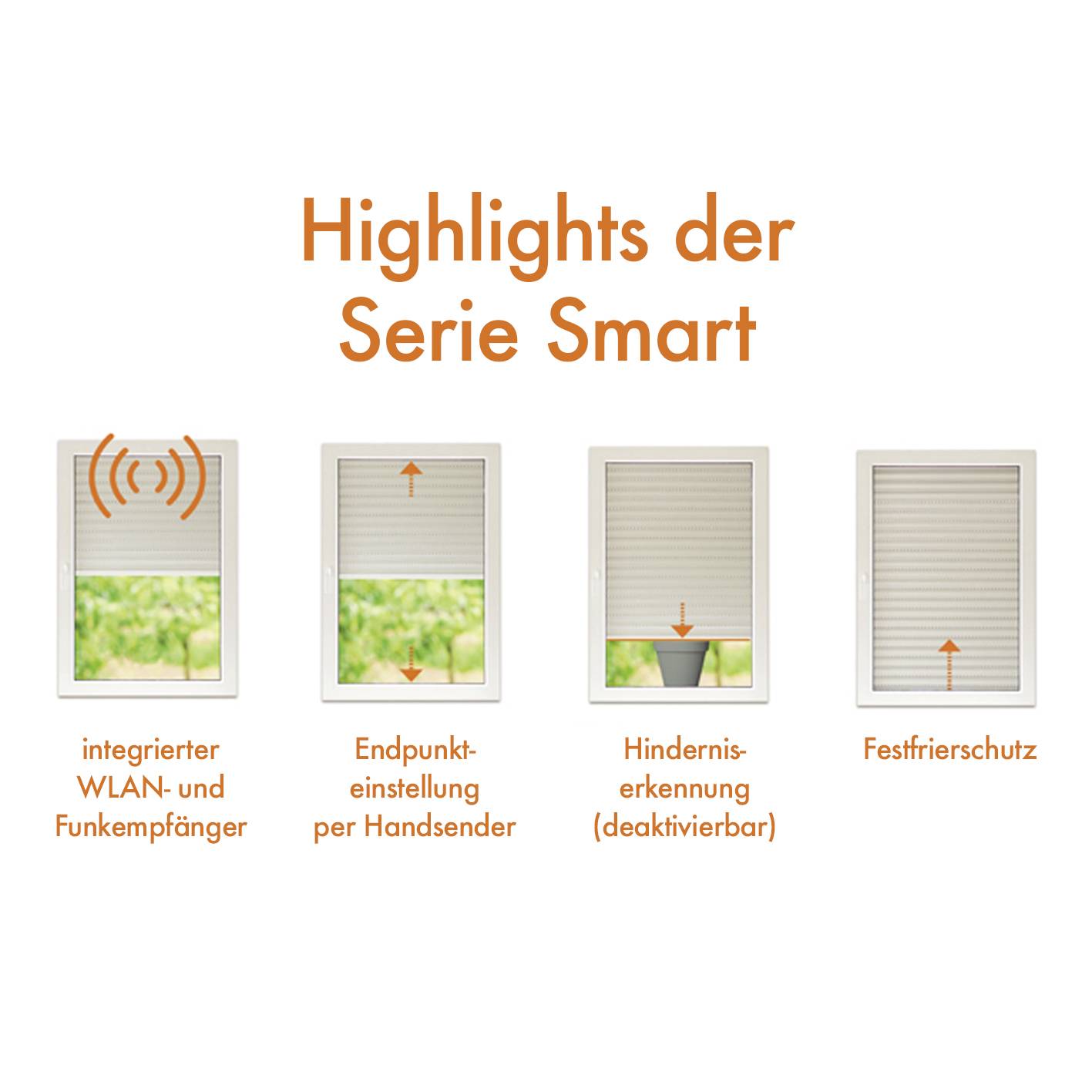

The image shows four windows with roller shutters. Text: 'Series Smart Highlights'. Functions: Wi-Fi receiver, endpoint setting, obstacle detection, anti-freeze protection.

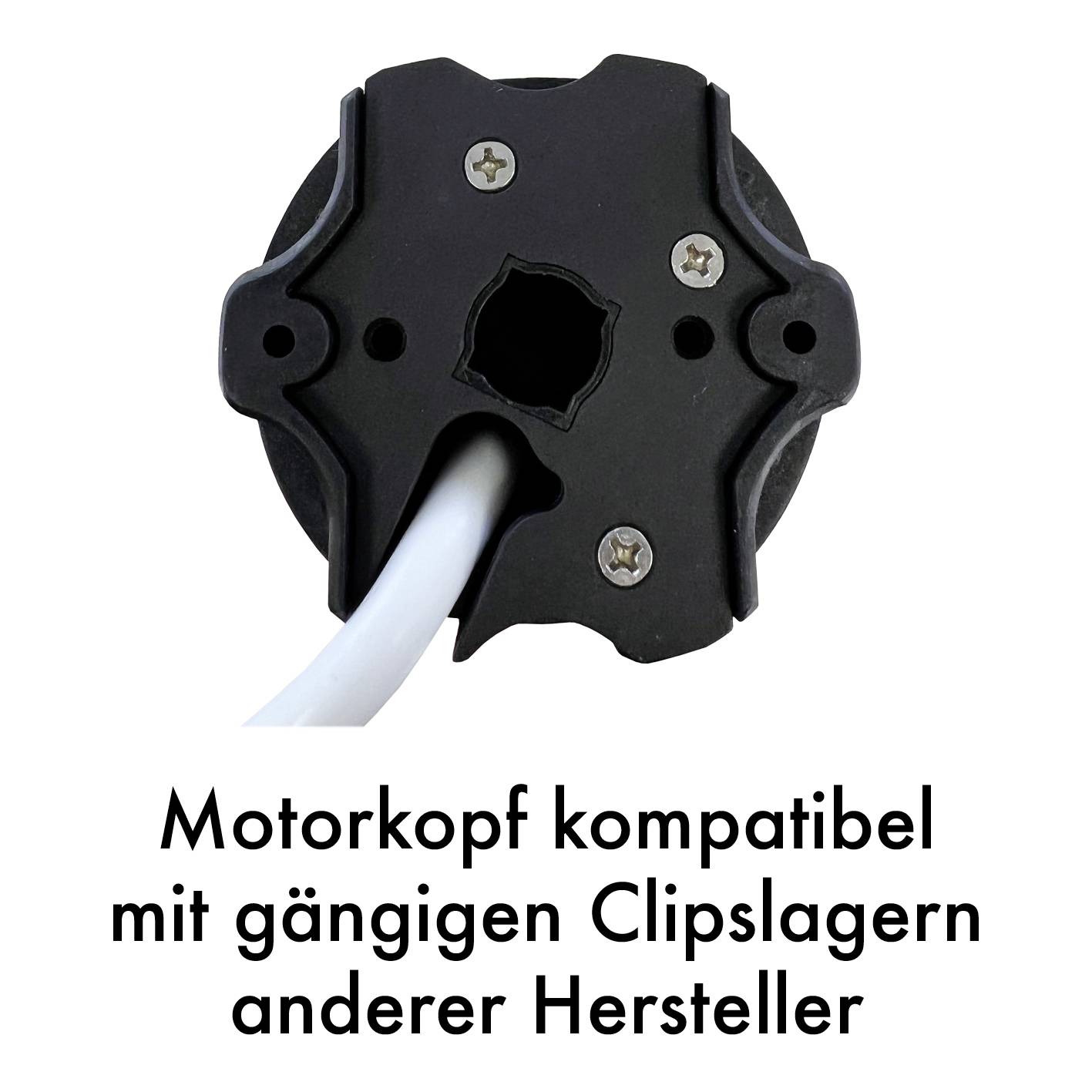

Engine head with cable, compatible with various clip bearings from other manufacturers.

1/5

EAN:

Part number:

Item no:

Fast track dispatch on Thu 5 Nov

7 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 144.99 / piece)

€ 144.99

incl. VAT

Only 7 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Wireless tubular motor Kaiser Nienhaus Favorit Smart 140025 20 Nm

Motor head suitable for common clip bearings of other manufacturers (Somfy)Integrated WLAN and radio receiverAntifreeze protectionParticularly quiet running characteristicsOptional button connection

Technical specifications

For shutters up to 5 square meters
Duty cycle: 4 minutes
Cable strands/cross-section 5 x 0.75 mm
Follow-up distance: 3 degrees
Protection class IP44 (for "dry rooms")

Product type: Wireless tubular motor

Suitable for shutter axle Ø: 60 mm

Motor power: 161 W

Dim: (Ø x L) 45 mm x 670 mm

Rotational speed: 15 U/min

Length: 670 mm

Obstacle detection: Yes

Operating voltage: 230 V

(Ø): 45 mm

Hub: Not required

Torque: 20 Nm

Lead length: 3 m

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2301523 Kaiser Nienhaus Favorit Smart 140025 Wireless tubular motor 60 mm 161 W 20 Nm

Description

The Favorit smart roller shutter drive is the new roller shutter drive on the market with integrated WLAN and radio receiver. The drive can be controlled directly with the mobile phone/tablet via WLAN with a hand-held transmitter of the radio Mercato series or a connectable button. It is an intelligent, electronic tubular motor for shutters up to 5 sqm With this roller shutter drive, the end points are set either via a programd hand-held transmitter or smartphone. The drive runs very quietly even under load. The torque is 20 Nm and the speed is 15 rpm. The motor is a total of 670 mm long and the motor sheath has a diameter of 45 mm. It fits in every 10mm square bearing (e.g. Becker, Elero) as well as in the popular star head clip bearing of well-known manufacturers (e.g. Somfy). The supply voltage is 230 V (50 Hz) and it is assigned to protection class IP 44. The roller shutter drive is supplied as standard with a 3 m connection cable and a finished box bearing for 10 mm square mounting. It is pre-adapted for an octagonal steel shaft with a wrench width of 60 mm. With the available accessories it can also be adapted for the octagonal steel shafts SW50 & SW70, as well as some round nuts.
