Name: Kaiser Nienhaus Primus Classic-KB 132550 Tubular motor 60 mm 10 Nm
Brand: Kaiser Nienhaus
SKU: 355243
Availability: InStock

Orange electric motor, 349 mm long, with connection cables, labelled 'KAISER NIENHAUS'.

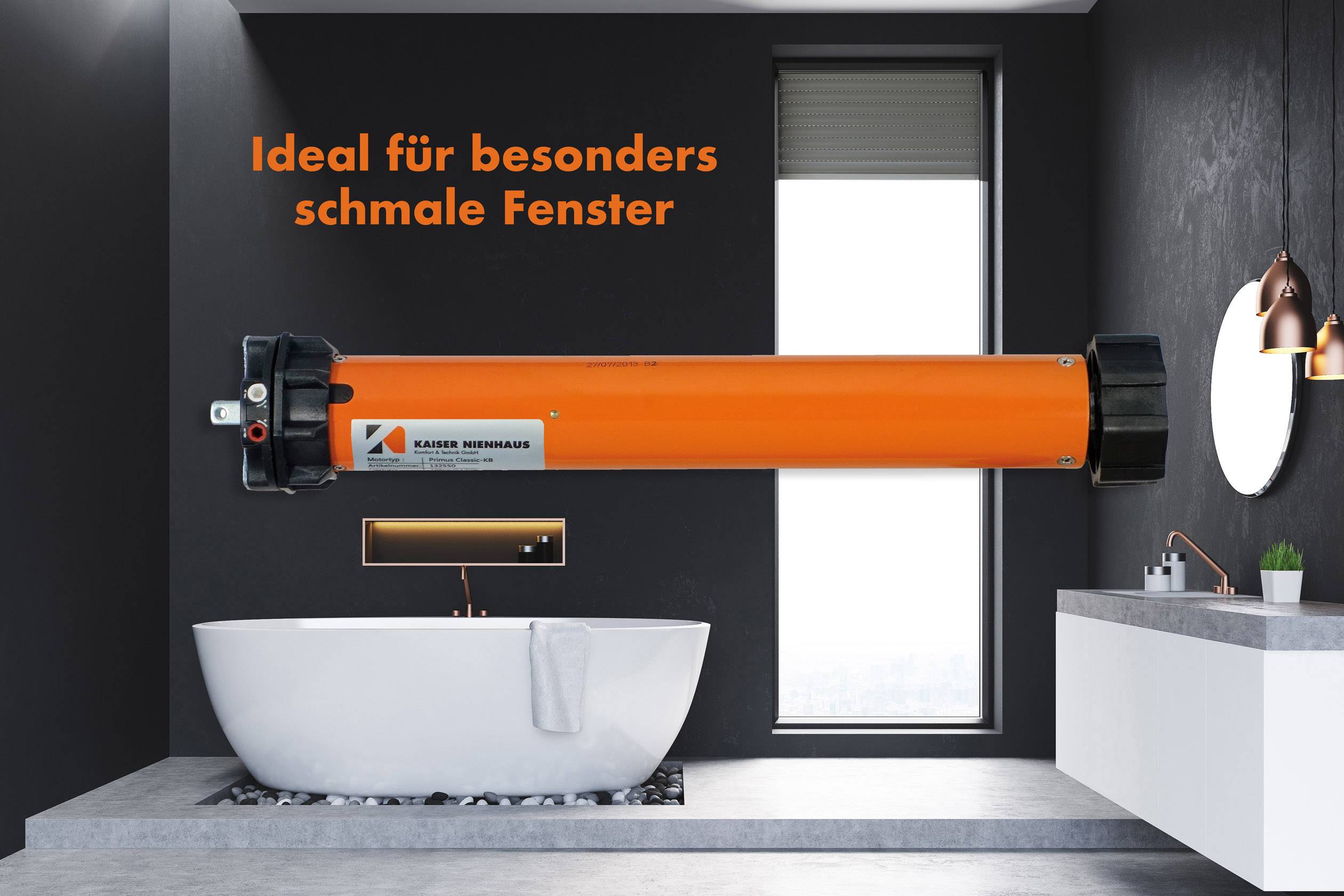

An orange motor in a modern bathroom with a bathtub, washbasin and window. Text: 'Ideal for particularly narrow windows'.

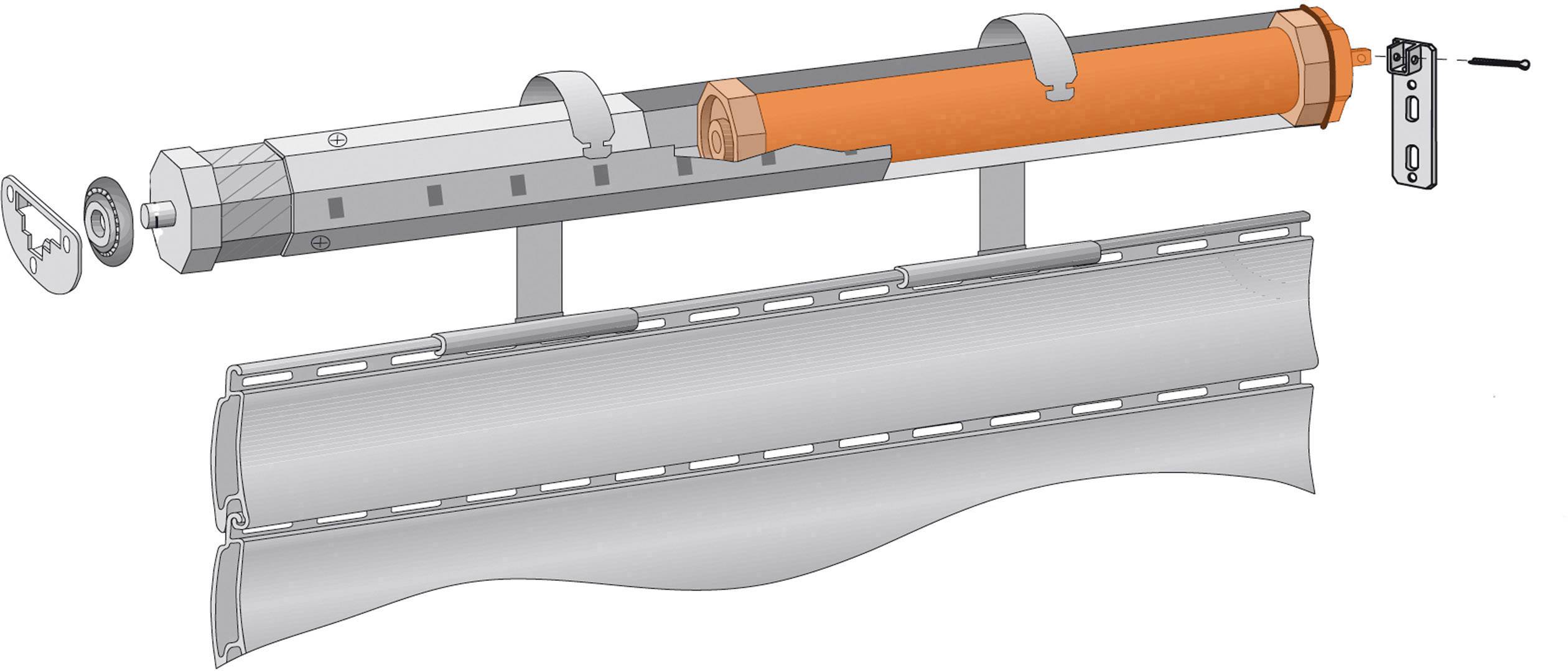

Diagram of an electric roller shutter drive unit. Shows motor, mounting rails, and connecting components.

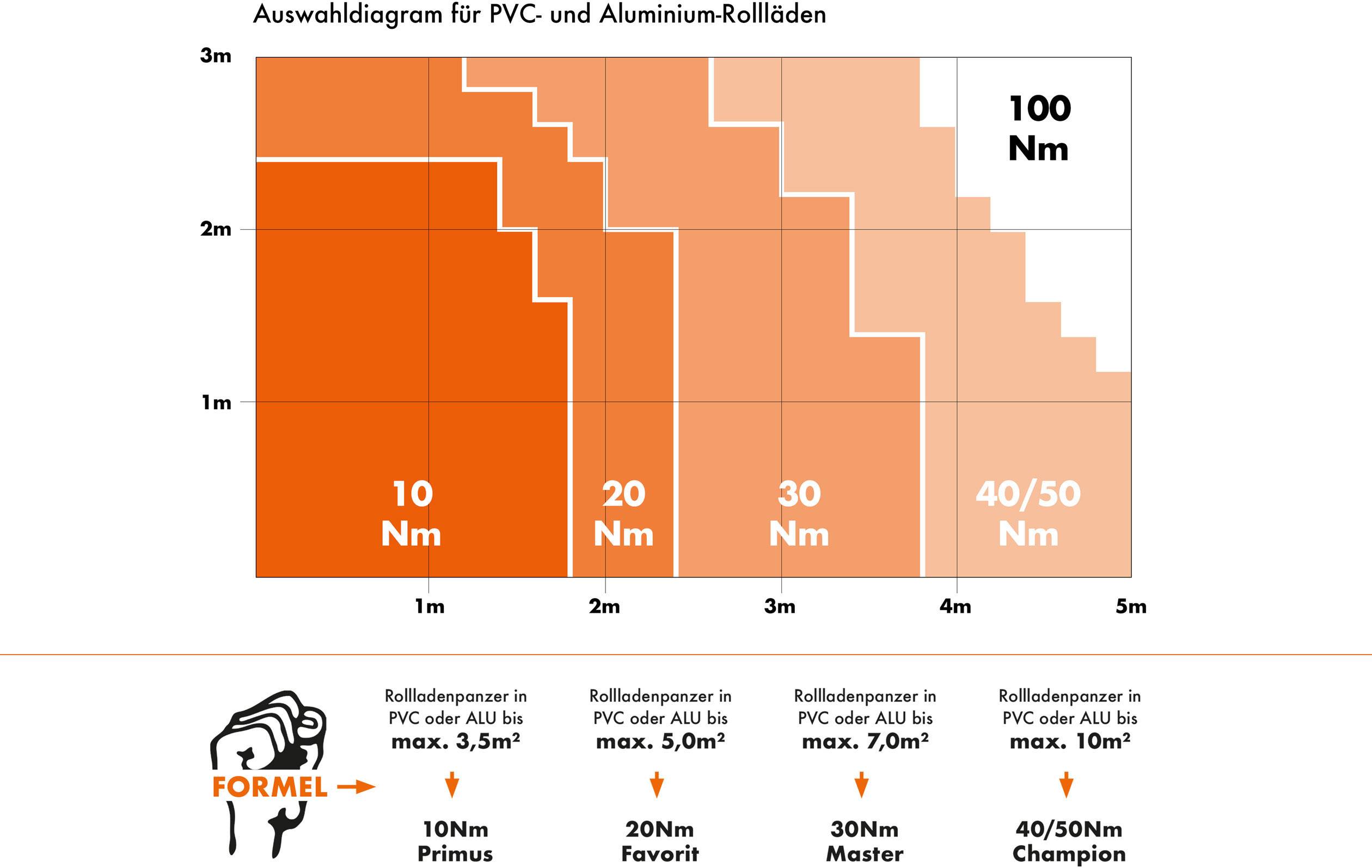

Selection diagram for PVC and aluminium roller shutters shows recommended drive force in Nm based on size: 10 to 100 Nm per 1-5 m².

1/4

EAN:

Part number:

Item no:

Dispatches on Fri 30 Oct

5 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 81.99 / piece)

€ 81.99

incl. VAT

Only 5 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Tubular motor Kaiser Nienhaus Primus Classic-KB 132550 10 Nm

Only 365 mm long (including motor bearings)
10 Nm strongly
Very quietly

Technical specifications

Suitable for: PVC/ aluminum shutters up to 3.00 m²

Product type: Tubular motor

Suitable for shutter axle Ø: 60 mm

Dim: (Ø x L) 60 mm x 365 mm

Weight: 2500 g

Rotational speed: 15 U/min

Length: 365 mm

Max. current consumption: 0.5 A

Limit switched: mechanical

Obstacle detection: No

Operating voltage: 230 V AC

(Ø): 60 mm

Hub: Not required

Torque: 10 Nm

Lead length: 2.5 m

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 355243 Kaiser Nienhaus Primus Classic-KB 132550 Tubular motor 60 mm 10 Nm

Information

Information 355243 Kaiser Nienhaus Primus Classic-KB 132550 Tubular motor 60 mm 10 Nm

Description

The particularly short motor for the smallest of applications with classical spindle cut-off. Only 365 mm long and still 10 Nm.

This text is machine translated.

Scope of delivery

Tubular motor Primus Classic-KB
Incl. Adapter/catches SW60
Incl. motor bearings.
User manual
