Buy Kaiser Nienhaus Primus Smart 140015 Wireless tubular motor 60 mm 113 W 10 Nm

An orange tubular motor for roller shutter automation with electrical connections and labelling on the housing.

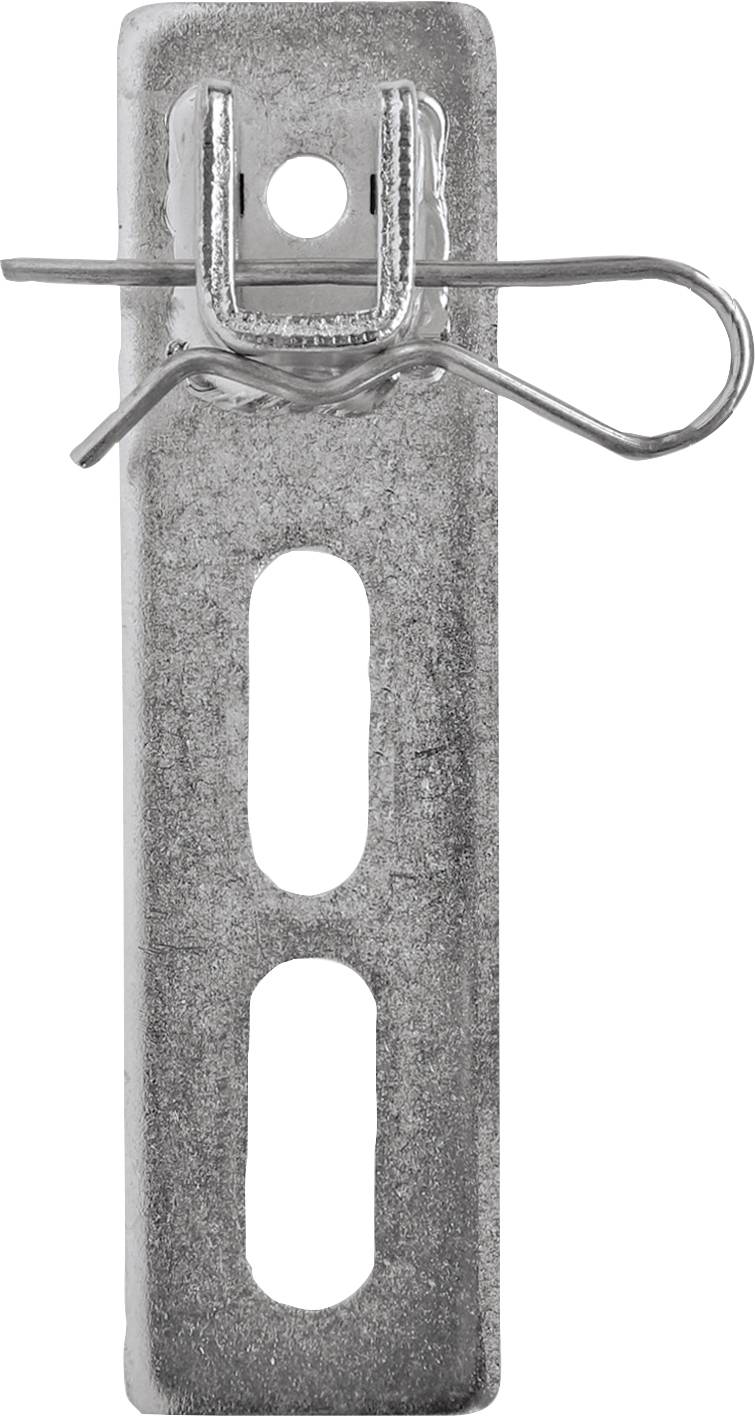

Metal mounting bracket with two holes; a slot for variable attachment and a small hole with wire closure.

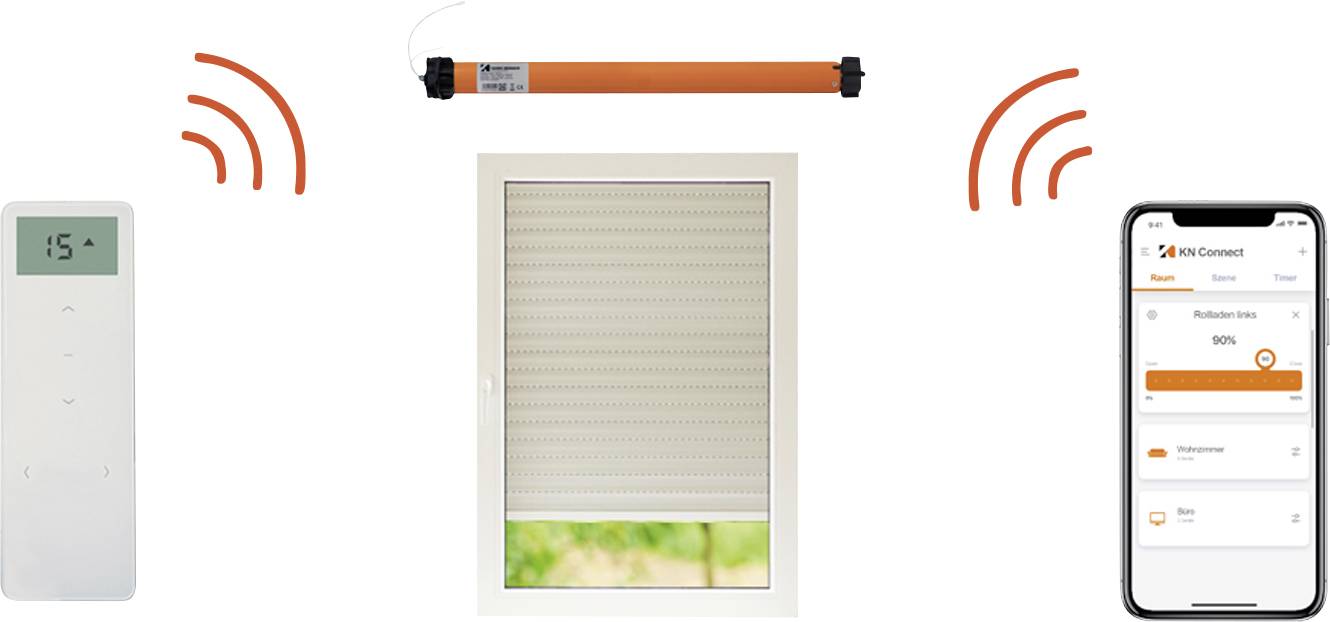

'Roller Blind Control System': Remote control, electric roller blind motor and smartphone with app, showing control and connectivity.

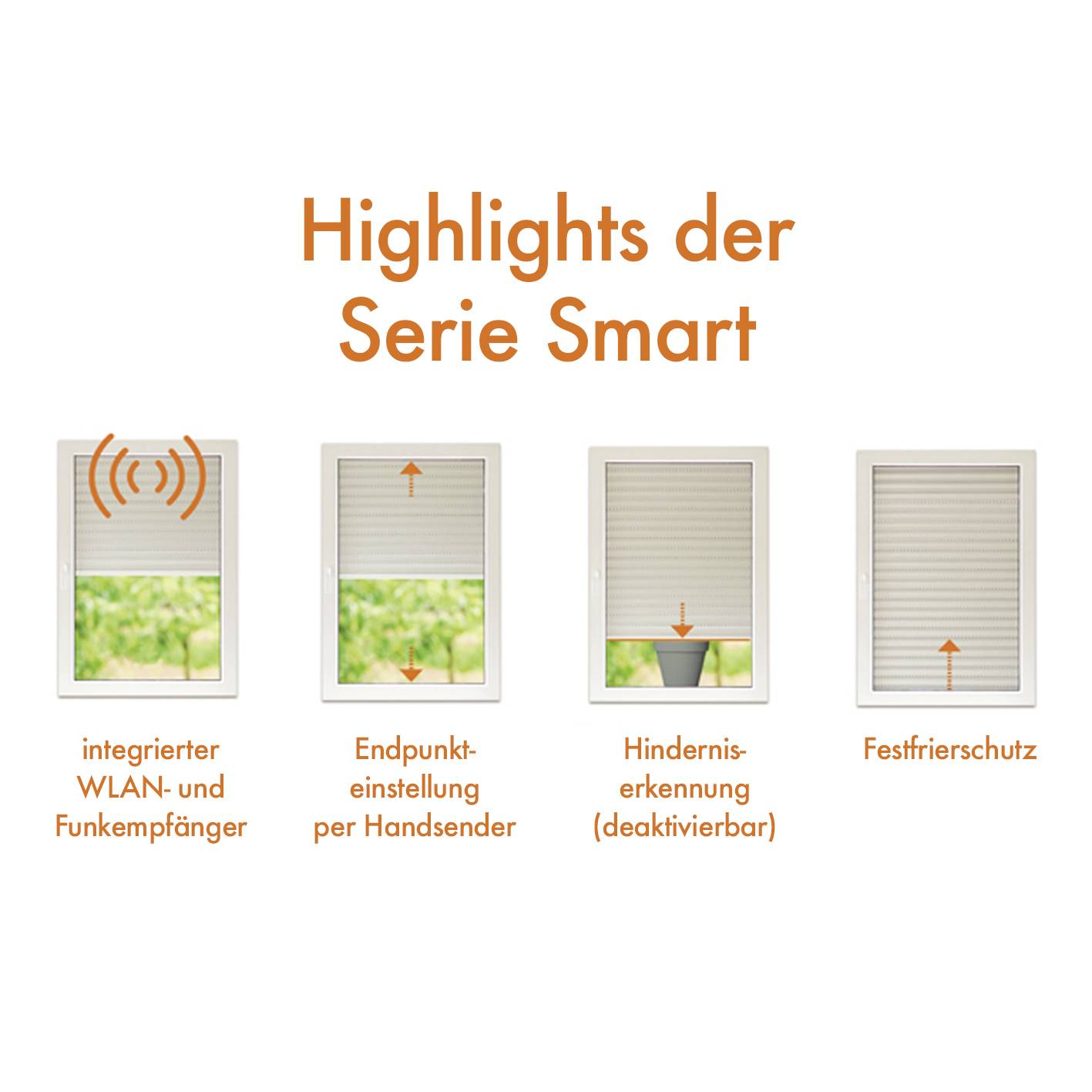

'Series Smart Highlights': Four side-by-side window images show functions such as Wi-Fi receiver, endpoint configuration, obstacle detection, anti-freeze protection.

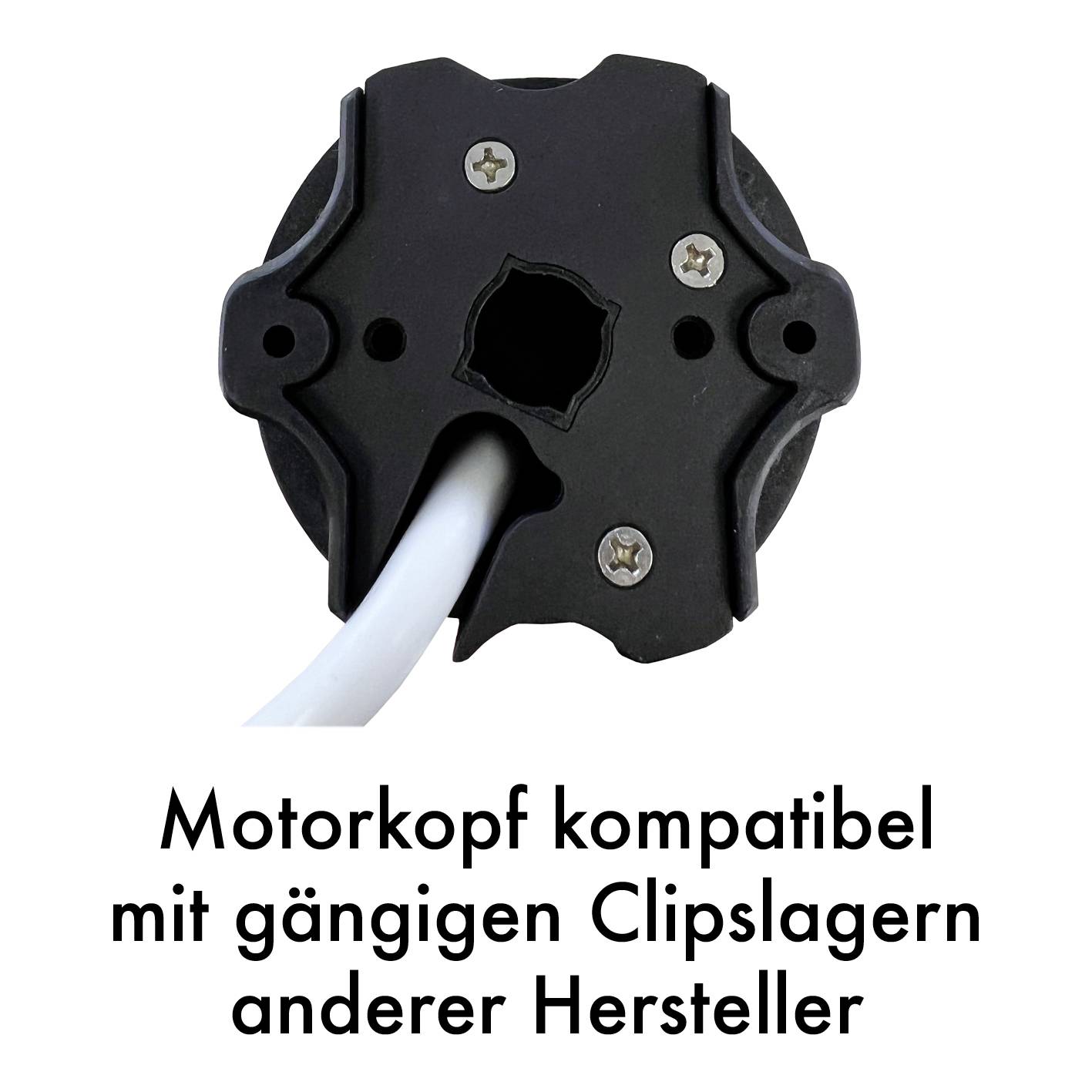

Black motor head with white cable, described as compatible with clip bearings from other manufacturers.

1/5

Fast track dispatch on Fri, 11 Sep

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 117.64 / piece)

€ 155.46

-24 %

€ 117.64

plus VAT.

Only 2 Piece(s) available

Report legal concerns

Highlights & Details

Wireless tubular motor Kaiser Nienhaus Primus Smart 140015 10 Nm

Motor head suitable for common clip bearings of other manufacturers (Somfy)Integrated WLAN and radio receiverAntifreeze protectionParticularly quiet running characteristicsOptional button connection

Technical specifications

For shutters up to 3.5 sqm
Duty cycle: 4 minutes
Cable strands/cross-section 5 x 0.75 mm
Follow-up distance: 3 degrees
Protection class IP44 (for "dry rooms")

Product type: Wireless tubular motor

Suitable for shutter axle Ø: 60 mm

Motor power: 113 W

Dim: (Ø x L) 45 mm x 645 mm

Rotational speed: 15 U/min

Length: 645 mm

Obstacle detection: Yes

Operating voltage: 230 V

(Ø): 45 mm

Hub: Not required

Torque: 10 Nm

Lead length: 3 m

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2301522 Kaiser Nienhaus Primus Smart 140015 Wireless tubular motor 60 mm 113 W 10 Nm

Description

The Primus smart roller shutter drive is the new roller shutter drive on the market with integrated WLAN and radio receiver. The drive can be controlled directly with the mobile phone/tablet via WLAN with a hand-held transmitter of the radio Mercato series or a connectable button. It is an intelligent, electronic tubular motor for shutters up to 3.5 sqm With this roller shutter drive, the end points are set either via a programd hand-held transmitter or smartphone. The drive runs very quietly even under load. The torque is 10 Nm and the speed is 15 rpm. The motor is a total of 645 mm long and the motor sheath has a diameter of 45 mm. It fits into any 10 mm square bearing (e.g. Becker, Elero) as well as in the common star head clip bearings of well-known manufacturers (e.g. Somfy). The supply voltage is 230 V (50 Hz) and it is assigned to protection class IP 44. The roller shutter drive is supplied as standard with a 3 m connection cable and a finished box bearing for 10 mm square mounting. It is pre-adapted for an octagonal steel shaft with a wrench width of 60 mm. With the available accessories it can also be adapted for the octagonal steel shafts SW50 & SW70, as well as some round nuts.

This text is machine translated.
