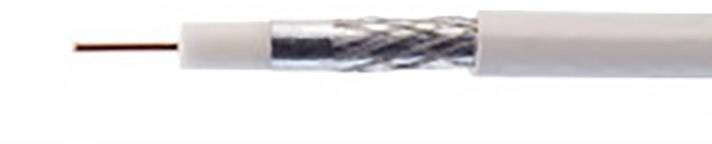

Kathrein 21510004-100 Coax Outside diameter: 5 mm 75 Ω 90 dB White 100 m
EAN:
Part number:
Item no:
Product type
Coax
Impedance
75 Ω
Shield rating greater than
90 dB
Cable features
double shielding
Braided shield
Metal foil shield
rigid core
Outside Ø
5 mm
Number
Total (1 m = € 1.18)
€ 117.64
plus VAT.
14-day return policy included
Highlights & Details
Coaxial Cables
- Rigid Core
- This text is machine translated.
Technical specifications
- Product type
Coax
- Impedance
75 Ω
- Shield rating greater than
90 dB
- Cable features
double shielding
Braided shield
Metal foil shield
rigid core
- Core Ø
0.75 mm
- Factory colour
White
- Outside Ø
5 mm
- Content
100 m
- Attenuation
5 MHz: 2.3 dB
50 MHz: 6.3 dB
100 MHz: 8.5 dB
450 MHz: 18.3 dB
860 MHz: 26 dB
1000 MHz: 28 dB
2150 MHz: 42.6 dB
2400 MHz: 45 dB
- Packaged
Yes
- Sold per metre
No
- Halogen-free
No
- Manufacturer part #
21510004-100
- Insulation material
PVC
- Type
LCD 89
- Dielectric
3.2 mm PEE/PH
- UKCA
not relevant
