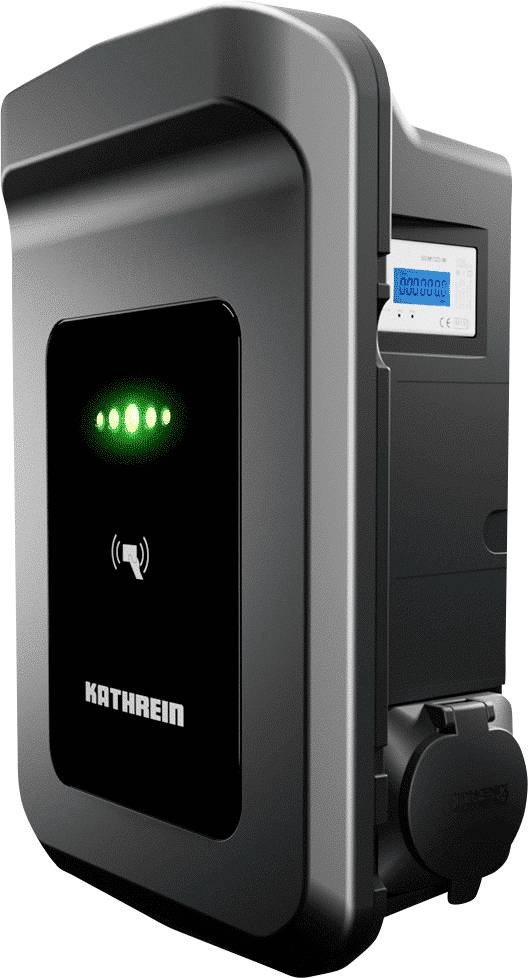

Buy Kathrein AC40-22-P-A Wallbox Type 2 Mode 3 32 A 22 kW RFID

Kathrein AC40-22-P-A Wallbox Type 2 Mode 3 32 A 22 kW RFID-0

Dispatches on Mon, 28 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1,432.77 / piece)

€ 1,432.77

plus VAT.

Report legal concerns

Highlights & Details

Charging STATION KWB-AC40

WLAN, LAN, TCP/IP
PV excess charge
Optimum for cars thanks to MID counters
Durability with class IP54 and IK10
Integrated load management
Plug & Charge ready (ISO15118)
Prepared for bidirectional charging
Automatic 1 and 3 phase switching
§14a EnWG – network control
Single and cluster operation
Backend capability via OCPP
Comprehensive APP control
ModBUS TCP
Access control – RFID

Technical specifications

Overvoltage category III (IEC 60664-1)
Operating current 1 x 16 A | 3 x 16 A / 1 x 32 A | 3 x 32 A
Operating voltage 230 V (1-phase) /400 V (3-phase) (TN-S system)
Charging points 1
Charging mode 3 (IEC 61851-1 – CP/PP)
DC fault current detection IΔn d.c. ≥ 6 mA
Temperature monitoring internal sensors
Plug & Charge fully automatic charging without activation
Shock resistance IK 10
LAN Ethernet Switch 2 x RJ45 (100 Mbit)
WLAN 802.11ac/a/b/g/n, 2.4 and 5 GHz (MIMO)
RFID ISO 14443A, MIFARE Classic, 7-byte UID
USB 2 x Type A 2.0 (as required)
IO 2 x input, 1 x output (galvanically isolated)
RS485 serial interface (as per requirement)
Dimensions Wallbox 300 x 159 (139) x 440 mm
Dimensions of packaging Wallbox: 400 x 600 x 212 mm
Dimensions of packaging charging cable 400 x 600 x 114 mm

Product type: Wallbox

Authorisation: RFID

Charger connectors: Type 2

Charging mode: Mode 3

Charging current: 32 A

Charging capacity: 22 kW

No. of phases: 1- & 3-phase

Nominal voltage: 230 V
400 V

: IP54

Factory colour: Anthracite

: Manufacturer's declaration

Length: 440 mm

Width: 300 mm

Height: 440 mm

Depth: 159 mm

Weight: 6.045 kg

Max. temperature: 40 °C

Min. temperature: -25 °C

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3436011 Kathrein AC40-22-P-A Wallbox Type 2 Mode 3 32 A 22 kW RFID

Description

The charging station for private use and your business

In the semi-public environment, in the commercial or hotel business or in extended use of the Wallbox in the private sector the requirements also increase. The extensive function set of the AC40 provides additional flexibility in charge management. Whether charging socket for mobile charging cable or plug & charge option (ISO 15118 – Power line communication), MID energy meter, management interface (OCPP 1.6), PV excess charging, load management or cluster operation – start with the AC40.
Naturally supported by the Kathrein easyCharging APP.
