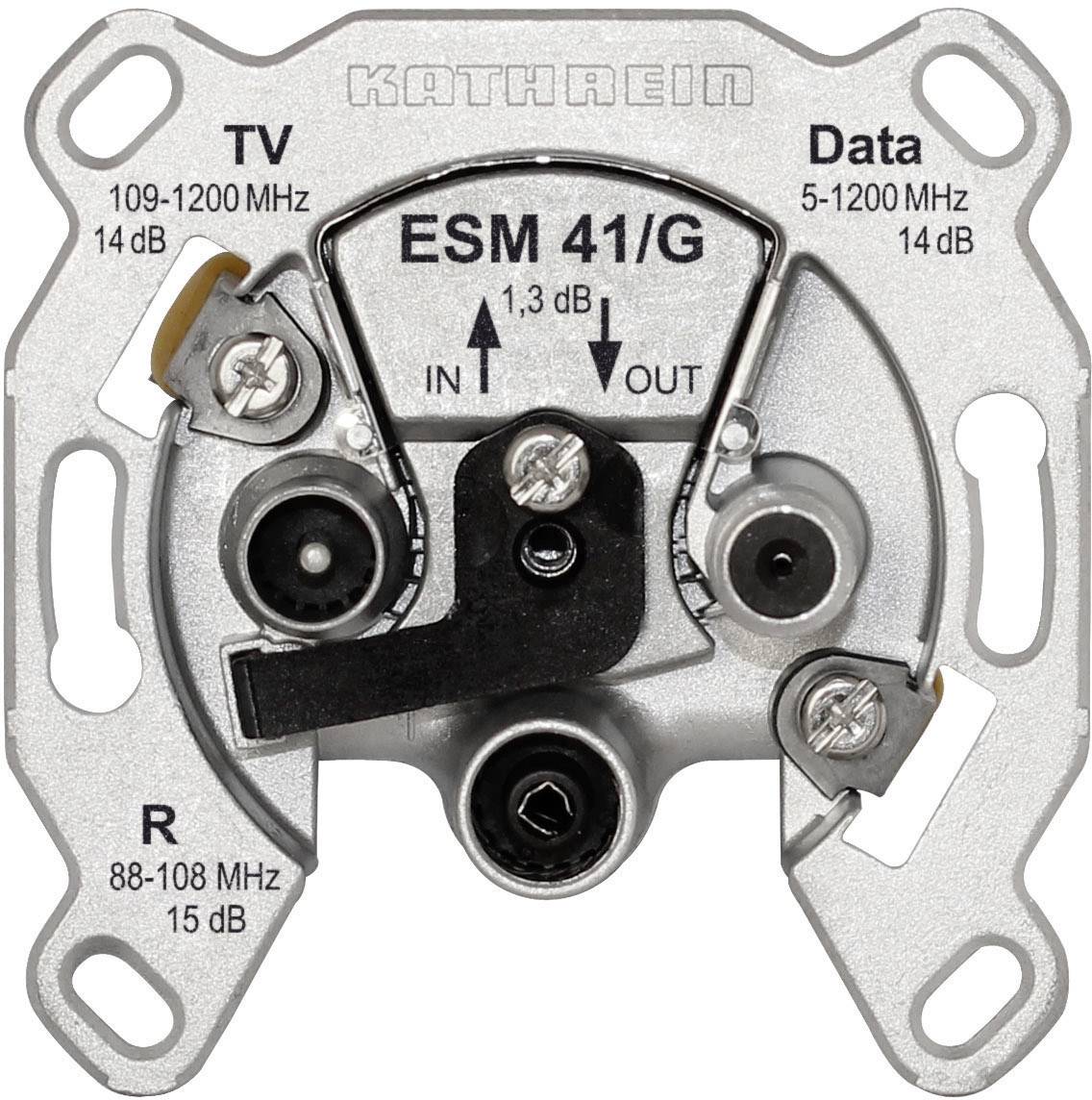

Kathrein ESM 41/G Antenna socket TV, FM, Data Flush mount Non-terminated
EAN:
Part number:
Item no:
Number
Total (€ 15.96 / piece)
€ 15.96
plus VAT.
14 days return policy included
Kathrein ESM41/G Modem-Durchschleifdose
Technical specifications
- Type
Non-terminated
- Product type
Antenna socket
- Suitable for
TV
FM
Data
- Mounting type
Flush mount
- Factory colour
Silver
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1507175 Kathrein ESM 41/G Antenna socket TV, FM, Data Flush mount Non-terminated
Description
Directional coupler socket for Durchschleifsysteme, Connection attenuation: ESM 41/G: 14 dB
This text is machine translated.
This text is machine translated.
Features
- Meet: EN 60728-11 and EN 50083-2
- For interactive CATV/HFC nets
- Very high decoupling between modem connection and TV/radio connection prevents interference of the TV/radio reception by modem
- Ingress Noise blocking function prevents the radiation of unwanted interference signals via the subscriber terminals
- Selective signal distribution on TV and radio connection
- Integrated solution without attachment filter, a high protection of the system against subsequent manipulation by the subscriber.
- Stable pressure die-cast housing
- With screw and claw fixing, suitable for UP sockets with a diameter of 55-65mm
- Can be combined with almost all installation programs
