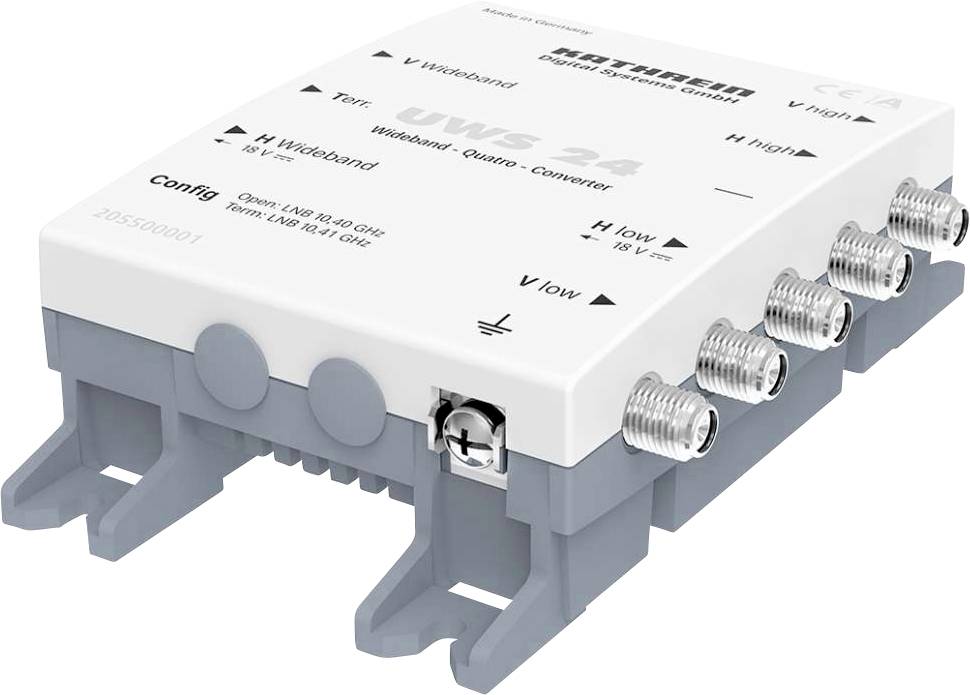

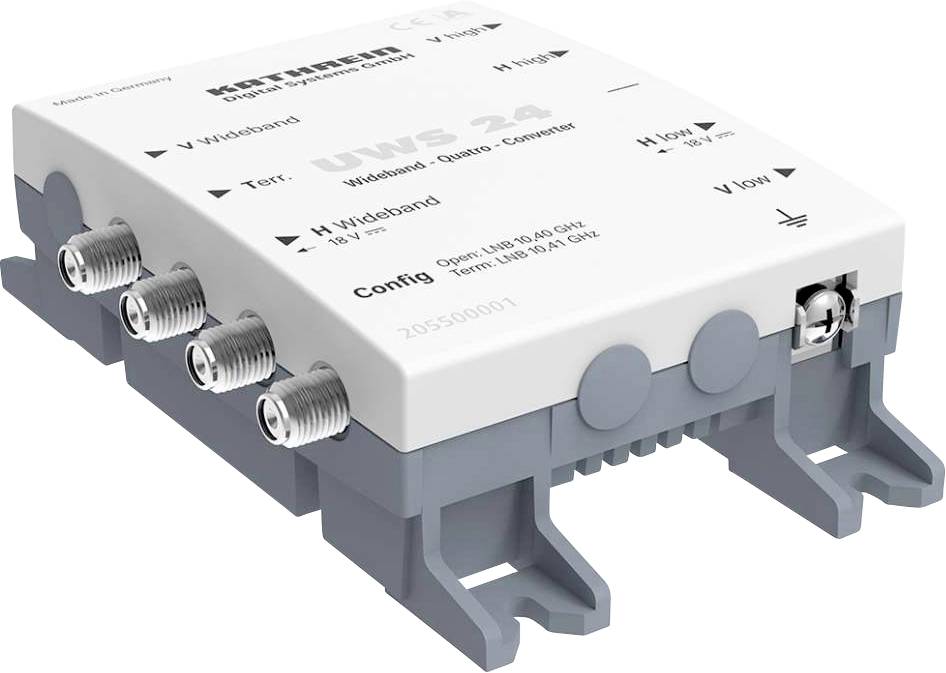

Kathrein UWS 24 SAT multiswitch
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 142.85 / piece)
€ 142.85
plus VAT.
Kathrein UWS 24 multi-switch
Highlights & Details
- Converter for two wideband signals on four Sat-IF levels
- Adaptation to the oscillator frequency of the LNB (10.40 or 10.41 GHz) with terminating resistor EMK 03 (BN: 237169) possible
- Supply via the base "horizontal low"
- The reception of the terrestrial range 5-862 MHz is also included Sat receiver can be switched off

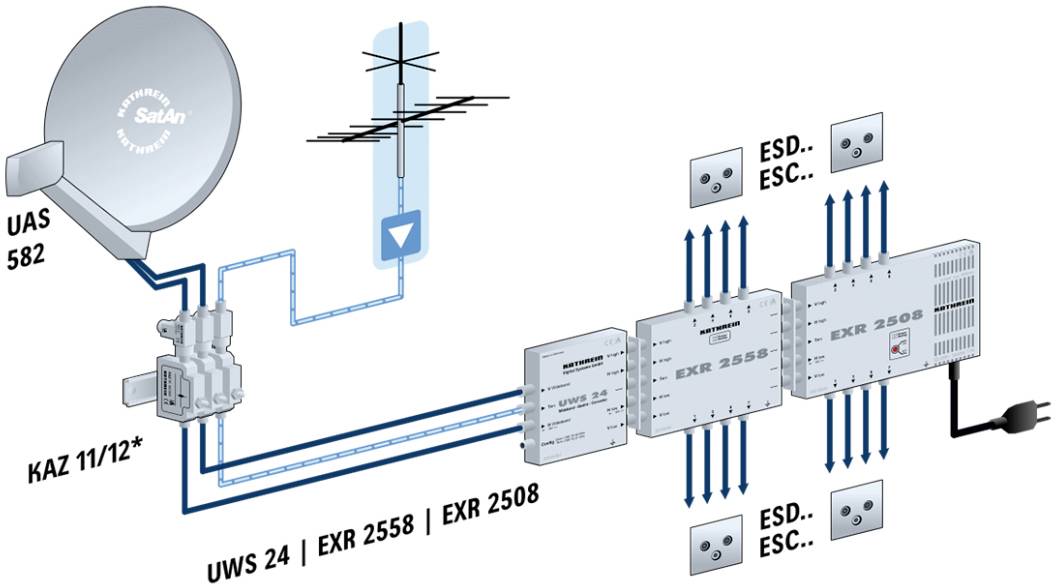

- Can be mounted on EXR 2508 (BN: 20510095) or EXR 2558 (BN: 20510096) with EMU 250 coupler (BN: 20510044)
- Kathrein power saving: If no receiver is active in a system with Kathrein power saving, not only the LNB is switched off but also the converter
- For indoor mounting
- This text is machine translated.
Technical specifications
- Product type
SAT multiswitch
- Min. frequency
5 MHz
- Max. frequency
2350 MHz
- SAT damping
0 dB
- Terrestrial damping
0.5 dB
- Width
159 mm
- Height
148 mm
- Depth
43 mm
- Factory colour
Multicolour
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2308310 Kathrein UWS 24 SAT multiswitch
User & Safety Instructions
User & Safety Instructions 2308310 Kathrein UWS 24 SAT multiswitch
Conformity certificate
Conformity certificate 2308310 Kathrein UWS 24 SAT multiswitch
Description
Features
- Converter for two wideband signals on four Sat-IF levels.
