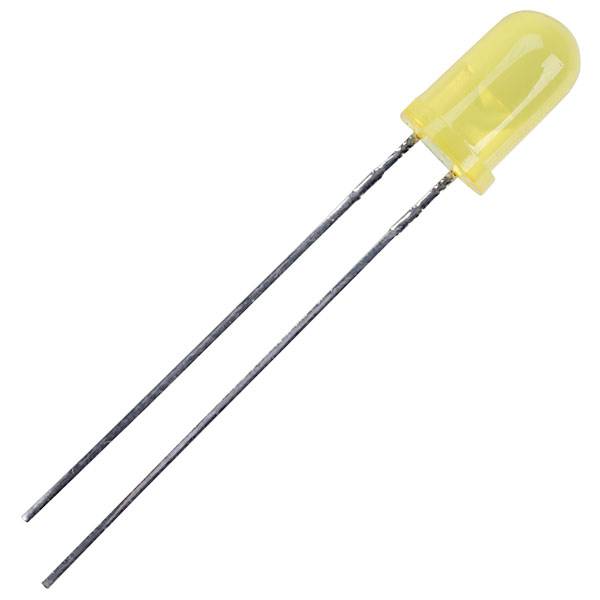

Kingbright L-7113SYD LED wired Yellow Circular 5 mm 600 mcd 30 ° 30 mA 2 V
Product type
LED wired
Forward voltage U(F)
2 V
Forward current I(F)
30 mA
Casing
5 mm
Type
Radial lead
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Minimum order quantity: 15
Total (€ 0.24 / piece)
€ 0.24
incl. VAT
14-day return policy included
Technical specifications
- Product type
LED wired
- Type
L-7113SYD
- Factory colour
Yellow
- Forward voltage U(F)
2 V
- Forward current I(F)
30 mA
- Operating voltage
2 V
- Operating current
20 mA
- Casing
5 mm
- Type
Radial lead
- Light intensity I(V)
600 mcd
- Wavelength
588 nm
- Radiation angle
30°
- Type (LEDs)
Diffused
Tinted
- Lens type
Circular
- Dim
(Ø) 5 mm
- Min. temperature
-40 °C
- Max. temperature
+85 °C
- (Ø)
5 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2888783 Kingbright L-7113SYD LED wired Yellow Circular 5 mm 600 mcd 30 ° 30 mA 2 V
User & Safety Instructions
User & Safety Instructions 2888783 Kingbright L-7113SYD LED wired Yellow Circular 5 mm 600 mcd 30 ° 30 mA 2 V
Description
Features
- Cathode identified by flat on body
- Suitable for signalling applications and as an alternative to filament lamps
- General purpose leads
- Reliable and rugged
- Long life - solid state reliability
- IC compatible
- RoHS compliant
- This text is machine translated.
Hints
All standard LED chips require a current-limiting resistor/constant current power source.
