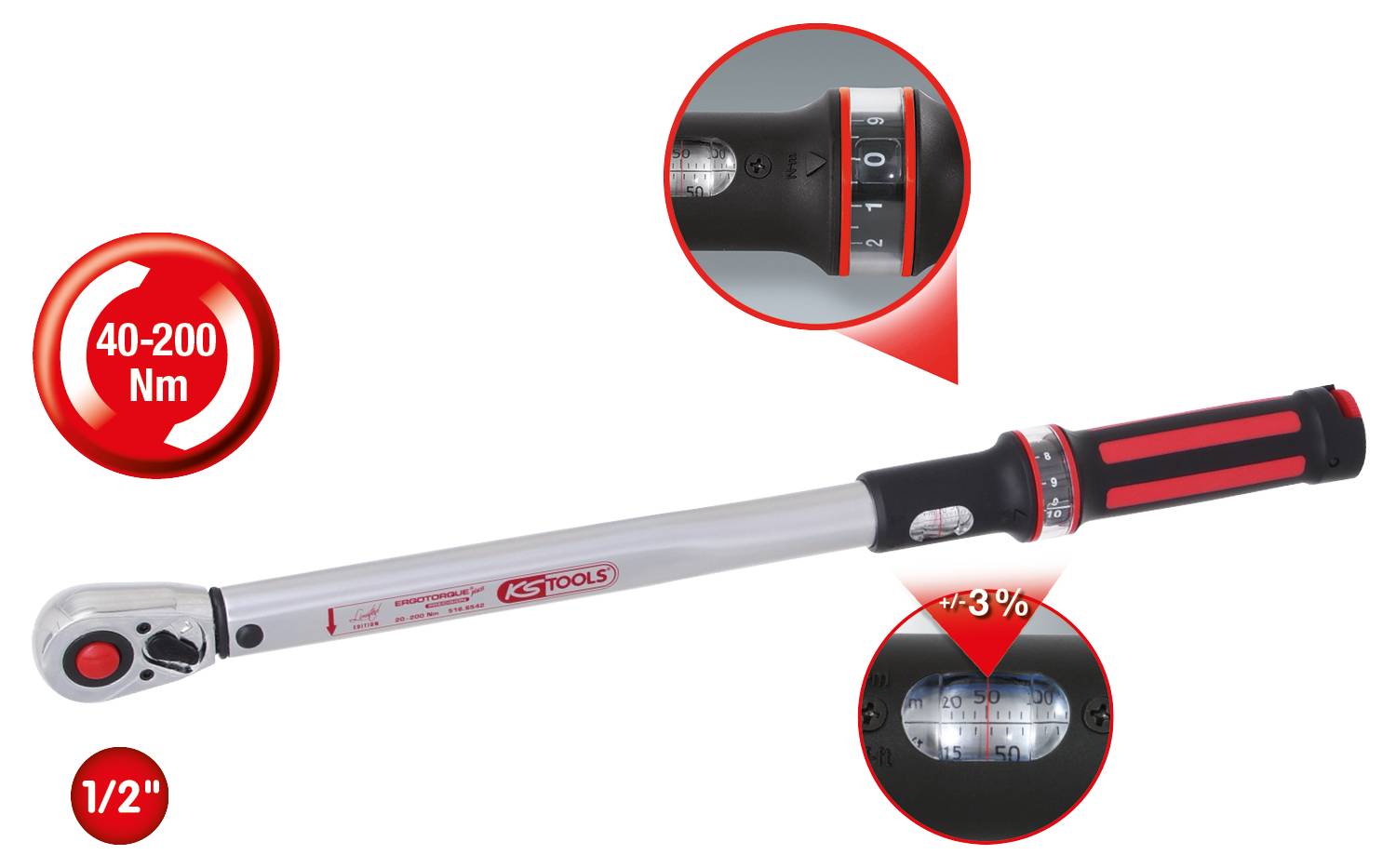

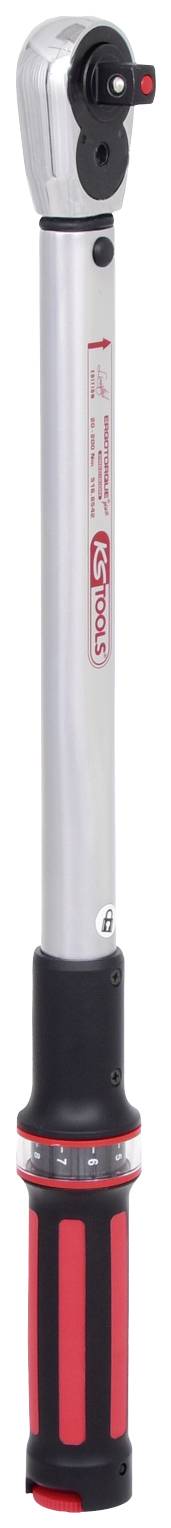

KS Tools ERGOTORQUE®precision Torque wrench Ratcheting 1/2" (12.5 mm) 40 - 200 Nm
EAN:
Part number:
Item no:
Number
Total (€ 75.62 / piece)
€ 228.04
-67 %
€ 75.62
plus VAT.
Only 2 Piece(s) available
Technical specifications
- 36 tooth
- Product type
Torque wrench
- Features
Ratcheting
- Downforce
1/2" (12.5 mm)
- Torque (min.)
40 Nm
- Torque (max.)
200 Nm
- Trigger accuracy
0.03 %
- Graduation
1.0°
- Length
500 mm
- DIN standard
DIN 3120
DIN ISO 1174
- Weight
1300 g
- Height
23 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2618214 KS Tools ERGOTORQUE®precision Torque wrench Ratcheting 1/2" (12.5 mm) 40 - 200 Nm
Description
Features

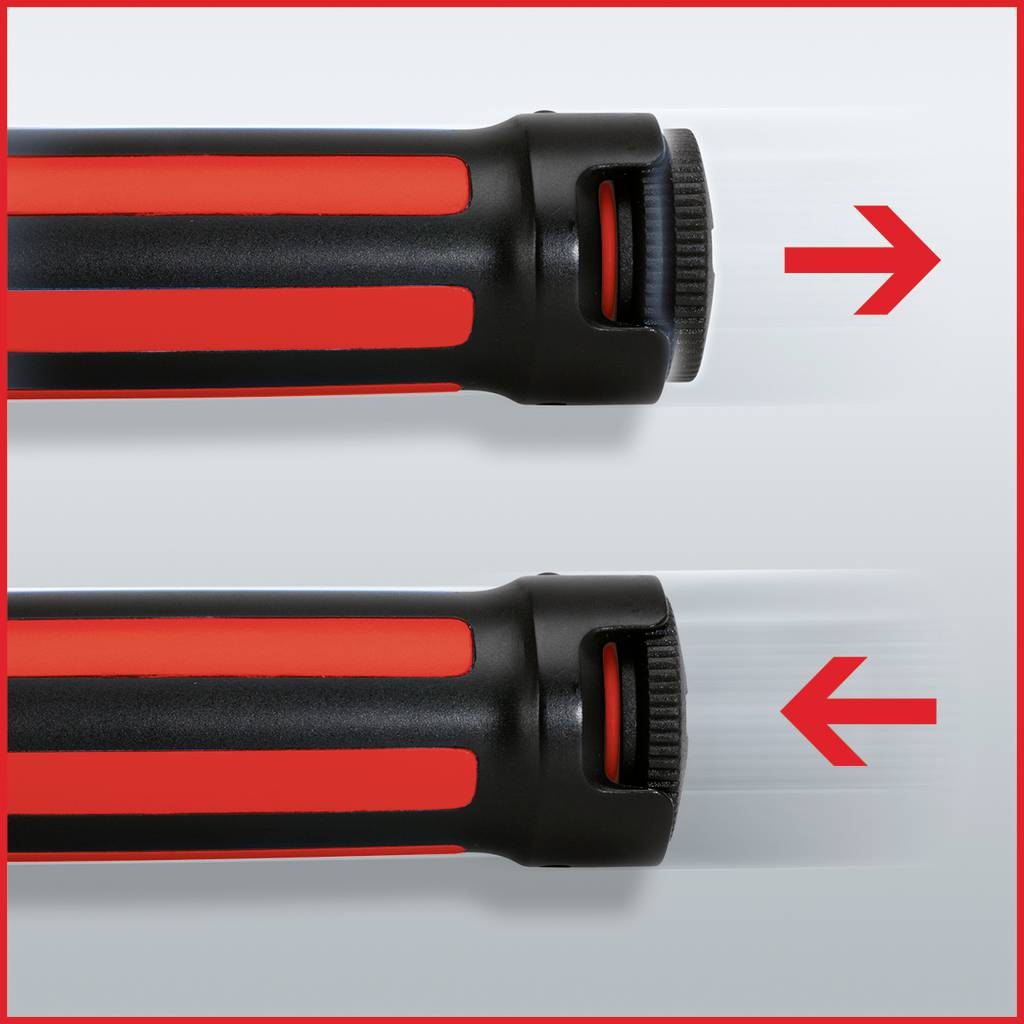

- Trigger accuracy: ±3 % tolerance of the set scale valueAccurate and precise with at least 5,000 load changesFor the controlled right suitLeft-hand lock - unlimited release torque without torque functionDual scale in Nm and lbf•ft pitch for precise adjustmentIncluding finely divisible Nm micrometer scale for fine and precise adjustmentLarge viewing window with magnifying glass function optimizes readabilityClearly audible and tangible torque release through short-travel releaseWith robust 36-tooth ratchet mechanismWith push-button quick release function on the ratchet headAdjust the torque quickly and safely by turning the handleSecure locking at the handleErgonomic and hand-friendly 2-component handle with soft zoneSquare drive according to DIN 3120 - ISO 1174 with ball lockIndividual serial number for clear product identificationIncluding calibration declaration according to DIN EN ISO 6789:2017(E) - traceable to national standard
