Buy kwb 206532 HSS Metal twist drill bit 3.2 mm Total length 65 mm DIN 338 Cylinder shank 1 pc(s) | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

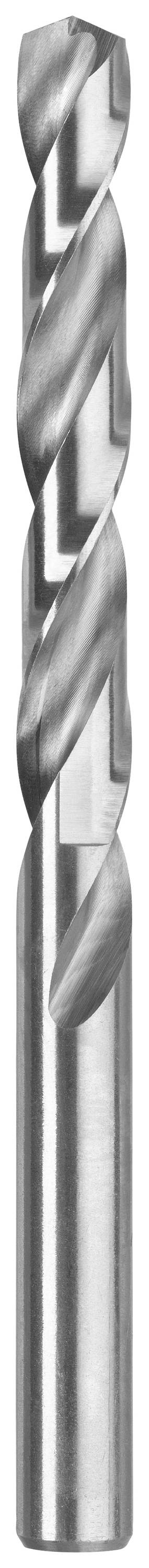

A grey metal spiral drill bit with a helical design, suitable for drilling into metal surfaces.

A grey metal spiral drill bit with a helical design, suitable for drilling into metal surfaces.

A drill penetrates an iron rod with intricate patterns. Metal shavings are scattered around the hole.

Drill with description of its properties: Cross-ground, spiral form, round shaft, point angle 135°, precision-ground.

'Suitable for the following materials: steel, iron, cast iron, copper/nickel/brass/zinc, sheet metal, metal profiles.' Illustrations of six different materials.

'Suitable for the following materials: Aluminium, Bronze, Plastic, Acrylic Glass, Hollow Chamber Boards.' Graphical representations of the materials.

1/5

kwb

Product type

Metal twist drill bit

Drill hole Ø

3.2 mm

Content

1 pc(s)

Material

HSS

Material suitability

Steel

Iron

Non-ferrous metal

Sheet metal

Plastic

Acrylic

Hollow chamber boards

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1.99 / piece)

€ 2.59

-23 %

€ 1.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: Metal twist drill bit

DIN standard: DIN 338

Drill hole Ø: 3.2 mm

Tip angle: 135°

Content: 1 pc(s)

Material: HSS

Material suitability: Steel
Iron
Non-ferrous metal
Sheet metal
Plastic
Acrylic
Hollow chamber boards

Tool holder: Cylinder shank

Shank Ø: 3.2 mm

Working length: 36 mm

Total length: 65 mm

Weight: 11 g

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1917915 kwb 206532 HSS Metal twist drill bit 3.2 mm Total length 65 mm DIN 338 Cylinder shank 1 pc(s)

Description

According to DIN 338, right hand cut, type N, precision ground, color blank, Pointed angle 135°, with cross-grinding according to DIN 1412 C self-centering, cylindrical, industrial quality, for e.g. alloyed and unalloyed steel, cast steel, cast iron, sintered iron, non-ferrous metals, Hard plastics.

This text is machine translated.

Features

For steel, casting, sintered iron, metal and hard plastics
Up to 40% faster and 50% less contact pressure is necessary
Industrial quality
DIN 338 and DIN 1412 C

Description

According to DIN 338, right hand cut, type N, precision ground, color blank, Pointed angle 135°, with cross-grinding according to DIN 1412 C self-centering, cylindrical, industrial quality, for e.g. alloyed and unalloyed steel, cast steel, cast iron, sintered iron, non-ferrous metals, Hard plastics.

This text is machine translated.

Features

For steel, casting, sintered iron, metal and hard plastics
Up to 40% faster and 50% less contact pressure is necessary
Industrial quality
DIN 338 and DIN 1412 C
