Buy kwb 206580 HSS Metal twist drill bit 8 mm Total length 117 mm DIN 338 Cylinder shank 1 pc(s) | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

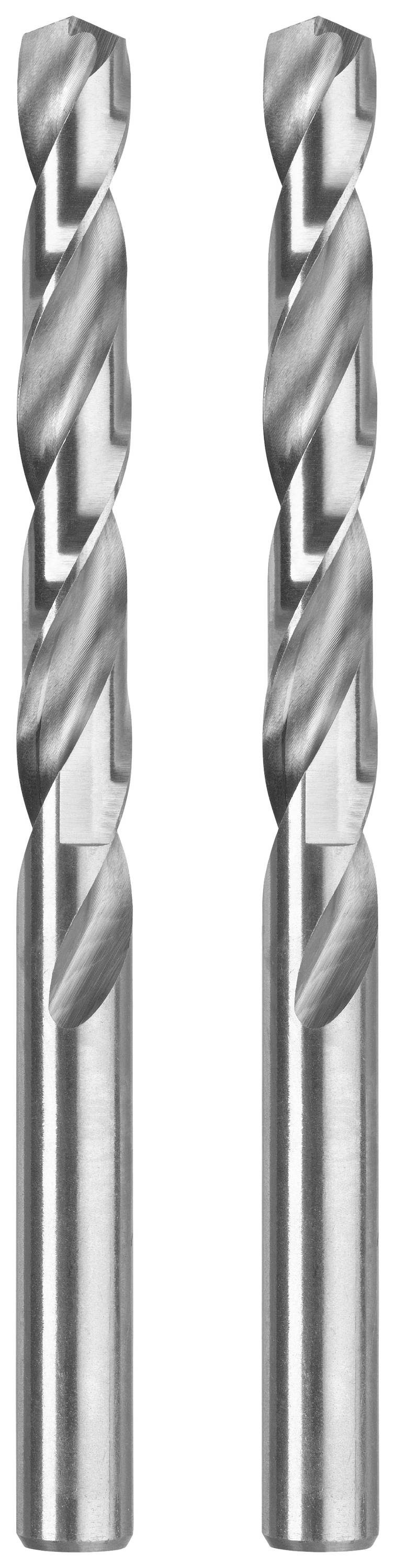

Two silver metal drill bits side by side. They have spiral cutting edges and smooth shanks.

Two silver metal drill bits side by side. They have spiral cutting edges and smooth shanks.

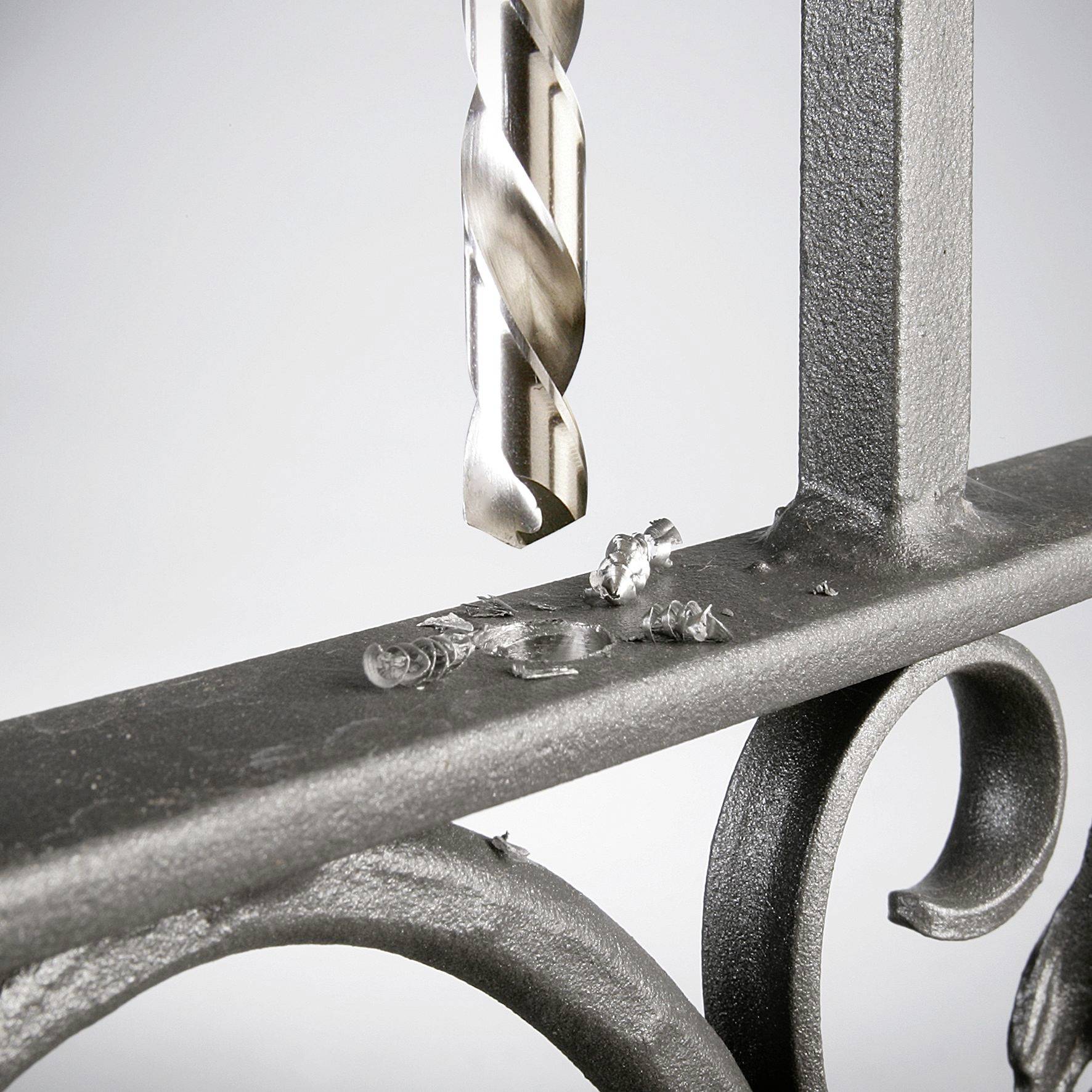

A metal drill penetrates a black grid, with metal shavings scattered across the surface.

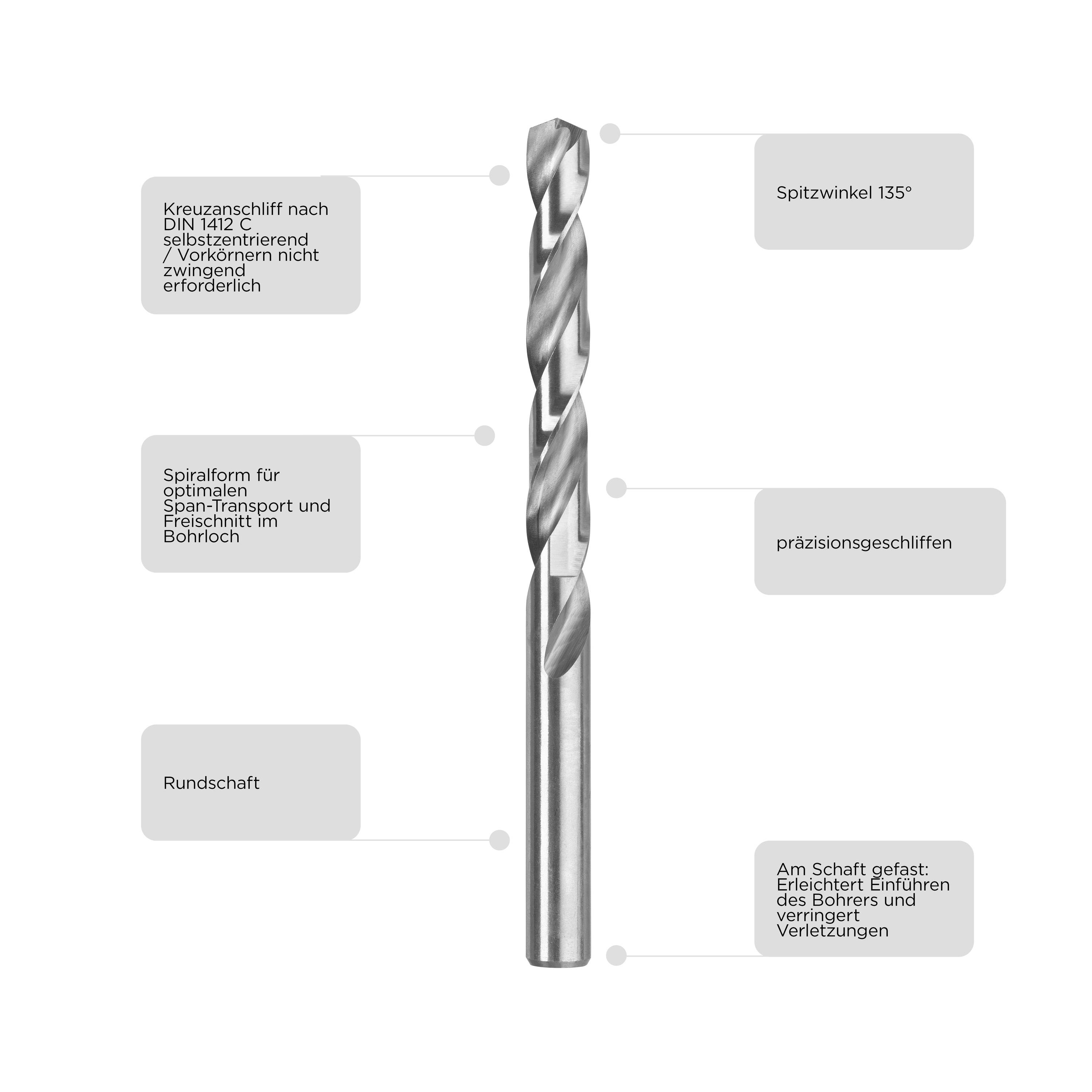

'Drill bit with cross-point design for self-centring, point angle 135°, spiral flute for chip removal, round shank and precision-ground.'

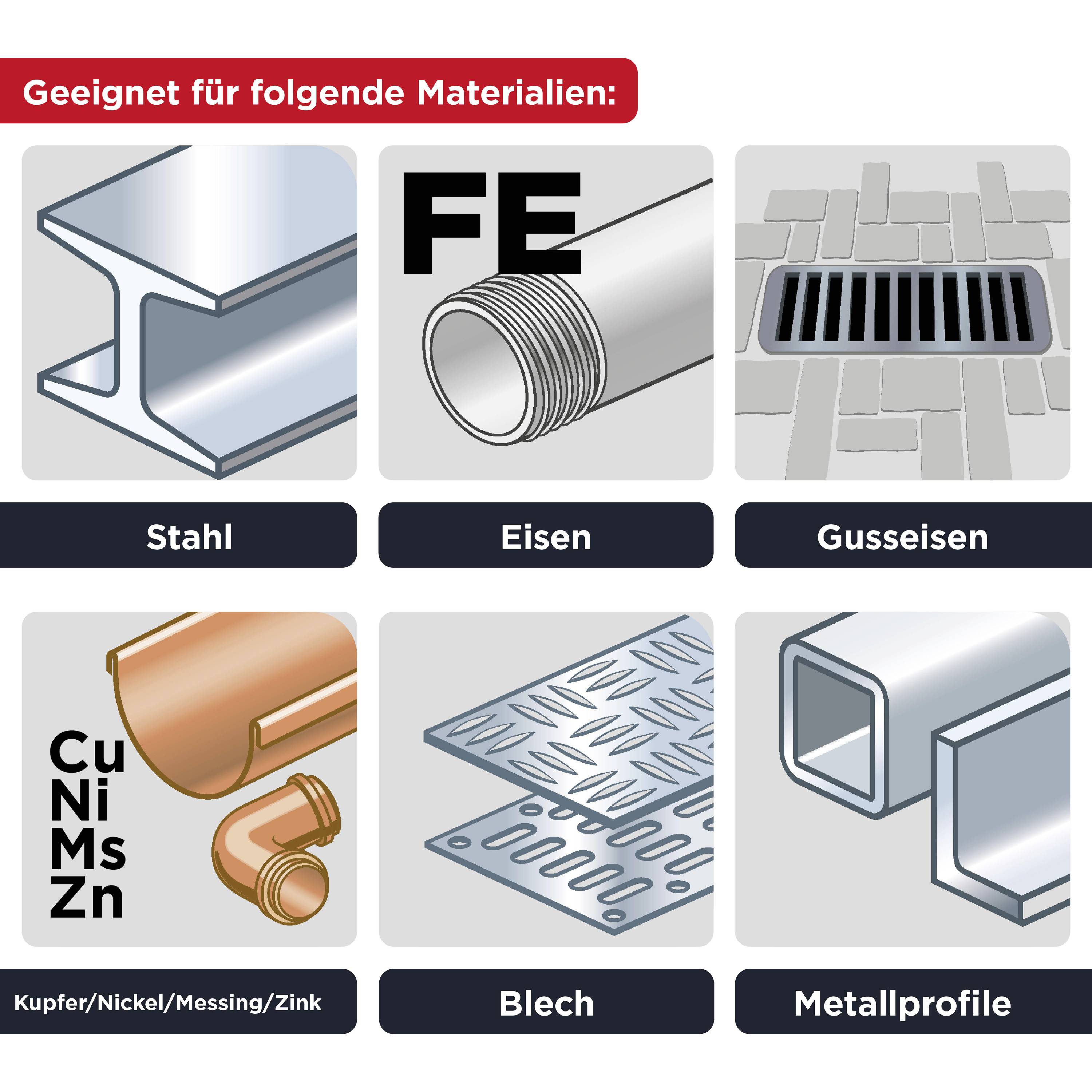

'Suitable for the following materials:' Steel, Iron, Cast Iron, Copper/Nickel/Brass/Zinc, Sheet Metal, Metal Profiles.

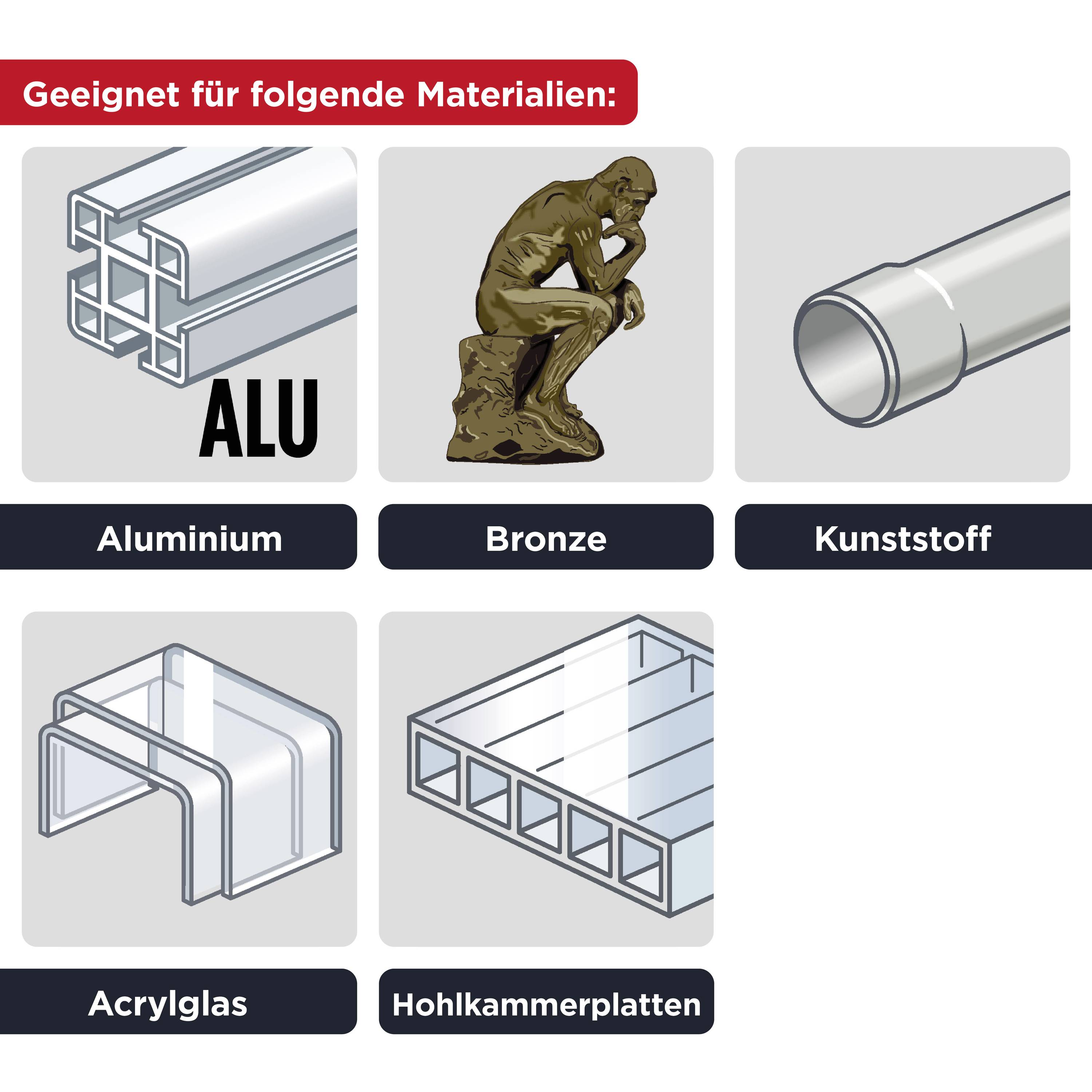

Figure shows symbols for suitable materials: aluminium, bronze, plastic, acrylic glass, hollow chamber boards.

1/5

kwb

Product type

Metal twist drill bit

Drill hole Ø

8 mm

Content

1 pc(s)

Material

HSS

Material suitability

Steel

Iron

Non-ferrous metal

Sheet metal

Plastic

Acrylic

Hollow chamber boards

EAN:

Part number:

Item no:

Fast track dispatch on Thu 12 Nov

20 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 4.49 / piece)

€ 4.49

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: Metal twist drill bit

DIN standard: DIN 338

Drill hole Ø: 8 mm

Tip angle: 135°

Content: 1 pc(s)

Material: HSS

Material suitability: Steel
Iron
Non-ferrous metal
Sheet metal
Plastic
Acrylic
Hollow chamber boards

Tool holder: Cylinder shank

Shank Ø: 8 mm

Working length: 75 mm

Total length: 117 mm

Weight: 41 g

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1917919 kwb 206580 HSS Metal twist drill bit 8 mm Total length 117 mm DIN 338 Cylinder shank 1 pc(s)

Description

According to DIN 338, right hand cut, type N, precision ground, color blank, Pointed angle 135°, with cross-grinding according to DIN 1412 C self-centering, cylindrical, industrial quality, for e.g. alloyed and unalloyed steel, cast steel, cast iron, sintered iron, non-ferrous metals, Hard plastics.

This text is machine translated.

Features

For steel, casting, sintered iron, metal and hard plastics
Up to 40% faster and 50% less contact pressure is necessary
Industrial quality
DIN 338 and DIN 1412 C

Description

According to DIN 338, right hand cut, type N, precision ground, color blank, Pointed angle 135°, with cross-grinding according to DIN 1412 C self-centering, cylindrical, industrial quality, for e.g. alloyed and unalloyed steel, cast steel, cast iron, sintered iron, non-ferrous metals, Hard plastics.

This text is machine translated.

Features

For steel, casting, sintered iron, metal and hard plastics
Up to 40% faster and 50% less contact pressure is necessary
Industrial quality
DIN 338 and DIN 1412 C
