Buy kwb 206550 HSS Metal twist drill bit 5 mm Total length 86 mm DIN 338 Cylinder shank 1 pc(s) | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

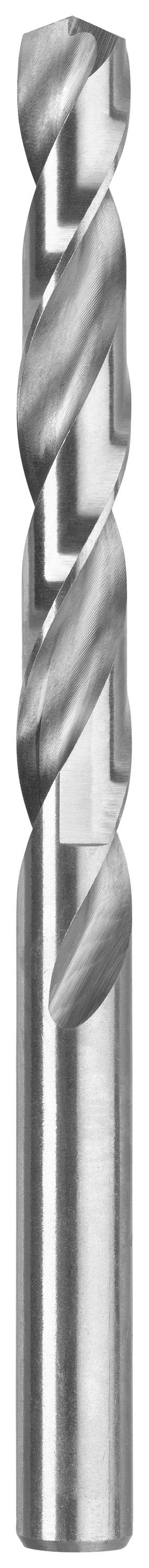

A metal twist drill with two cutting edges, suitable for drilling metal surfaces.

A metal twist drill with two cutting edges, suitable for drilling metal surfaces.

An iron drill makes a hole in a metal railing. Metal shavings are visible around the drill hole.

'Drill bit with round shank': Contains cross-point centre guidance, spiral flute for chip removal, 135-degree point and precision ground.

'Suitable for the following materials': Steel, Iron, Cast Iron, Cu/Ni/Brass/Zinc, Sheet Metal, Metal Profiles.

'Suitable for the following materials: Aluminium, Bronze, Plastic, Acrylic Glass, Hollow Chamber Panels.' Six different material illustrations.

1/5

kwb

Product type

Metal twist drill bit

Drill hole Ø

5 mm

Content

1 pc(s)

Material

HSS

Material suitability

Steel

Iron

Non-ferrous metal

Sheet metal

Plastic

Acrylic

Hollow chamber boards

EAN:

Part number:

Item no:

Fast track dispatch on Thu 12 Nov

6 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 2.79 / piece)

€ 2.79

incl. VAT

Only 6 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Product type: Metal twist drill bit

DIN standard: DIN 338

Drill hole Ø: 5 mm

Tip angle: 135°

Content: 1 pc(s)

Material: HSS

Material suitability: Steel
Iron
Non-ferrous metal
Sheet metal
Plastic
Acrylic
Hollow chamber boards

Tool holder: Cylinder shank

Shank Ø: 5 mm

Working length: 52 mm

Total length: 86 mm

Weight: 16 g

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1917935 kwb 206550 HSS Metal twist drill bit 5 mm Total length 86 mm DIN 338 Cylinder shank 1 pc(s)

Description

According to DIN 338, right hand cut, type N, precision ground, color blank, Pointed angle 135°, with cross-grinding according to DIN 1412 C self-centering, cylindrical, industrial quality, for e.g. alloyed and unalloyed steel, cast steel, cast iron, sintered iron, non-ferrous metals, Hard plastics.

This text is machine translated.

Features

For steel, casting, sintered iron, metal and hard plastics
Up to 40% faster and 50% less contact pressure is necessary
Industrial quality
DIN 338 and DIN 1412 C

Description

According to DIN 338, right hand cut, type N, precision ground, color blank, Pointed angle 135°, with cross-grinding according to DIN 1412 C self-centering, cylindrical, industrial quality, for e.g. alloyed and unalloyed steel, cast steel, cast iron, sintered iron, non-ferrous metals, Hard plastics.

This text is machine translated.

Features

For steel, casting, sintered iron, metal and hard plastics
Up to 40% faster and 50% less contact pressure is necessary
Industrial quality
DIN 338 and DIN 1412 C
