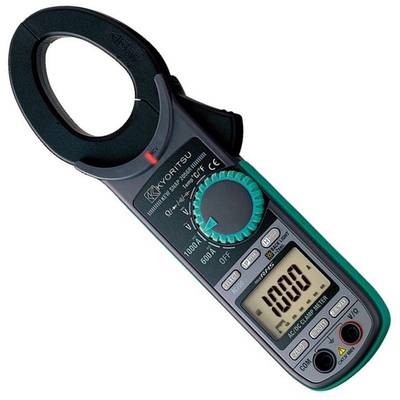

Kyoritsu KEW-2056R Clamp meter Digital CAT IV 600 V Display (counts): 6039
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 326.89 / piece)
€ 326.89
plus VAT.
Only 2 Piece(s) available
Highlights & Details
True RMS clamp meter KEW-2056R
- CAT IV 600 V
- Temperature measurement from -50 to 300°C only with temperature probe possible
- Red LED as "No contact voltage function"
Technical specifications
- Voltage reading range DC (min.)
0.6 V
- Product type
Clamp meter
- Voltage DC reading range (max.)
600 V
- V AC reading range (min.)
6 V
- V AC reading range (max.)
600 V
- Amperage reading range DC (min.)
600 A
- A DC reading range (max.)
1000 A
- A AC reading range (min.)
600 A
- Amperage reading range AC (max.)
1000 A
- Reading range - resistance
600 Ohm - 60 MOhm
- Reading range - capacity
400 nF - 40 µF
- Frequency reading range
10 Hz - 10 K Hz
- Basic accuracy
2.0 %
- Measurement type (details)
True RMS
- Height
36 mm
- Width
82 mm
- Length
254 mm
- Weight
310 g
Manufacturer's standards (no certificate)
- Reading category
CAT IV 600 V
- Voltage metering
AC/DC
- Type
KEW-2056R
- Display
Digital
- Display (counts)
6039
- Dim
(L x W x H) 254 x 82 x 36 mm
- Opening range of current clamps
40 mm
Documents & Downloads
Datasheet
Datasheet 1667070 Kyoritsu KEW-2056R Clamp meter Digital CAT IV 600 V Display (counts): 6039
User & Safety Instructions
User & Safety Instructions 1667070 Kyoritsu KEW-2056R Clamp meter Digital CAT IV 600 V Display (counts): 6039
Description
The compact current pliers KEW -2056 R allows accurate measurements at a very high display resolution.
This text is machine translated.
This text is machine translated.
Features
- Continuity measurement
- DUTY
- Diode test function
- Data hold and peak hold function
- Background light
Scope of delivery
- Test lead
- Bag
- Batteries
- User manual
