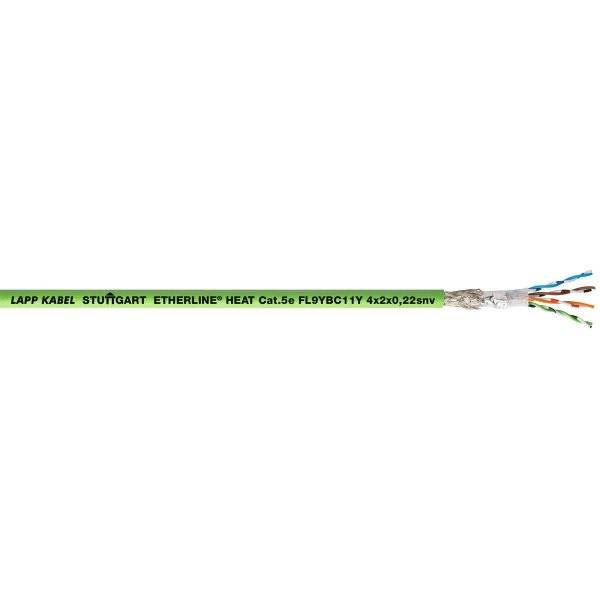

LAPP 2170850/500 Network cable CAT 5e SF/UTP 4 x 2 x 0.2 mm² Green 500 m
EAN:
Part number:
Item no:
Product type
Network cable
Specification
CAT 5e
Shielding
SF/UTP
No. of leads
8 x
Cross section (each core)
0.2 mm²
Datasheet (PDF)
20 Set(s)
Sales and shipping:
Number
Total (1 m = € 5.13)
€
Highlights & Details
ETHERLINE cat. 5e FL 9 YBC11Y
Technical specifications
- Product type
Network cable
CAT 5e
SF/UTP
- No. of leads
8 x
- Cross section (each core)
0.2 mm²
- Cross section
4 x 2 x 0.2 mm²
- Cable features
Halogen-free
suitable for outdoor use
chemical-resistant
UV-resistant
flexible core
Metal foil shield
Common shield
- Outside Ø
7.70 mm
- Factory colour
Green
- Max. frequency
100 MHz
- Content
500 m
- AWG max.
24
- Packaged
Yes
- Sold per metre
No
- Manufacturer part #
2170850/500
- Type
ETHERLINE Cat. 5e FL9YBC11Y 4x2x0,22sn
- Insulation material
Polyurethane
- Min. temperature range (flexible installation)
-30 °C
- Max. temperature range (flexible installation)
+105 °C
- Min. temperature range (fixed installation)
-40 °C
- Max. temperature range (fixed installation)
+105 °C
- Twisted pair cabling (part 1)
Yes (1)
