Name: Laserfuchs Laser module Dot Red 1 mW LFD650-1-12 (9 x 20)
Brand: Laserfuchs
SKU: 1695487
Availability: InStock

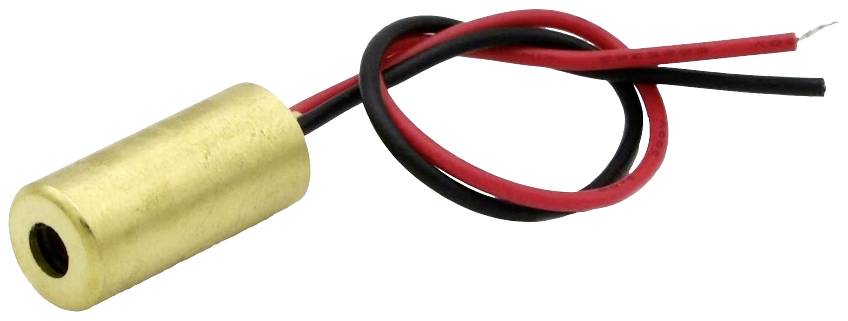

Small, cylindrical laser with a golden casing and connected red and black wires.

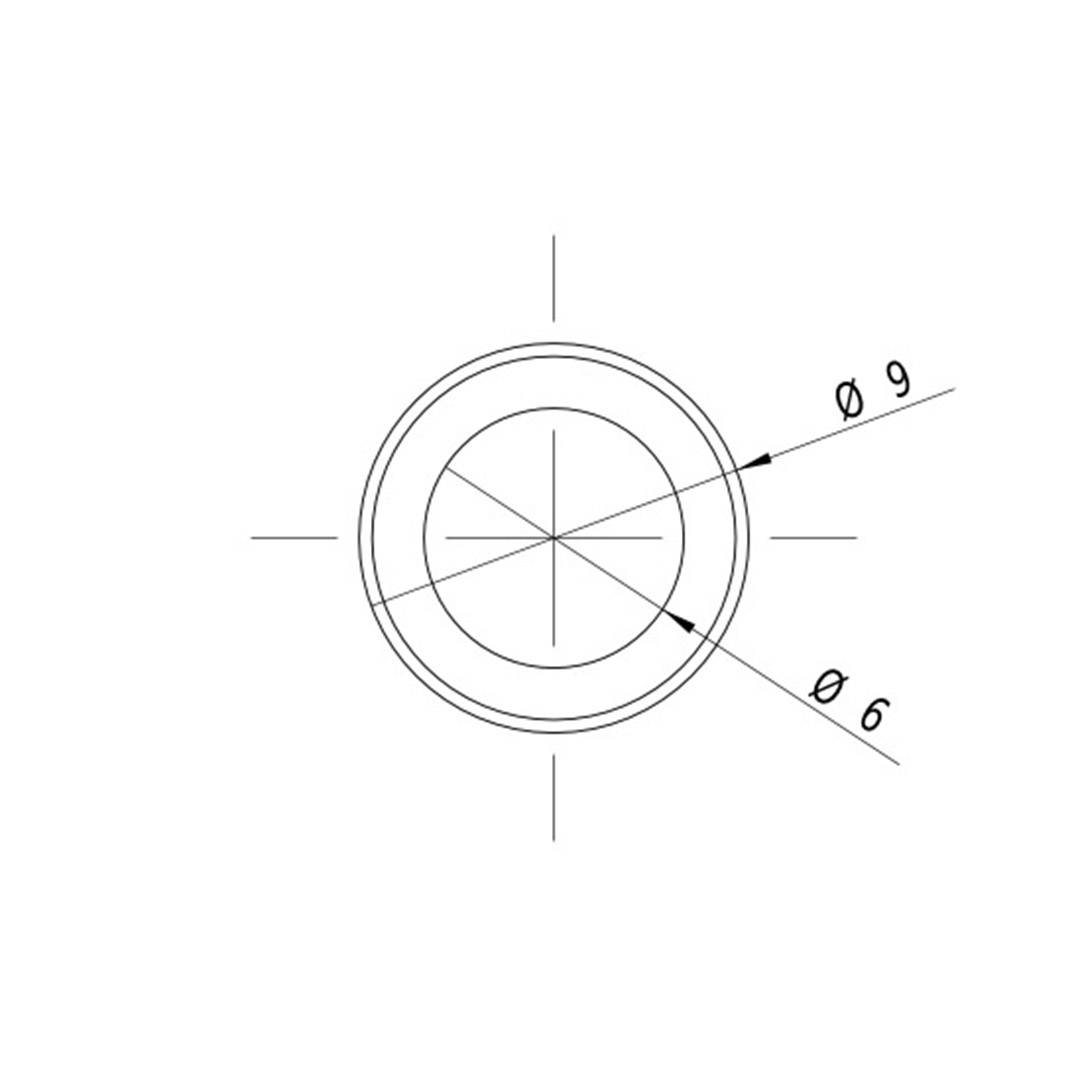

Technical drawing of a circle with markings: diameter ø9 and ø6. Crosses indicate centre points and axes.

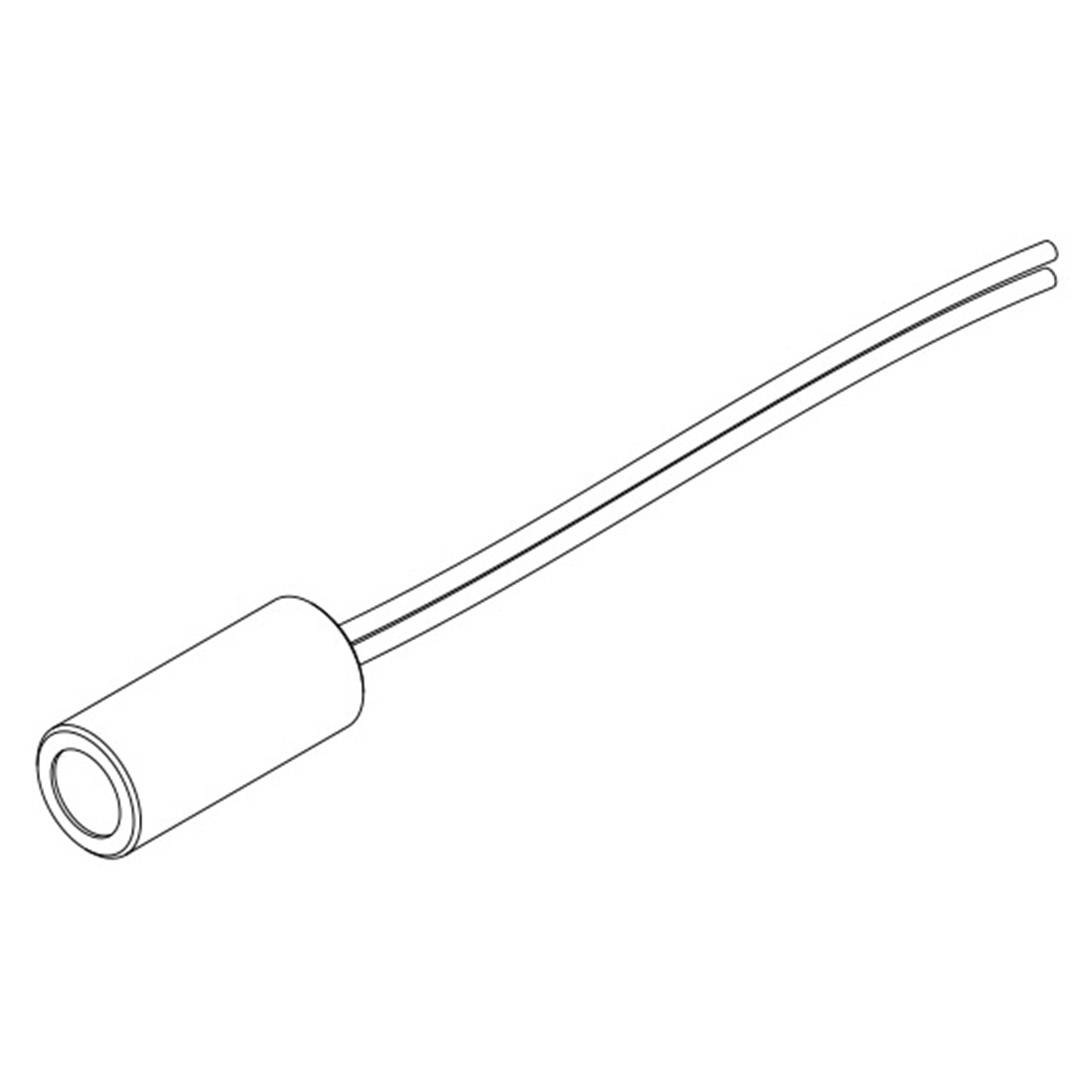

A technical diagram shows a cylindrical sensor with two protruding cables.

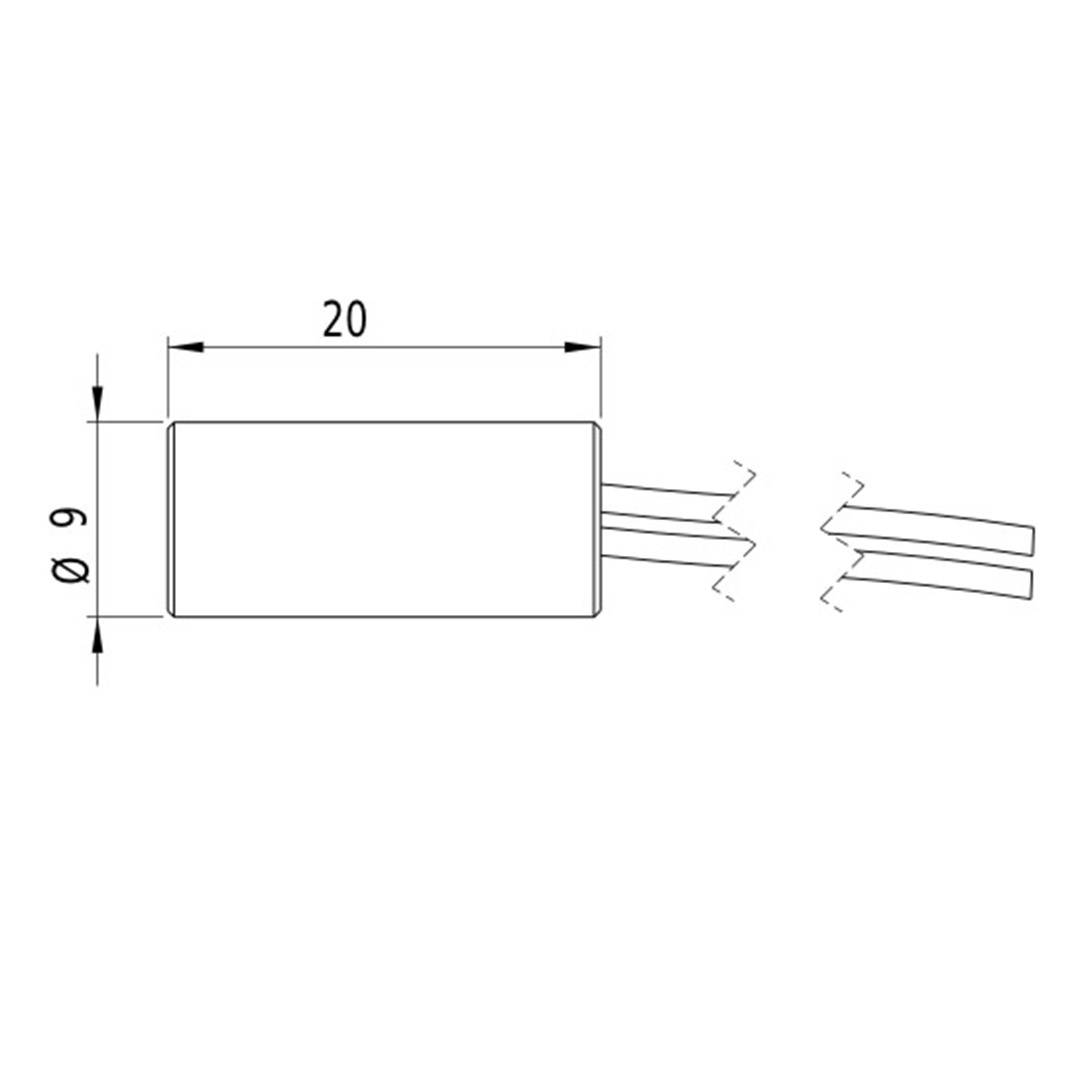

Technical drawing of a cylindrical component with a diameter of 9 mm and a length of 20 mm; two wires protrude.

1/4

Image similar

Product type

Laser module

Emission characteristics

Dot

Wavelength

650 nm

Power

1 mW

(Ø)

9 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

77 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 19.99 / piece)

€ 19.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Point laser, red

Red
Laser category: 2
Emission characteristics: Dot

Our service for you

Technical specifications

Beam diameter (5 m) 4 - 5 mm

Product type: Laser module

Type: LFD650-1-12 (9 x 20)

Emission characteristics: Dot

Focus properties: 5000 mm fixed-focus

Factory colour: Red

Wavelength: 650 nm

: 1 mW

(Ø): 9 mm

Length: 20 mm

Laser category: 2

Beam divergence: 1 mrad

Clearance: 10 m

Operating voltage: 3 - 6 V DC

Operating current: 30 mA

Material: Brass

Dim: (Ø x L) 9 mm x 20 mm

Weight: 6 g

RoHS-compliant: Yes

Max. operating voltage: 6 V DC

Min. operating voltage: 3 V DC

Variants(All information include VAT, plus shipping costs)

Clearance

Emission characteristics

Laser category

Power

Wavelength

Laserfuchs Laser module Dot Red 1 mW LFD650-1-12 (9 x 20)

Item no:1695487

Fast track dispatch on Thu 29 Oct

77 Piece(s)Conrad Electronic

This article

10 m

Dot

1 mW

650 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 19.99^*

Laserfuchs Laser module Cross line Red 5 mW LFC 650-5-12 (9 x 20)

Item no:816637

Fast track dispatch on Thu 29 Oct

24 Piece(s)Conrad Electronic

1 m

Cross line

5 mW

650 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 30.99^*

Laserfuchs Laser module Dot Red 0.4 mW LFD 650-0. 4-12 (9 x 20)

Item no:816304

Fast track dispatch on Thu 29 Oct

82 Piece(s)Conrad Electronic

10 m

Dot

0.4 mW

650 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 25.99^*

Laserfuchs Laser module Dot Red 1 mW LFD650-1-12 (9 x 20)

Item no:816476

Fast track dispatch on Thu 29 Oct

46 Piece(s)Conrad Electronic

10 m

Dot

1 mW

650 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 17.99^*

Laserfuchs Laser module Line Red 5 mW LFL 635-5-6 (9 x 20) 60

Item no:816300

Fast track dispatch on Thu 29 Oct

16 Piece(s)Conrad Electronic

2 m

Line

5 mW

635 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 35.99^*

Laserfuchs Laser module Line Red 5 mW LFL 650-5-12 (9 x 20) 90

Item no:816228

Fast track dispatch on Thu 29 Oct

116 Piece(s)Conrad Electronic

1 m

Line

5 mW

650 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 28.99^*

Laserfuchs Laser module Line Red 5 mW LFL 650-5-12 (9 x 20) 90-F250

Item no:816227

Fast track dispatch on Thu 29 Oct

21 Piece(s)Conrad Electronic

0.25 m

Line

5 mW

650 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 30.99^*

Laserfuchs Laser module Narrow Red 5 mW LFL 650-5-12 (9 x 20) 60

Item no:816296

Fast track dispatch on Thu 29 Oct

18 Piece(s)Conrad Electronic

1 m

Narrow

5 mW

650 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 28.99^*

Laserfuchs Laser module Line Red 5 mW LFL 635-5-6 (9 x 20) 90

Item no:816303

Unavailable

Conrad Electronic

2 m

Line

5 mW

635 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 31.99^*

Documents & Downloads

Datasheet

Datasheet 1695487 Laserfuchs Laser module Dot Red 1 mW LFD650-1-12 (9 x 20)

Information

Information 1695487 Laserfuchs Laser module Dot Red 1 mW LFD650-1-12 (9 x 20)

Conformity certificate

Conformity certificate 1695487 Laserfuchs Laser module Dot Red 1 mW LFD650-1-12 (9 x 20)

Hints

Laser beam! Observe safety instructions! Never look into the beam (may damage your retina).

Description

Hints

Laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
