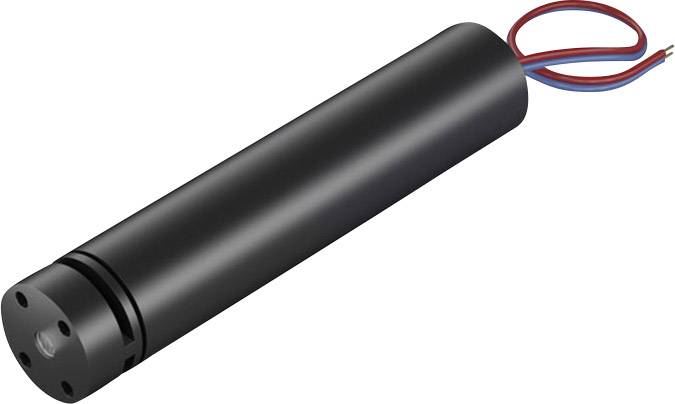

Laserfuchs Laser module Line Green 5 mW LFL 532-5-3 (12x60)
Product type
Laser module
Emission characteristics
Line
Wavelength
532 nm
Power
5 mW
(Ø)
12 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 164.99 / piece)
€ 164.99
incl. VAT
Only 4 Piece(s) available
Highlights & Details
Insulated line laser, green
- Green
- Laser category: 1
- Emission characteristics: Line
Technical specifications
- Line width< 2 mm (3 m)
- Product type
Laser module
- Type
LFL 532-5-3 (12x60)
- Emission characteristics
Line
- Focus properties
3000 mm fixed-focus
- Factory colour
Green
- Wavelength
532 nm
5 mW
- (Ø)
12 mm
- Length
60 mm
- Laser category
1
- Angular aperture
90°
- Beam divergence
0.5 mrad
- Clearance
3 m
- Operating voltage
3 V DC
- Operating current
200 mA
- Material
Aluminium

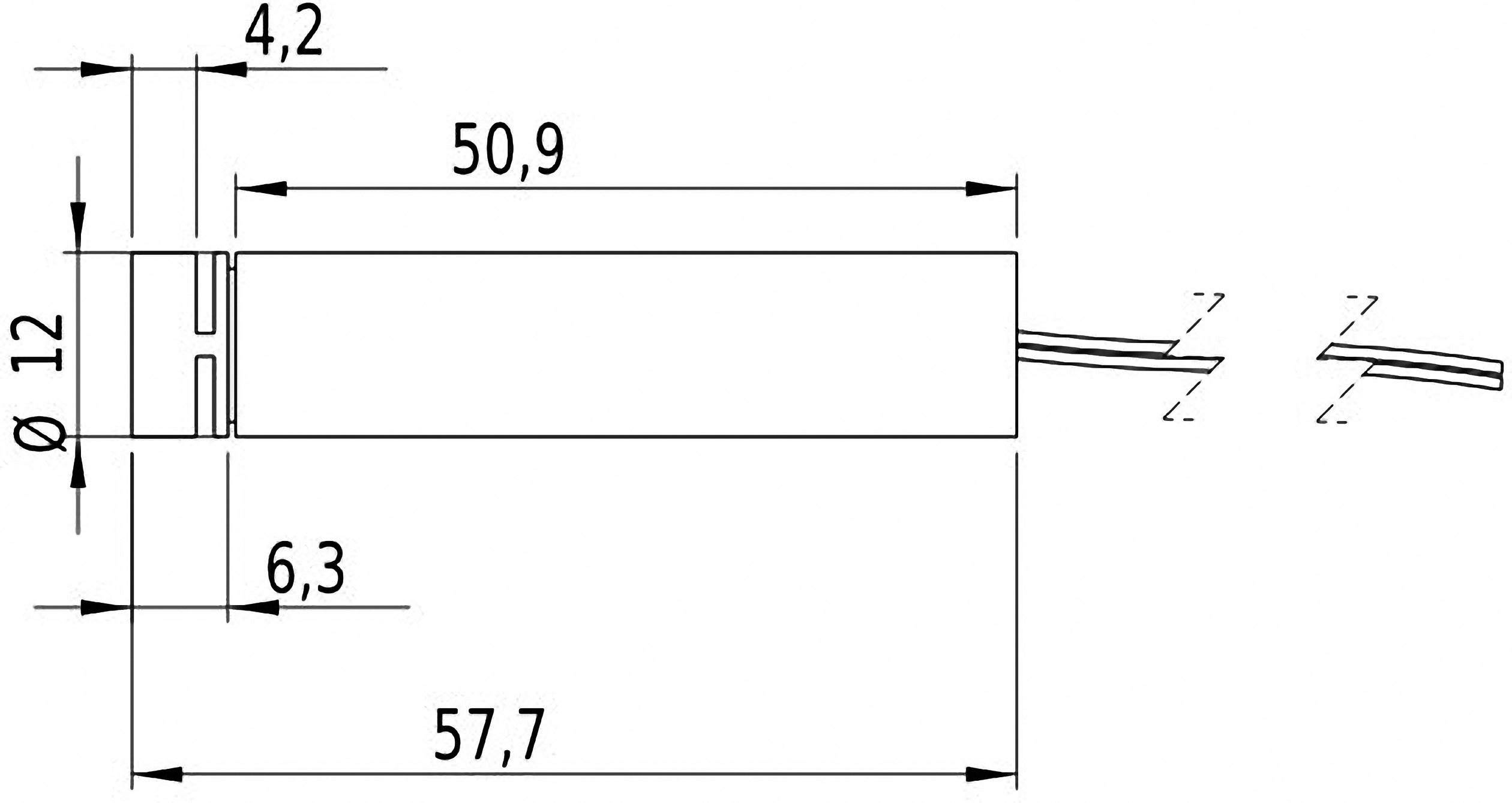

- Dim
(Ø x L) 12 mm x 60 mm
- Weight
24 g
- RoHS-compliant
Yes
- Max. temperature
30 °C
- Min. temperature
15 °C
Documents & Downloads
Datasheet
Datasheet 1283340 Laserfuchs Laser module Line Green 5 mW LFL 532-5-3 (12x60)
User & Safety Instructions
User & Safety Instructions 1283340 Laserfuchs Laser module Line Green 5 mW LFL 532-5-3 (12x60)
Information
Information 1283340 Laserfuchs Laser module Line Green 5 mW LFL 532-5-3 (12x60)
Conformity certificate
Conformity certificate 1283340 Laserfuchs Laser module Line Green 5 mW LFL 532-5-3 (12x60)
Description
Hints
Laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
