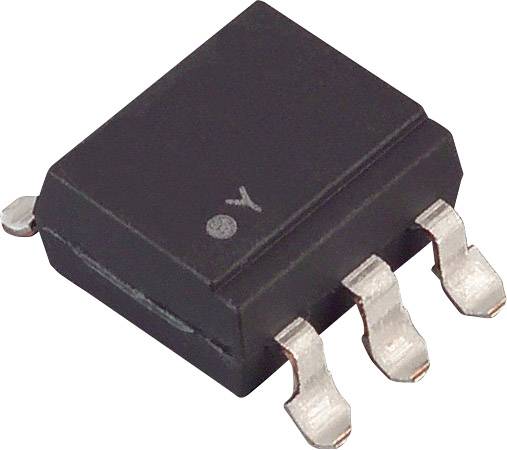

Image similar

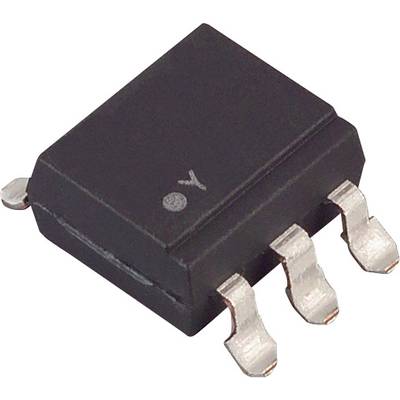

Image similar
Lite-On Opto-isolator - LED controller CNY17-4S SMD 6 Transistor (+ base) DC
EAN:
Part number:
Item no:
Product type
Opto-isolator - LED controller
Enclosure
SMD 6
Forward current I(F)
60 mA
Reverse voltage U(R)
6 V
Mounting type
Surface-mount
Datasheet (PDF)
5265 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
65
-
€ 0.17
195
12% = € 0.02
€ 0.15
325
18% = € 0.03
€ 0.14
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 65
Multiple: 65
Total (€ 0.17 / piece)
€
Technical specifications
- Type
CNY17-4S
- Product type
Opto-isolator - LED controller
- Enclosure
SMD 6
- Manufacturer
Lite-On
- Manuf. code
LTO
- UF typ.
1.45 V
- Forward current I(F)
60 mA
- Reverse voltage U(R)
6 V
- Channels
1
- Input type
DC
- Output type
Transistor (+ base)
- Insulation voltage
5000 V RMS
- Operating temperature (min.)
+100 °C
- Operating temperature (max.)
-55 °C
- Mounting type
Surface-mount
- Forward voltage U(F) max
1.65 V
- Forward voltage U(F)
1.45 V
- Slew rate
5 µs
- Fall time
5 µs
- Power output/channel
150 mA
- Power (max) P(TOT)
250 mW
- Voltage output (max.)
70 V
- Current transfer ratio (min.)
160 %
- Current transfer ratio (min.) - current reference
10 mA
- Current transfer ratio (max.)
320 %
- Collector-emitter saturation voltage (max.)
300 mV
- Collector current
150 mA
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1127389 Lite-On Opto-isolator - LED controller CNY17-4S SMD 6 Transistor (+ base) DC
