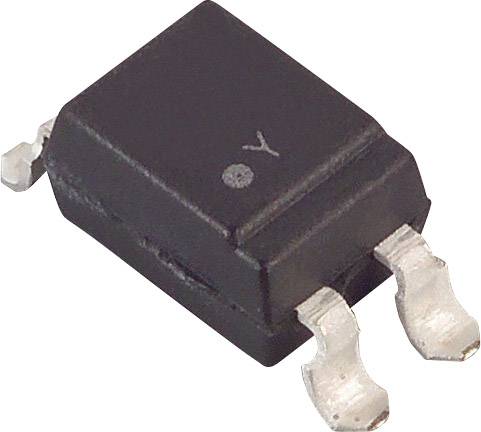

Image similar
Lite-On Opto-isolator - LED controller LTV-357T SOP 4 Transistor DC
EAN:
Part number:
Item no:
Product type
Opto-isolator - LED controller
Enclosure
SOP 4
Forward current I(F)
50 mA
Reverse voltage U(R)
6 V
Mounting type
Surface-mount
Datasheet (PDF)
Number
Minimum order quantity: 100
Multiple: 100
Total (€ 0.16 / piece)
€ 16.00
incl. VAT
14-day return policy included
Technical specifications
- Type
LTV-357T
- Product type
Opto-isolator - LED controller
- Enclosure
SOP 4
- Manufacturer
Lite-On
- Manuf. code
LTO
- UF typ.
1.2 V
- Forward current I(F)
50 mA
- Reverse voltage U(R)
6 V
- Channels
1
- Input type
DC
- Output type
Transistor
- Insulation voltage
3750 V RMS
- Operating temperature (min.)
+110 °C
- Operating temperature (max.)
-55 °C
- Mounting type
Surface-mount
- Forward voltage U(F) max
1.4 V
- Forward voltage U(F)
1.2 V
- Slew rate
4 µs
- Fall time
3 µs
- Power output/channel
50 mA
- Power (max) P(TOT)
170 mW
- Voltage output (max.)
35 V
- Current transfer ratio (min.)
50 %
- Current transfer ratio (min.) - current reference
5 mA
- Current transfer ratio (max.)
600 %
- Collector-emitter saturation voltage (max.)
200 mV
- Collector current
50 mA
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1127404 Lite-On Opto-isolator - LED controller LTV-357T SOP 4 Transistor DC
Description
Unfortunately we are not able to provide further information for this product.
