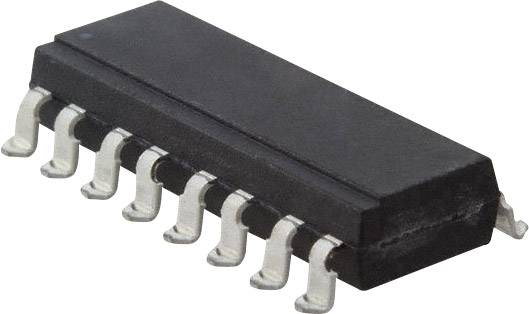

Image similar
Image similar
Lite-On Opto-isolator - LED controller LTV-844S SMD 16 Transistor AC, DC
EAN:
Part number:
Item no:
Product type
Opto-isolator - LED controller
Enclosure
SMD 16
Forward current I(F)
50 mA
Mounting type
Surface-mount
Type
LTV-844S
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
25
-
€ 0.75
75
8% = € 0.06
€ 0.69
125
12% = € 0.09
€ 0.66
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 25
Multiple: 25
Total (€ 0.75 / piece)
€ 18.75
plus VAT.
Technical specifications
- Type
LTV-844S
- Product type
Opto-isolator - LED controller
- Enclosure
SMD 16
- Manufacturer
Lite-On
- Manuf. code
LTO
- UF typ.
1.2 V
- Forward current I(F)
50 mA
- Channels
4
- Input type
AC
DC
- Output type
Transistor
- Insulation voltage
5000 V RMS
- Operating temperature (min.)
+100 °C
- Operating temperature (max.)
-30 °C
- Mounting type
Surface-mount
- Forward voltage U(F) max
1.4 V
- Forward voltage U(F)
1.2 V
- Slew rate
4 µs
- Fall time
3 µs
- Power output/channel
50 mA
- Power (max) P(TOT)
200 mW
- Voltage output (max.)
35 V
- Current transfer ratio (min.)
20 %
- Current transfer ratio (min.) - current reference
1 mA
- Current transfer ratio (max.)
300 %
- Collector-emitter saturation voltage (max.)
200 mV
- Collector current
50 mA
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1127410 Lite-On Opto-isolator - LED controller LTV-844S SMD 16 Transistor AC, DC
