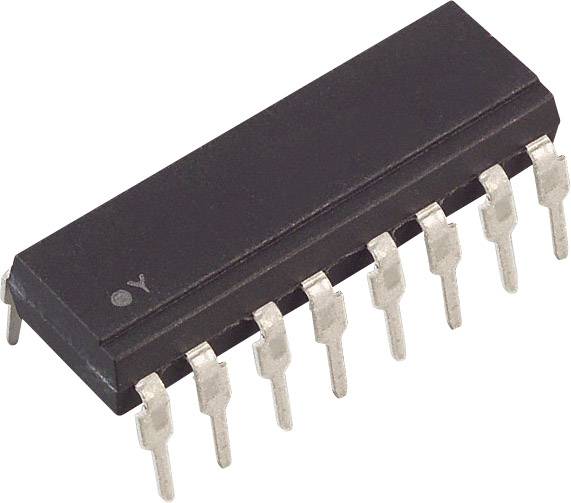

Image similar
Image similar
Lite-On Opto-isolator - LED controller LTV-845 DIP 16 Darlington DC
EAN:
Part number:
Item no:
Product type
Opto-isolator - LED controller
Enclosure
DIP 16
Forward current I(F)
50 mA
Reverse voltage U(R)
6 V
Mounting type
Through-hole
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
25
-
€ 1.08
75
7% = € 0.08
€ 1.00
125
11% = € 0.12
€ 0.96
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 25
Multiple: 25
Total (€ 1.08 / piece)
€ 27.00
plus VAT.
Technical specifications
- Type
LTV-845
- Product type
Opto-isolator - LED controller
- Enclosure
DIP 16
- Manufacturer
Lite-On
- Manuf. code
LTO
- UF typ.
1.2 V
- Forward current I(F)
50 mA
- Reverse voltage U(R)
6 V
- Channels
4
- Input type
DC
- Output type
Darlington
- Insulation voltage
5000 V RMS
- Operating temperature (min.)
+100 °C
- Operating temperature (max.)
-30 °C
- Mounting type
Through-hole
- Forward voltage U(F) max
1.4 V
- Forward voltage U(F)
1.2 V
- Slew rate
60 µs
- Fall time
53 µs
- Power output/channel
80 mA
- Power (max) P(TOT)
200 mW
- Voltage output (max.)
35 V
- Current transfer ratio (min.)
600 %
- Current transfer ratio (min.) - current reference
1 mA
- Current transfer ratio (max.)
7500 %
- Collector-emitter saturation voltage (max.)
1 V
- Collector current
80 mA
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1127741 Lite-On Opto-isolator - LED controller LTV-845 DIP 16 Darlington DC
