Buy Metrix DOX 2070B Digital 70 MHz 2-channel 500 MSa/s 2 MP 8 Bit Digital storage (DSO) 1 pc(s)

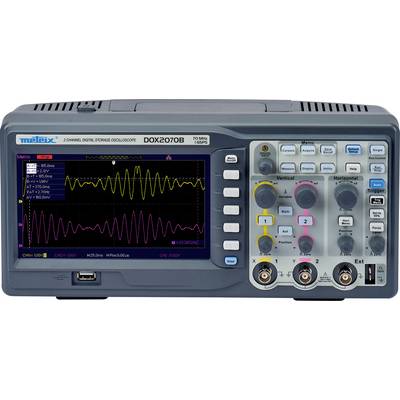

A digital storage oscilloscope displays two waveform signals on the screen. The control panel contains buttons and ports.

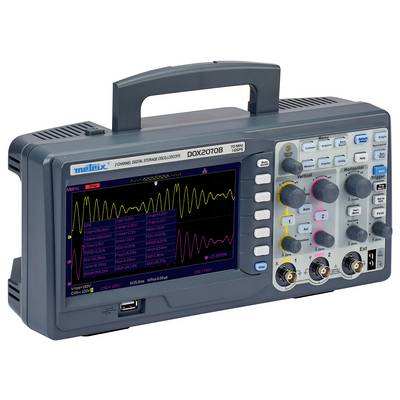

A digital oscilloscope with a screen displays two sinusoidal signals. The device has several controls and ports.

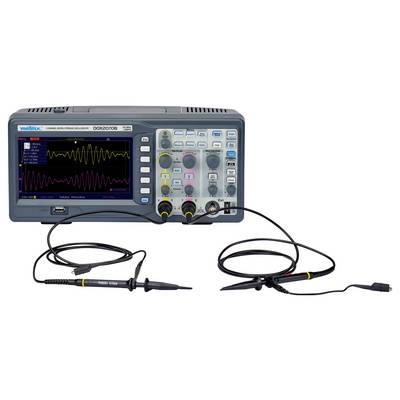

Oscilloscope displays two different waveforms on the screen. Several buttons and switches for control on the front panel.

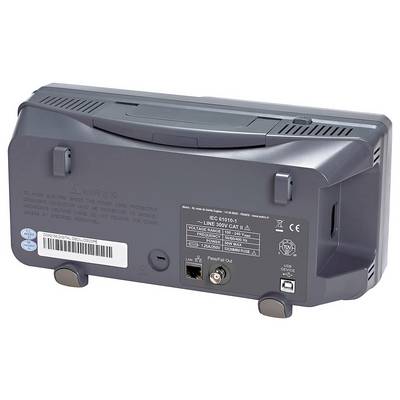

Back of a medical device with labelling. Shows connections for LAN and power, along with technical specifications.

1/4

Datasheet (PDF)

Dispatches on Mon, 28 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 827.73 / piece)

€ 827.73

plus VAT.

Report legal concerns

Highlights & Details

Digital Table Oscilloscope DOX 2070 B with 2 channels of Chauvin Arnoux

70 MHz
No. of analogue inputs 2

Technical specifications

Data transfer to PC: USB device and RJ45 Ethernet
MATH functions: in real time calculated curves CH 1 and CH 2 (Addition, subtraction, multiplication, division)
FFT analyzer

Product type: Digital

Bandwidth: 70 MHz

Channel sample rate: 500 MSa/s

Resolution: 8 Bit

Screen size: 7 inch

Oscilloscope features: Digital storage (DSO)

No. of analogue inputs: 2

: Manufacturer's standards (no certificate)

Reading category: CAT II 300 V

Input impedance: 1 MΩ

Dim: (L x W x H) 157 x 323 x 135 mm

Weight: 2385 g

Display: 800 x 480 p

Width: 323 mm

Height: 135 mm

Length: 157 mm

Channel memory depth: 2 MP

Type: DOX 2070B

Documents & Downloads

Datasheet

Datasheet 1666191 Metrix DOX 2070B Digital 70 MHz 2-channel 500 MSa/s 2 MP 8 Bit Digital storage (DSO) 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1666191 Metrix DOX 2070B Digital 70 MHz 2-channel 500 MSa/s 2 MP 8 Bit Digital storage (DSO) 1 pc(s)

Description

The Dox 2070B is a very easy to use 2-channel oscilloscopes in a space-saving housing low depth, which has been developed especially for laboratory work places. With the DOX 2070 B-table oscilloscope, the all signals represent and analyze.

This text is machine translated.

Features

Built-in 9-inch folding handle allows easy transport
Universal rotary switch
Traditional control elements of the front plate: rotary knobs and backlit buttons (CH1, CH2; math and REF + MENU)
Very bright, large 7" TFT color screen
Data transfer via the USB port
housing.
Feet give stability
2 channels + 1 channel for external triggering and 1 signal for probe calibration
