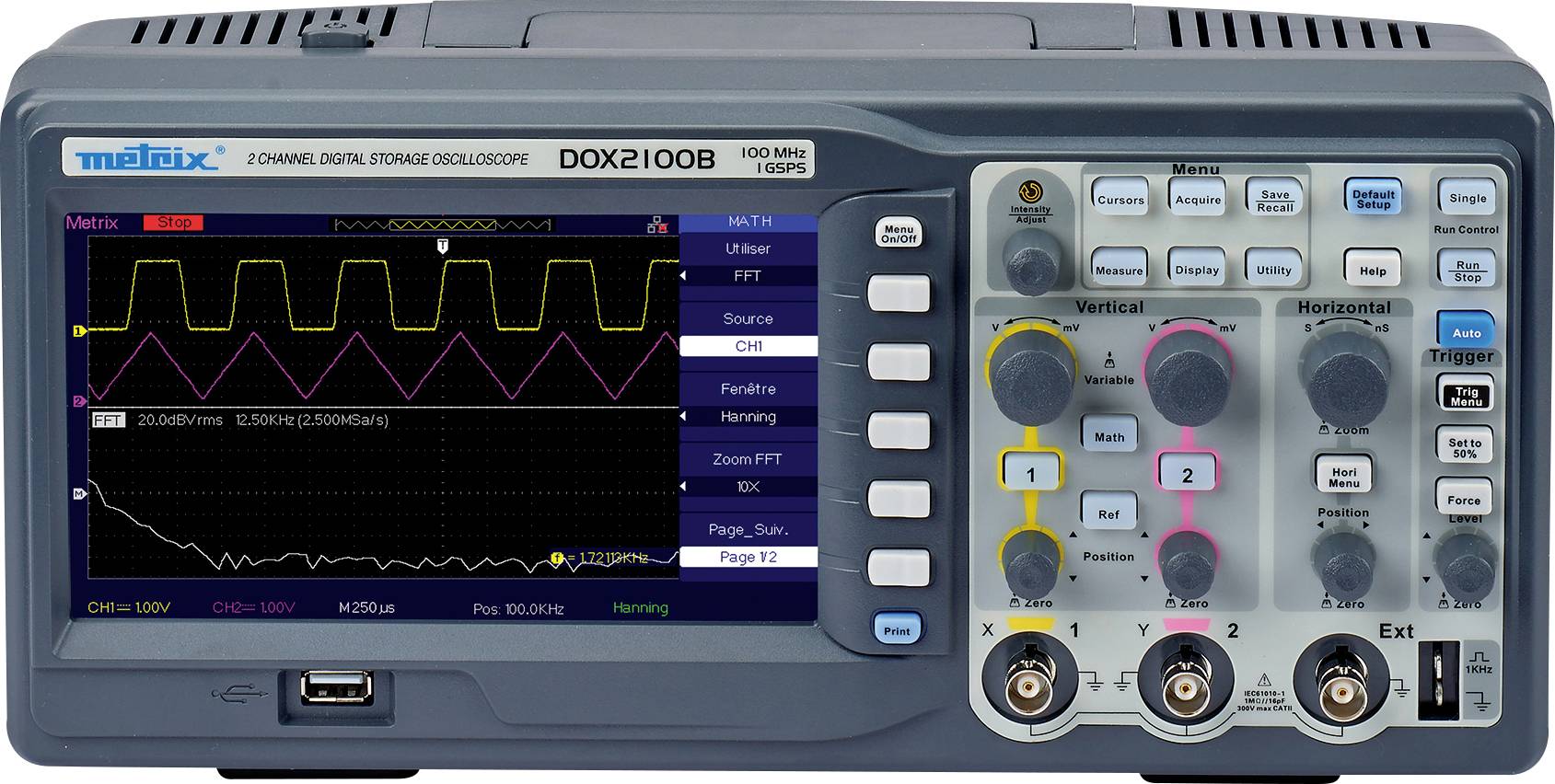

A digital oscilloscope with a dual-channel display, showing electrical signals. It has multiple controls for signal management.

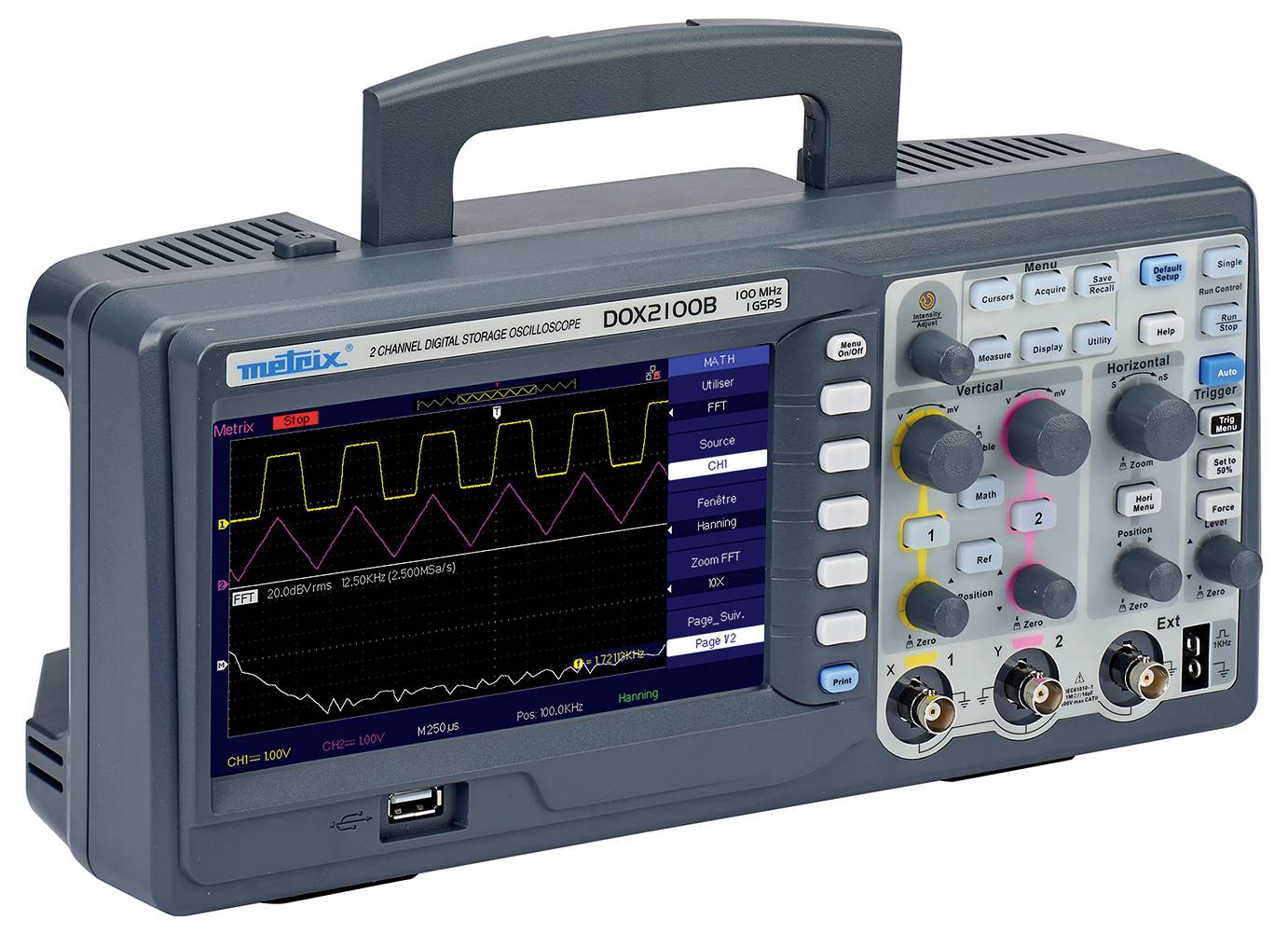

A digital storage oscilloscope with multiple rotary controls, buttons, and a screen displaying two signal traces.

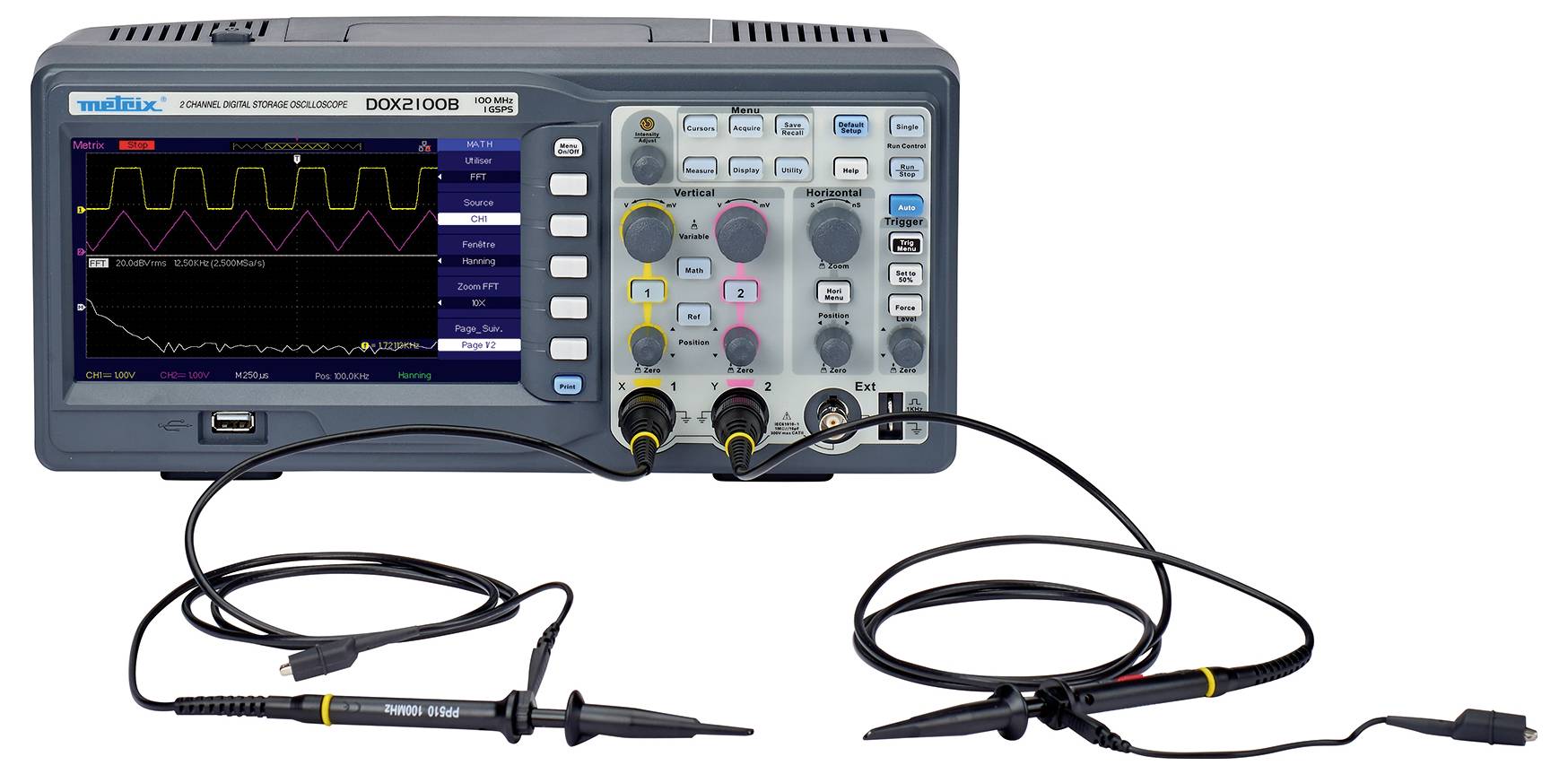

Oscilloscope with screen displaying waveform diagram. Two probes are connected. Device for measuring electrical signals.

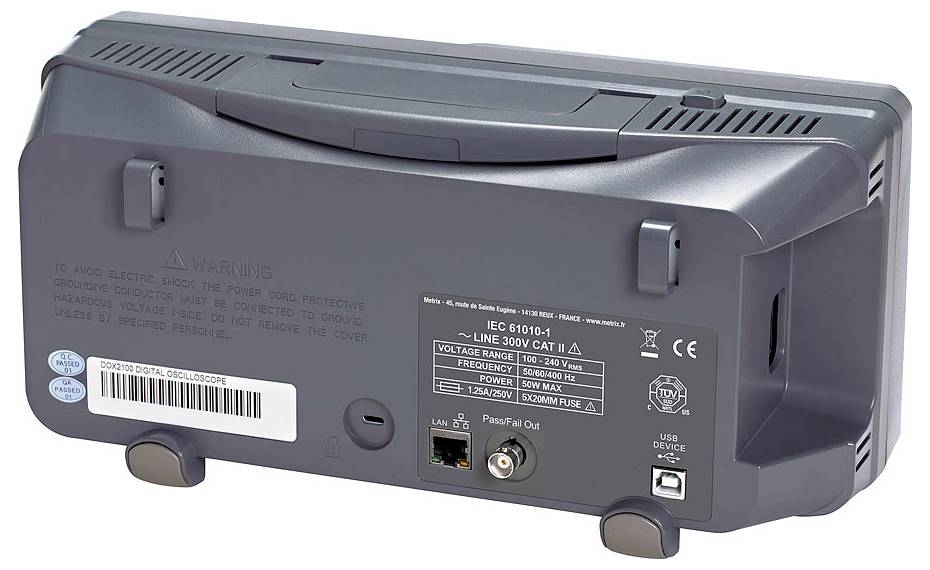

Rear view of an electronic device with ports and label showing technical specifications, including voltage and frequency.

1/4

Datasheet (PDF)

Dispatches on Mon, 28 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1,015.97 / piece)

€ 1,015.97

plus VAT.

Report legal concerns

Highlights & Details

Digital Table Oscilloscope DOX 2100 B with 2 channels of Chauvin Arnoux

100 MHz
No. of analogue inputs 2

Technical specifications

Data transfer to PC: USB device and RJ45 Ethernet
MATH functions: in real time calculated curves CH 1 and CH 2 (Addition, subtraction, multiplication, division)
FFT analyzer

Product type: Digital

Bandwidth: 100 MHz

Channel sample rate: 500 MSa/s

Resolution: 8 Bit

Screen size: 7 inch

Oscilloscope features: Digital storage (DSO)

No. of analogue inputs: 2

: Manufacturer's standards (no certificate)

Reading category: CAT II 300 V

Input impedance: 1 MΩ

Dim: (L x W x H) 157 x 323 x 135 mm

Weight: 2385 g

Display: 800 x 480 p

Width: 323 mm

Height: 135 mm

Length: 157 mm

Channel memory depth: 2 MP

Type: DOX 2100B

Documents & Downloads

Datasheet

Datasheet 1666192 Metrix DOX 2100B Digital 100 MHz 2-channel 500 MSa/s 2 MP 8 Bit Digital storage (DSO) 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1666192 Metrix DOX 2100B Digital 100 MHz 2-channel 500 MSa/s 2 MP 8 Bit Digital storage (DSO) 1 pc(s)

Description

The Dox 2100B is a very easy to use 2-channel oscilloscopes in a space-saving housing low depth, which has been developed especially for laboratory work places. With the DOX 2100 B-table oscilloscope, the all signals represent and analyze.

This text is machine translated.

Features

Built-in 9-inch folding handle allows easy transport
Universal rotary switch
Traditional control elements of the front plate: rotary knobs and backlit buttons (CH1, CH2; math and REF + MENU)
Very bright, large 7" TFT color screen
Data transfer via the USB port
housing.
Feet give stability
2 channels + 1 channel for external triggering and 1 signal for probe calibration
