Name: Metz Connect Network outlet Surface-mount CAT 6A 3 ports Pure white
Brand: Metz Connect
SKU: 994396
Availability: InStock

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

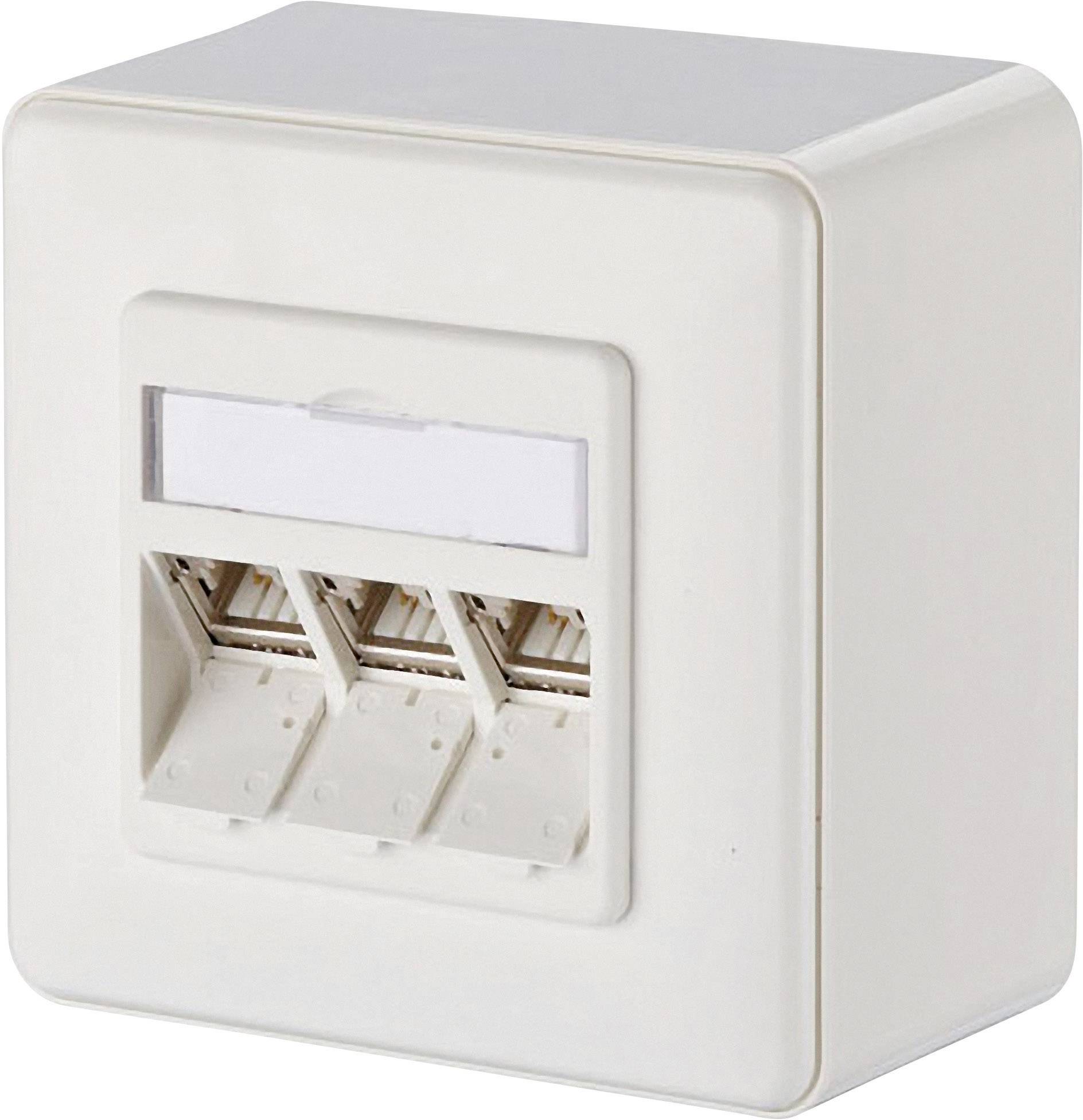

White network wall socket with three Ethernet ports and a label field at the top for marking the connections.

Datasheet (PDF)

Fast track dispatch on Tue 27 Oct

6 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 34.99 / piece)

€ 34.99

incl. VAT

Only 6 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

BTR NETCOM 130B12D30002-E

Surface-mounted connection unit with C6A module 270°
GHMT Cat 6A re-embedded PVP certified.
Cat 6A component testing according to ISO/IEC 11801 Ed.2.2: 2011-06, DIN EN 50173-1:2011-09, TIA/EIA-568-C.2 (2009-08) and IEC 60603-7-51 Ed.1 (12/2008), GHMT certified
This text is machine translated.

Technical specifications

Product type: Network outlet

Mounting type: Surface-mount

: CAT 6A

No. of LAN ports: 3 x

Features: Modular

Factory colour: Pure white

Switch type function: Network junction box

Switch type component: Insert

Similar RAL: 9010

Port: 3 ports

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 994396 Metz Connect Network outlet Surface-mount CAT 6A 3 ports Pure white

User & Safety Instructions

User & Safety Instructions 994396 Metz Connect Network outlet Surface-mount CAT 6A 3 ports Pure white

Description

Modular junction box for building a passive network infrastructure with the highest quality requirements. The junction box is suitable for connecting telephones up to 10 Gbit networks and the power supply with PoE with up to 90W. The only two-part, very robust, nickel-plated die-cast zinc module allows the installer to connect easily and in the shortest possible time without special tools. In addition to the permanent quality control accompanying the production, independant test laboratories with different certificates confirm the very good quality of the individual modules. The junction boxes are supplied in commercially-friendly, individual carton boxes with 10 pieces each.Variants, assembly type: AP, UP, UPK, UP0, Variants, number of ports: 1, 2, 3

This text is machine translated.

Features

Compliance with the Class EA to 500 MHz according to ISO/IEC 11801 Ed.2.2: 2011-06, DIN EN 50173-1:2011-09
Tested: components up to 600 MHz, link up to 800 MHz
For 10 GBit Ethernet (IEEE 802.3an)
Suitable for Power over Ethernet (PoE, PoE plus and UPoE)
This enables an easy to mount connection of data lines AWG 24/1 - 22/1 (single-wired) and AWG 26/7 to 22/7 (multi-wired) to IDC terminals.
Insert direction of the module inclined 45° downward
Strain-relief with licking clip at the loading piece with a viewing window for accompanying inscription insert
Inscription arc 209 x 294 mm see accessories
Integrated dust-protection flaps (also available in color)
Cover panels, pure white RAL 9010, matt surface structure
Variants: 1 Port, 2-Port, 3-Port

Description

Features

Compliance with the Class EA to 500 MHz according to ISO/IEC 11801 Ed.2.2: 2011-06, DIN EN 50173-1:2011-09
Tested: components up to 600 MHz, link up to 800 MHz
For 10 GBit Ethernet (IEEE 802.3an)
Suitable for Power over Ethernet (PoE, PoE plus and UPoE)
This enables an easy to mount connection of data lines AWG 24/1 - 22/1 (single-wired) and AWG 26/7 to 22/7 (multi-wired) to IDC terminals.
Insert direction of the module inclined 45° downward
Strain-relief with licking clip at the loading piece with a viewing window for accompanying inscription insert
Inscription arc 209 x 294 mm see accessories
Integrated dust-protection flaps (also available in color)
Cover panels, pure white RAL 9010, matt surface structure
Variants: 1 Port, 2-Port, 3-Port
