Connectors & CablesConnectorsTelecom & IT ConnectorsUSB Connectors

Micro USB 2.0 type B RJ45 socket, mount 1310-1023-01 M22 1310-1023-01 encitech Content: 1 pc(s)

A black USB cable with a removable protective cover, one side featuring a USB-A plug and the other with a socket in a circular housing.

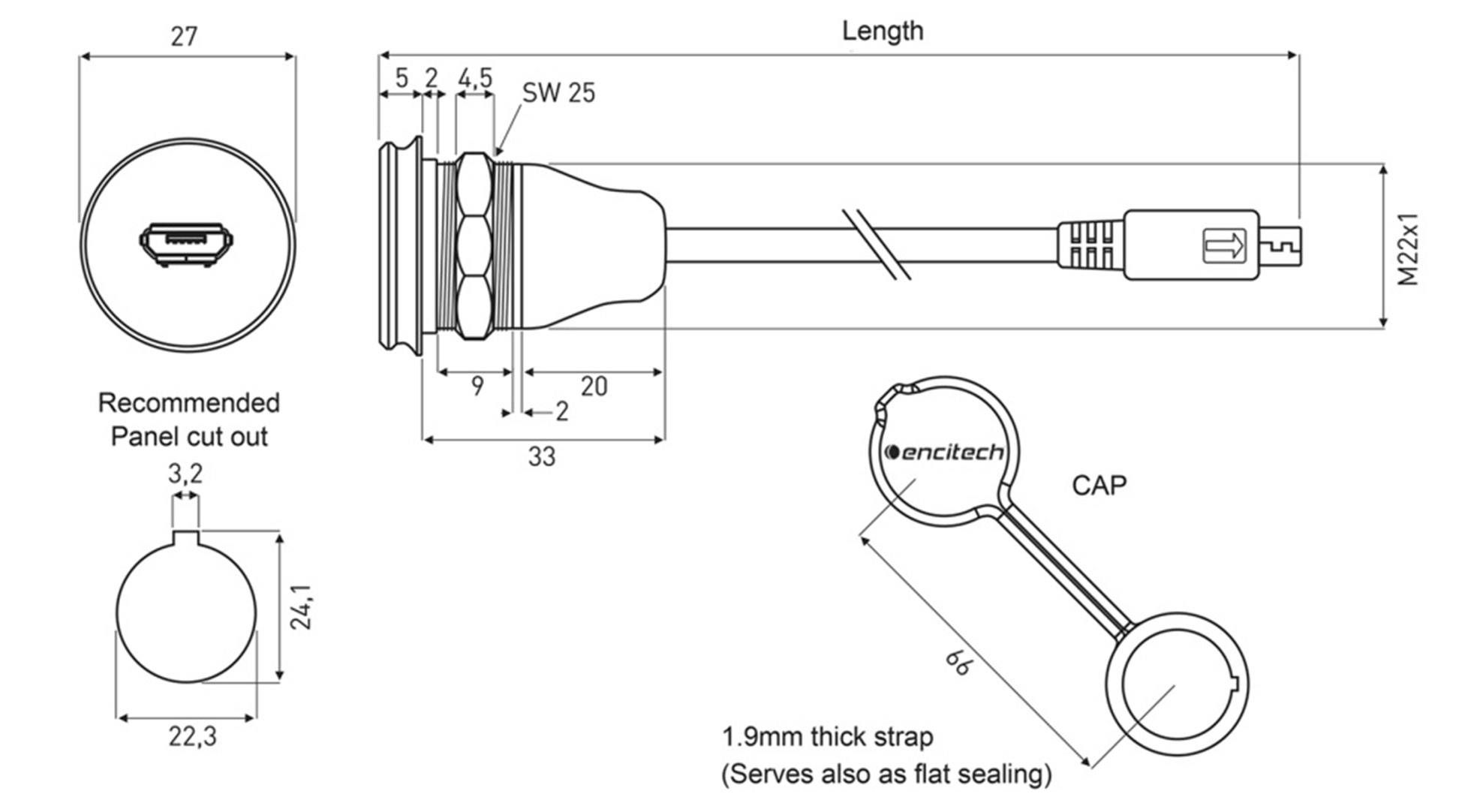

'Technical drawing of a plug with cap and dimensions. Details: Length, SW 25, M22x1 thread, 1.9 mm thick band.'
1/2
Image similar
Product type
USB connector
Connector type
RJ45 socket, mount
Number of pins
5
USB type
Micro B
Connector standard
Micro-B USB
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 16.99 / piece)
€ 16.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Type

1310-1023-01

Product type

USB connector

Connector type

RJ45 socket, mount

Type

M22

Number of pins

5

USB type

Micro B

Connector standard

Micro-B USB

Connection

Cable + connector

Type A

USB 2.0 port Micro B

Type B

USB 2.0 connector Micro B

Bore Ø

23 mm

Case material

PA

Manufacturer part #

1310-1023-01

Factory colour

Black

Content

1 pc(s)

Cable length

0.50 m

Contact material

Gold plated

Compatible with (details)

M22 thread

IP67

Features

+ plastic cap

+ locknut

Documents & Downloads

Datasheet

Datasheet 1656535 Micro USB 2.0 type B RJ45 socket, mount 1310-1023-01 M22 1310-1023-01 encitech Content: 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1656535 Micro USB 2.0 type B RJ45 socket, mount 1310-1023-01 M22 1310-1023-01 encitech Content: 1 pc(s)
