2x USB 3.0 socket A RJ45 socket, mount 1310-1029-02 M22 1310-1029-02 encitech Content: 1 pc(s)

Blue USB extension cable with two USB 3.0 plugs and one socket, cover on the side.

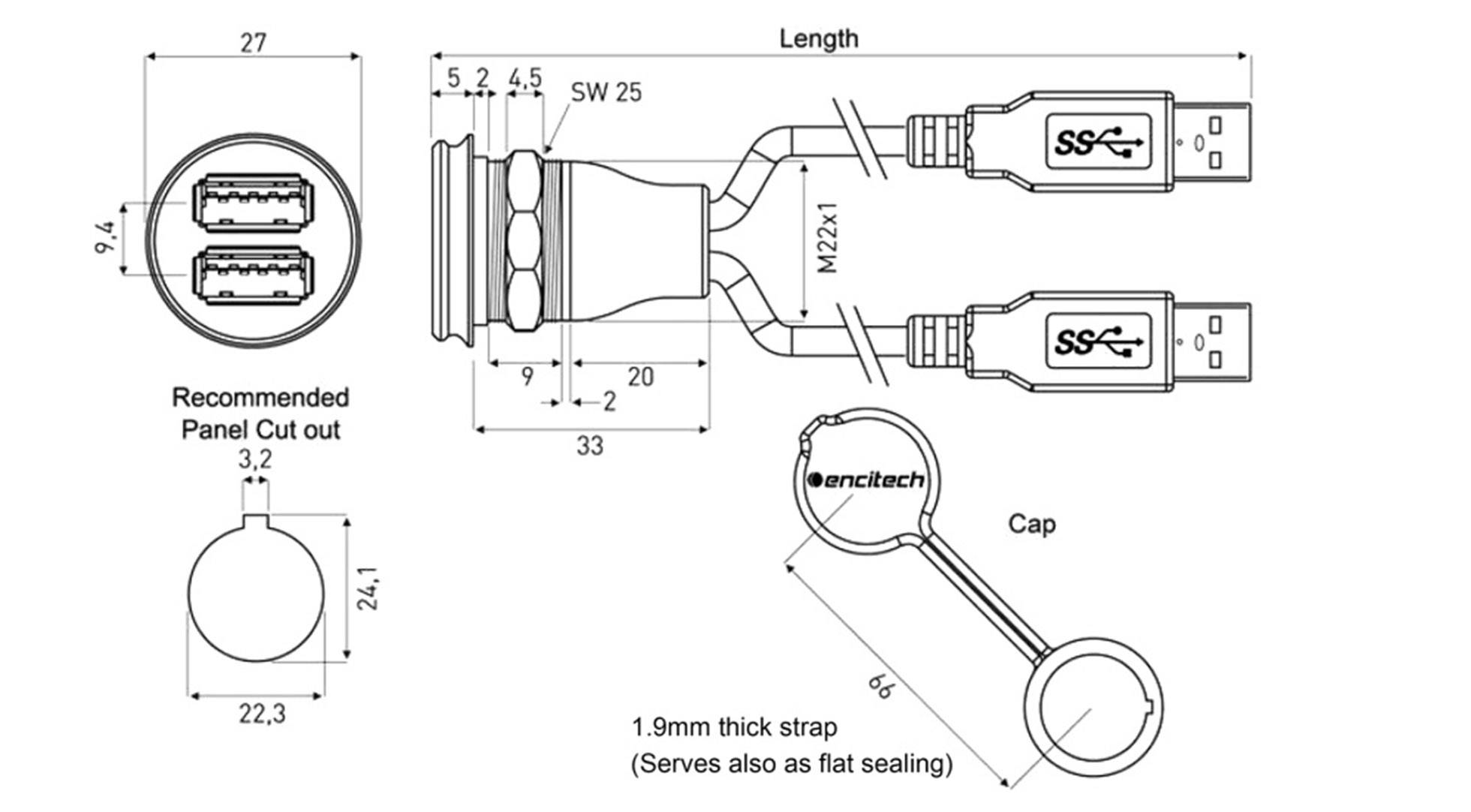

Technical drawing of a USB connector with dimensions and details. Shows two USB plugs, cables, mounting holes, and a protective cap.
1/2
Image similar
Product type
USB connector
Connector type
RJ45 socket, mount
Number of pins
9
USB type
A
Connector standard
USB 3.2 1st Gen (USB 3.0)
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 22.99 / piece)
€ 22.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Type

1310-1029-02

Product type

USB connector

Connector type

RJ45 socket, mount

Type

M22

Number of pins

9

USB type

A

Connector standard

USB 3.2 1st Gen (USB 3.0)

Connection

Cable + connector

Type A

USB 3.2 1st Gen port A (USB 3.0)

USB 3.2 1st Gen port A (USB 3.0)

Type B

USB 3.2 1st Gen connector A (USB 3.0)

USB 3.2 1st Gen connector A (USB 3.0)

Bore Ø

23 mm

Case material

PA

Manufacturer part #

1310-1029-02

Factory colour

Black

Blue

Content

1 pc(s)

Cable length

1.00 m

Contact material

Gold plated

Compatible with (details)

M22 thread

IP67

Features

+ plastic cap

+ locknut

Documents & Downloads

Datasheet

Datasheet 1656566 2x USB 3.0 socket A RJ45 socket, mount 1310-1029-02 M22 1310-1029-02 encitech Content: 1 pc(s)
