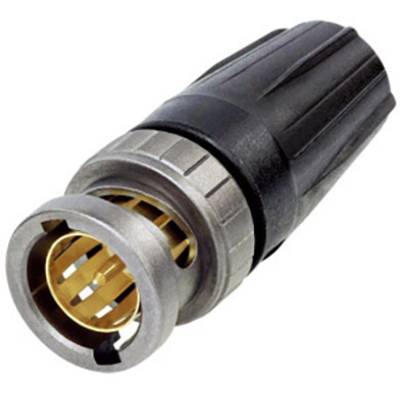

Neutrik NBNC75BTU11X BNC connector Plug, straight 75 Ω 1 pc(s)
Cable category
Suhner S05163-02
Belden 1694A (ANH)
Product type
BNC connector
Connector type
Plug, straight
Impedance
75 Ω
Connection
Crimp
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 6.99 / piece)
€ 6.99
incl. VAT
14-day return policy included
Highlights & Details
RearTWIST UHD BNC plug connector
- Push-pull locking
- Fit for HDTV
Technical specifications
- Cable category
Suhner S05163-02
Belden 1694A (ANH)
- Product type
BNC connector
- Connector type
Plug, straight
- Impedance
75 Ω
- Connection
Crimp
- Content
1 pc(s)
- Cable Ø
7.30 mm
- Manufacturer part #
NBNC75BTU11X
- Contact material
Gold plated
- Temperature range
-30 - +40 °C
- Type
NBNC75BTU11X
- Seal type
Push-Pull
- Frequency
0 - 3 GHz
- Connection
Crimp
- Voltage
500 V/AC, rms.
- Seal
Push-pull
Documents & Downloads
Datasheet
Datasheet 1618640 Neutrik NBNC75BTU11X BNC connector Plug, straight 75 Ω 1 pc(s)
Description
The 75 Ω RearTwist® BNC Cable coupler offers excellent return loss value and therefore, is best suitable for HDTV applications.
The patented RearTwist® clamping sleeve guarantees an easy handling, even for high density of connector and offers the possibility of coloured marking.
This text is machine translated.
The patented RearTwist® clamping sleeve guarantees an easy handling, even for high density of connector and offers the possibility of coloured marking.
This text is machine translated.
Hints
Crimping: In case of push-pull plug type only the pin is crimped!
Mounting help Order No. 73 77 44 - HT-BNC and the associated crimping inset are needed.
