Neutrik NBNC75BLP7X BNC connector Plug, straight 75 Ω 1 pc(s)

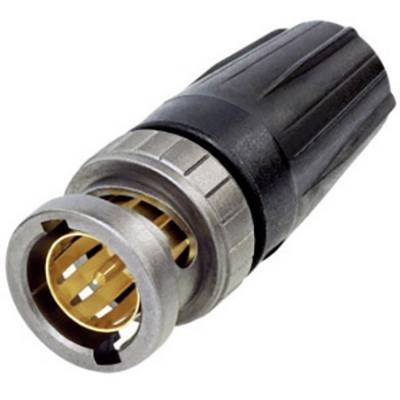

A black and metallic plug adapter, cylindrical in shape, with several golden contact pins inside.
Cable category
Belden 8241
Draka 0.6/3.7
RG 59 B/U
Cordial CVI (CVM) 06-37
Sommer 600-0051
Sommer 600-0054
Nexans HF 75 0,6/3,7 2YCY
Product type
BNC connector
Connector type
Plug, straight
Impedance
75 Ω
Connection
Crimp
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Tue 10 Nov
104 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 12.99 / piece)
€ 12.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

RearTWIST UHD BNC plug connector

  • Push-pull locking
  • Fit for HDTV

Technical specifications

Cable category

Belden 8241

Draka 0.6/3.7

RG 59 B/U

Cordial CVI (CVM) 06-37

Sommer 600-0051

Sommer 600-0054

Nexans HF 75 0,6/3,7 2YCY

Product type

BNC connector

Connector type

Plug, straight

Impedance

75 Ω

Connection

Crimp

Content

1 pc(s)

Cable Ø

6.30 mm

Manufacturer part #

NBNC75BLP7X

Contact material

Gold plated

Temperature range

-30 - +40 °C

Type

NBNC75BLP7X

Seal type

Push-Pull

Frequency

0 - 3 GHz

Connection

Crimp

Voltage

500 V/AC, rms.

Seal

Push-pull

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 1618638 Neutrik NBNC75BLP7X BNC connector Plug, straight 75 Ω 1 pc(s)

Description

The 75 Ω RearTwist® BNC Cable coupler offers excellent return loss value and therefore, is best suitable for HDTV applications.
The patented RearTwist® clamping sleeve guarantees an easy handling, even for high density of connector and offers the possibility of coloured marking.

This text is machine translated.

Hints

Crimping: In case of push-pull plug type only the pin is crimped!
Mounting help Order No. 73 77 44 - HT-BNC and the associated crimping inset are needed.
