Panel feed-through Q 1,5/3A50/13-M20KU-ESA 1640731 Phoenix Contact
Product type
Bullet connector feedthrough
Total no. of pins
2 + PE
Connection
Open end cable
Content
10 pc(s)
Nominal current - rounded value
3 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 13.50 / piece)
€ 134.99
incl. VAT
14-day return policy included
Highlights & Details
Panel feed-through Q 1,5/3A50/13-M20KU-ESA
- Q 1.5/3 A 50,13 v-M 20 KU-ESA
- Industrial packaging, pack of 10
Technical specifications
- According to UL 94 PA VO
- UL/CSA
- Type
Q 1,5/3A50/13-M20KU-ESA
- Product type
Bullet connector feedthrough
- Total no. of pins
2 + PE
- Connection
Open end cable
- Factory colour
Green
- Content
10 pc(s)
- Max. temperature
+85 °C
- Nominal current
3 A
- Min. temperature
-40 °C
- Nominal current - rounded value
3 A
- Seal
Screw-type locking
- Leading contact (PE)
Yes
- Nominal voltage
125 V
- Contact material
CuZn, tin-plated
- Case material
PE
18 - 16
- Connection angle
180°
- Mounting hole diameter
20.4 mm
- Manufacturer part #
1640731
- Industrial packaging
Yes
- Number of pins
2
- max. cross section
1.5 mm²
- Cross-section range
1.5 mm² (max)
IP67
- Series
QUICKON
- Standards
following UL 94 PA VO · UL-/ CSA
Documents & Downloads
Datasheet
Datasheet 583976 Panel feed-through Q 1,5/3A50/13-M20KU-ESA 1640731 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 583976 Panel feed-through Q 1,5/3A50/13-M20KU-ESA 1640731 Phoenix Contact
Description

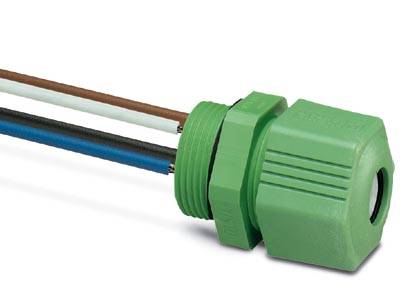

QUICKON panel feed-through, for the front wall assembly with 50 cm long wires, 3-pos.
Hints
Special order, no right of withdrawal.
