Paulmann 50046 MaxLED Switch controller 6000 mA 24 (max.) 24 V Plastic (L x W x H) 95 x 38 x 28 mm 1 pc(s)

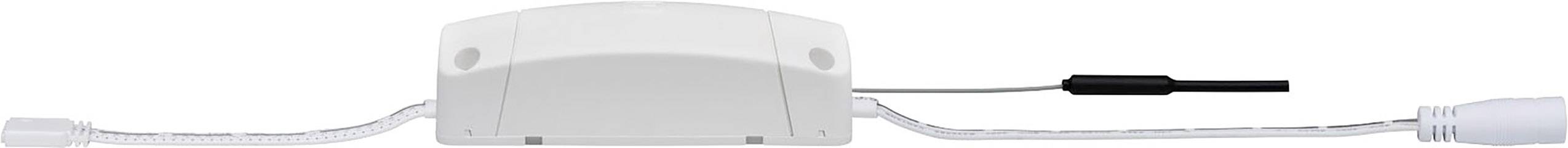

A white electrical device with two cables, one on each side, in a minimalist design.
MaxLED Tunable White Controller for Smart Home. Dimmable Strips Individually or Grouped. Compatible with All Zigbee 3.0 Gateways.
Two living room scenes: left brightly lit, right dimmed. Text: 'Smart lighting control', compatible with Amazon Alexa, Google Assistant, Zigbee.
'MaxLED – Expandable Component System': Three images show different living environments with MaxLED 250, 500 and 1000 lighting. Below are symbols: easy to connect, mount and control.
Content: 1x 78mm. Recycling and certification symbols. Multilingual packaging text.<br><br>Note: This is a standard translation for technical documentation, maintaining the precise technical details and format of the original German text.
1/5
Product type
Switch controller
Operating voltage
24 V
Material
Plastic
Length
95 mm
Energy efficiency rating
n.rel.
EAN:
Part number:
Item no:
Available soon
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 33.99 / piece)
€ 33.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Switching controller MaxLED Tunable White

  • For wireless control of the MaxLED Strips
  • Bidirectional data transfer
  • Range up to 50m outdoors
  • 'Works with Amazon Alexa' next to a blue Echo symbol, indicating compatibility with Amazon Alexa features.

Technical specifications

  • Protection class: protection class III
  • Current 6000 mA
  • Starting time<: 0.0 s
  • Radio frequency 2.4 GHz
  • Radio range 50 m
Product type

Switch controller

Operating voltage

24 V

144 W

Factory colour

Grey

White

Material

Plastic

LED features

dimmable

Width

38 mm

Height

28 mm

Length

95 mm

Depth

28 mm

Dim

(L x W x H) 95 x 38 x 28 mm

Output voltage (max.)

24 V

Max. output current

6000 mA

n.rel.

30.000 h

Data exchange

Bidirectional (bi)

Transfer Standard (Smart Home)

ZigBee

Protection class

III

Alexa

UKCA

not relevant

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1657177 Paulmann 50046 MaxLED Switch controller 6000 mA 24 (max.) 24 V Plastic (L x W x H) 95 x 38 x 28 mm 1 pc(s)

Warranty Terms

Warranty Terms 1657177 Paulmann 50046 MaxLED Switch controller 6000 mA 24 (max.) 24 V Plastic (L x W x H) 95 x 38 x 28 mm 1 pc(s)

Description

Paulmann Home - Zigbee-controlled Lighting

Paulmann products now support wireless Zigbee via a compatible gateway, allowing you to control lights using an app, a remote (optional) or Alexa voice-control.
Depending on the product, feature include turning the lights on or off, dimming, colour selection and choosing different shades of white.

The MaxLED Tunable White controllers from the Smart Home Zigbee series can be MaxLED strips with white light control switch and dim. The controller is zigbee 3.0 compatible. Zigbee is a radio transmission protocol, the networked devices of different manufacturers. This is a central control of lighting is possible, for example, in the shutters, heaters and alarm systems can be integrated. You can choose between the operation via the paulmann Home Gateway, a gateway same standards of other manufacturers or a Smart Home Zigbee hand transmitter. Individual components can be selectively engage in groups or as light scenes.

This text is machine translated.

Features

  • Can be controlled with paulmann Home Gateway via free Paulmann Home app for iOS and Android
  • Can be controlled with the gateways of other manufacturers via corresponding App
  • Can be controlled with Smart ZigBee remote control
  • Bidirectional data transfer
  • Range up to 50m outdoors
  • Mesh-enabled: increased range from product to product
  • Controls MaxLED strips with Tunable White Function
  • Simple connection system for easy installation

Scope of delivery

  • Switching controller
  • User manual.

Hints

Matching remote control and gateway please order separately.
