Name: Phoenix Contact 1778764 Spring-loaded terminal 0.50 mm² Number of pins 2 Black 600 pc(s)
Brand: Phoenix Contact
SKU: 199696
Availability: InStock

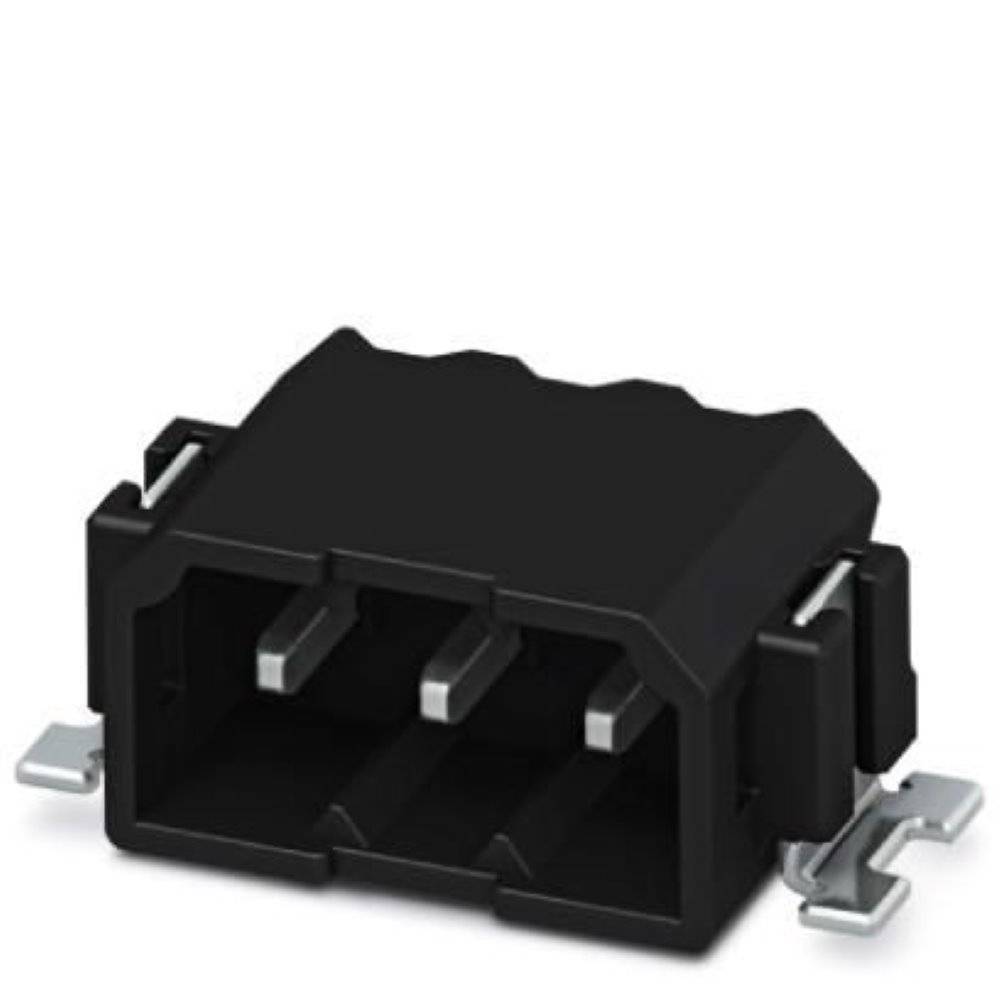

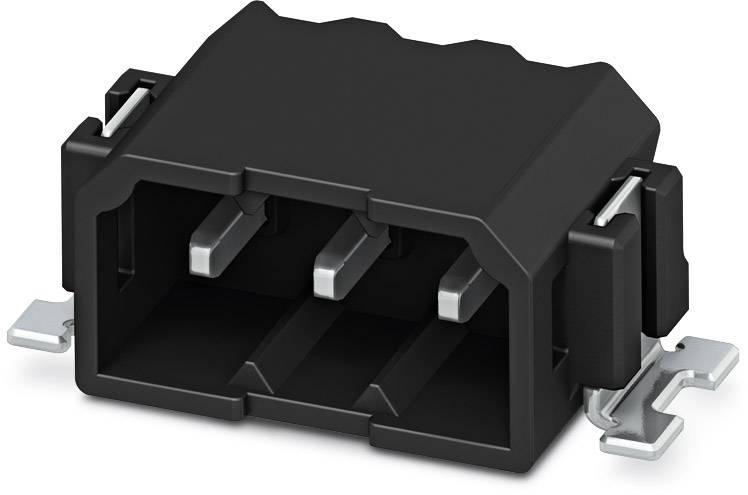

Image similar

Product type

Spring-loaded terminal

2.50 mm

Pins per row

Number of pins

Connection

Spring-loaded terminal

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 16 Nov

27 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 600 pc(s))

Set(s)

Total (€ 0.79 / piece)

€ 475.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Base strip PTSM 0,5/ 2-HH-2,5-SMD R32

Content 600 pc(s)

Technical specifications

Type: PTSM 0,5/ 2-HH-2,5-SMD R32

Product type: Spring-loaded terminal

Features: + anti-twist safeguard

CS: 2.50 mm

No. of rows: 1

Pins per row: 2

Number of pins: 2

Series: PTSM

Stripping length (max.): 6.00 mm

Connection: Spring-loaded terminal
Print

Nominal current: 6 A

Cross section (flexible) (min.): 0.20 mm²

Nominal current - rounded value: 6 A

Cross section (inflexible) (min.): 0.14 mm²

Cross section (flexible) (max.): 0.50 mm²

Cross section (inflexible) (max.): 0.50 mm²

AWG (min.): 24

Connector orientation: Parallel (to the PCB)

AWG max.: 20

Contact material: Tin plated

Enclosure material: Polyamide

Factory colour: Black

Wire protection: Yes

Actuation direction: Parallel (to the PCB)

Manufacturer part #: 1778764

Industrial packaging: Yes

Content: 600 pc(s)

Nominal voltage: 160 V

Width: 9.50 mm

Height: 6.20 mm

Length: 5.00 mm

Connector system: wire-to-board

Series: PTSM

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 199696 Phoenix Contact 1778764 Spring-loaded terminal 0.50 mm² Number of pins 2 Black 600 pc(s)

User & Safety Instructions

User & Safety Instructions 199696 Phoenix Contact 1778764 Spring-loaded terminal 0.50 mm² Number of pins 2 Black 600 pc(s)

Description

Header, Nominal current: 6 A, Rated voltage (III/2): 160 V, Number of positions: 2, Pitch: 2.5 mm, Color: Black, Contact surface: Tin, Assembly: SMD/THT/THR

Hints

Special order, no right of withdrawal.

Description

Header, Nominal current: 6 A, Rated voltage (III/2): 160 V, Number of positions: 2, Pitch: 2.5 mm, Color: Black, Contact surface: Tin, Assembly: SMD/THT/THR
