Name: Phoenix Contact 1987067 Spring-loaded terminal 16 mm² Number of pins 1 Green 50 pc(s)
Brand: Phoenix Contact
SKU: 566593
Availability: InStock

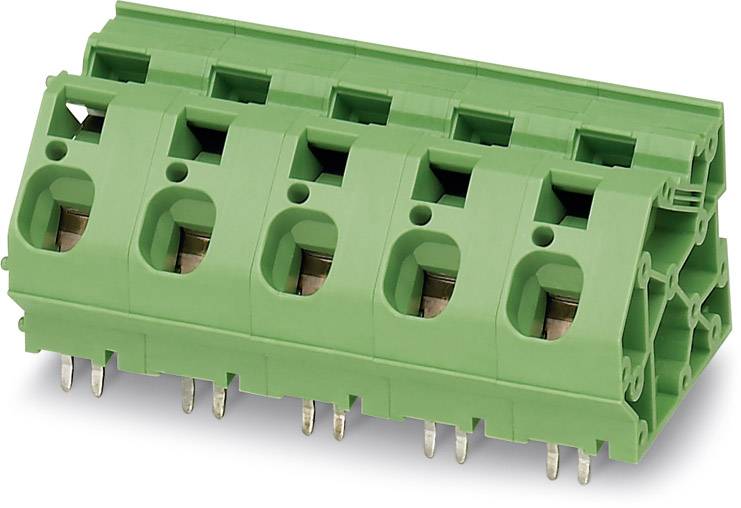

'Green connector with five terminals, suitable for PCB mounting.'

Image similar

Product type

Spring-loaded terminal

15 mm

Pins per row

Number of pins

Connection

Spring-loaded terminal

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 16 Nov

71 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 50 pc(s))

Set(s)

Total (€ 1.76 / piece)

€ 87.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

PCB terminal block ZFKDSA 10-16,7

Content 50 pc(s)

Technical specifications

Type: ZFKDSA 10-16,7

Product type: Spring-loaded terminal

CS: 15 mm

No. of rows: 1

Pins per row: 1

Number of pins: 1

Stripping length (max.): 12.00 mm

Connection: Spring-loaded terminal
Print

Nominal current: 76 A

Cross section (flexible) (min.): 0.20 mm²

Nominal current - rounded value: 76 A

Cross section (inflexible) (min.): 0.20 mm²

Cross section (flexible) (max.): 16 mm²

Cross section (inflexible) (max.): 16 mm²

AWG (min.): 24

Connector orientation: At an angle (to the PCB)

AWG max.: 6

Contact material: Tin plated

Enclosure material: Polyamide

Factory colour: Green

Manufacturer part #: 1987067

Industrial packaging: Yes

Content: 50 pc(s)

Nominal voltage: 1000 V

Width: 33.40 mm

Height: 27.00 mm

Length: 15.00 mm

Connector system: wire-to-board

Series: ZFKDS(A)

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 566593 Phoenix Contact 1987067 Spring-loaded terminal 16 mm² Number of pins 1 Green 50 pc(s)

User & Safety Instructions

User & Safety Instructions 566593 Phoenix Contact 1987067 Spring-loaded terminal 16 mm² Number of pins 1 Green 50 pc(s)

Description

PCB terminal block, Nominal current: 76 A, Nom. voltage: 1000 V, Pitch: 15 mm, Number of positions: 1, Connection method: Spring-cage conn., Mounting: Soldering, Conductor/PCB connection direction: 45 °, Color: green, The article can be aligned to create different nos. of positions!
