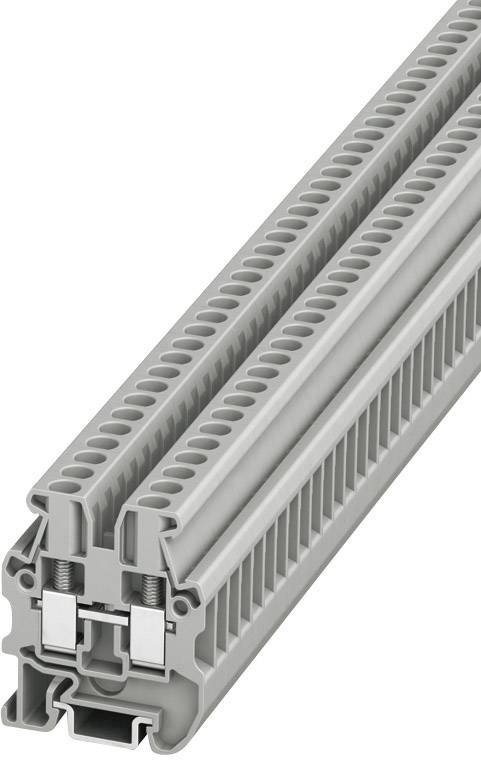

Phoenix Contact 3248030 Continuity 5.2 mm Screws Grey 50 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Screws
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
24 A
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 1.08 / piece)
€ 53.77
plus VAT.
Highlights & Details
Through terminal courage 2.5
- MUT 2,5
Technical specifications
- Product type
Continuity
- Connection
Screws
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
24
- AWG max.
12
- Clamp width
5.2 mm
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Factory colour
Grey
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
500 V
- Stripping length (max.)
9 mm
- Manufacturer part #
3248030
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
MUT 2,5
- Dim
(L x W x H) 29.9 x 5.2 x 34 mm
- Width
5.2 mm
- Height
34 mm
- Length
29.9 mm
- Flammability rating
V0
